C50PACK

Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System

Larger Images

Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System

The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surfacemount system.

Features

  • Versatile four satellite speaker system
  • Stylish, unobtrusive design fits into a wide variety of decor
  • High fidelity sound
  • Selectable 70V/100V for distributed lines, or low impedance
  • Wall-mount brackets include
  • Available in black or white


Downloads

  Version Language Size Uploaded
Specifications
Control 50 Spec Sheet
updated: Apr 29, 2019
    377 KB Apr 29, 2019
Compliances
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Faqs
Control 50 FAQ
updated: Apr 29, 2019
    159 KB Apr 29, 2019
Images

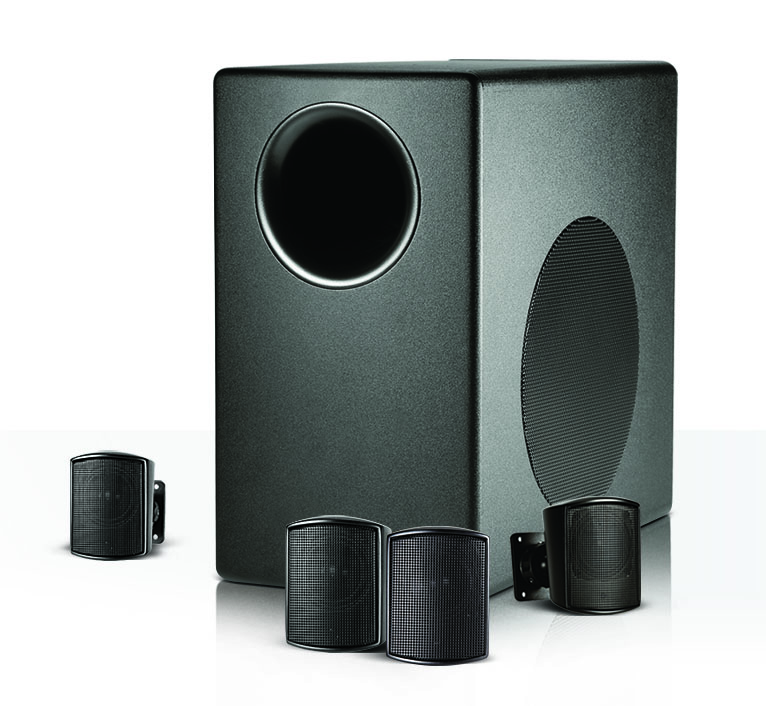

Control 50 Pack Hi Res Image
updated: Apr 29, 2019
    713 KB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range (-10 dB) 32 Hz – 20 kHz
Frequency Response (±3 dB) 50 Hz – 17 kHz
Power Capacity 200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity (2.83V, 1m) 87 dB (subwoofer center of wall, higher sensitivity depending on subwoofer boundary loading, see application note)
Nominal Impedance 4 ohms (in bypass/thru mode) with 4 satellites
Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
