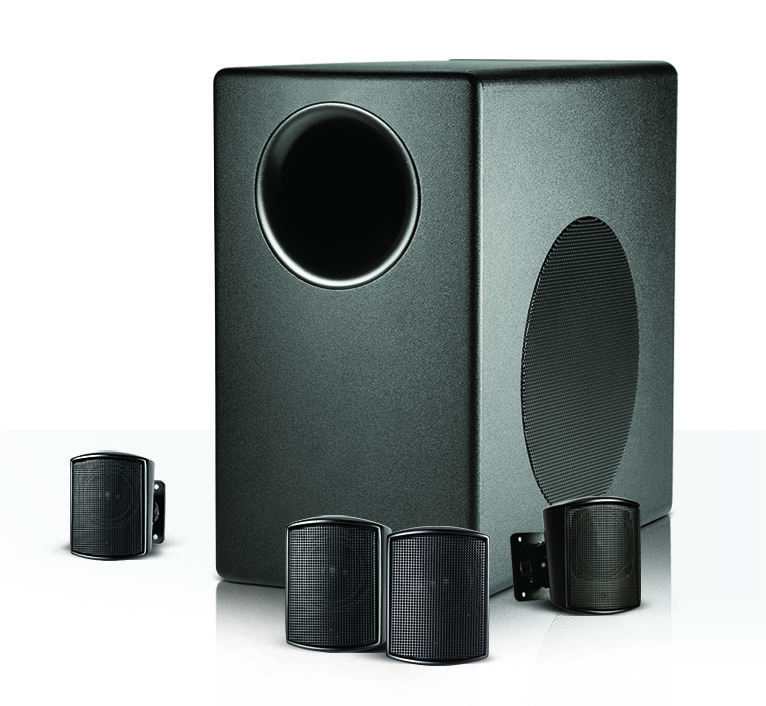

The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surfacemount system.
| Μέγεθος | |
|
|
400 KB |
| Μέγεθος | |
|
|
200 KB |
| Μέγεθος | |
|
|
200 KB |
| Μέγεθος | |
|
|
700 KB |
Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.
| Frequency Range (-10dB) | 32 Hz – 20 kHz |
| Frequency Response (±3 dB) | 50 Hz – 17 kHz |
| Power Rating | 200 Watts Continuous Program Power (100 hrs) 100 Watts Continuous Pink Noise (100 hrs) |
| Sensitivity | System: 87 dB with 4 satellites 85 dB with 2 satellites (depends on subwoofer boundary loading, see application note) |
| Impedance | 4 ohms with 4 satellites, 8 ohms with 2 satellites |
| Transformer Taps | 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance |
| Maximum SPL (1m) | System: 107 dB with 4 satellites, continuous (113 dB peak) 105 dB with 2 satellites, continuous (111 dB peak) (depends on subwoofer boundary loading, see application note) |
| Input Connectors | Removable locking 2-pin connectors with screw-down terminals. |
| Grille | Zinc-plated steel |
| Mounting Hardware | C50S/T: 2-part flush wall-mount bracket included. C52: Wall swivel ball bracket included |
| Included Accessories | See Control 50S/T & Control 52 |
| Coverage Angle | Omnidirectional |
