C50PACK

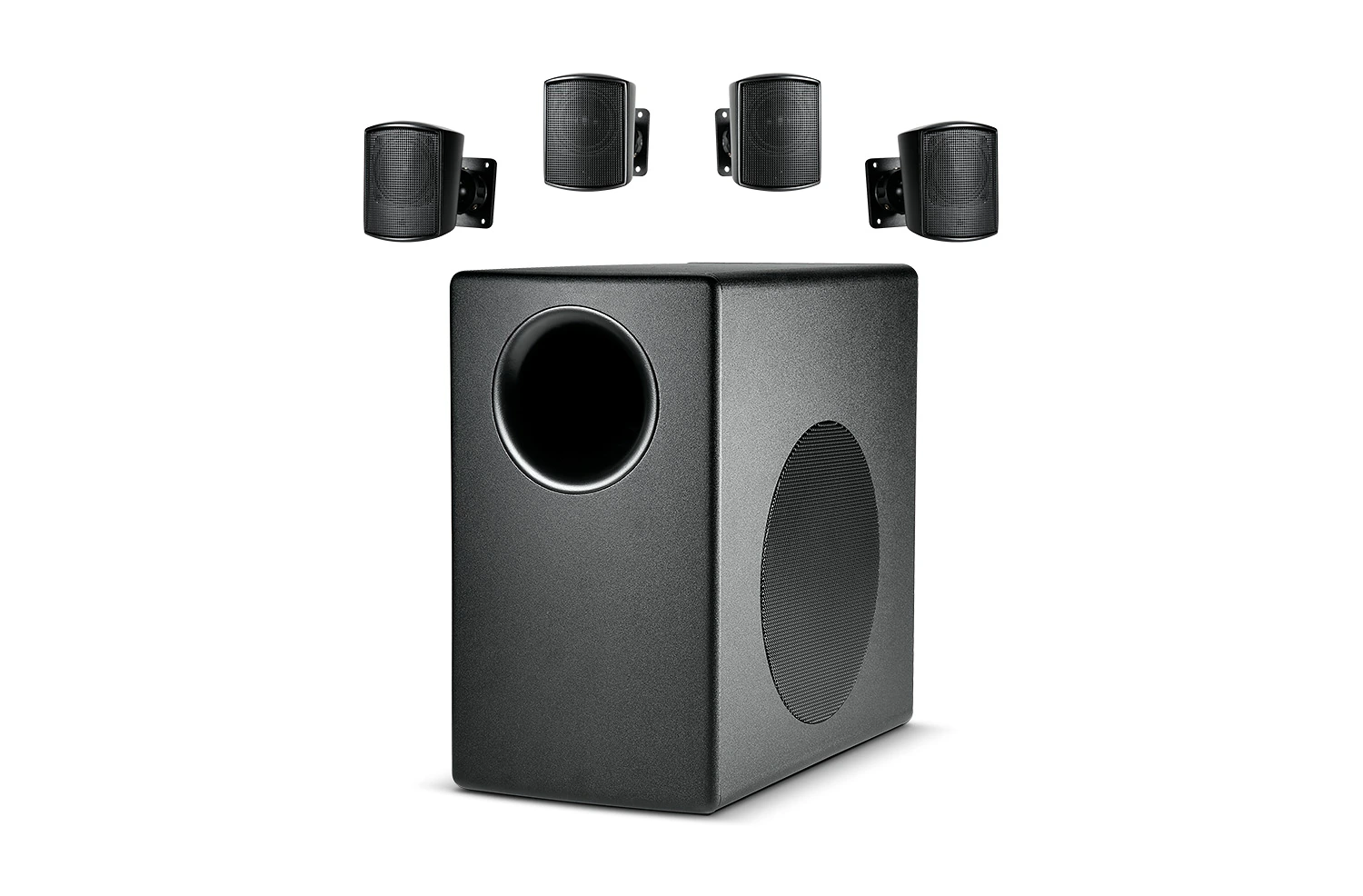

Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System

C50PACK
较大的图像

Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System

The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surfacemount system.

特点

  • Versatile four satellite speaker system
  • Stylish, unobtrusive design fits into a wide variety of decor
  • High fidelity sound
  • Selectable 70V/100V for distributed lines, or low impedance
  • Wall-mount brackets include
  • Available in black or white


下载

  Version Language Size Uploaded
Specifications
file type icon Control 50 Spec Sheet
updated: 4月 2019
    377.0 KB 4月 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
FAQs
file type icon Control 50 FAQ
updated: 4月 2019
    158.7 KB 4月 2019
Images

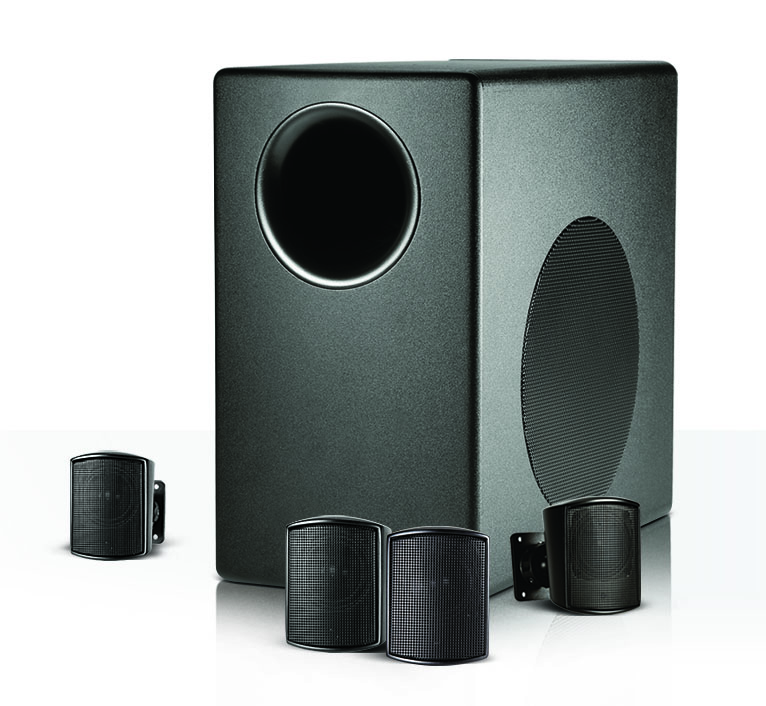

file type icon Control 50 Pack Hi Res Image
updated: 4月 2019
    713.4 KB 4月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 32 Hz – 20 kHz
Frequency Response (±3 dB) 50 Hz – 17 kHz
额定功率 200 Watts Continuous Program Power (100 hrs)
100 Watts Continuous Pink Noise (100 hrs)

灵敏度

System: 87 dB with 4 satellites
85 dB with 2 satellites
(depends on subwoofer boundary loading, see application note)
阻抗 4 ohms with 4 satellites, 8 ohms with 2 satellites
变压器抽头 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
Maximum SPL (1m) System: 107 dB with 4 satellites, continuous (113 dB peak)
105 dB with 2 satellites, continuous (111 dB peak)
(depends on subwoofer boundary loading, see application note)
输入接口 Removable locking 2-pin connectors with screw-down terminals.
网罩 Zinc-plated steel
装配硬件 C50S/T: 2-part flush wall-mount bracket included.
C52: Wall swivel ball bracket included

随附配件

See Control 50S/T & Control 52
覆盖角度 Omnidirectional
