JBL Professional AW595-LS

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF / EN 54-24 Compliant for Life Safety Applications

Larger Images

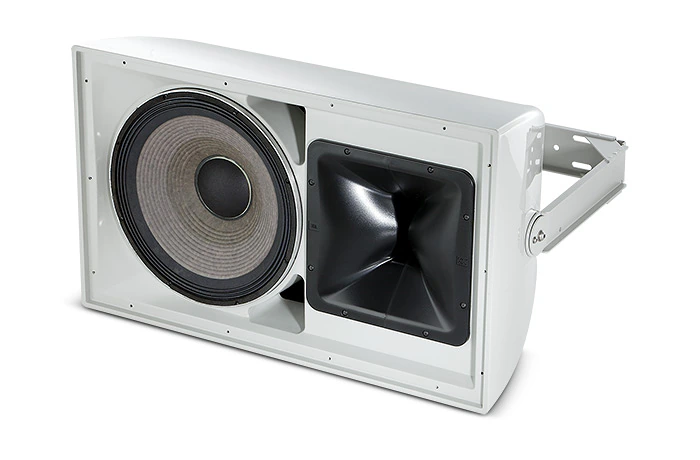

Parts are sealed on LS models (non-LS photo shown).

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn for Life Safety Applications

The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. This loudspeaker is EN 54-24 Compliant for life safety applications.



Features

  • Weather-Resistant, All Fiberglass Enclosure
  • EN 54-24 Compliant for life safety applications
  • 90° x 50° Coverage
  • 2265H Differential Drive® Low-Frequency Driver
  • 2432H High Frequency Compression Drive
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable wave guide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included


Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks


Downloads

  Version Language Size Uploaded
Specifications
AW595-LS Spec Sheet
updated: Apr 29, 2019
    1.13 MB Apr 29, 2019
Brochures
Installed Sound Full Line 2015 Catalog
updated: Oct 22, 2019
    2.59 MB Oct 22, 2019
CAD Drawings
AW/AWC Drawings PDF
updated: Oct 08, 2019
    284 KB Oct 08, 2019
AW-LS Drawings 2D/3D DXF
updated: Apr 29, 2019
    939 KB Apr 29, 2019
Compliances
AW Series Declaration of Conformity
updated: Oct 18, 2019
    141 KB Oct 18, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
AW-AWC Ease Files
updated: Oct 31, 2019
    867 KB Oct 31, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020
Clf Files
AW-AWC CLF Files
updated: Oct 31, 2019
    1.45 MB Oct 31, 2019
CLF Files
version 03-16-20, updated: Mar 16, 2020
03-16-20    22.5 MB Mar 16, 2020
Install Guides
AW Bracket Instructions
updated: Apr 29, 2019
    58.1 KB Apr 29, 2019
Safety Sheets
AW Series EN54 Certificate
updated: Apr 29, 2019
    107 KB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 41 Hz – 20 kHz
Frequency Response (±3 dB) 88 Hz – 19 kHz
Coverage Pattern 90° x 50°, rotatable waveguide
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Crossover Frequency 1.2 kHz
System Power Rating 400 W (1600 W peak), 100 hrs
Maximum SPL (1m) 127 dB-SPL cont avg (133 dB peak)
Maximum SPL (@ 4m) 113.34 dB
System Sensitivity (1w @ 1m) 100 dB SPL
Sensitivity (1W @ 4m) 88.43 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100W100V: 400W, 200W
LF Driver 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 98 dB SPL
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W, 1m) 113 dB SPL
Waveguide PT-H95HF -1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental IP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Net Weight (each) 28.3 kg (62.5 lb)
Crossover Modes Passive
