AM7200/64 /95 (discontinued)

High Power Mid-High Frequency

Larger Images

High Power Mid-High Frequency

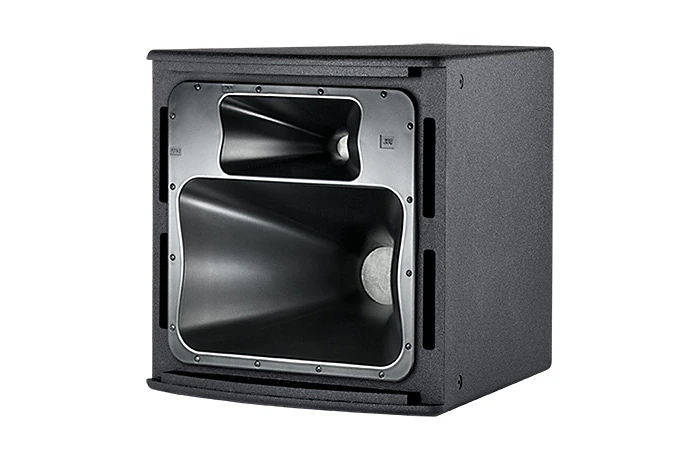

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.



Features

  • CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
  • 2432H High-Frequency Compression Driver
  • PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
  • Bi-Amp/Passive Switchable.

Applications

  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues
  • Voice-only PA (without LF or subwoofer reinforcement)
  • Delay fill applications (without LF or subwoofer reinforcement)


Downloads

  Version Language Size Uploaded
AE Brochure
en updated: Jun 17, 2015
  en  4.05 MB Jun 17, 2015
AM7200_64 Spec Sheet
en updated: Jun 17, 2015
  en  740 KB Jun 17, 2015
AM7200_95 Spec Sheet
en updated: Jun 17, 2015
  en  724 KB Jun 17, 2015
Specifications
AM7200/95 Spec Sheet
updated: Apr 29, 2019
    396 KB Apr 29, 2019
AM7200/64 Spec Sheet
updated: Apr 29, 2019
    459 KB Apr 29, 2019
Manuals
AE/PD Connector Pinout Guide
updated: Oct 31, 2019
    8.25 KB Oct 31, 2019
AE Series Array Guide
updated: Oct 30, 2019
    1.12 MB Oct 30, 2019
AE Application Data Sheets
updated: Oct 18, 2019
    13.7 MB Oct 18, 2019
Brochures
AE Series Brochure
updated: Apr 29, 2019
    4.05 MB Apr 29, 2019
Installed Sound Full Line 2015 Catalog
updated: Aug 20, 2020
    2.59 MB Aug 20, 2020
CAD Drawings
AE Series 3D DXF file
updated: Oct 30, 2019
    381 KB Oct 30, 2019
AE Series WRC WRX Drawings
updated: Oct 18, 2019
    2.18 MB Oct 18, 2019
AE Series 3D DXF
updated: Apr 29, 2019
    381 KB Apr 29, 2019
AE Series 2D PDF
updated: Apr 29, 2019
    1020 KB Apr 29, 2019
AE Series 2D DXF
updated: Apr 29, 2019
    1.24 MB Apr 29, 2019
Compliances
AE Series - AM7000 Declaration of Conformity
updated: Oct 18, 2019
    146 KB Oct 18, 2019
Speaker Tunings
AE DSP Tunings For All Models
updated: Apr 29, 2019
    18.9 MB Apr 29, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Clf Files
CLF Files
version 03-16-20, updated: Mar 16, 2020
03-16-20    22.5 MB Mar 16, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10dB) 260 Hz – 20 kHz
Frequency Response (±3 dB) 330 Hz – 18 kHz
Coverage Pattern /64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
Crossover Modes Bi-amp/Passive switchable
Crossover Frequency 2.3 kHz
Transducer Power Rating (AES) MF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity (1w @ 1m) Passive mode: 108 dB SPL
Nominal Impedance 8 ohms
Midrange Driver JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice-coil internal driver
Sensitivity (1W @ 1m) (Midrange) 108 dB SPL
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)(High Frequency) 115 dB SPL
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
Net Weight 27.2 kg (60 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
