JBL Professional AM7200/64 /95

Gambar Lebih Besar

Frekuensi Mid-High Daya Tinggi

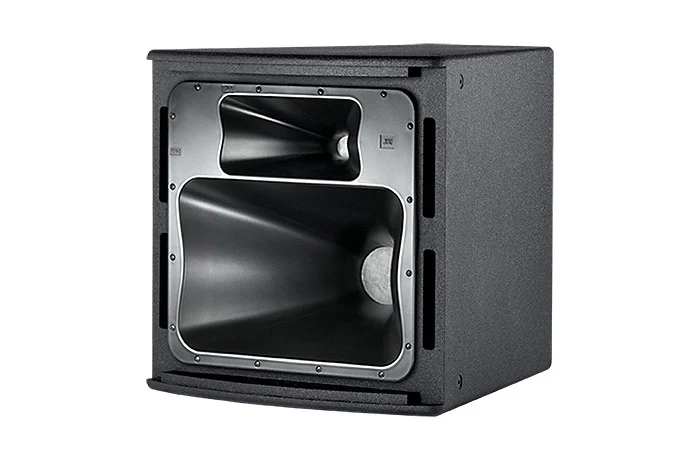

Speaker AM7200 adalah sistem loudspeaker frekuensi mid-high daya tinggi yang terdiri dari satu Driver Kompresi Midrange Cone CMCD 200 mm (8 in) dan satu driver kompresi HF exit 38 mm (1,5 in)/voice-coil 75 mm (3 in). Waveguide frekuensi mid-high PT Progressive Transition multi-band memberikan cakupan yang terkontrol dengan baik dan dapat diputar untuk positioning cabinet dalam orientasi horizontal atau vertikal. Crossover kemiringan tinggi meminimalkan tumpang tindih band dan respons off-axis yang terkontrol dengan baik meningkatkan arrayability. Kabinet dilengkapi dengan titik suspensi berulir M10. Bracketry array pra-engineered tersedia. AM7200 adalah bagian dari JBL Application Engineered Series, keluarga loudspeaker serbaguna untuk berbagai aplikasi instalasi tetap.

Fitur

CMCD™ Cone Midrange Compression Driver memberikan distorsi midrange rendah, sensitivitas meningkat, bandwidth diperluas, dan koherensi fase yang lebih baik.
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide untuk kontrol pola yang sangat baik dengan distorsi rendah.
Bi-Amp/Passive Switchable.

Aplikasi

Fasilitas seni pertunjukan
Desain suara teater
Auditorium
Rumah ibadah
Klub live
Klub dansa/diskotik
Fasilitas olahraga
Venue hiburan bertema
PA suara saja (tanpa penguatan LF atau subwoofer)
Aplikasi delay fill (tanpa penguatan LF atau subwoofer)

Unduhan

Dokumen

	Bahasa	Ukuran	Diunggah
AE Brochure diperbarui: Apr 2026		4,05 MB	Apr 2026
AM7200_64 Spec Sheet diperbarui: Apr 2026		740 KB	Apr 2026
AM7200_95 Spec Sheet diperbarui: Apr 2026		724 KB	Apr 2026

Specifications

	Ukuran	Diunggah
AM7200/95 Spec Sheet diperbarui: Apr 2019	396 KB	Apr 2019
AM7200/64 Spec Sheet diperbarui: Apr 2019	459 KB	Apr 2019

Manuals

	Versi	Bahasa	Ukuran	Diunggah
Weather Resistant Configurations versi A, diperbarui: Mei 2023	A		86,1 KB	Mei 2023
AE/PD Connector Pinout Guide diperbarui: Okt 2019			8,25 KB	Okt 2019
AE Series Array Guide diperbarui: Jul 2024			1,12 MB	Jul 2024
Painting AE Loudspeaker Cabinets diperbarui: Mar 2025			115 KB	Mar 2025

Brochures

	Bahasa	Ukuran	Diunggah
Loudspeakers for Sports Facilities diperbarui: Jul 2024		5,71 MB	Jul 2024
AE Series Brochure diperbarui: Okt 2020		4,05 MB	Okt 2020

CAD Drawings

	Versi	Ukuran	Diunggah
AE Series - Customer Drawings versi 2.0, diperbarui: Mei 2024	2.0	2,69 MB	Mei 2024
AE Series - WR Models Customer Drawings versi 3.0, diperbarui: Apr 2026	3.0	3,8 MB	Apr 2026

Compliances

	Ukuran	Diunggah
AE Series - AM7000 Declaration of Conformity diperbarui: Okt 2020	146 KB	Okt 2020

Simulation Data

	Versi	Ukuran	Diunggah
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024		21 MB	Mei 2024

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB)	260 Hz – 20 kHz
Frequency Response (±3 dB)	330 Hz – 18 kHz
Coverage Pattern	/64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
Crossover Modes	Bi-amp/Passive switchable
Crossover Frequency	2.3 kHz
Transducer Power Rating (AES)	MF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating	MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity (1w @ 1m)	Passive mode: 108 dB SPL
Nominal Impedance	8 ohms
Midrange Driver	JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice-coil internal driver
Sensitivity (1W @ 1m) (Midrange)	108 dB SPL
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)(High Frequency)	115 dB SPL
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
Net Weight	27.2 kg (60 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
