JRX212

12 in. Two-Way Stage Monitor Loudspeaker System

JRX212
Larger Images

12 in. Two-Way Stage Monitor Loudspeaker System

The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.



Features

  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.


Downloads

  Version Language Size Uploaded
Specifications
file type icon JRX212 Spec Sheet
updated: Apr 2019
    825 KB Apr 2019
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: Oct 2020
    2.54 MB Oct 2020
Compliances
file type icon JRX200 Series Declaration of Conformity
updated: Oct 2020
    119 KB Oct 2020
Images

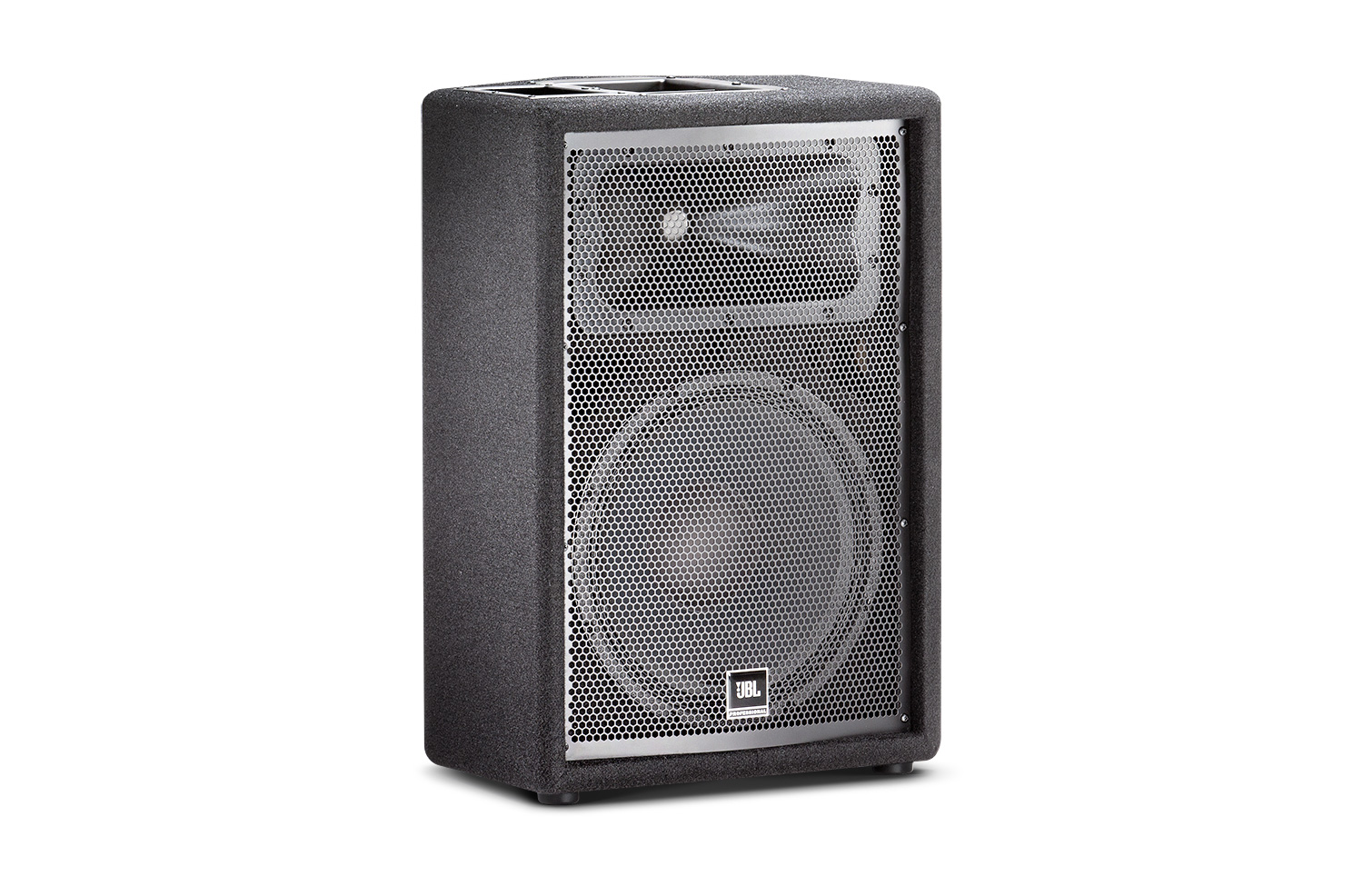

file type icon JRX212 Front Angle
updated: Apr 2019
    356 KB Apr 2019

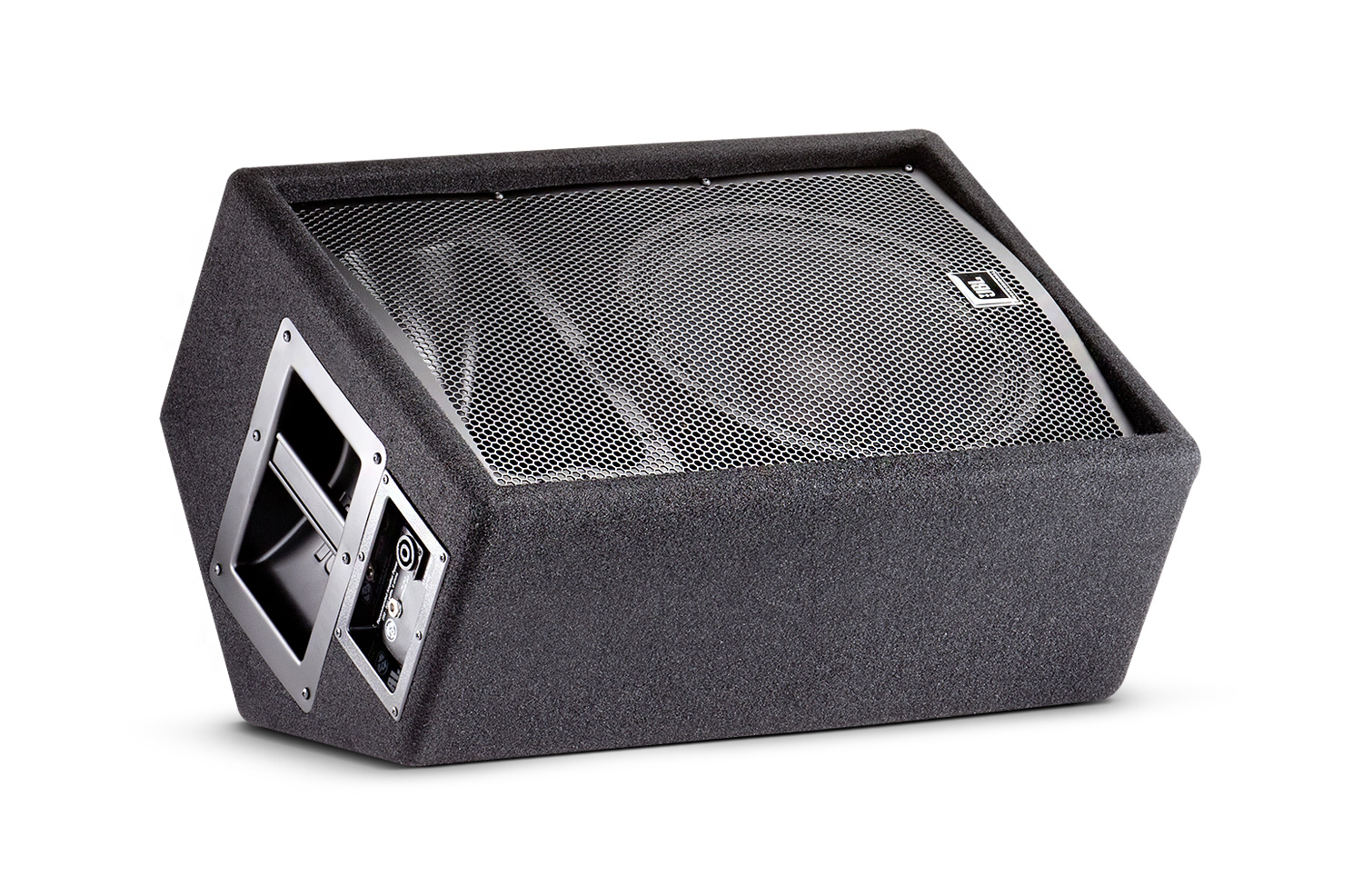

file type icon JRX212 Monitor
updated: Apr 2019
    509 KB Apr 2019

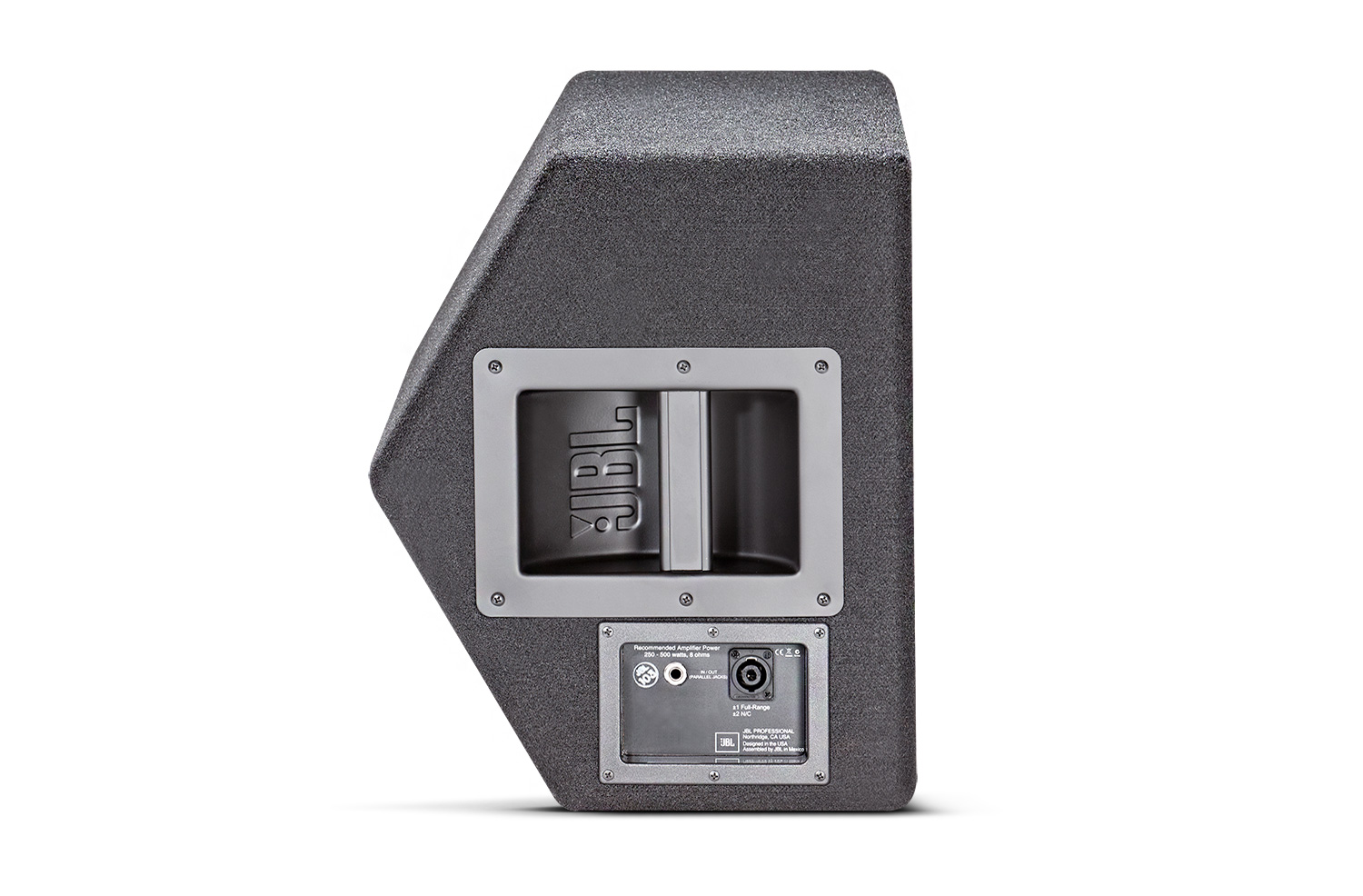

file type icon JRX212 Side
updated: Apr 2019
    236 KB Apr 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Power Rating 250 W / 1000 W
Frequency Range (-10dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 18 kHz
Sensitivity (@1m) 98 dB SPL (1w/1m)
Nominal Impedance 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL (1m) 128 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 2.1 kHz
Dimensions (H x W x D) 584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in)
Weight 19.5 kg (43 lb)
HF Driver JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver JBL M112-8
Inputs Neutrik® Speakon® NL-4 (x1); .25 inTS phone jack (x1); parallel
Enclosure MDF (Medium Density Fiberboard) covered in black carpet.

Accessories

JRX212-CVR-CX | Convertible Cover for JRX212
JRX212-CVR-CX Main photo
Larger Images

Convertible Cover for JRX212. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Larger Images

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Larger Images

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Larger Images
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Larger Images

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
