12 in. Two-Way Stage Monitor Loudspeaker System
The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.
Larger Images
Features
- JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
Downloads
| Size | ||||
Specifications | ||||
JRX212 Spec Sheet
updated: abr 2019
|
825 KB | |||
Brochures | ||||
|
Portable Sound Full Line 2015 Catalog
updated: oct 2020
|
2,54 MB | |||
Compliances | ||||
|
JRX200 Series Declaration of Conformity
updated: oct 2020
|
119 KB | |||
Images | ||||

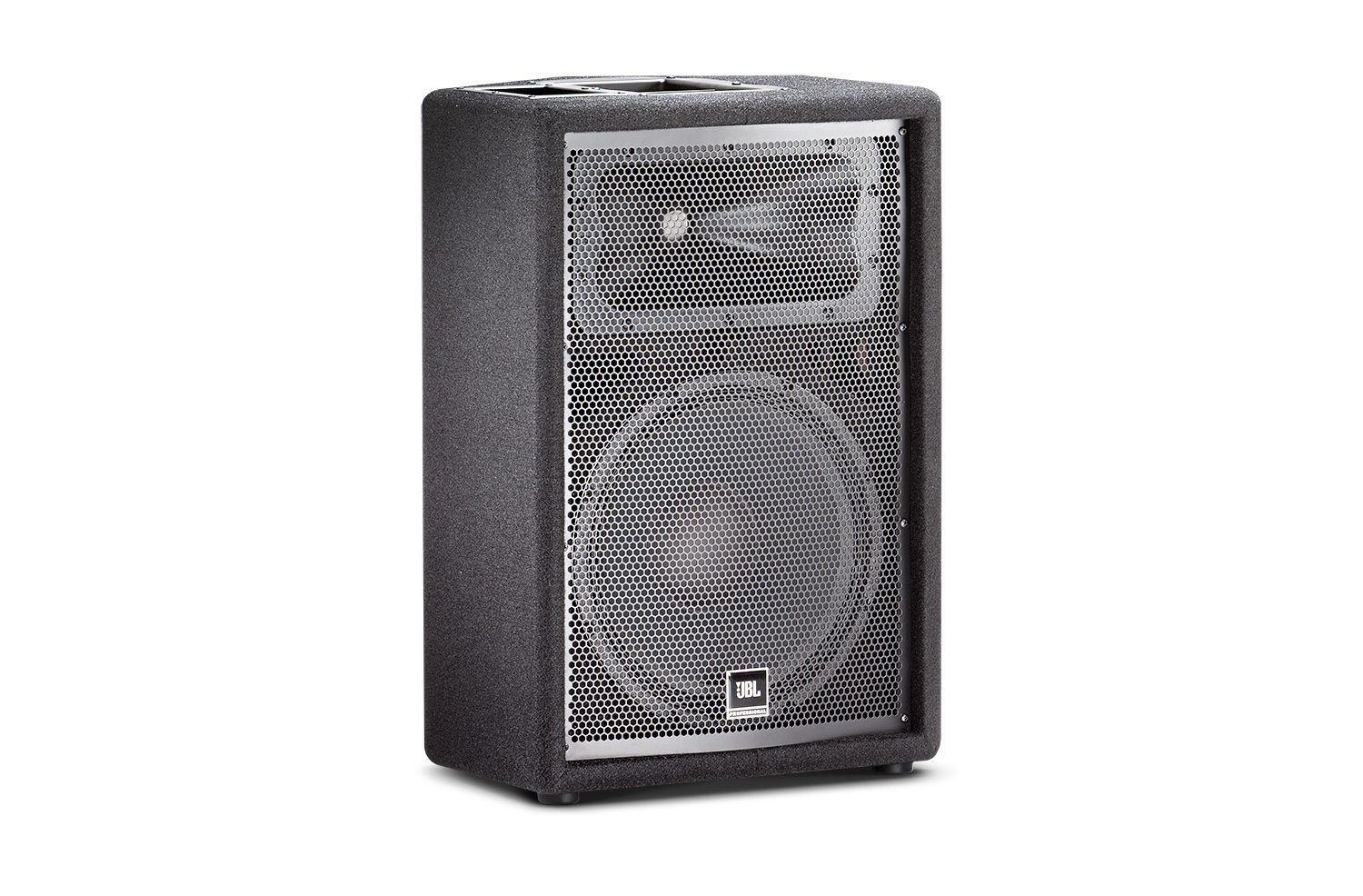

JRX212 Front Angle
updated: abr 2019
|
356 KB | |||
|

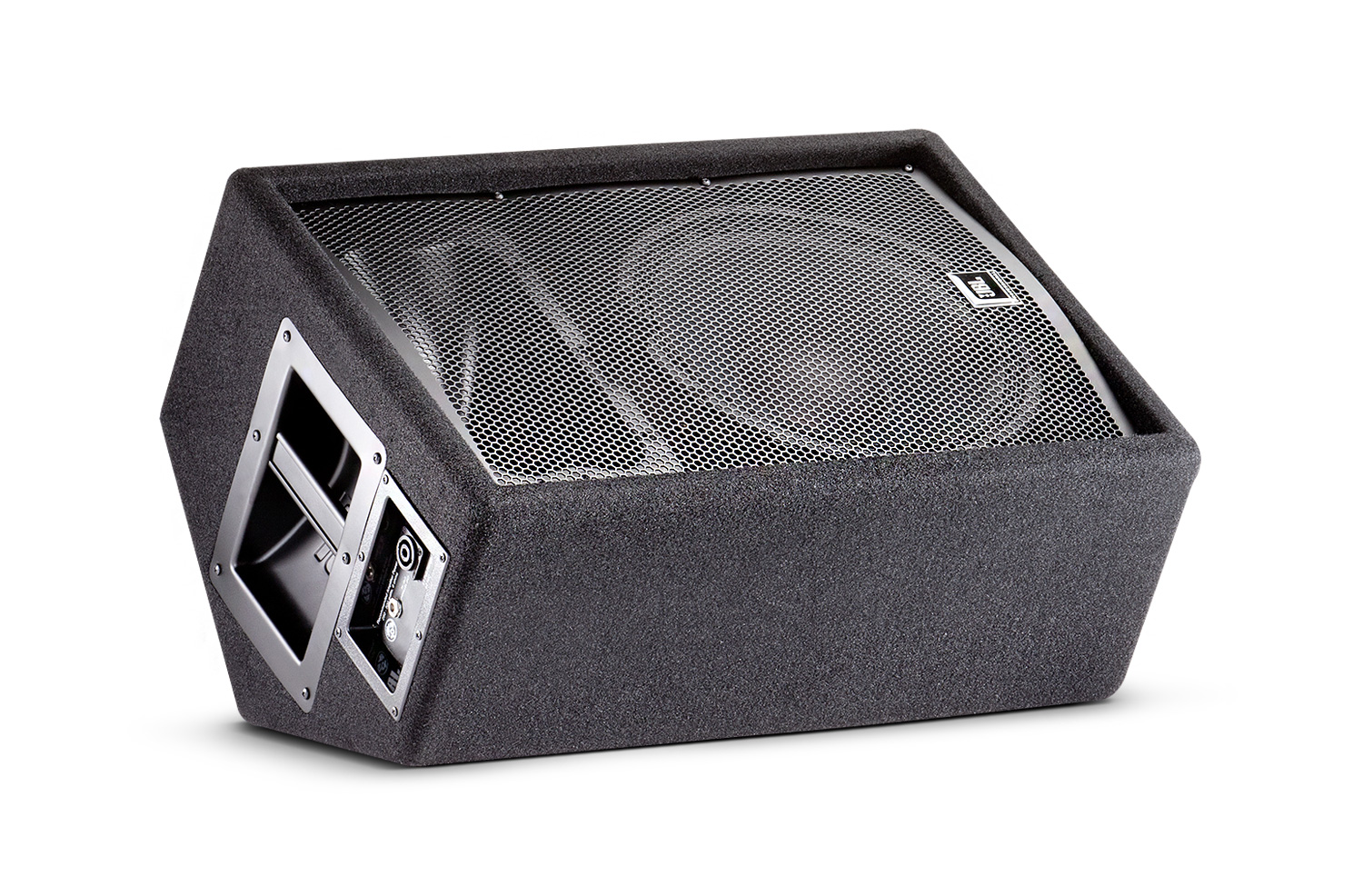

JRX212 Monitor
updated: abr 2019
|
509 KB | |||
|

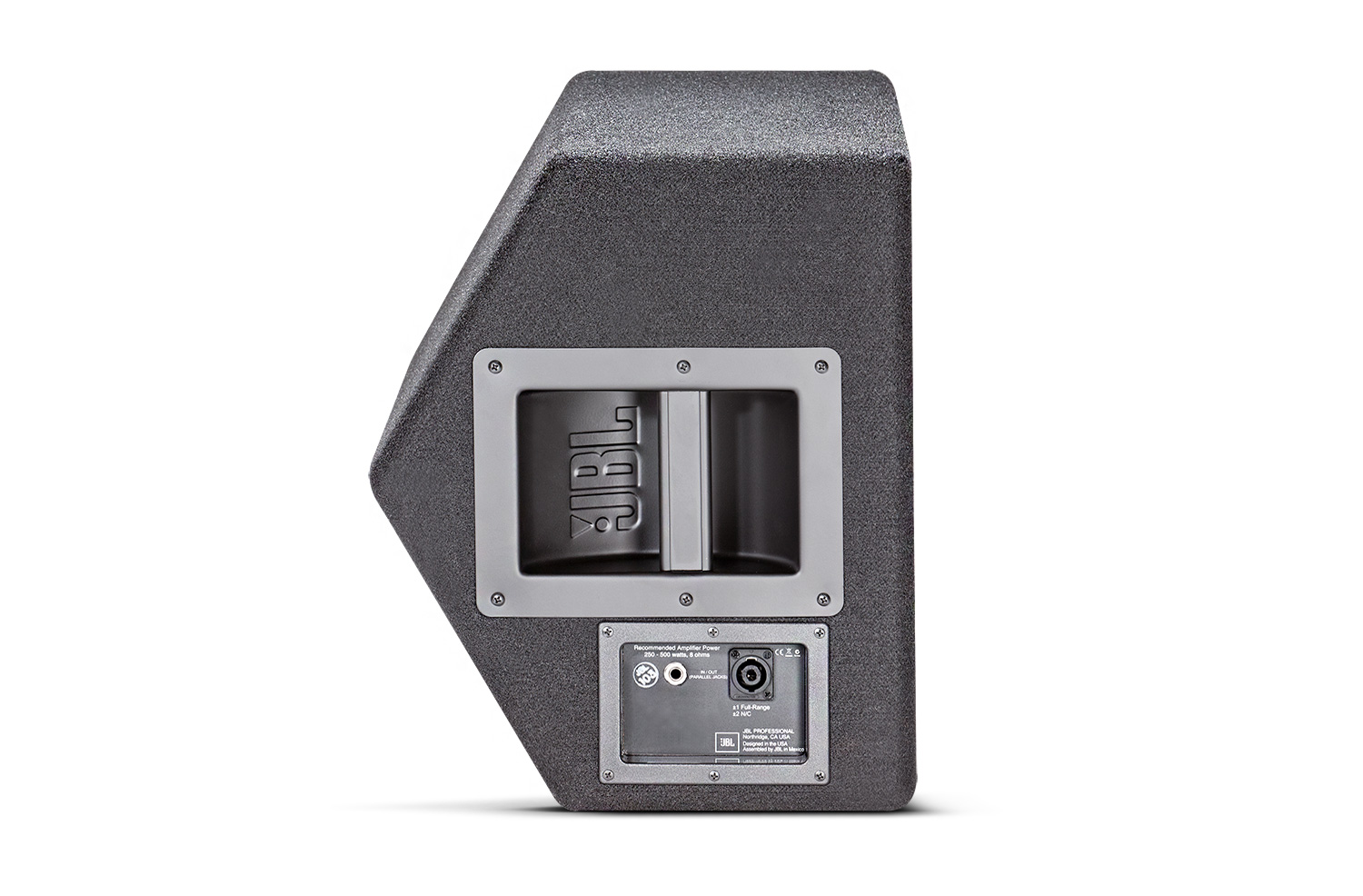

JRX212 Side
updated: abr 2019
|
236 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Power Rating | 250 W / 1000 W |
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
| Frequency Response (±3 dB) | 80 Hz - 18 kHz |
| Sensitivity (@1m) | 98 dB SPL (1w/1m) |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
| Maximum SPL (1m) | 128 dB |
| Nominal Dispersion | 90º x 50º |
| Crossover Frequency | 2.1 kHz |
| Dimensions (H x W x D) | 584 mm x 399 mm x 325 mm (23 in x 15.7 in x 12.8 in) |
| Weight | 19.5 kg (43 lb) |
| HF Driver | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| LF Driver | JBL M112-8 |
| Inputs | Neutrik® Speakon® NL-4 (x1); .25 inTS phone jack (x1); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
accessories
JRX212-CVR-CX | Convertible Cover for JRX212
Larger Images
Convertible Cover for JRX212. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Larger Images
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Documentation
-
JBL pole Gas Assist
[41,6 KB]
-
JBL pole Gas Assist detail
[70,2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Larger Images
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Documentation
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40,7 KB]
-
JBL pole Manual Adjust Detail
[87,7 KB]
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Larger Images
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800
Documentation
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36,2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
-
JBL Tripod Gas Assist Open
[41,7 KB]
-
JBL Tripod Manual Adjust Open
[39,5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Larger Images
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800
Documentation
-
JBLTRIPOD-MA Data Sheet
[228 KB]
