Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)

9400
Larger Images

Cinema Surround Loudspeaker 2-Way Passive 1" HF,
10" Woofer (2" VC)

The 9400 Cinema Surround offers high 250 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9400 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries.

Combining JBL’s Image Control Technology and new asymmetric wave-shaping techniques, the 9400 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability.

The 9400 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended bass response. The high frequency section utilizes a 25mm (1 inch) composite diaphragm compression driver with high output capability. Distribution of the drivers and construction of the cabinet is carefully calculated and rigorously tested in order to realize optimized resonance and accurate coverage. Two venting ports are designed at the bottom which further improves the low frequency response.

The unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor.

Features

  • 250 Watt Power handling capability
  • High Frequency Horn features JBL Image Control Technology for precise pattern control
  • Three uniquely-designed mounting planes provides a 15° angle toward the screen for optimized coverage
  • Input terminals on top of cabinet for easy access
  • Lightweight, Rigid molded enclosure
  • Two venting ports at the bottom for improved low frequency response
  • Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
  • Acoustic Theory blends with Low Frequency Gain Technology for improved low frequency response

Downloads

  Version Language Size Uploaded
Compliances
file type icon Cinema Sound 9400 Series - EU Declaration of Conformity
updated: Oct 2019
    277 KB Oct 2019
Spec Sheets
file type icon 9400 Spec Sheet EN
updated: Oct 2020
    729 KB Oct 2020
file type icon 9400 Spec Sheet CN
updated: Oct 2020
    829 KB Oct 2020
Hi Res Images

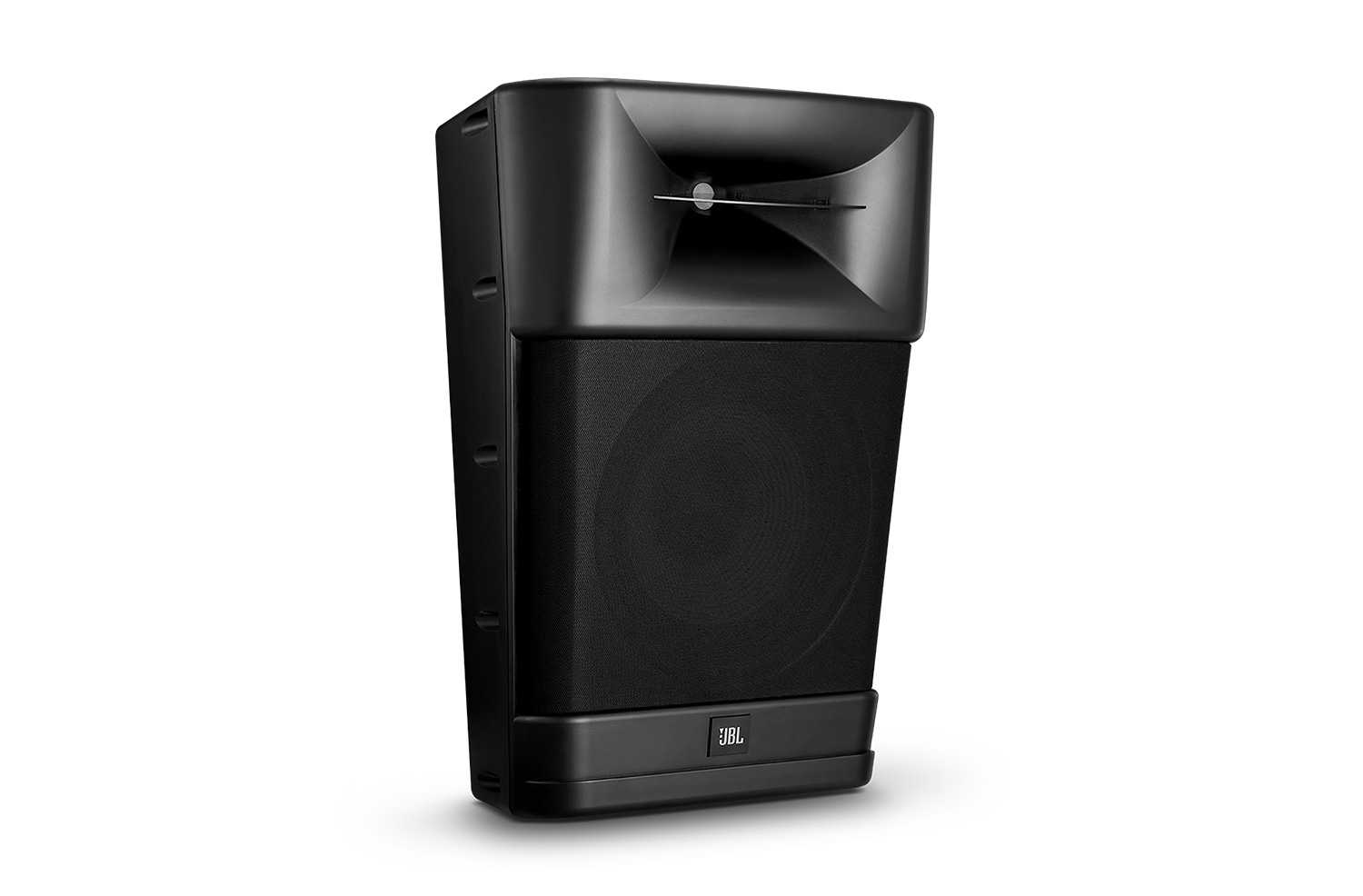

file type icon 9400 Right-Facing
updated: Oct 2020
    126 KB Oct 2020

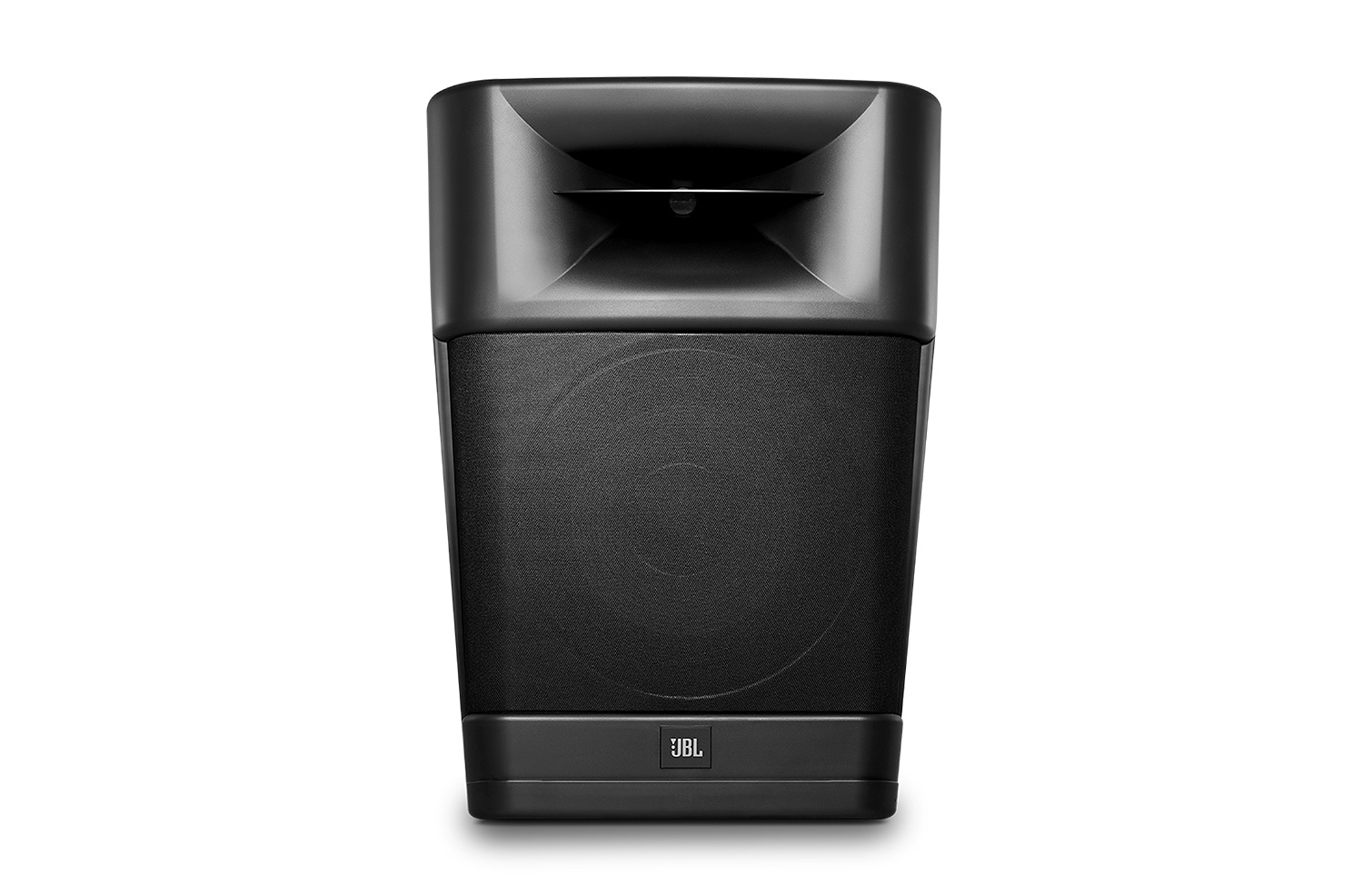

file type icon 9400 Front
updated: Oct 2020
    184 KB Oct 2020

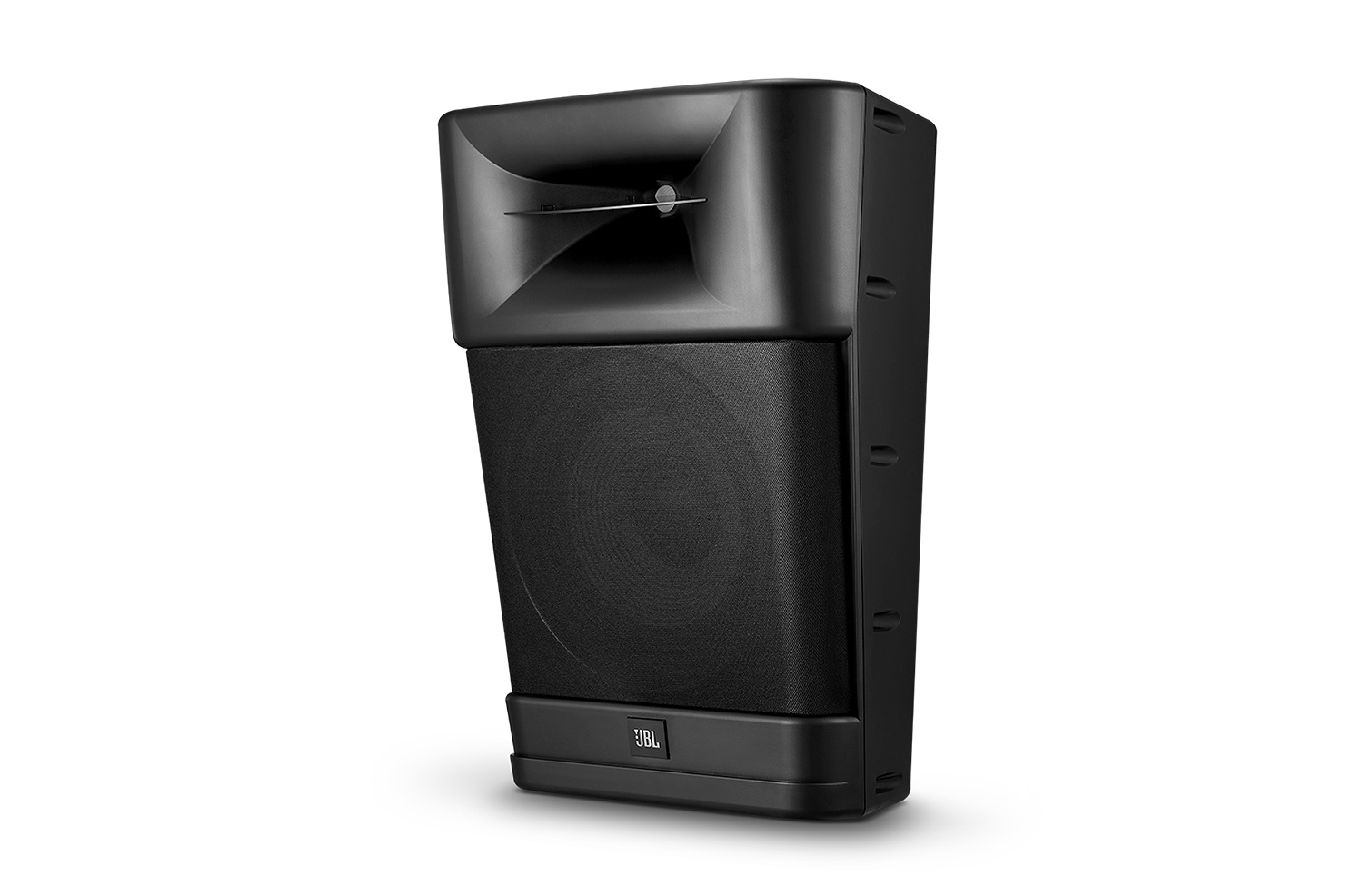

file type icon 9400 Left-Facing
updated: Oct 2020
    136 KB Oct 2020

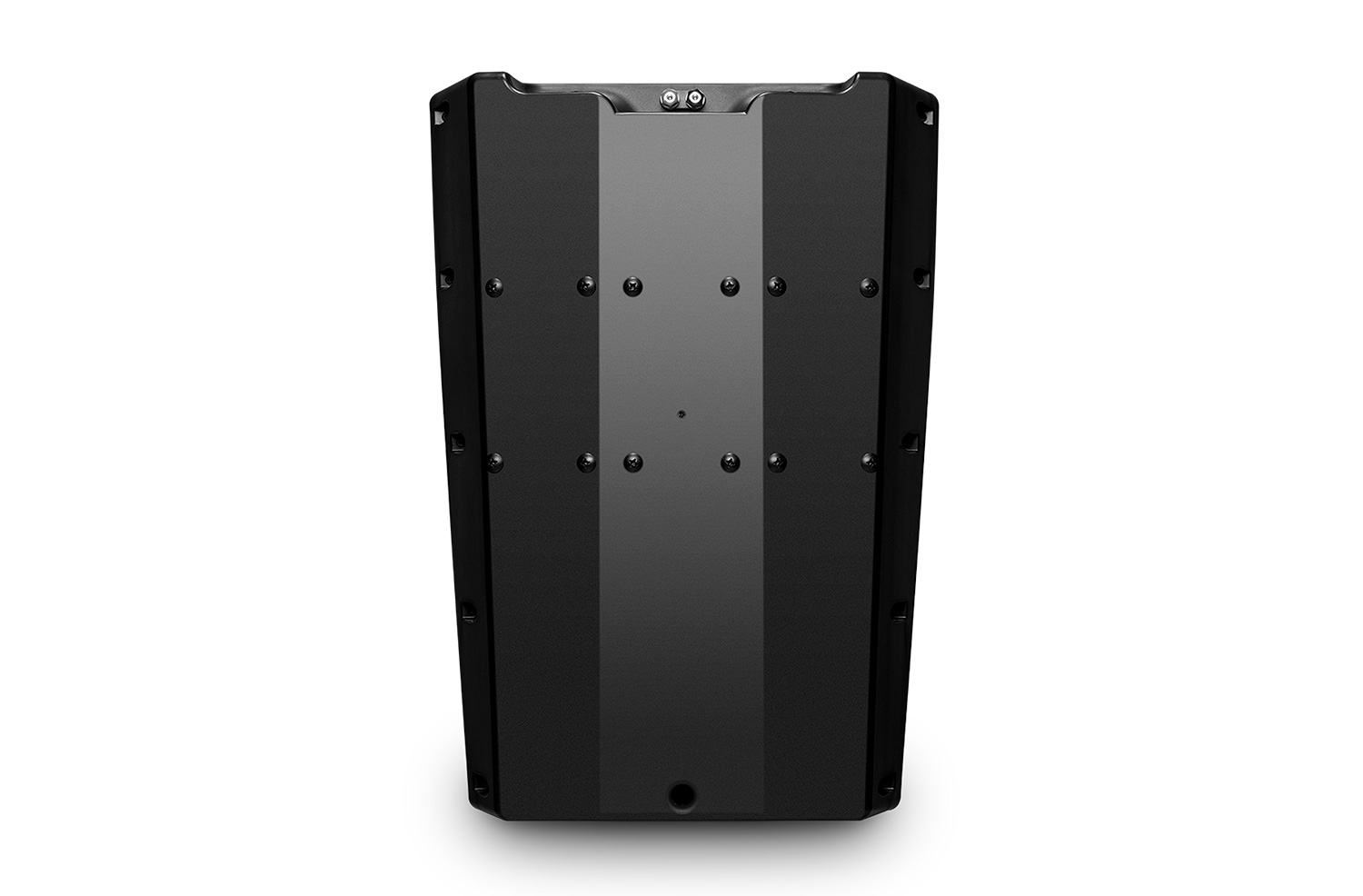

file type icon 9400 Back
updated: Oct 2020
    120 KB Oct 2020

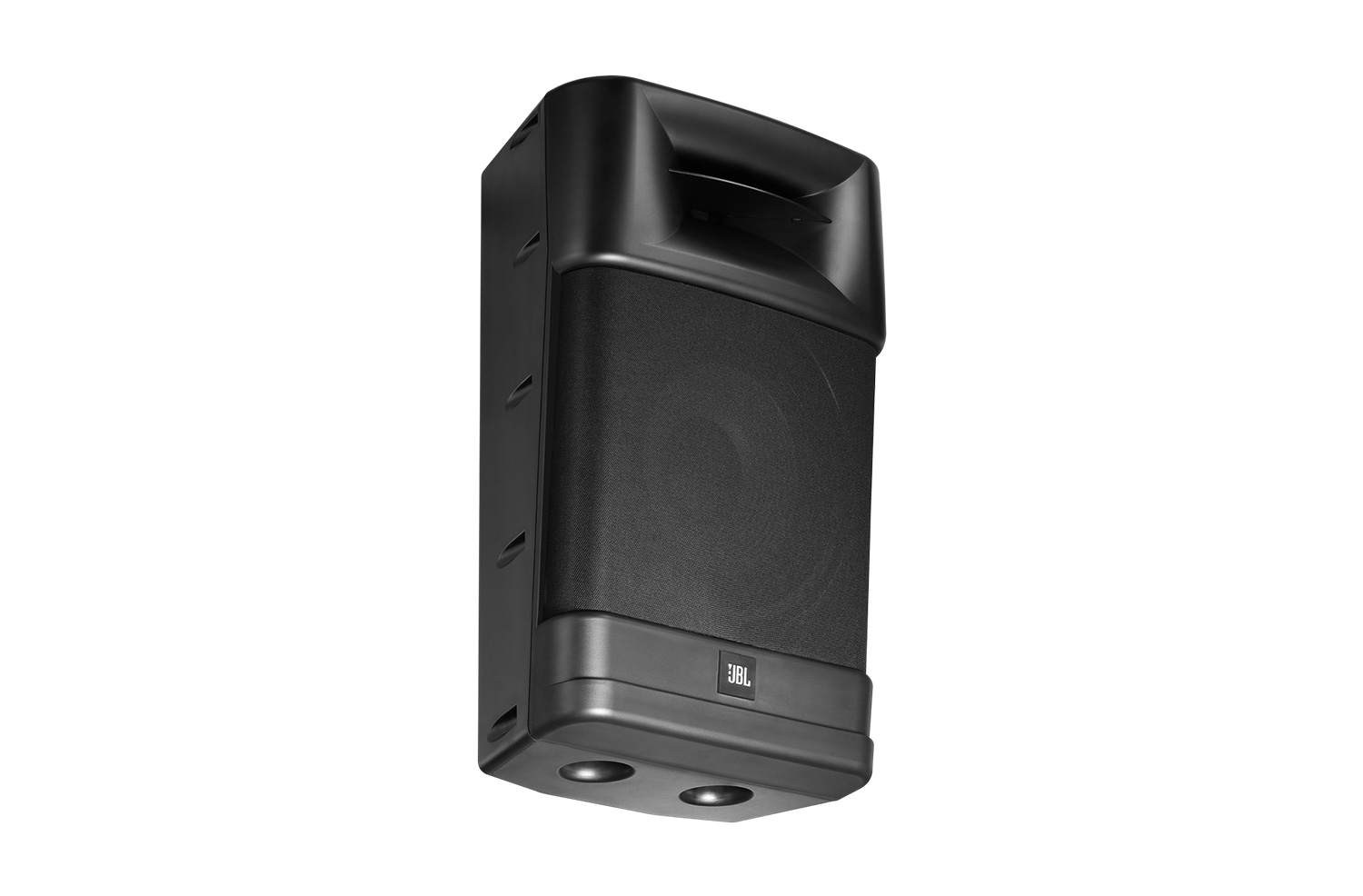

file type icon 9400 Float
updated: Oct 2020
    113 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

System Type 10", 2-way, bass-reflex
Frequency Range (-10dB) 60 Hz – 20 kHz (4π)
Frequency Range (±3 dB) 80 Hz – 18 kHz (4π)
Coverage Pattern 110º × 60º (H×V)
Power Rating(continuous / program / peak ) 250W / 500W / 1000 W(IEC Pink Noise, 6dB CF, 2hrs)
Sensitivity 96 dB (1W@1m)
Maximum dB SPL(@1m) 120 dB continuous (126 dB peak)
Rated Impedance 8 Ohms
Polarity EIA
Low Frequency 1× 610H
High Frequency 1× 2414H-1
Enclosure Textured black HIPS
Grille HIPS, covered with black cloth
Input Connector Binding posts
Dimensions (H x W x D) 22.0” x 16.1” x 11.0”(559 x 410 x 279 mm)
Net Weight 19.4 lbs (8.8 kg)
