Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)

较大的图像

Cinema Surround Loudspeaker 2-Way Passive 1" HF,
10" Woofer (2" VC)

The 9400 Cinema Surround offers high 250 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9400 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries.

Combining JBL’s Image Control Technology and new asymmetric wave-shaping techniques, the 9400 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability.

The 9400 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended bass response. The high frequency section utilizes a 25mm (1 inch) composite diaphragm compression driver with high output capability. Distribution of the drivers and construction of the cabinet is carefully calculated and rigorously tested in order to realize optimized resonance and accurate coverage. Two venting ports are designed at the bottom which further improves the low frequency response.

The unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor.

特点

  • 250 Watt Power handling capability
  • High Frequency Horn features JBL Image Control Technology for precise pattern control
  • Three uniquely-designed mounting planes provides a 15° angle toward the screen for optimized coverage
  • Input terminals on top of cabinet for easy access
  • Lightweight, Rigid molded enclosure
  • Two venting ports at the bottom for improved low frequency response
  • Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
  • Acoustic Theory blends with Low Frequency Gain Technology for improved low frequency response

下载

  Version Language Size Uploaded
Compliances
Cinema Sound 9400 Series - EU Declaration of Conformity
updated: 10月31日
    277.1 KB 10月31日
Spec Sheets (Pdf)s
9400 Spec Sheet EN
updated: 12月03日
    728.9 KB 12月03日
9400 Spec Sheet CN
updated: 12月03日
    828.7 KB 12月03日
Hi Res Images

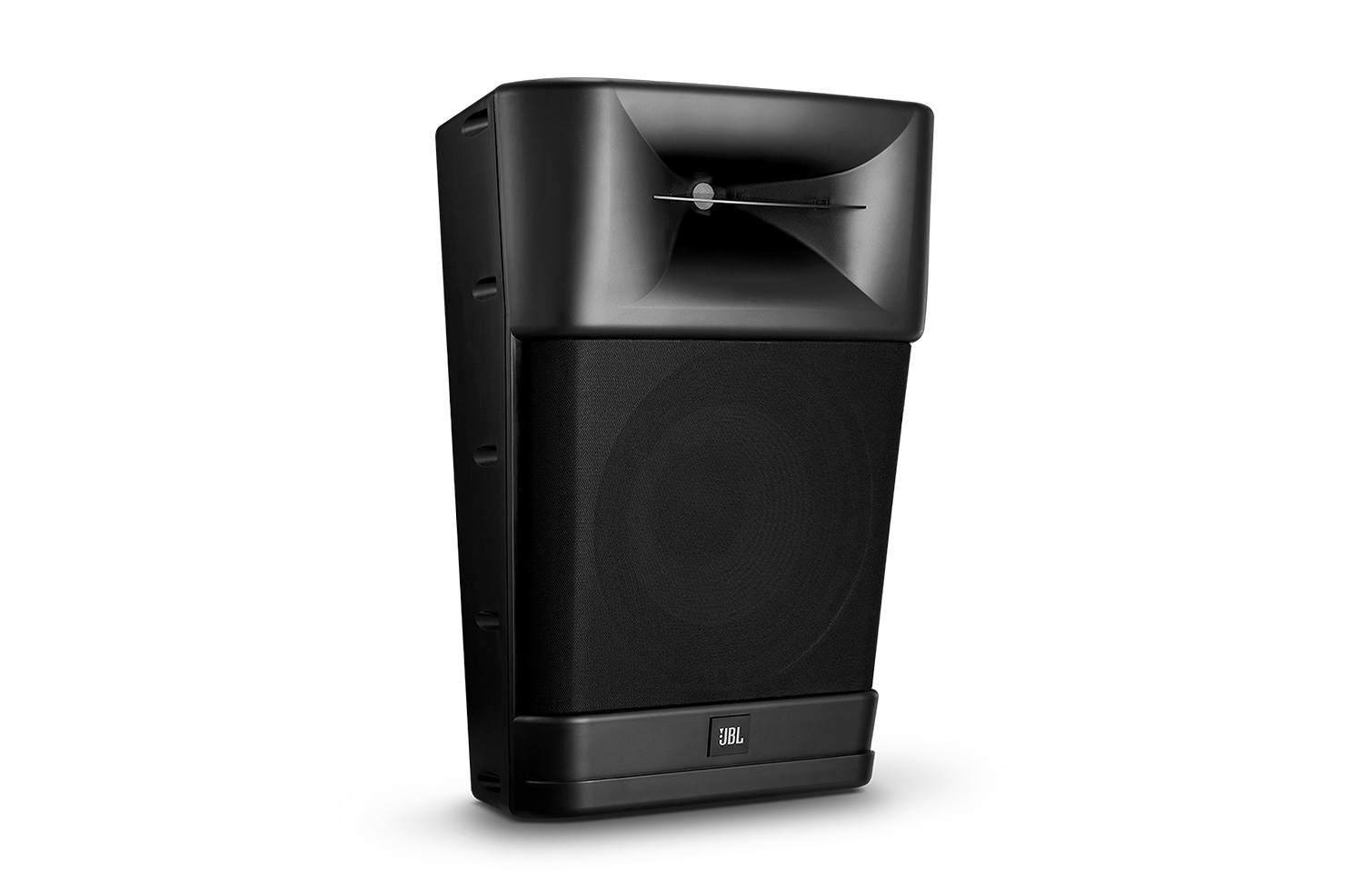

9400 Right-Facing
updated: 12月03日
    126.1 KB 12月03日

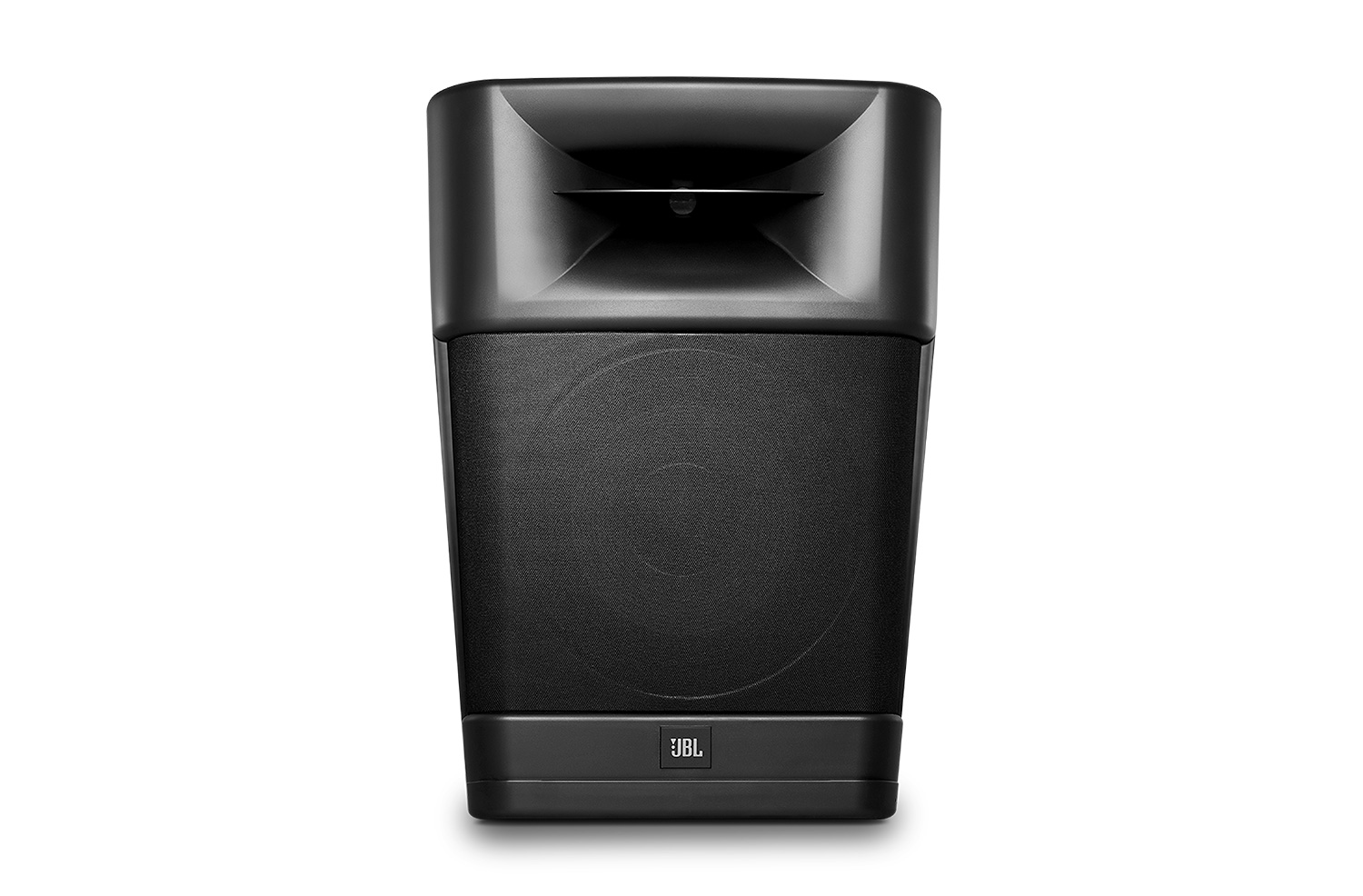

9400 Front
updated: 12月03日
    183.7 KB 12月03日

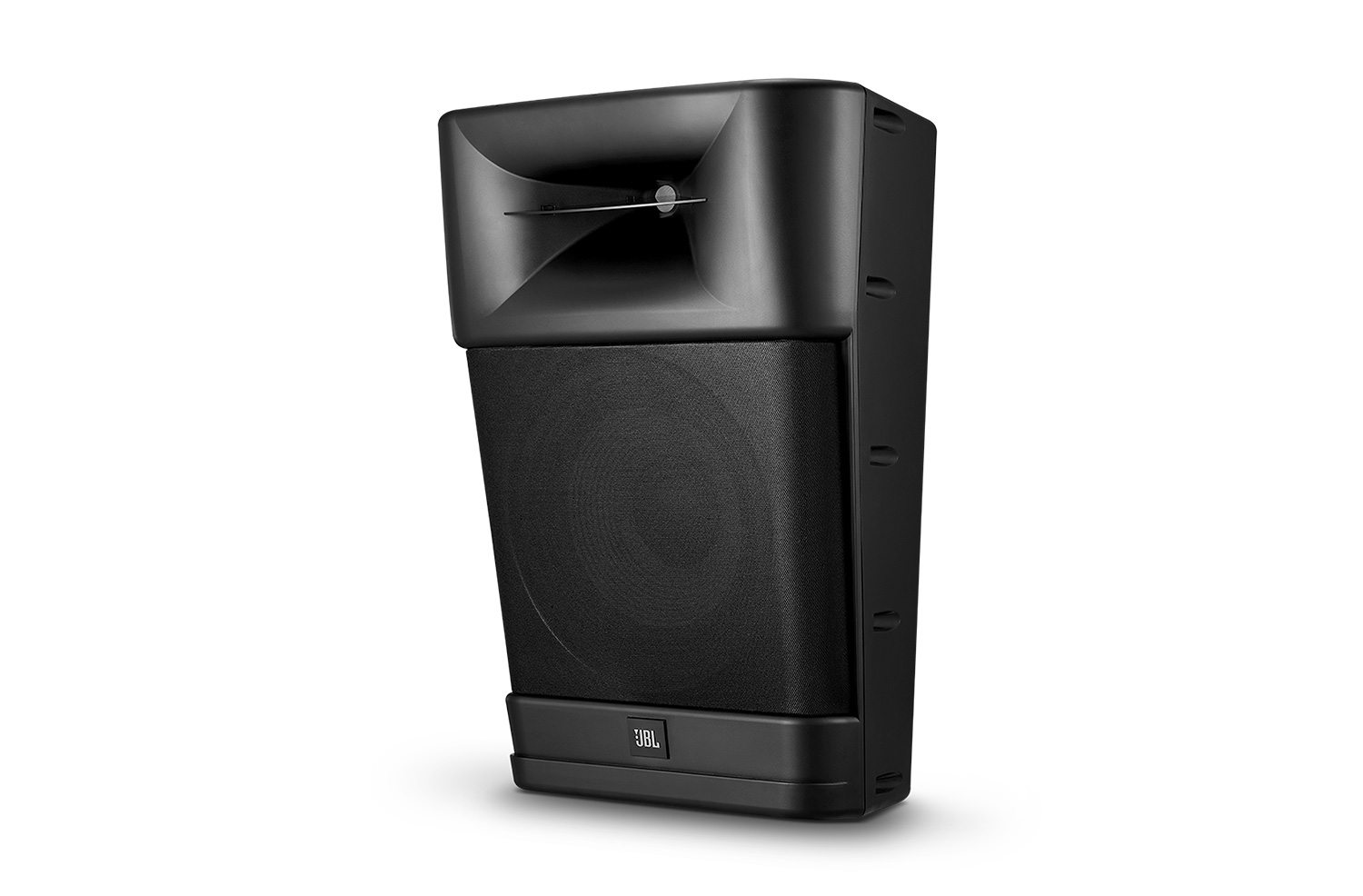

9400 Left-Facing
updated: 12月03日
    135.8 KB 12月03日

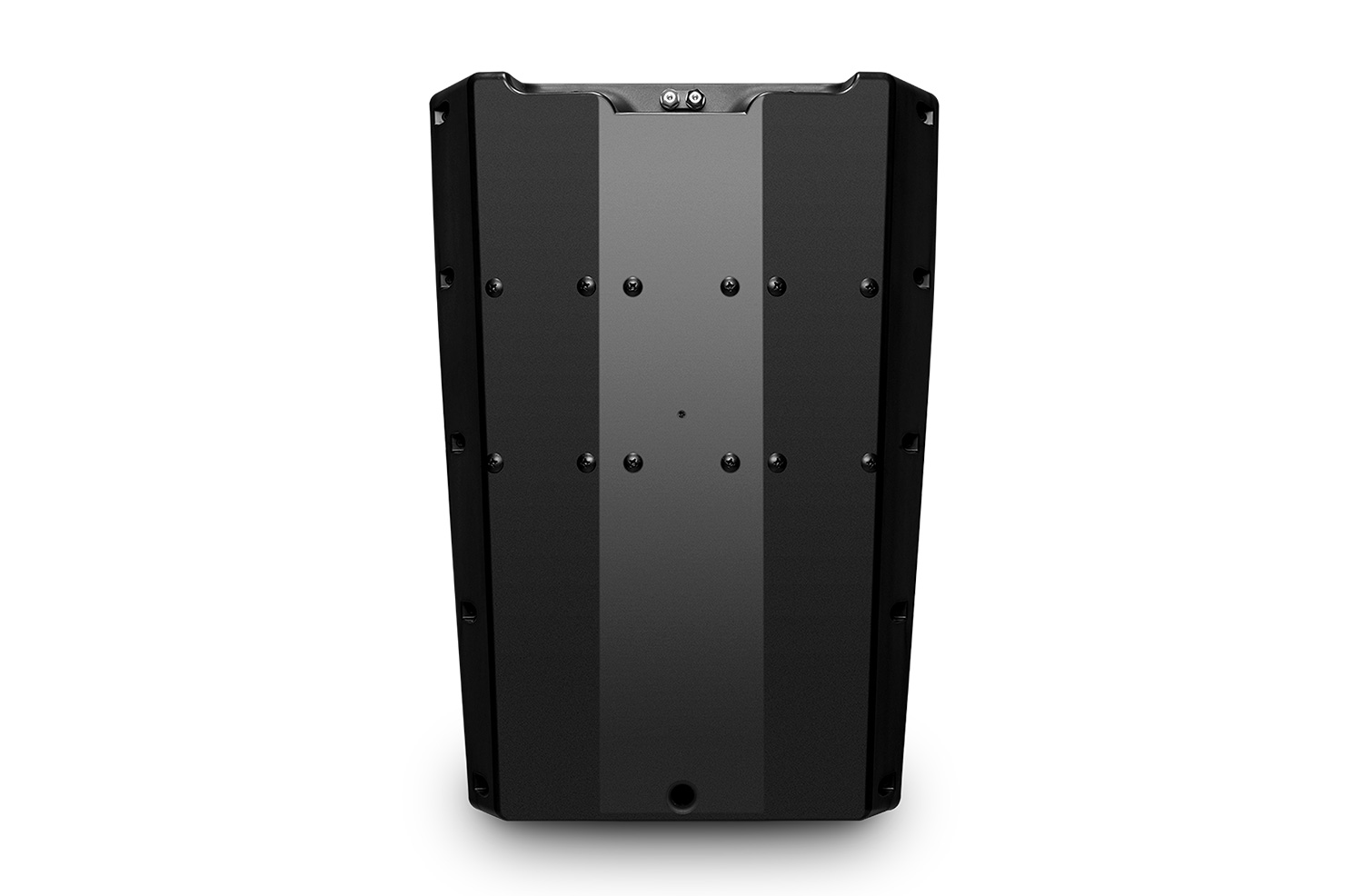

9400 Back
updated: 12月03日
    120.4 KB 12月03日

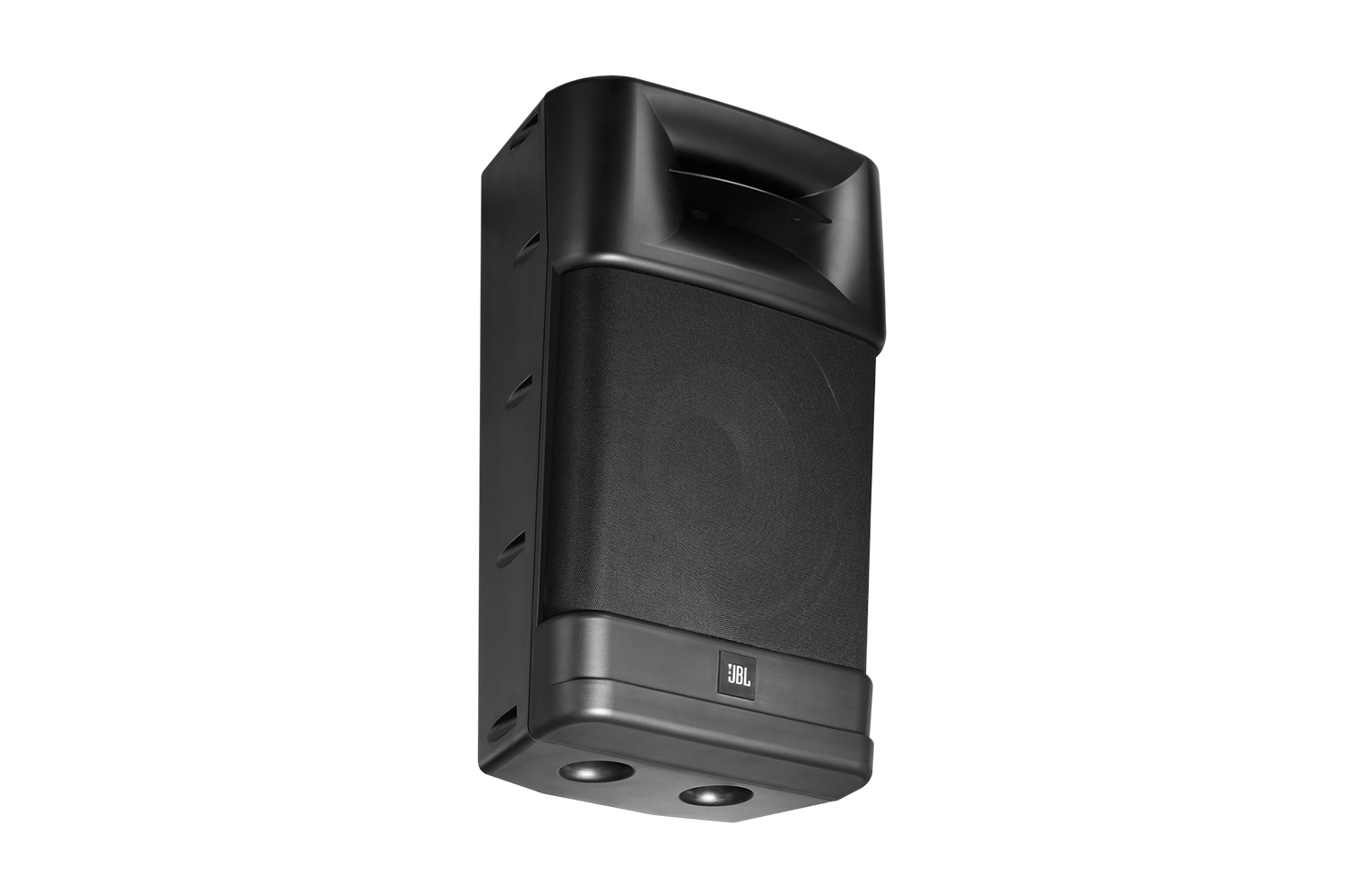

9400 Float
updated: 12月03日
    112.9 KB 12月03日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 10", 2-way, bass-reflex
Frequency Range (-10 dB) 60 Hz – 20 kHz (4π)
Frequency Range (±3 dB) 80 Hz – 18 kHz (4π)
覆盖范围 110º × 60º (H×V)
Power Rating(continuous / program / peak ) 250W / 500W / 1000 W(IEC Pink Noise, 6dB CF, 2hrs)

灵敏度

96 dB (1W@1m)
Maximum dB SPL(@1m) 120 dB continuous (126 dB peak)
额定阻抗 8 Ohms
极性 EIA
Low Frequency 1× 610H
High Frequency 1× 2414H-1
Enclosure Textured black HIPS
网罩 HIPS, covered with black cloth
Input Connector Binding posts
尺寸(高 x 宽 x 厚) 22.0” x 16.1” x 11.0”(559 x 410 x 279 mm)
净重量 19.4 lbs (8.8 kg)
