12MB3P (discontinued)

12” Woofer for MidBass

Larger Images


For midbass boxes that require high power handling, efficiency, high fidelity, and low distortion. Extremely versatile these speakers can be used in two-way, three-way and line array systems.


  Version Language Size Uploaded
Data Sheets
file type icon 12MB3P Spec Sheet
updated: Oct 2019
    262 KB Oct 2019
file type icon Components Full Line 2015 Catalog
updated: Aug 2020
    1.32 MB Aug 2020
Hi Res Images

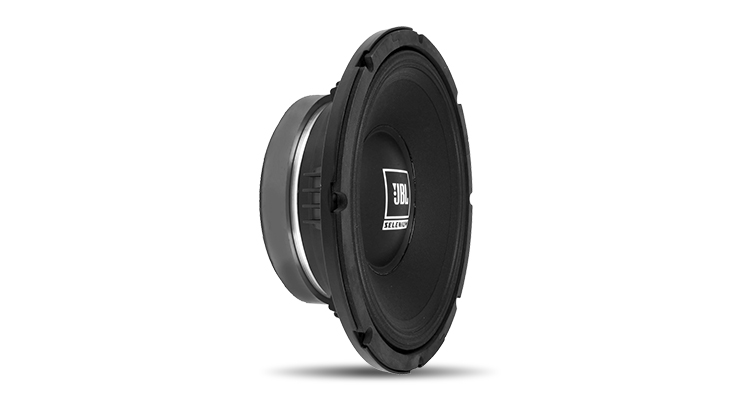

file type icon 12MB3P Side
updated: Oct 2019
    39.1 KB Oct 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Diameter 12"
Impedance (ohms) 8
RMS (W) 500
Musical Program (W) 1.000
SPL 1W @ 1m (dB) 101
Frequency Range (-10dB) 90 to 4.000
Resonance (Hz) 2.4 (61)
Voice Coil Diameter in.(mm) 100
Voice coil Kapton®/Alumínio
Magnet Weight oz.(g) 93 (2,640)
Frame Material Die cast aluminum
