12MB3P (arrêté)

12” Woofer for MidBass

12MB3P
Grandes images

12MB3P

For midbass boxes that require high power handling, efficiency, high fidelity, and low distortion. Extremely versatile these speakers can be used in two-way, three-way and line array systems.

Téléchargements

  Version Language Size Uploaded
Data Sheets
file type icon 12MB3P Spec Sheet
updated: oct. 2019
    262 ko oct. 2019
Brochures
file type icon Components Full Line 2015 Catalog
updated: août 2020
    1,32 Mo août 2020
HI-RES IMAGEs

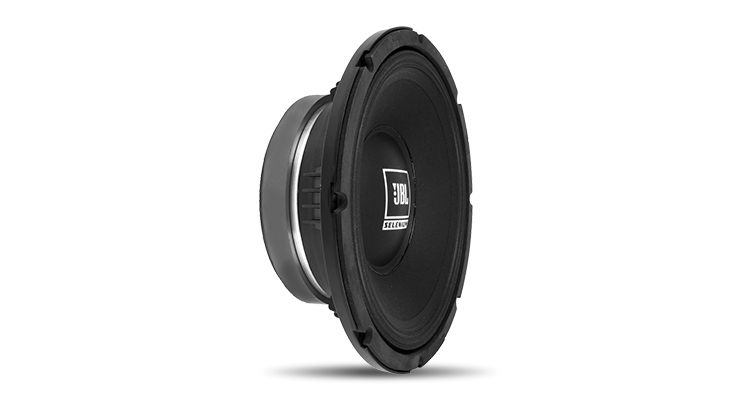

file type icon 12MB3P Side
updated: oct. 2019
    39,1 ko oct. 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Diameter 12"
Impedance (ohms) 8
RMS (W) 500
Musical Program (W) 1.000
SPL 1W @ 1m (dB) 101
Frequency Range (-10dB) 90 to 4.000
Resonance (Hz) 2.4 (61)
Voice Coil Diameter in.(mm) 100
Voice coil Kapton®/Alumínio
Magnet Weight oz.(g) 93 (2,640)
Frame Material Die cast aluminum
