12MB3P (停产)

12” Woofer for MidBass

12MB3P
较大的图像

12MB3P

For midbass boxes that require high power handling, efficiency, high fidelity, and low distortion. Extremely versatile these speakers can be used in two-way, three-way and line array systems.

下载

  Version Language Size Uploaded
Data Sheets
file type icon 12MB3P Spec Sheet
updated: 10月 2019
    262.0 KB 10月 2019
Brochures
file type icon Components Full Line 2015 Catalog
updated: 8月 2020
    1.3 MB 8月 2020
HI-RES IMAGEs

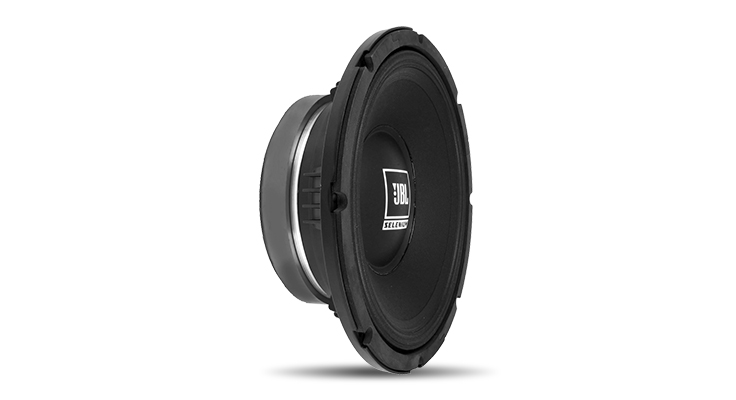

file type icon 12MB3P Side
updated: 10月 2019
    39.1 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Diameter 12"
Impedance (ohms) 8
RMS (W) 500
Musical Program (W) 1.000
SPL 1W @ 1m (dB) 101
频率范围 (-10dB) 90 to 4.000
Resonance (Hz) 2.4 (61)
Voice Coil Diameter in.(mm) 100
Voice coil Kapton®/Alumínio
Magnet Weight oz.(g) 93 (2,640)
Frame Material Die cast aluminum
