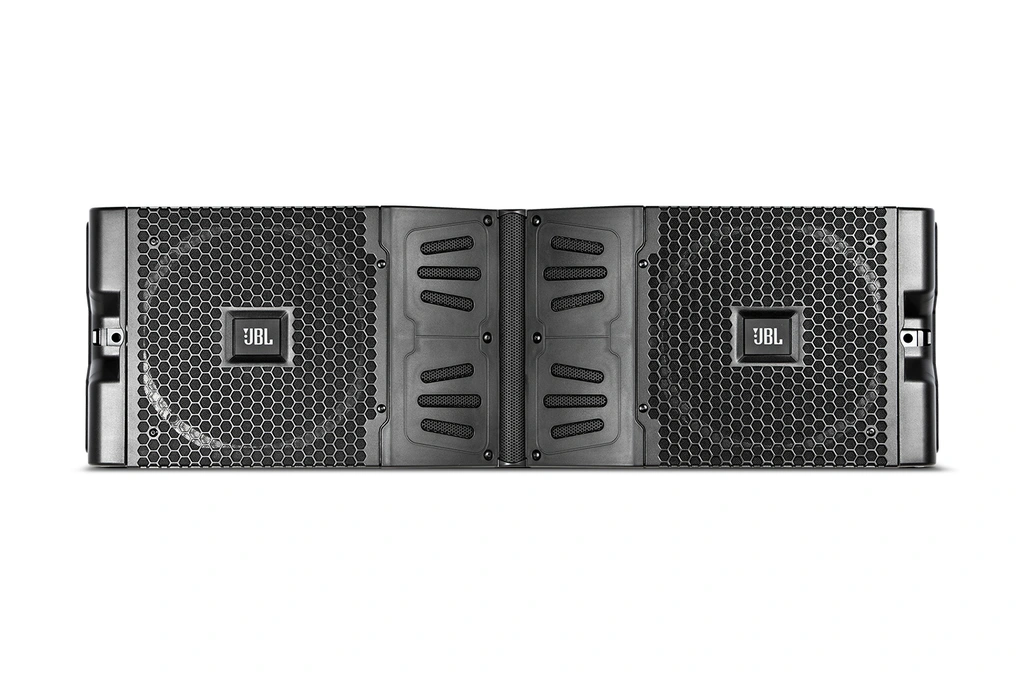

JBL Professional VTX V20

Større billeder

Extraordinary Performance in a Compact Format

VTX V20 features the advanced technology and extraordinary performance of the groundbreaking VTX V25 in a smaller format, high power density 3-way system complemented by a new suspension system that provides efficient transport, fast setup and precise configuration. All VTX V20 components have been specifically engineered to provide stable 105 degree horizontal coverage and effective line source array coupling in the vertical plane while delivering linear, transparent sound up to surprisingly high output levels for its diminutive size.

Funktioner

Differential Drive Technology
4th generation advanced high frequency waveguide
Small Format Version of Patented D2 Dual Compression Driver
ASM Suspension System
V5 System Integration

Flere detaljer

REFINED RBI WAVEGUIDE

Improved Horizontal Coverage

JBL's patented Radiation Boundary Integrator combines the high frequency and mid-range sections of the VTX V20 so the transition across each band is uninterrupted, undistorted and seamless.

LEARN MORE

DIFFERENTIAL DRIVE® TECHNOLOGY

Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE

System Integration

System Integration & Management

LEARN MORE

Downloads

Specifications

	Størrelse	Uploadet
V20 Spec Sheet opdateret: okt 2020	1,78 MB	okt 2020

Manuals

	Størrelse	Uploadet
VTX V20/S25 Application Guidelines opdateret: jul 2023	8,23 MB	jul 2023

Brochures

	Størrelse	Uploadet
VTX V20/S25 System Brochure opdateret: dec 2020	3,87 MB	dec 2020

CAD Drawings

	Version	Størrelse	Uploadet
VTX V20 Drawings 2D, 3D opdateret: okt 2020		2,65 MB	okt 2020
VTX V20/S25 Revit Files version 1.0, opdateret: okt 2022	1.0	21,3 MB	okt 2022
VTX V20/S25 Sketchup Files version 1.0, opdateret: okt 2022	1.0	1,95 MB	okt 2022

Compliances

	Størrelse	Uploadet
VTX V-Series Declaration of Conformity opdateret: dec 2020	158 kB	dec 2020

Software

	Størrelse	Uploadet
Venue Synthesis udgivet: jan 2025		jan 2025
Performance Manager 3 udgivet: jul 2024		jul 2024

Ease Data

	Version	Størrelse	Uploadet
VTX V20/S25 EASE GLL version 1.3, opdateret: dec 2020	1.3	14,7 MB	dec 2020

Preset Libraries

	Version	Størrelse	Uploadet
V20 Preset Library version 2.1, opdateret: dec 2020	2.1	843 kB	dec 2020

Service Notes

	Version	Sprog	Størrelse	Uploadet
VTX V20 Spare Parts version A, opdateret: apr 2026	A		65,8 kB	apr 2026

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

System Type	3-Way High Directivity Line Array Element with D2 Technology
Frequency Range (-10dB)	60 Hz – 20 kHz (Preset: VTX V20)
Horizontal Coverage (-6 dB)	105 degrees nominal (300 Hz - 16 kHz)
Maximum Peak Output	139 dB (Preset: VTX V20)
System Amplification	Crown Audio I-Tech HD
Nominal Impedance	Active: LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms Passive: LF: 16 ohms MHF: 8 ohms
LF Driver	(2) JBL 2261H 10-inch Neodymium Differential Drive® woofer
MF Driver	(4) JBL 2164H 5-inch Neodymium mid-range woofer
HF Driver	(3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Enclosure	Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex™ finish, integral recessed handles
Inter-enclosure Angle	0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
Dimensions (H x W x D)	280 mm x 911 mm x 402 mm 11 in x 35.9 in x 15.8 in
Net Weight (each)	40 kg (88 lbs)

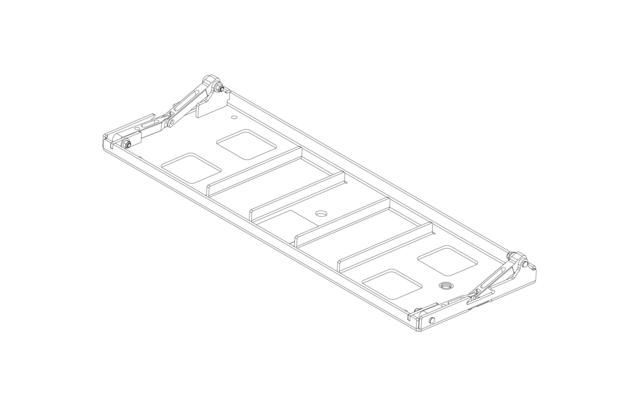

Tilbehør

VTX V20 AF | ARRAY FRAME

Større billeder

Array Frame used for suspending or ground stacking VTX V20 or VTX S25 enclosures. Includes height-adjustable leveling feet, optional extension bar available.

Features:

Compatible with VTX V20 and VTX S25
11 pick points available for single point suspension
Flexible front-to-back or side-by-side pick point options
Supports up to 24 cabinets (array geometry dependent)

Included:

VTX-V20-AF Array Frame
4 x adjustable feet for ground stacking applications

Dokumentation

VTX V20 AF Spec Sheet [746 kB]
VTX V20 AF EB 2D Drawing [497 kB]
VTX V20 AF 3D Drawing [2,54 MB]
VTX V20/S25 Revit Files (rev1.0) [21,3 MB]
VTX V20/S25 Sketchup Files (rev1.0) [1,95 MB]

VTX V20 AF EB | EXTENSION BAR

Større billeder

Extension Bar accessory used in conjunction with the VTX-V20-AF array frame for deploying VTX V20 systems in either compression or tension mode. Five extension bar attachment options provide variable pick point separation (2-point suspension) and added flexibility for single point suspension. The extension bar can be front or rear-mounted for increased array up-tilt or down-tilt, respectively. When rear-mounted, provides an attachment point for compression suspension. A single extension bar can be installed in the array frame central tube, or alternatively, a pair of extension bars can be front or rear-mounted in left/right array frame tubes. Single or dual extension bars can also be front or rear-mounted in Ground Stack applications for extra stability and a wider range of array tilt angle options.

Included:

1 x VTX-V20-AF-EB
1 x Adjustable leveling foot used for ground stacking applications
2 x Quick Release Pins (QRP) for securing the extension bar to the array frame

Dokumentation

VTX V20 AF EB Spec Sheet [775 kB]
VTX V20 AF EB 2D Drawing [497 kB]
VTX V20 AF EB 3D Drawings [2,54 MB]
VTX V20/S25 Revit Files (rev1.0) [21,3 MB]
VTX V20/S25 Sketchup Files (rev1.0) [1,95 MB]

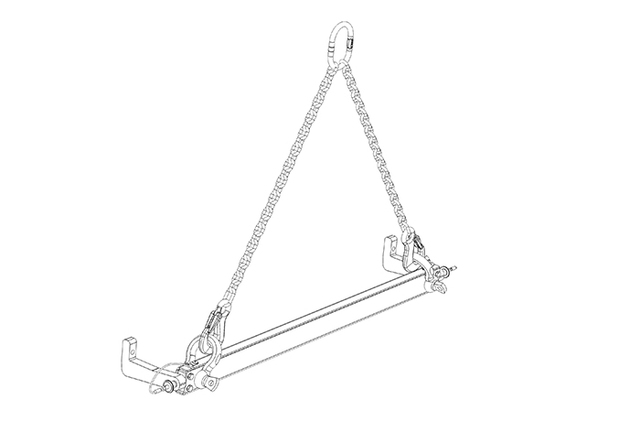

VTX V20 PB | PULL BACK ACCESSORY

Større billeder

Pull Back accessory for attachment to bottom V20 enclosure to facilitate compression suspension of VTX V20 arrays. Compression can be implemented using a separate chain motor and suspension point (Rear Motor Pullback) or by using an optional VTX-V20-LH chain lever hoist or chain motor that is attached to the VTX-V20-AF-EB extension bar (Extension Bar Pullback).

Included:

Central pullback bar including two captive Quick Release Pins (QRPs) on lanyards
Two left/right adapter brackets for connection to the bottom VTX V20 cabinet and the central spreader bar
2 x 5/8” shackles for attaching spreader bar to chain bridle
1 x 18” dual leg chain bridle with locking safety hooks and upper master link for attachment of compression device

Dokumentation

VTX V20 PB Spec Sheet [712 kB]
VTX V20/S25 Revit Files (rev1.0) [21,3 MB]
VTX V20/S25 Sketchup Files (rev1.0) [1,95 MB]

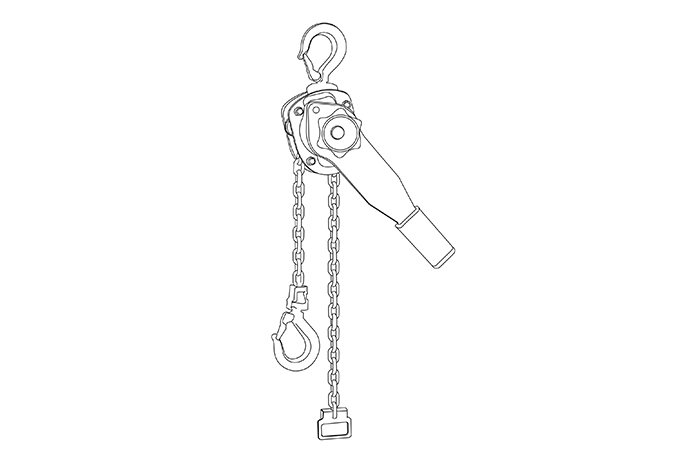

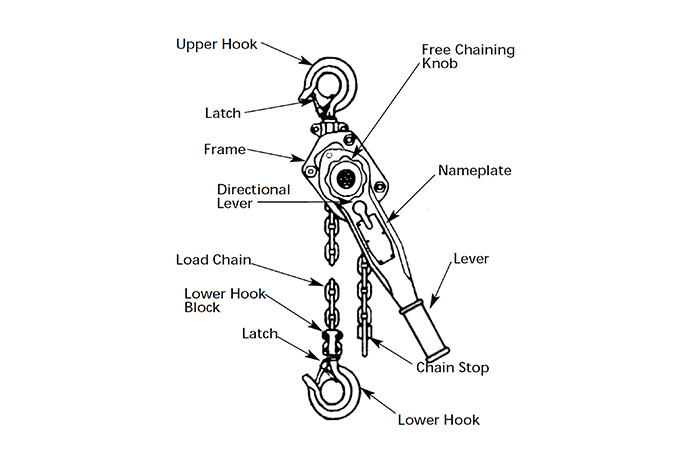

VTX V20 LH | LEVER HOIST

Større billeder

Factory-approved manual lever hoist for compression of VTX V20 systems. The CM Series 653 for use with VTX V20 is a 3/4 ton model with 20’ of chain length for compressing arrays of up to 20 cabinets with no additional extension hardware needed.

Included:

1 x CM Lever Hoist (3/4 ton rating) with 20' of chain

Dokumentation

VTX V20 LH Specsheet [911 kB]
VTX V20 LH User Manual [858 kB]

VTX V20 DF | DOWN FILL ADAPTER

Større billeder

Designed to facilitate fast attachment and precise alignment of VTX V20 and V25-II / V25-II-CS systems, the VTX V20-DF is a lightweight solution for providing wider coverage at the bottom of VTX V25-II / V25-II-CS arrays. Lightweight design with multiple options for angle between V25-II / V25-II-CS and V20 (3.5deg, 7.5deg, 11deg). Able to be used as a down-fill adapter frame for V25-II arrays, or as a downfill adapter frame + pullback frame for compression of VTX V25-II-CS arrays with V20 downfill. Supports up to 6x VTX V20 cabinets suspended underneath VTX V25-II / V25-II-CS.

Features:

Angle options: 3.5deg, 7.5deg, 11deg
Lightweight design
Precise HF exit alignment between V25-II and V20
Support for up to 6x VTX V20 cabinets

Dokumentation

VTX V20 DF Spec Sheet [568 kB]
VTX V20 DF Suspension Manual (rev2) [852 kB]
VTX V20 DF Customer Drawings [1,42 MB]

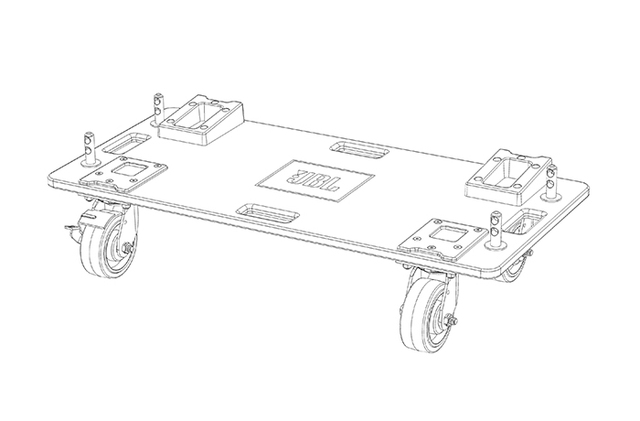

VTX V20 VT | VERTICAL TRANSPORTER

Større billeder

The VTX-V20-VT vertical transporter is a simple and cost-effective solution for vertically transporting VTX V20 enclosures in blocks of 3 or 4 cabinets high. Measuring 35” wide by 16” deep, the VTX-V20-VT will travel 5 across (length-wise) in standard 90” trucks.

Features:

Can transport 3x or 4x V20 enclosures
Heavy duty locking casters
Stackable
Dimensioned for efficient truck pack

Included:

1 x VTX-V20-VT

Dokumentation

VTX V20 VT Spec Sheet [812 kB]

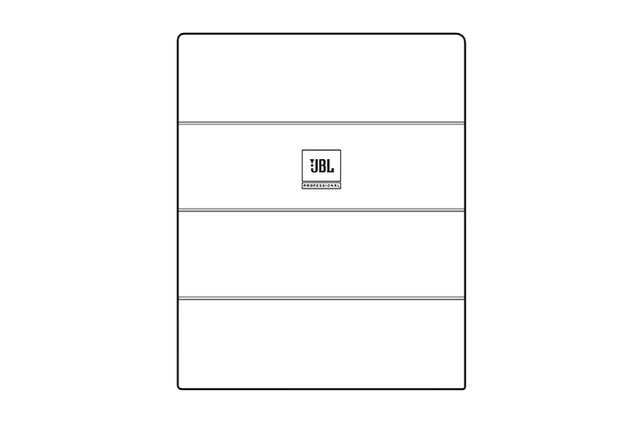

VTX V20 VT CVR | VERTICAL TRANSPORTER COVER

Større billeder

Reinforced, padded protective cover for 3x or 4x VTX V20 enclosures when transported vertically.

Features:

Handle cutouts, heavy-duty zippers
Modular design, can be used with 3x or 4x VTX V20 enclosures
Rear panel access flaps for input connectors
Speaker cabinets can be tested without fully removing the cover

Included:

1 x VTX-V20-VT-CVR

Dokumentation

VTX V20 CVR Spec Sheet [417 kB]

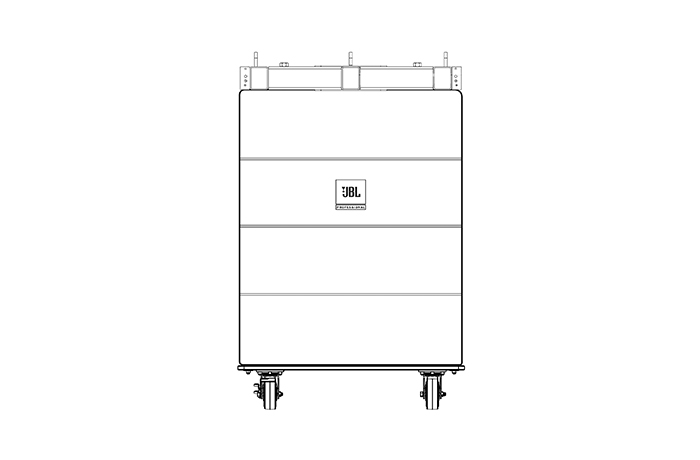

VTX V20 VT CVRW | VERTICAL TRANSPORTER COVER WRAP

Større billeder

Reinforced, padded protective cover for 3x or 4x VTX-V20 enclosures plus VTX-V20-AF array frame when transported vertically. The cover features on open top design that allows the array frame to remain attached during transport.

Features:

Handle cutouts, heavy-duty zippers
Modular design, can be used with 3x or 4x VTX V20 enclosures plus VTX-V20-AF array frame
Rear panel access flaps for input connectors
Speaker cabinets can be tested without fully removing the cover

Included:
