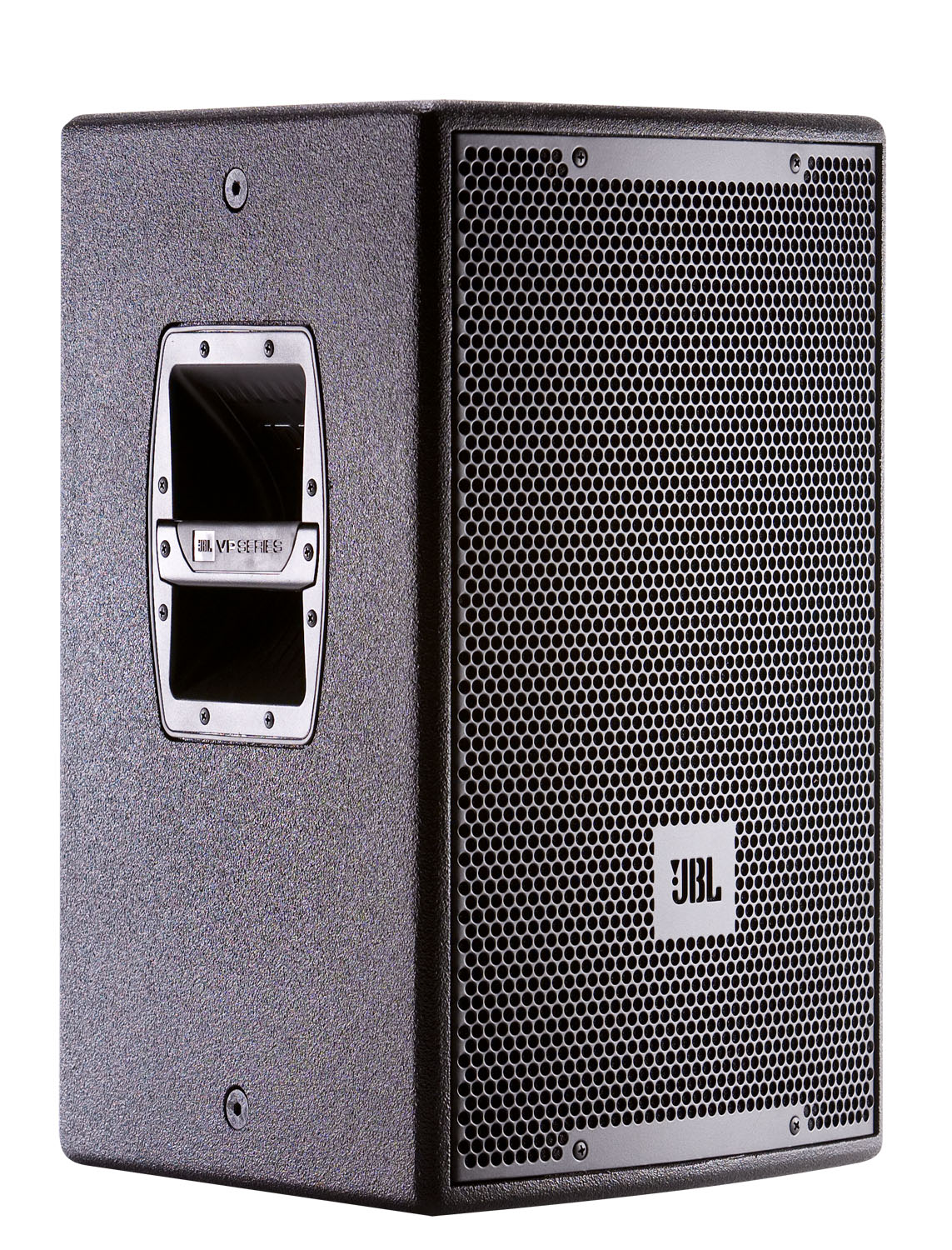

VP7212/95DPC Aktivt 12" 2-vejs integreret højttalersystem
VP7212/95DPC er et aktivt 12" 2-vejs integreret højttalersystem med 1750 watts spidseffekt og integreret digital signalbehandling.
Større billeder
Funktioner
- Kompakt bi-amplificeret fuldrækkevidde-højttaler med JBL DrivePack® teknologi til portabel
eller fast installation - Optimeret til både portabel/udlejnings- eller permanent-venue-brug
- 1750 watt spidseludgangseffekt, 875 watt kontinuerlig
- 12-tommer Differential Drive® lav-frekvens-driver for udvidet lav-frekvensudsendelse
- Robust pulverlakeret aluminium-støbejernshanke, designet for styrke og komfort
- Integreret 35 mm statifmontering
Downloads
Dokumenter
| Størrelse | |
VP Series Brochure
opdateret: apr 2026
|
2,73 MB |
|
VP7212/95DPC Spec Sheet
opdateret: apr 2026
|
299 kB |
Specifications
| Størrelse | |
|
|
299 kB |
Manuals
| Størrelse | |
|
|
1,02 MB |
Brochures
| Størrelse | |
|
|
2,73 MB |
CAD Drawings
| Størrelse | |
|
|
52,5 kB |
|
|
317 kB |
|
|
10,4 kB |
Simulation Data
| Størrelse | |
|
|
21 MB |
|
|
24 MB |
Images
| Størrelse | |
|
|
631 kB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
Reservedele og service
Specifikationer
| Frequency Range | 55 Hz - 20 kHz50 |
| Frequency Response | 65 Hz - 18 kHz80 |
| Coverage Pattern | 90°x 50° |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output1 | 134 dB SPL 1m |
| Low Frequency Section | JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL 2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit. |
| DPC1 Internal Amplification Output (at nominal load) | 1750 Watts Peak, 875 Watts Continuous |
| DPC1 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/125HF Watts |
| DP1 Output Section | LF: Dual Bridged Technology™, Class DHF: Bridged Class D |
| Audio Input Connector | XLR with loop-through |
| User Controls | 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz; User Selectable; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 13 M10 Fittings, 35 mm pole mount socket |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 533 x 358 x 334 mm21.0 x 14.1 x 13.1 in |
| Net Weight | 21.3 kg (47 lb) |
