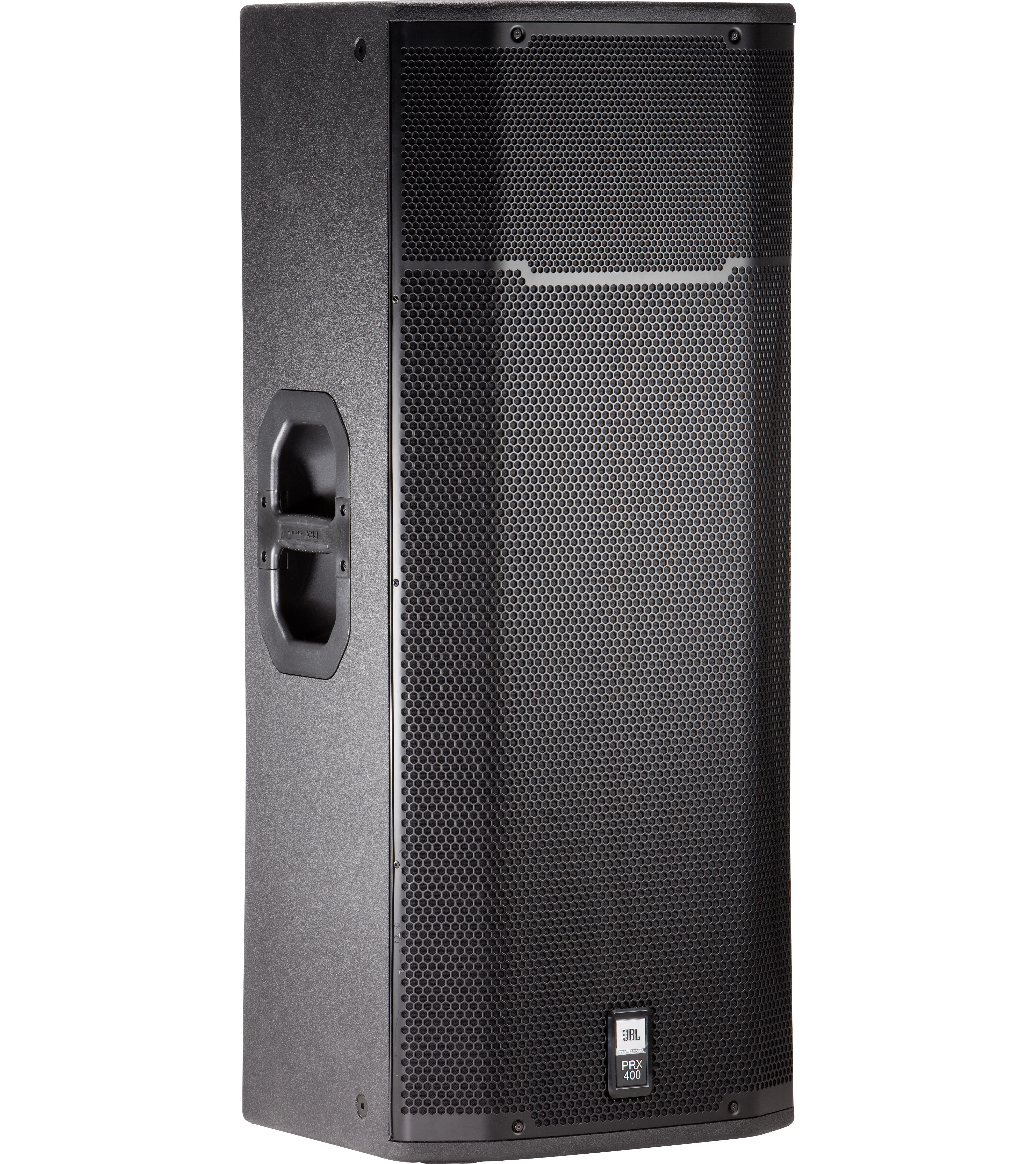

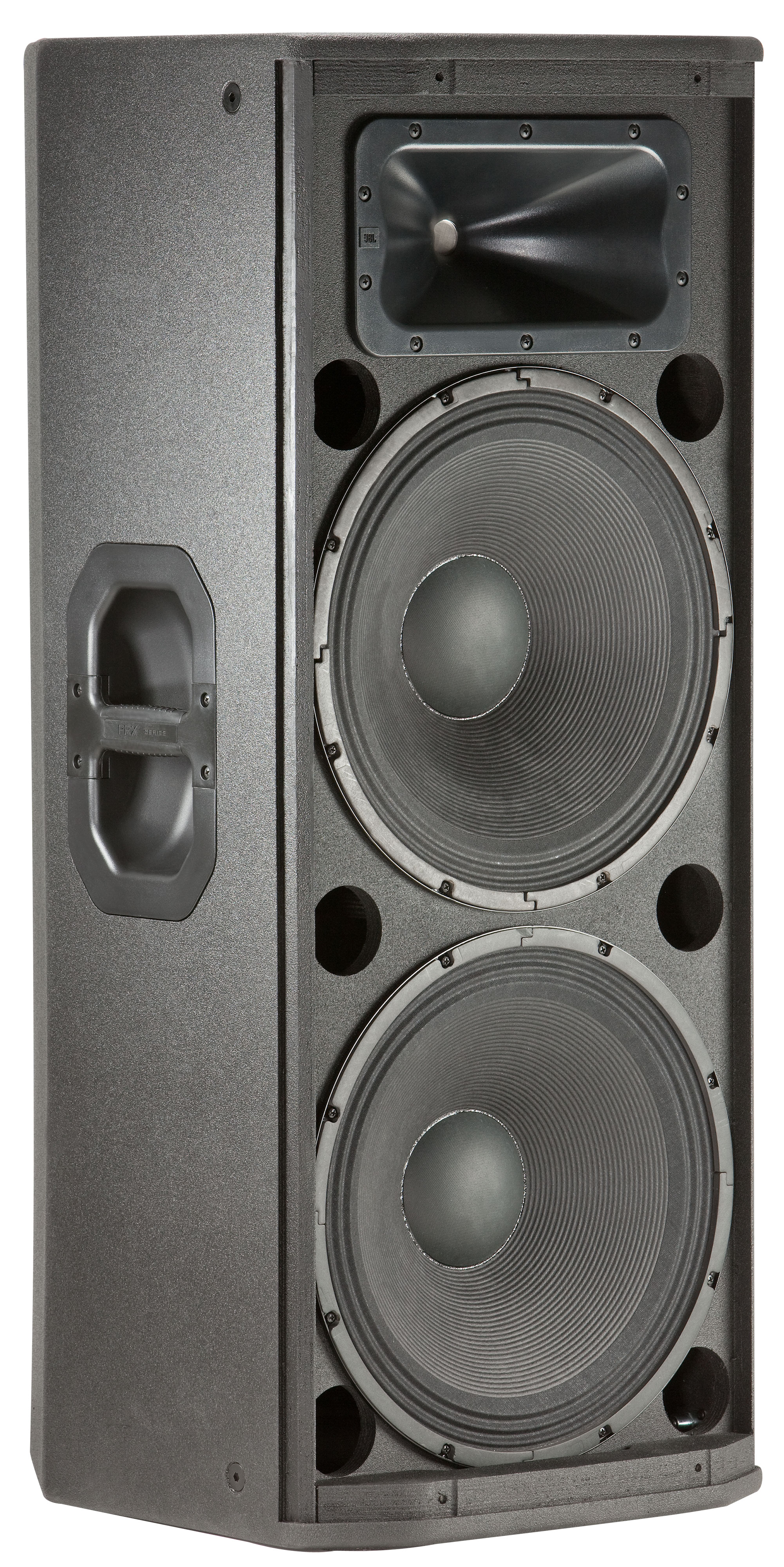

15" Two-Way Loudspeaker System
PRX425 dual fifteen-inch, two-way is the perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.
Større billeder
Funktioner
- Dual 15" two-way design
- 90° x 50° coverage
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
- Live sound reinforcement for vocals and musical instruments
- The perfect choice for DJ’s and bands who need low-frequency extension from the convenience of a stand-alone cabinet.
Downloads
Specifications
| Størrelse | |
|
|
726 kB |
Brochures
| Størrelse | |
|
|
991 kB |
|
|
2,54 MB |
|
|
8,45 MB |
version B,
opdateret: aug 2025
Compliances
| Størrelse | |
|
|
144 kB |
Images
| Størrelse | |
|
|
4,53 MB |
|
|
2,19 MB |
Speaker Tunings
| Størrelse | |
|
|
41,2 kB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
Reservedele og service
Specifikationer
| Frequency Range (-10dB) | 48 Hz – 19 kHz |
| Frequency Response (±3 dB) | 61 Hz – 16 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 100 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 600 W / 1200 W / 2400 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 134 dB SPL peak |
| Nominal Impedance | 4 ohms |
| Dimensions (H x W x D) | 1044 mm x 429 mm x 521 mm (41.1" x 16.9" x 20.5") |
| Net Weight | 33.5 kg (74 lbs.) |
| Inputs | Neutrik® Speakon® NL-2 ¼" combination (x2) |
| Enclosure | Duraflex coated plywood |
Tilbehør
PRX425-CVR | Padded Cover for PRX425
Større billeder
Padded Cover for PRX425. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
JBLPOLE-GA | JBL gasassisteret højttalerstander
Større billeder
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentation
-
JBL pole Gas Assist
[41,6 kB]
-
JBL pole Gas Assist detail
[70,2 kB]
-
JBLPOLE-GA Data Sheet
[314 kB]
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Større billeder
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentation
-
JBLTRIPOD-GA Data Sheet
[231 kB]
-
JBL Tripod Gas Assist Closed
[36,2 kB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 kB]
-
JBL Tripod Gas Assist Open
[41,7 kB]
-
JBL Tripod Manual Adjust Open
[39,5 kB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Større billeder
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentation
-
JBLTRIPOD-MA Data Sheet
[228 kB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Større billeder
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentation
-
JBLPOLE-MA Data Sheet
[258 kB]
-
JBL pole Manual Adjust
[40,7 kB]
-
JBL pole Manual Adjust Detail
[87,7 kB]
