Control CRV

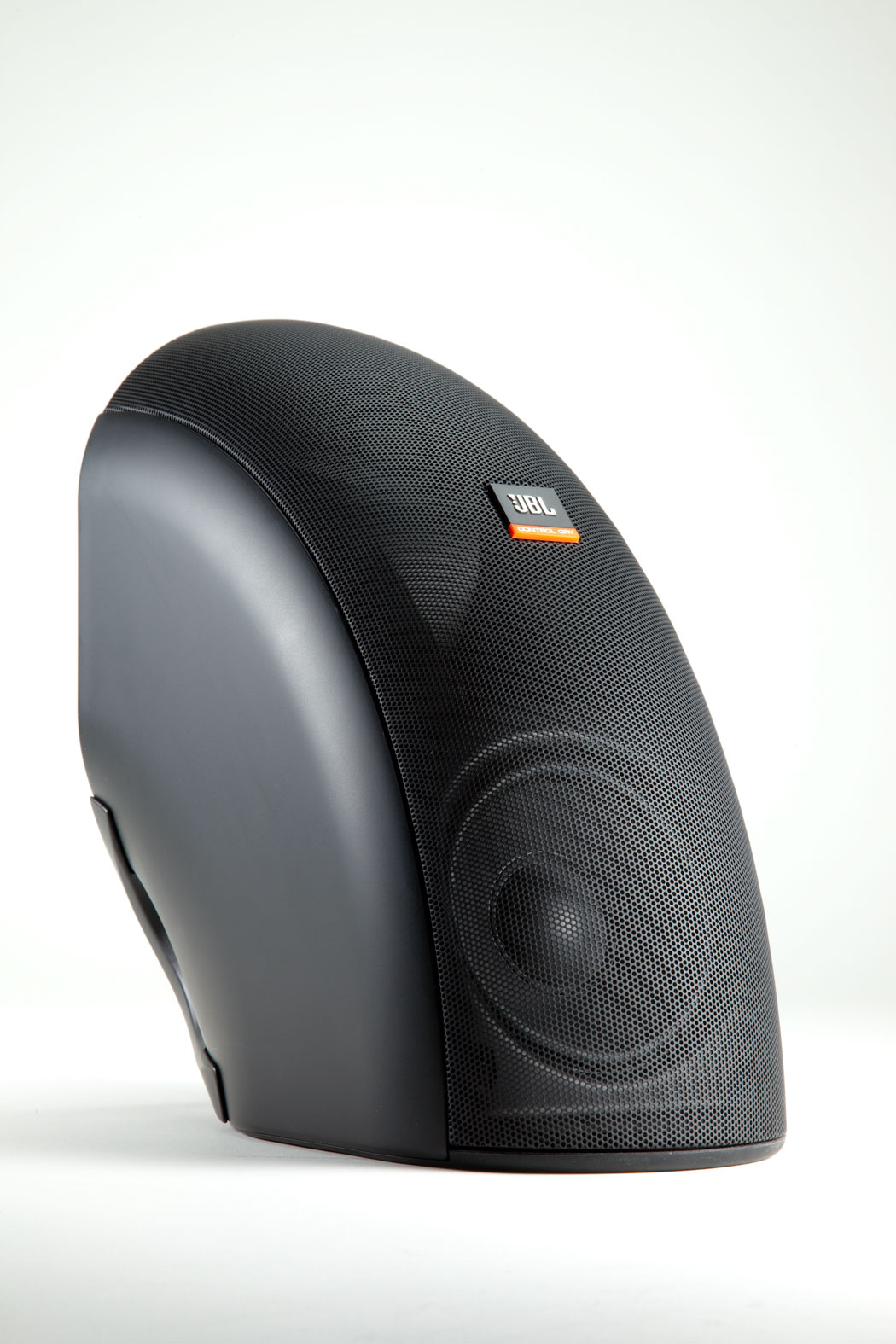

High Design Loudspeaker with 70V/100V Transformer. Weather Resistance. Unique, contemporary, curved design. Dual 100 mm (4 in) woofers provide superb sound quality. Combinable into half-round or full 360° round arc clusters.
Større billeder
Downloads
Specifications
| Størrelse | |
|
|
573 kB |
Manuals
| Størrelse | |
|
|
2,18 MB |
CAD Drawings
| Størrelse | |
|
|
578 kB |
|
|
4,73 MB |
Compliances
| Størrelse | |
|
|
179 kB |
|
|
145 kB |
Information documents
| Størrelse | |
|
|
611 kB |
Images
| Størrelse | |
|
|
199 kB |
FAQs
| Størrelse | |
|
|
109 kB |
Drawings 2D/3Ds
| Størrelse | |
|
|
138 kB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
Reservedele og service
Specifikationer
| Frequency Range | 80 Hz – 20 kHz |
| Power Capacity | 75 W continuous pink noise (300 W peak) |
| Transformer | Selectable 70V/100V or low impedance |
| Usability | Indoor/outdoor capable |
| Colors | Black, or White (-WH) |
| Sensitivity | 89 dB, 1W@1m |
| Maximum SPL (1m) | 108 dB continuous average long-term (peaks of 114 dB) |
| Coverage Angle | 105°H x80°V |
| Impedance | 4 Ohms |
| Transformer Taps | 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru |
| Drivers | LF Driver: Dual 4" (100 mm) HF Driver: 3/4" (19 mm) |
| Input Connectors | Screw-down terminal strip |
| Grille | Zinc-plated steel |
| Mounting Hardware | Included wall-mount bracket. Optional pole-mount accessory. |
| Outdoor Capability | IP-34 rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray |
| Included Accessories | Corner/wall-mount bracket with cap, screws, and trim covers |
| Optional Accessories | Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster |
