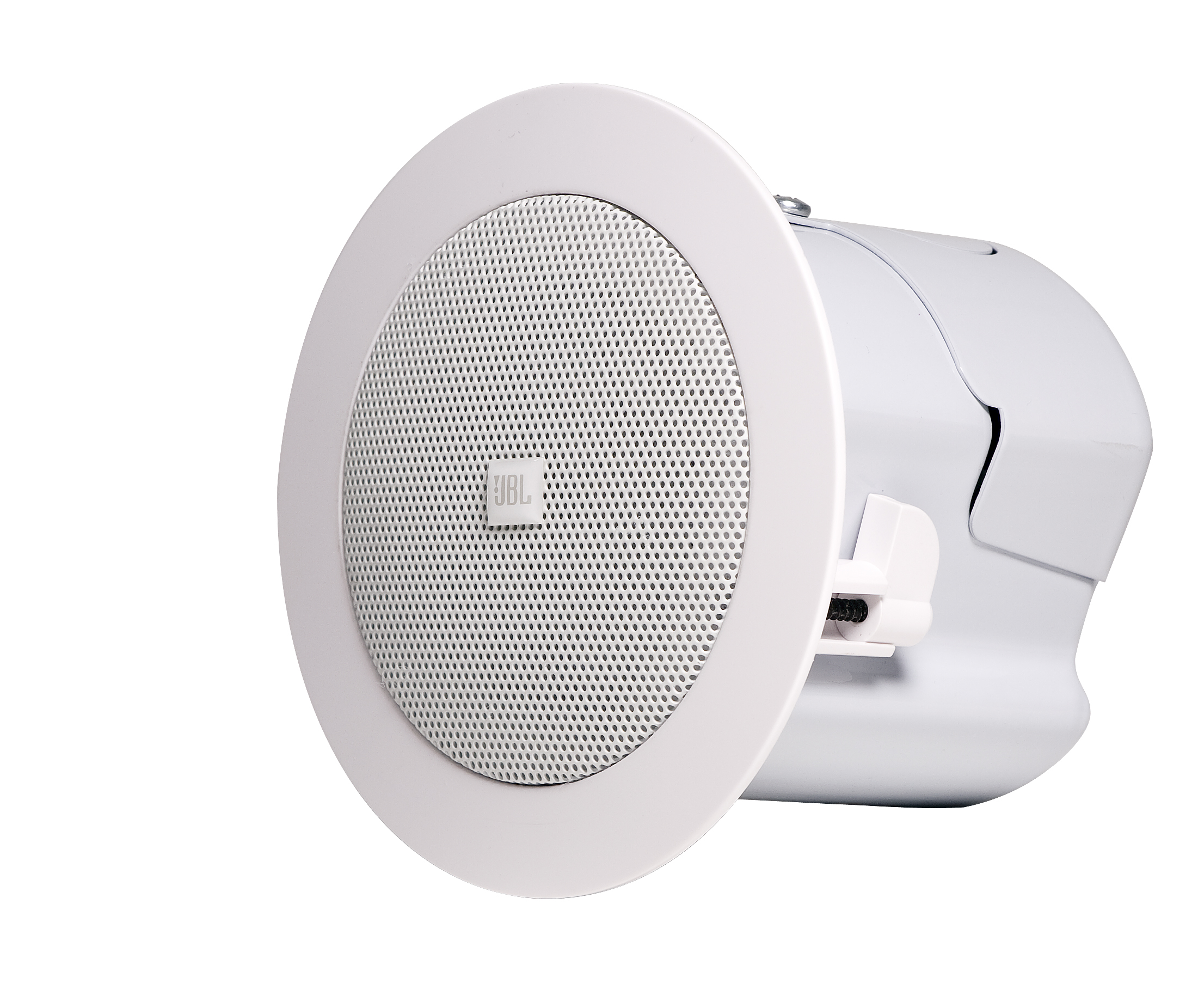

JBL Professional Control 42C

Større billeder

Ultra-compact Satellite Loudspeaker

The Control 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.

For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Funktioner

Small, Unobtrusive Size
High-Fidelity Sound for Subwoofer-Satellite Systems
Elegant industrial design fits any décor

Downloads

Data Sheets

	Version	Størrelse	Uploadet
Control 42C Spec Sheet version D, opdateret: aug 2023	D	1,23 MB	aug 2023

Manuals

	Version	Størrelse	Uploadet
Ceiling Speaker Accessory Guide version A, opdateret: maj 2026	A	127 kB	maj 2026

Brochures

	Version	Sprog	Størrelse	Uploadet
Control Contractor Brochure (2025) version A, opdateret: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2024) version D, opdateret: feb 2024	D		14 MB	feb 2024
Control 40 Brochure opdateret: sep 2019			716 kB	sep 2019
Control Contractor Brochure (2026) opdateret: mar 2026			21 MB	mar 2026

CAD Drawings

	Størrelse	Uploadet
Control 42C 3D Drawing opdateret: apr 2019	608 kB	apr 2019
Control 42C 2D Drawing opdateret: apr 2019	116 kB	apr 2019

Compliances

	Størrelse	Uploadet
JBL Control Series Passive Speakers DoC opdateret: dec 2019	179 kB	dec 2019
Control 40 Series Declaration of Conformity opdateret: okt 2019	154 kB	okt 2019

Software

	Version	Størrelse	Uploadet
Distributed System Design (DSD) version 3.9, opdateret: nov 2025	3.9	612 kB	nov 2025

Simulation Data

	Størrelse	Uploadet
Ease SPK/DLL Files - Full JBL Pro Line opdateret: maj 2024	21 MB	maj 2024

User Guides

	Størrelse	Uploadet
Control 40 Users Guide opdateret: okt 2020	934 kB	okt 2020

Accessories

	Størrelse	Uploadet
MTC-CS-Teth1 Press-In Grille Safety Tether opdateret: sep 2021	204 kB	sep 2021

Speaker Tunings

	Version	Størrelse	Uploadet
Commercial, CBT, and AWC Tunings 220616 version A, opdateret: maj 2023	A	557 kB	maj 2023

Images

	Størrelse	Uploadet
Control 42C HiRes opdateret: apr 2019	1,19 MB	apr 2019

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range	140 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hr
Sensitivity	82 dB (1kHz - 16 kHz)
Drivers	60 mm (2.5 in)
Coverage Angle	160° conical
Impedance	16 ohms
Input Connectors	Two removeable locking 2-pin connectors with screwdown terminals.
Optional Accessories	MTC-RAIL tile rails MTC-42NC New Construction bracket MTC-42MR Mud Ring Construction Bracket
Included Accessories	C-ring support backing plate, knockout strain relief, cutout template, paint shield.
Dimensions (Diameter x Depth)	127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in)
Maximum SPL (1m)	94 dB @ 1 m (3.3 ft) average, 100 dB peak
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating.
Plenum Usage	Yes, backcan included

Tilbehør

MTC-48TRx12 | Loftpaneleskinner til 4' x 4' loftplader

Større billeder

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 er et tilbehørsskinne til installation af mange af JBL's lofthøjttalere i 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 inch) loftsplader i ophængte loftskonstruktioner.

Kan bruges med alle JBL-lofttalere med C-ring/tile-rail-monteringssystem.
Omfatter (ved produktudgivelse):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Ikke til JBL-talere, der installeres med tile bridges (såsom CSS-serien, 8138, C227C/CT, C300-seriemodeller). Kontakt JBL Professional kundeservice for den mest opdaterede kompatibilitetsliste.
Inverteret V-rille giver støtte til tile rail-gitteret i tilfælde af flisefejl og reducerer vibrationstransmission til – og lyd fra – loftsflisegittersystemet.
1,2 mm (0,05 tommer) metaltykkelse giver den yderligere støtte, som det lange spænd kræver.
Flere C-ring-monteringshul. Yderligere hulpositioner kan bores af installatøren.
Én MTC-48TRx12 er en pakke med 12 tile rails, nok til 6 talere (2 pr. taler).
