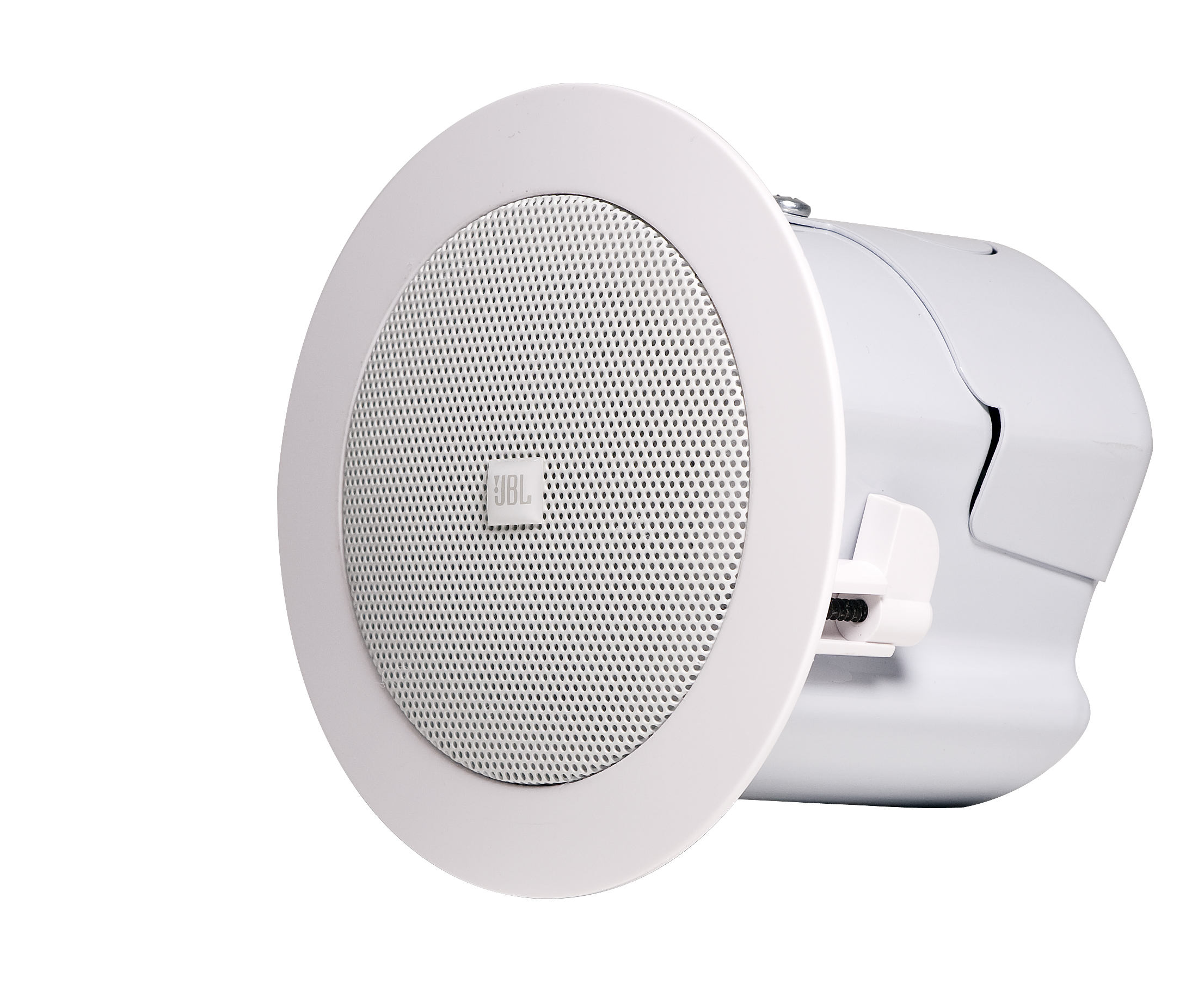

JBL Professional Control 42C

Gambar Lebih Besar

Ultra-compact Satellite Loudspeaker

The Control 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.

For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Fitur

Small, Unobtrusive Size
High-Fidelity Sound for Subwoofer-Satellite Systems
Elegant industrial design fits any décor

Unduhan

Data Sheets

	Versi	Ukuran	Diunggah
Control 42C Spec Sheet versi D, diperbarui: Agu 2023	D	1,23 MB	Agu 2023

Manuals

	Versi	Ukuran	Diunggah
Ceiling Speaker Accessory Guide versi A, diperbarui: Mei 2026	A	127 KB	Mei 2026

Brochures

	Versi	Bahasa	Ukuran	Diunggah
Control Contractor Brochure (2025) versi A, diperbarui: Mar 2026	A		23 MB	Mar 2026
Control Contractor Brochure (2024) versi D, diperbarui: Feb 2024	D		14 MB	Feb 2024
Control 40 Brochure diperbarui: Sep 2019			716 KB	Sep 2019
Control Contractor Brochure (2026) diperbarui: Mar 2026			21 MB	Mar 2026

CAD Drawings

	Ukuran	Diunggah
Control 42C 3D Drawing diperbarui: Apr 2019	608 KB	Apr 2019
Control 42C 2D Drawing diperbarui: Apr 2019	116 KB	Apr 2019

Compliances

	Ukuran	Diunggah
JBL Control Series Passive Speakers DoC diperbarui: Des 2019	179 KB	Des 2019
Control 40 Series Declaration of Conformity diperbarui: Okt 2019	154 KB	Okt 2019

Software

	Versi	Ukuran	Diunggah
Distributed System Design (DSD) versi 3.9, diperbarui: Nov 2025	3.9	612 KB	Nov 2025

Simulation Data

	Ukuran	Diunggah
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024	21 MB	Mei 2024

User Guides

	Ukuran	Diunggah
Control 40 Users Guide diperbarui: Okt 2020	934 KB	Okt 2020

Accessories

	Ukuran	Diunggah
MTC-CS-Teth1 Press-In Grille Safety Tether diperbarui: Sep 2021	204 KB	Sep 2021

Speaker Tunings

	Versi	Ukuran	Diunggah
Commercial, CBT, and AWC Tunings 220616 versi A, diperbarui: Mei 2023	A	557 KB	Mei 2023

Images

	Ukuran	Diunggah
Control 42C HiRes diperbarui: Apr 2019	1,19 MB	Apr 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	140 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hr
Sensitivity	82 dB (1kHz - 16 kHz)
Drivers	60 mm (2.5 in)
Coverage Angle	160° conical
Impedance	16 ohms
Input Connectors	Two removeable locking 2-pin connectors with screwdown terminals.
Optional Accessories	MTC-RAIL tile rails MTC-42NC New Construction bracket MTC-42MR Mud Ring Construction Bracket
Included Accessories	C-ring support backing plate, knockout strain relief, cutout template, paint shield.
Dimensions (Diameter x Depth)	127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in)
Maximum SPL (1m)	94 dB @ 1 m (3.3 ft) average, 100 dB peak
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating.
Plenum Usage	Yes, backcan included

Aksesori

MTC-48TRx12 | Rel Ubin untuk Ubin Plafon 4' x 4'

Gambar Lebih Besar

Tile Rail untuk Ceiling Tiles 4' x 4'

MTC-48TRx12 adalah rel tile aksesori untuk memasang banyak ceiling loudspeaker JBL ke dalam ceiling tiles 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 inch) di aplikasi suspended ceiling.

Dapat digunakan dengan speaker plafon JBL apa pun yang memiliki sistem pemasangan C-ring/tile-rail.
Termasuk (pada peluncuran produk):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Tidak untuk speaker JBL yang dipasang dengan tile bridge (seperti CSS Series, 8138, C227C/CT, C300 Series models). Hubungi JBL Professional Customer Service untuk mendapatkan daftar kompatibilitas terkini.
Alur V terbalik memberikan dukungan ke grid tile rail dalam hal kegagalan tile sambil mengurangi transfer getaran ke – dan bunyi gemerisik dari – sistem grid tile plafon.
Ketebalan logam 1,2 mm (0,05 in) memberikan dukungan tambahan yang diperlukan oleh rentang panjang.
Lubang pemasangan C-ring ganda. Lokasi lubang tambahan dapat dibor oleh installer.
Satu MTC-48TRx12 adalah paket 12 tile rail, cukup untuk 6 speaker (2 per speaker).
