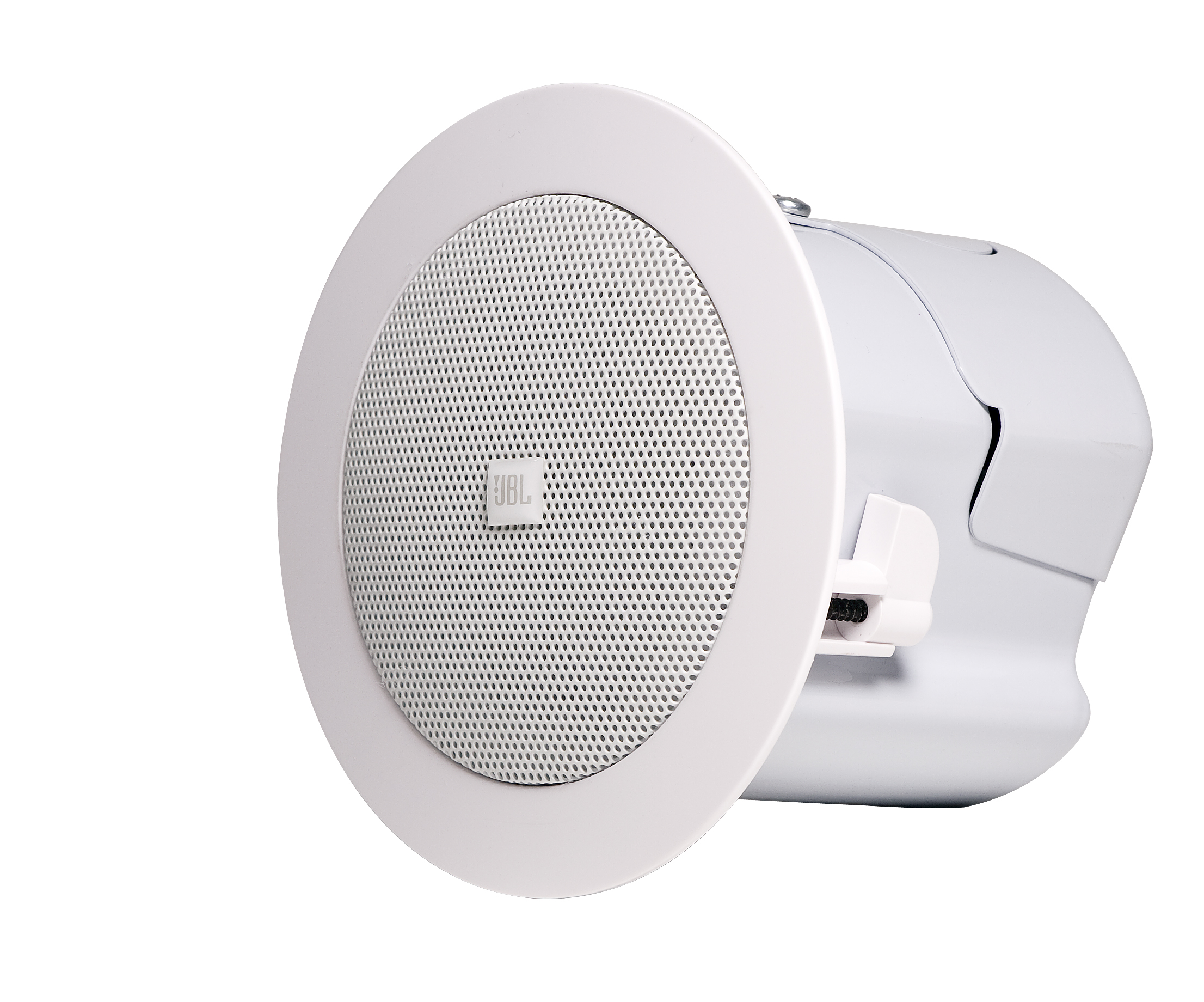

JBL Professional Control 42C

Immagini più grandi

Ultra-compact Satellite Loudspeaker

The Control 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.

For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Caratteristiche

Small, Unobtrusive Size
High-Fidelity Sound for Subwoofer-Satellite Systems
Elegant industrial design fits any décor

Download

Data Sheets

	Versione	Dimensione	Caricato
Control 42C Spec Sheet versione D, aggiornato: ago 2023	D	1,23 MB	ago 2023

Manuals

	Versione	Dimensione	Caricato
Ceiling Speaker Accessory Guide versione A, aggiornato: mag 2026	A	127 KB	mag 2026

Brochures

	Versione	Lingua	Dimensione	Caricato
Control Contractor Brochure (2025) versione A, aggiornato: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2024) versione D, aggiornato: feb 2024	D		14 MB	feb 2024
Control 40 Brochure aggiornato: set 2019			716 KB	set 2019
Control Contractor Brochure (2026) aggiornato: mar 2026			21 MB	mar 2026

CAD Drawings

	Dimensione	Caricato
Control 42C 3D Drawing aggiornato: apr 2019	608 KB	apr 2019
Control 42C 2D Drawing aggiornato: apr 2019	116 KB	apr 2019

Compliances

	Dimensione	Caricato
JBL Control Series Passive Speakers DoC aggiornato: dic 2019	179 KB	dic 2019
Control 40 Series Declaration of Conformity aggiornato: ott 2019	154 KB	ott 2019

Software

	Versione	Dimensione	Caricato
Distributed System Design (DSD) versione 3.9, aggiornato: nov 2025	3.9	612 KB	nov 2025

Simulation Data

	Dimensione	Caricato
Ease SPK/DLL Files - Full JBL Pro Line aggiornato: mag 2024	21 MB	mag 2024

User Guides

	Dimensione	Caricato
Control 40 Users Guide aggiornato: ott 2020	934 KB	ott 2020

Accessories

	Dimensione	Caricato
MTC-CS-Teth1 Press-In Grille Safety Tether aggiornato: set 2021	204 KB	set 2021

Speaker Tunings

	Versione	Dimensione	Caricato
Commercial, CBT, and AWC Tunings 220616 versione A, aggiornato: mag 2023	A	557 KB	mag 2023

Images

	Dimensione	Caricato
Control 42C HiRes aggiornato: apr 2019	1,19 MB	apr 2019

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Frequency Range	140 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hr
Sensitivity	82 dB (1kHz - 16 kHz)
Drivers	60 mm (2.5 in)
Coverage Angle	160° conical
Impedance	16 ohms
Input Connectors	Two removeable locking 2-pin connectors with screwdown terminals.
Optional Accessories	MTC-RAIL tile rails MTC-42NC New Construction bracket MTC-42MR Mud Ring Construction Bracket
Included Accessories	C-ring support backing plate, knockout strain relief, cutout template, paint shield.
Dimensions (Diameter x Depth)	127mm Diameter x 94mm Diameter Depth (5.0 in x 4.2 in)
Maximum SPL (1m)	94 dB @ 1 m (3.3 ft) average, 100 dB peak
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating.
Plenum Usage	Yes, backcan included

Accessori

MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles

Immagini più grandi

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
Multiple C-ring mounting holes. Additional hole locations drillable by installer.
One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
