Control 447C/T

6.5" RBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker

Control 447C/T
صور أكبر

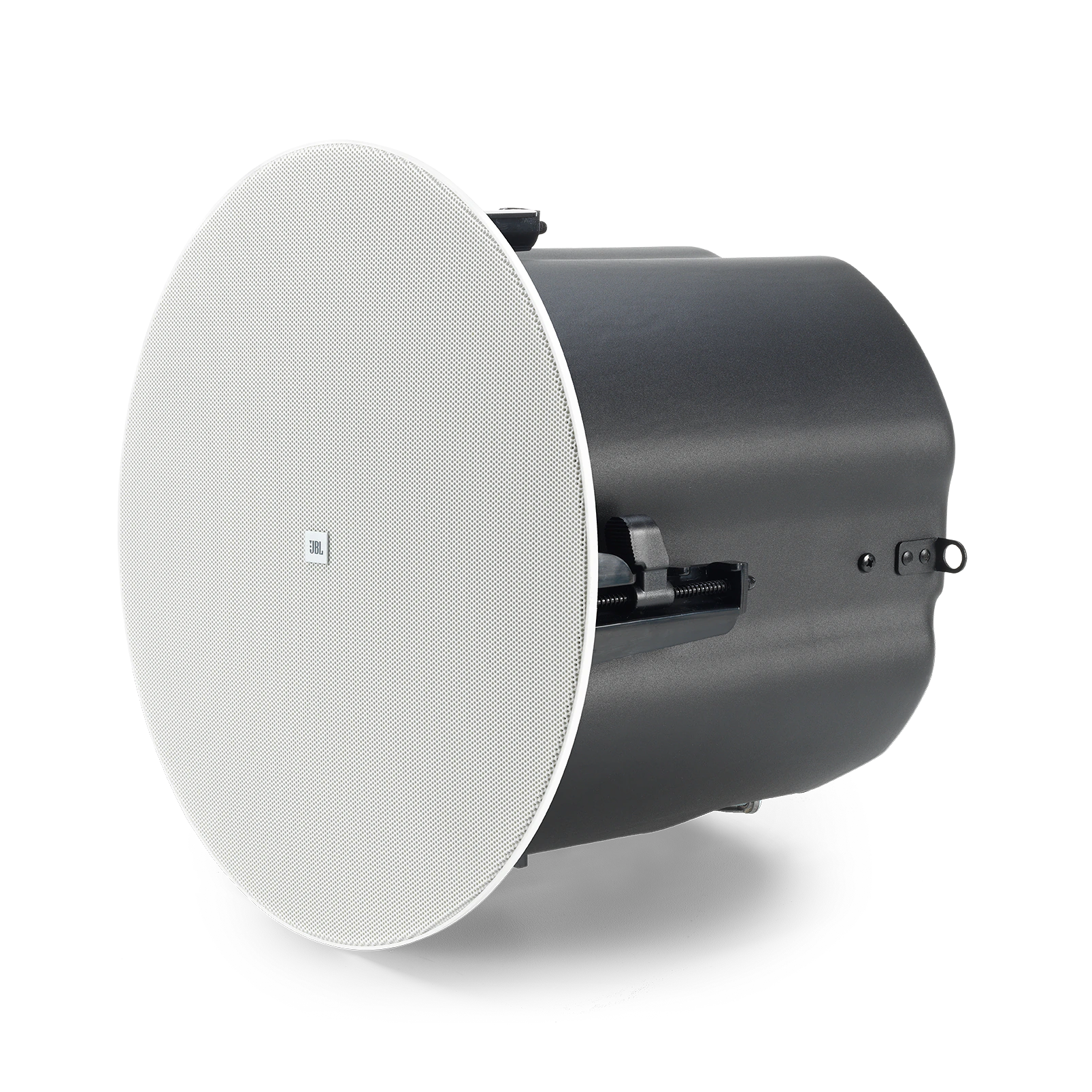

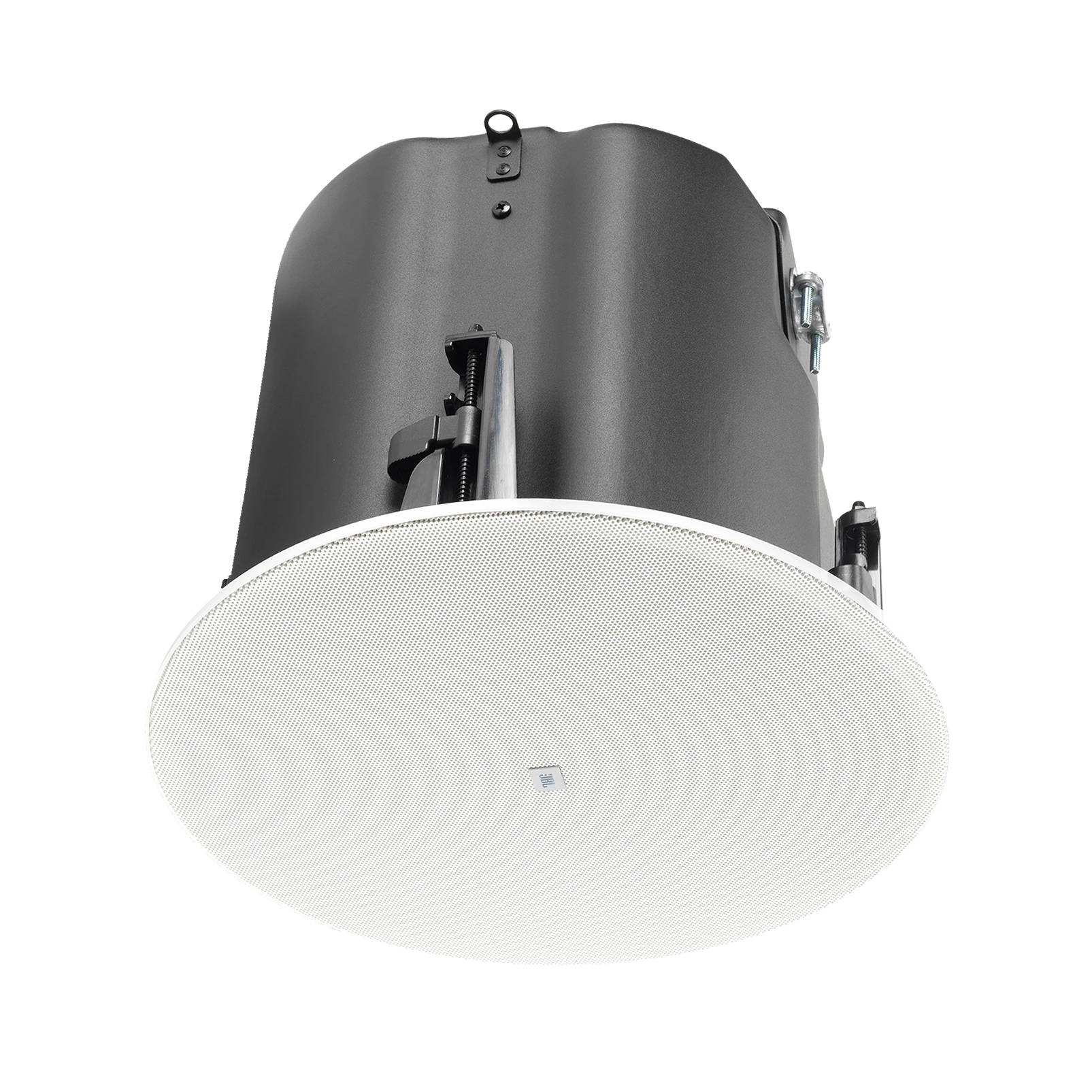

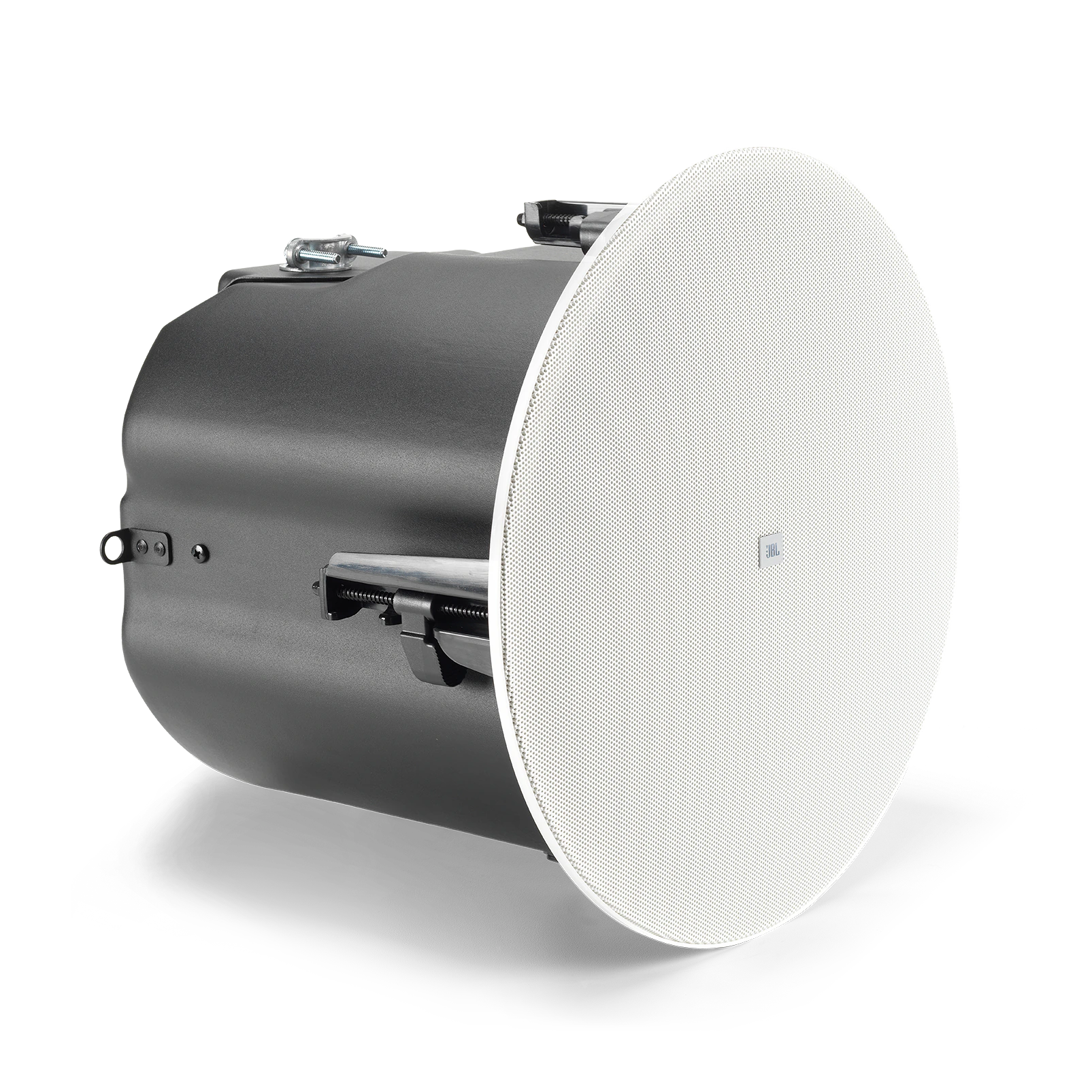

The JBL Control 447C/T, part of the flagship Control 400 Premium Coverage Series, is a two-way coaxial ceiling loudspeaker featuring a 6.5” woofer, conical RBI™, and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

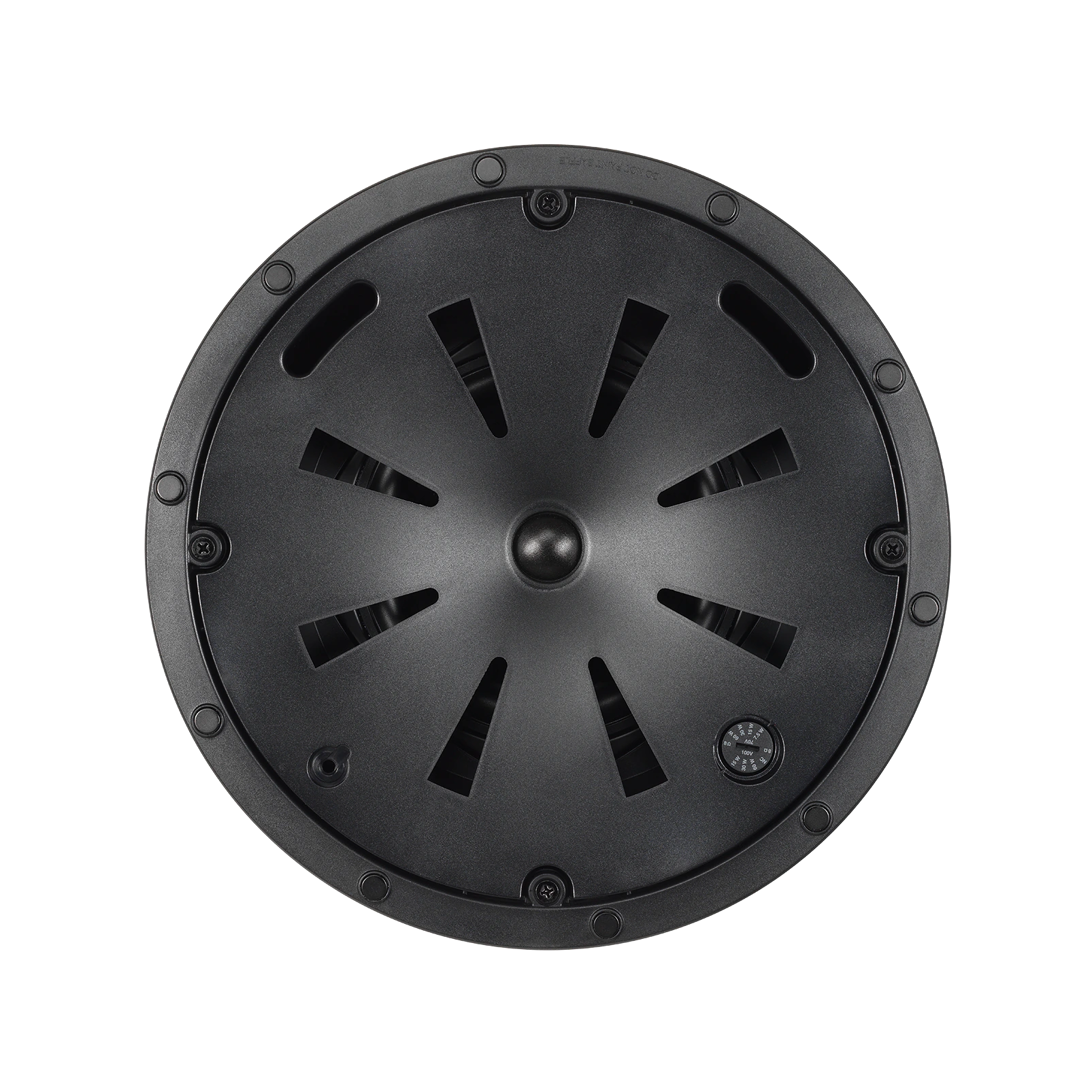

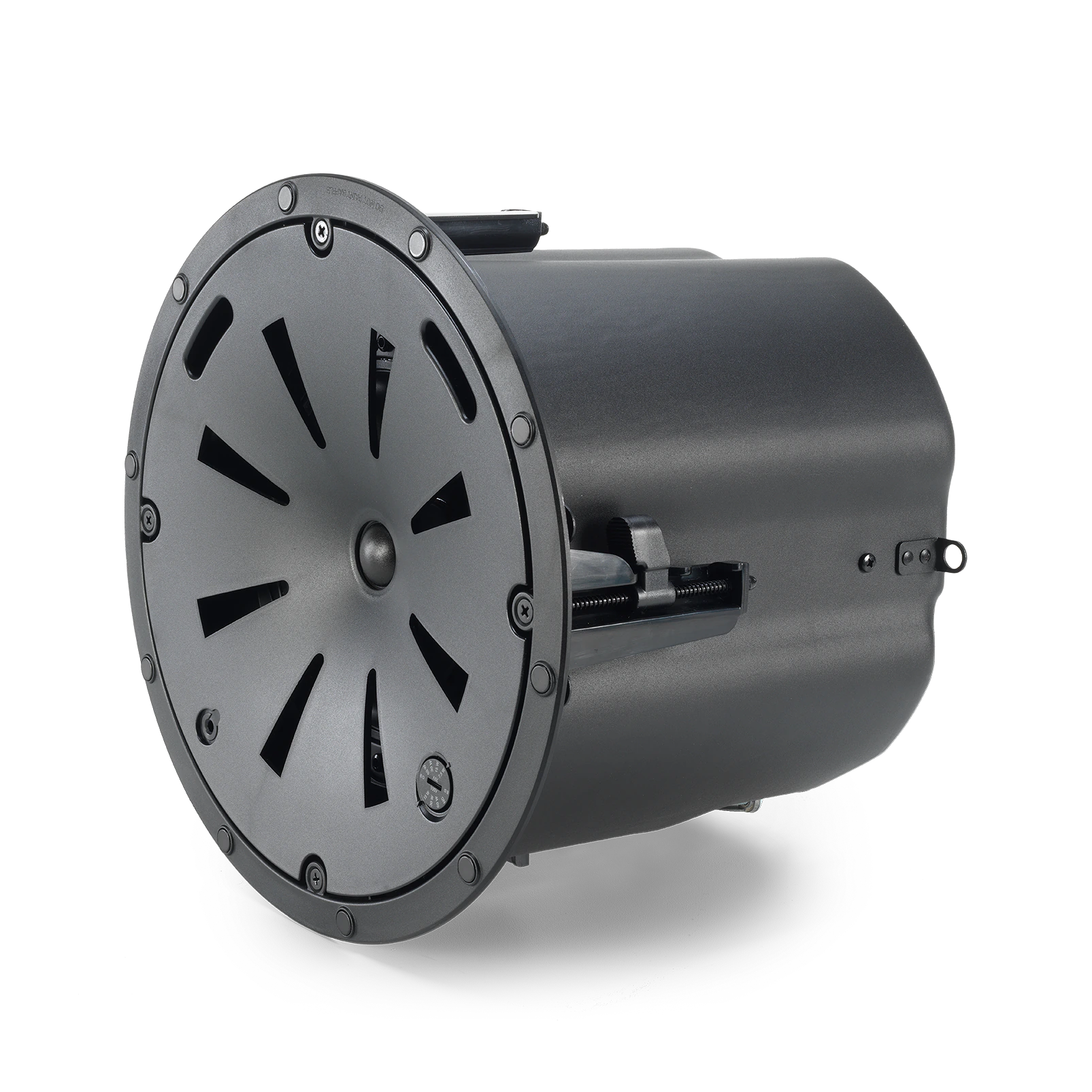

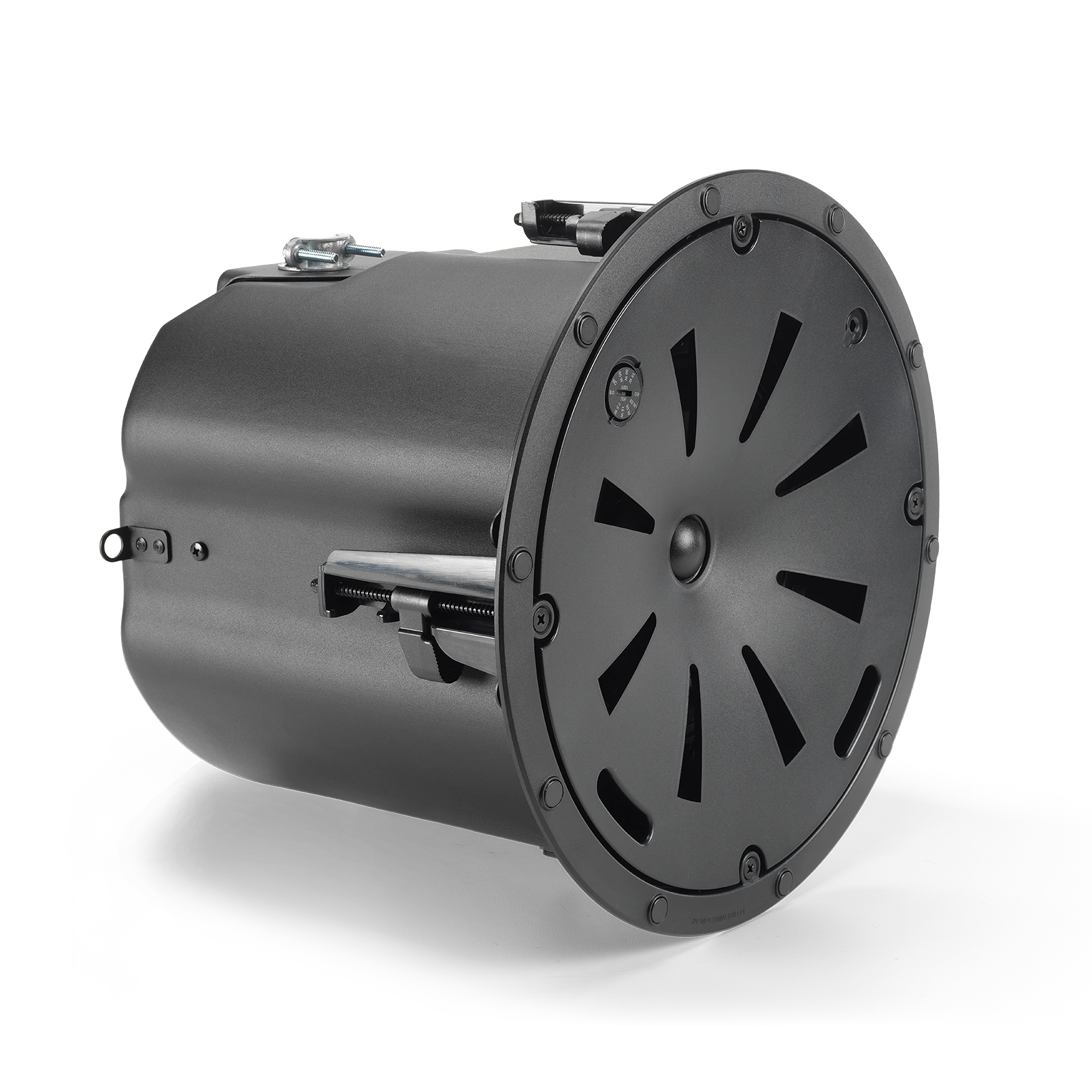

Featuring JBL’s proprietary conical Radiation Boundary Integrator® (RBI™) technology, the Control 447C/T achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

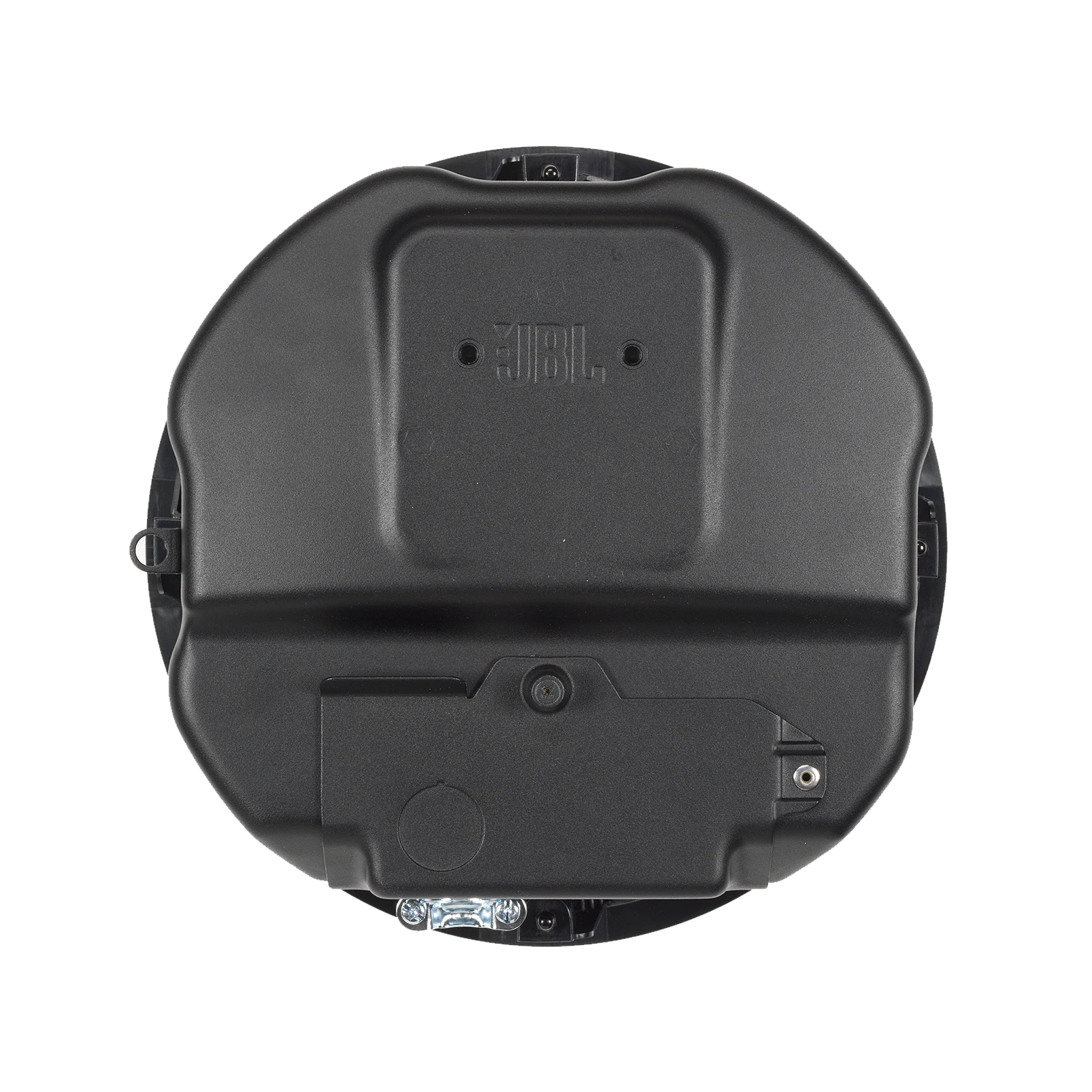

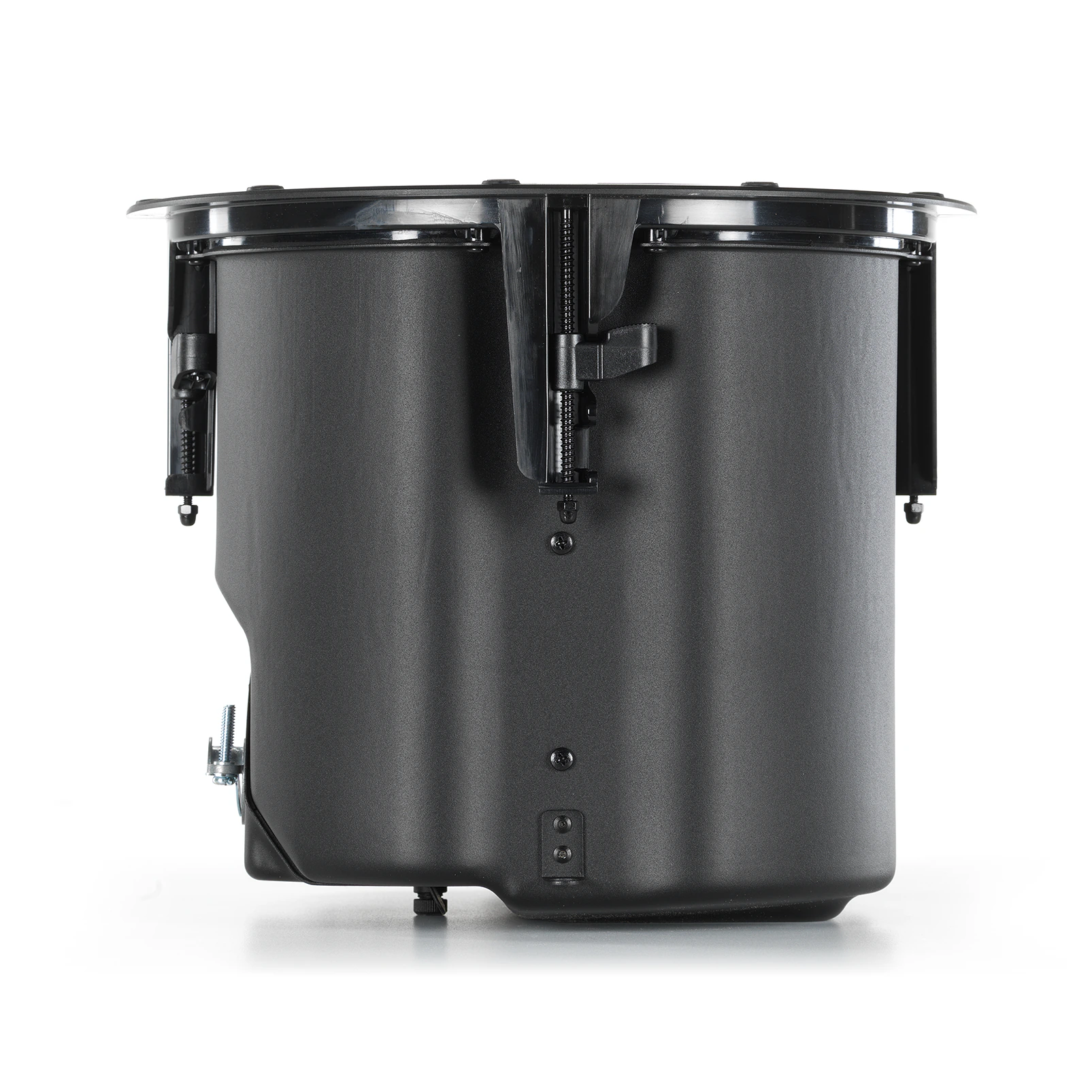

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 447C/T supports both 70V/100V and low impedance applications.

  • PREMIUM SONIC PERFORMANCE

    Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

PREMIUM SONIC PERFORMANCE

Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

featured content

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

الميزات

  • 165 mm (6.5 in) woofer and 25 mm (1 in) soft-dome tweeter
  • JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

التنزيلات

Specifications
  اللغة الحجم تاريخ التحميل
file type icon Control 447C/T Spec Sheet
en تم التحديث: أغسطس 2025
en  717 KB أغسطس 2025
Manuals
  الحجم تاريخ التحميل
file type icon Control 400 Premium Coverage Series - Owner's Manual
تم التحديث: أغسطس 2025
19 MB أغسطس 2025
Brochures
  الحجم تاريخ التحميل
file type icon 2025 Control 400 Family Brochure
تم التحديث: أغسطس 2025
3.9 MB أغسطس 2025
CAD Drawings
  الحجم تاريخ التحميل
file type icon Control 447C/T - Customer Drawings
تم التحديث: أغسطس 2025
14.3 MB أغسطس 2025
Compliances
  الحجم تاريخ التحميل
538 KB يناير 2026
466 KB يناير 2026
Software
  الإصدار الحجم تاريخ التحميل
Windows download icon Distributed System Design (DSD)
الإصدار 3.9, تم التحديث: نوفمبر 2025
3.9   612 KB نوفمبر 2025
Technical Papers
  الحجم تاريخ التحميل
768 KB نوفمبر 2025
Ease Data
  الحجم تاريخ التحميل
file type icon Control 447C/T – CLF File
تم التحديث: أكتوبر 2025
326 KB أكتوبر 2025
file type icon Control 447C/T - EASE GLL
تم التحديث: أغسطس 2025
693 KB أغسطس 2025
Speaker Tunings
  الحجم تاريخ التحميل
441 KB أغسطس 2025
Accessories
  الإصدار الحجم تاريخ التحميل
file type icon Ceiling Speaker Accessory Guide
الإصدار 2026-04, تم التحديث: مايو 2026
2026-04  570 KB مايو 2026

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10 dB) 55Hz - 20kHz
Power Capacity 112 W (448 W Peak), Cont. Pink Noise (2 hrs.)
75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W) 91dB
Coverage Angle 120° conical
Maximum SPL (1m) 111.5 dB continuous pink noise (117.5 dB peak)
Nominal Impedance
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W"
Drivers LF: 165mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1 in) soft-dome with Neodymium magnet
Ceiling Cutout Size 282 mm (11.1 in)
Dimensions 264 mm (10.4 in) H x 316 mm (12.4 in) dia.
252mm (9.9 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories BL-MTC-447BG black (RAL9004) round grille
JBL-MTC-447SG white (RAL9003) square grille
JBL-MTC-447WG weather grille
JBL-MTC-447NC new construction bracket
JBL-MTC-447MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 5.68 kg (12.52 lbs)
Shipping Weight (pair) 17.27 kg (38.07 lbs)
SKU Numbers JBL-C447C/T
