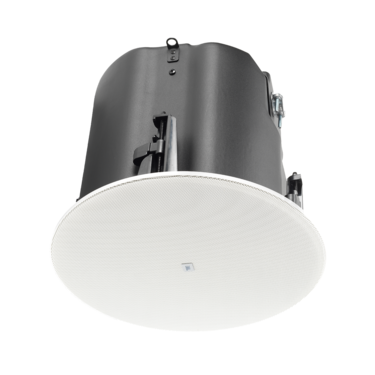

Control 447C/T

Dwukierunkowy głośnik sufitowy ze współosiowym przetworником 6,5" z technologią RBI™

Control 447C/T
Większe obrazy

The JBL Control 447C/T, part of the flagship Control 400 Premium Coverage Series, is a two-way coaxial ceiling loudspeaker featuring a 6.5” woofer, conical RBI™, and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

Featuring JBL’s proprietary conical Radiation Boundary Integrator® (RBI™) technology, the Control 447C/T achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 447C/T supports both 70V/100V and low impedance applications.

  • PREMIUM SONIC PERFORMANCE

    Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

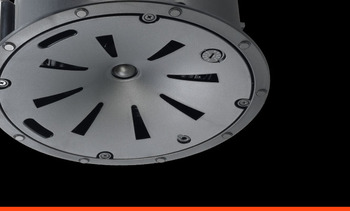

PREMIUM SONIC PERFORMANCE

Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

featured content

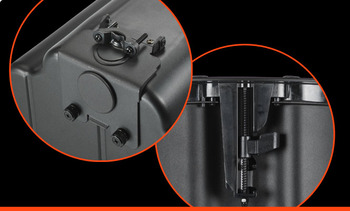

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

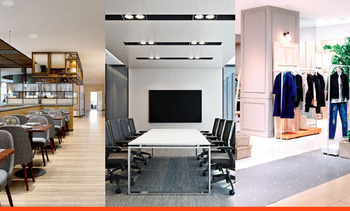

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Funkcje

  • 165 mm (6.5 in) woofer and 25 mm (1 in) soft-dome tweeter
  • JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

Pobrania

Specifications
  Język Rozmiar Przesłano
file type icon Control 447C/T Spec Sheet
en zaktualizowano: sie 2025
en  717 KB sie 2025
Manuals
  Rozmiar Przesłano
19 MB sie 2025
Brochures
  Rozmiar Przesłano
file type icon 2025 Control 400 Family Brochure
zaktualizowano: sie 2025
3,9 MB sie 2025
CAD Drawings
  Rozmiar Przesłano
file type icon Control 447C/T - Customer Drawings
zaktualizowano: sie 2025
14,3 MB sie 2025
Compliances
  Rozmiar Przesłano
466 KB sty 2026
538 KB sty 2026
Software
  Wersja Rozmiar Przesłano
Windows download icon Distributed System Design (DSD)
wersja 3.9, zaktualizowano: lis 2025
3.9   612 KB lis 2025
Technical Papers
  Rozmiar Przesłano
768 KB lis 2025
Ease Data
  Rozmiar Przesłano
file type icon Control 447C/T – CLF File
zaktualizowano: paź 2025
326 KB paź 2025
file type icon Control 447C/T - EASE GLL
zaktualizowano: sie 2025
693 KB sie 2025
Speaker Tunings
  Rozmiar Przesłano
441 KB sie 2025

Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.

Części i serwis

Specyfikacje

Frequency Range (-10 dB) 55Hz - 20kHz
Power Capacity 112 W (448 W Peak), Cont. Pink Noise (2 hrs.)
75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W) 91dB
Coverage Angle 120° conical
Maximum SPL (1m) 111.5 dB continuous pink noise (117.5 dB peak)
Nominal Impedance
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W"
Drivers LF: 165mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1 in) soft-dome with Neodymium magnet
Ceiling Cutout Size 282 mm (11.1 in)
Dimensions 264 mm (10.4 in) H x 316 mm (12.4 in) dia.
252mm (9.9 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories BL-MTC-447BG black (RAL9004) round grille
JBL-MTC-447SG white (RAL9003) square grille
JBL-MTC-447WG weather grille
JBL-MTC-447NC new construction bracket
JBL-MTC-447MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 5.68 kg (12.52 lbs)
Shipping Weight (pair) 17.27 kg (38.07 lbs)
SKU Numbers JBL-C447C/T

Akcesoria

MTC-447WG | Weatherized Grille for Control 447C/T & 447LP
Większe obrazy
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
  • Weatherized Grille provides protection for high humidity installations

MTC-447SG | Square Grille for Control 447C/T & 447LP
MTC-447SG  Main photo
Większe obrazy
MTC-447SG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require

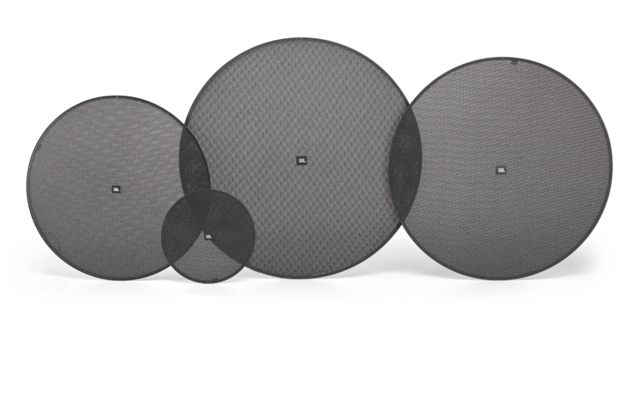

MTC-447BG | Round Black Grille for Control 447C/T & 447LP
MTC-447BG  Main photo
Większe obrazy
MTC-447BG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
