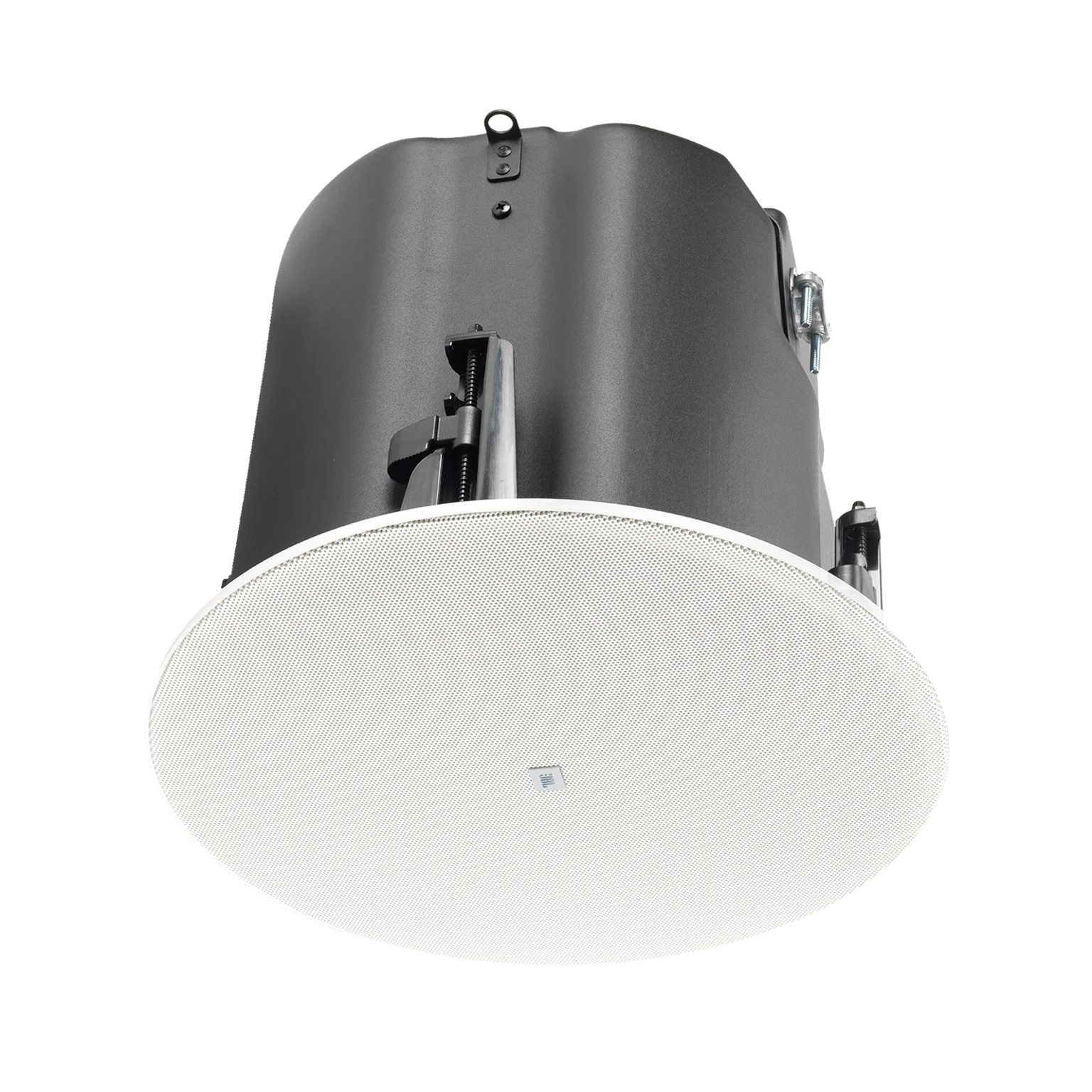

Control 447C/T

Speaker Plafon Koaksial Dua Arah 6,5" Berequip RBI™

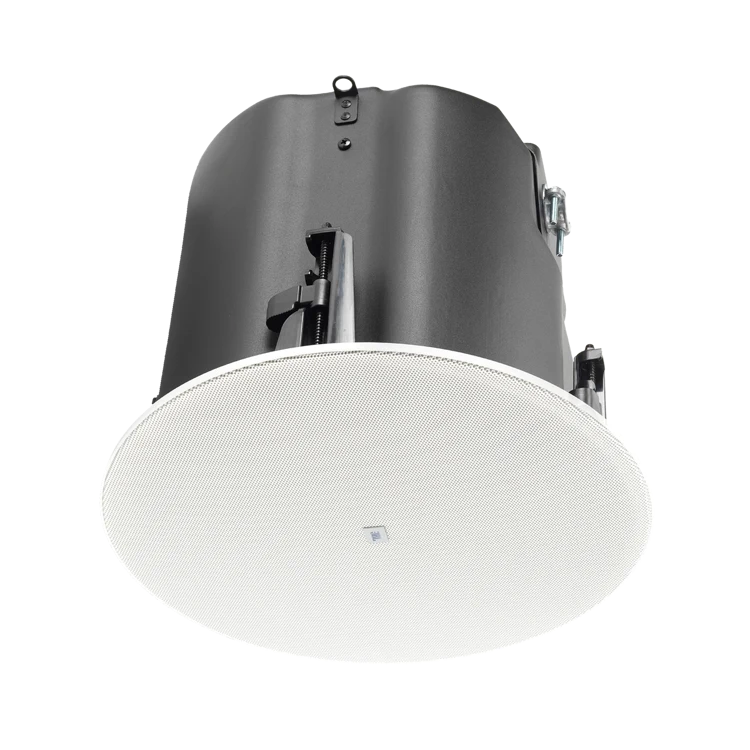

Control 447C/T
Gambar Lebih Besar

JBL Control 447C/T, bagian dari Control 400 Premium Coverage Series unggulan, adalah loudspeaker ceiling coaxial dua arah yang menampilkan woofer 6.5", RBI™ berbentuk kerucut, dan enclosure terintegrasi yang ideal untuk instalasi di sebagian besar ruang plenum ceiling.

Menampilkan teknologi Radiation Boundary Integrator® (RBI™) berbentuk kerucut milik JBL, Control 447C/T mencapai jangkauan directivity konstan, memastikan bahwa pendengar dapat menikmati karakter suara yang sangat smooth yang tetap sangat konsisten, jernih, dan menyenangkan di seluruh area jangkauan yang luas.

Speaker ceiling Control 400 Series menawarkan fitur mounting yang dirancang dengan teliti untuk meningkatkan keamanan, efisiensi, dan repeatability. Terminal covers memungkinkan entry kabel yang nyaman dari atas atau samping dan diamankan dengan mudah menggunakan captive hand-screws. Desain captive dogear yang andal mengakomodasi berbagai ketebalan ceiling, memastikan versatilitas untuk lingkungan apa pun.

Semua model menerapkan elemen desain yang disesuaikan untuk interior modern. Magnetic grille full-face yang disertakan dapat dicat untuk integrasi seamless ke dalam dekorasi apa pun, sementara grille hitam dan persegi yang tersedia memberikan customization tambahan. Selain itu, Control 447C/T mendukung aplikasi 70V/100V dan low impedance.

  • PREMIUM SONIC PERFORMANCE

    Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

PREMIUM SONIC PERFORMANCE

Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

featured content

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Fitur

  • Woofer 165 mm (6,5 in) dan tweeter soft-dome 25 mm (1 in)
  • Teknologi conical Radiation Boundary Integrator® (RBI™) eksklusif JBL
  • Enclosure terintegrasi yang ideal untuk instalasi di sebagian besar ruang plenum langit-langit
  • Transformer multi-tap bawaan 70V/100V, plus input langsung 8-ohm
  • Grill magnetik berhadap penuh yang mudah dicat
  • Opsi masuk kabel atas dan samping
  • Dogears yang kokoh dan dapat disesuaikan untuk berbagai ketebalan langit-langit
  • Rating IP33

Unduhan

Specifications
  Bahasa Ukuran Diunggah
file type icon Control 447C/T Spec Sheet
en diperbarui: Agu 2025
en  717 KB Agu 2025
Manuals
  Ukuran Diunggah
19 MB Agu 2025
Brochures
  Ukuran Diunggah
file type icon 2025 Control 400 Family Brochure
diperbarui: Agu 2025
3,9 MB Agu 2025
CAD Drawings
  Ukuran Diunggah
file type icon Control 447C/T - Customer Drawings
diperbarui: Agu 2025
14,3 MB Agu 2025
Compliances
  Ukuran Diunggah
538 KB Jan 2026
466 KB Jan 2026
Software
  Versi Ukuran Diunggah
Windows download icon Distributed System Design (DSD)
versi 3.9, diperbarui: Nov 2025
3.9   612 KB Nov 2025
Technical Papers
  Ukuran Diunggah
768 KB Nov 2025
Ease Data
  Ukuran Diunggah
file type icon Control 447C/T – CLF File
diperbarui: Okt 2025
326 KB Okt 2025
file type icon Control 447C/T - EASE GLL
diperbarui: Agu 2025
693 KB Agu 2025
Speaker Tunings
  Ukuran Diunggah
441 KB Agu 2025
Accessories
  Versi Ukuran Diunggah
file type icon Ceiling Speaker Accessory Guide
versi 2026-04, diperbarui: Mei 2026
2026-04  570 KB Mei 2026

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10 dB) 55Hz - 20kHz
Power Capacity 112 W (448 W Peak), Cont. Pink Noise (2 hrs.)
75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W) 91dB
Coverage Angle 120° conical
Maximum SPL (1m) 111.5 dB continuous pink noise (117.5 dB peak)
Nominal Impedance
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W"
Drivers LF: 165mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1 in) soft-dome with Neodymium magnet
Ceiling Cutout Size 282 mm (11.1 in)
Dimensions 264 mm (10.4 in) H x 316 mm (12.4 in) dia.
252mm (9.9 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories BL-MTC-447BG black (RAL9004) round grille
JBL-MTC-447SG white (RAL9003) square grille
JBL-MTC-447WG weather grille
JBL-MTC-447NC new construction bracket
JBL-MTC-447MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 5.68 kg (12.52 lbs)
Shipping Weight (pair) 17.27 kg (38.07 lbs)
SKU Numbers JBL-C447C/T

Aksesori

MTC-447WG | Grille Tahan Cuaca untuk Control 447C/T & 447LP
Gambar Lebih Besar
  • Grille bermagnet penutup penuh dengan tether
  • Desain ramping dan elegan yang sesuai dengan estetika yang dibutuhkan desainer modern
  • Grille tahan cuaca memberikan perlindungan untuk instalasi dengan kelembaban tinggi

MTC-447SG | Grille Persegi untuk Control 447C/T & 447LP
MTC-447SG  Main photo
Gambar Lebih Besar
MTC-447SG  detail thumbnail #1
  • Grille magnetik penuh-muka dengan tali pengikat
  • Desain ramping dan halus yang sesuai dengan estetika yang dibutuhkan desainer modern

MTC-447BG | Grille Hitam Bulat untuk Control 447C/T & 447LP
MTC-447BG  Main photo
Gambar Lebih Besar
MTC-447BG  detail thumbnail #1
  • Grille magnetik seluruh wajah dengan tali pengikat
  • Tampilan ramping dan halus yang sesuai dengan estetika yang dibutuhkan desainer modern
