Control 14C/T

مكبر صوت سقفي ثنائي الاتجاه بحجم 4 بوصات متحد المحور

Control 14C/T
صور أكبر

مكبر صوت سقفي كوكسالي ثنائي الاتجاه 4 بوصة

Control 14C/T هو مكبر صوت سقفي كامل النطاق يتكون من سائق مخروط عالي التقنية بقطر 100 مم (4 بوصة) ومكبر صوت قبة ناعمة سعة 19 مم مزود بنظام تبريد سائل، مثبت في حافة قابلة للدهان مصنوعة من مادة مقاومة للأشعة فوق البنفسجية UL94-V0 وUL94-5HB، مع جهاز خلفي مدمج لتركيب سريع وسهل.

الميزات

  • Components:
    • 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
    • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • Integrated backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    • 30 Watts at 8Ω nominal setting
    • 25W multi-tap at 70V/100V
  • 74 Hz – 20 kHz bandwidth with wide 120° coverage
  • White or black (-BK)

التنزيلات

Specifications
  الإصدار الحجم تاريخ التحميل
file type icon Control 14C/T Spec Sheet
الإصدار C, تم التحديث: أبريل 2020
336 KB أبريل 2020
Manuals
  الإصدار الحجم تاريخ التحميل
file type icon Ceiling Speaker Accessory Guide
الإصدار A, تم التحديث: مايو 2026
127 KB مايو 2026
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon Control Contractor Brochure (2026)
en تم التحديث: مارس 2026
  en  21 MB مارس 2026
file type icon Control Contractor Brochure (2025)
en الإصدار A, تم التحديث: مارس 2026
en  23 MB مارس 2026
file type icon Control Contractor Brochure (2024)
en الإصدار D, تم التحديث: فبراير 2024
en  14 MB فبراير 2024
CAD Drawings
  الحجم تاريخ التحميل
file type icon Control 14C/T CAD Drawings
تم التحديث: أكتوبر 2020
822 KB أكتوبر 2020
BIM Objects
  الحجم تاريخ التحميل
file type icon CONTROL 14C/T BIM Object
تم التحديث: أغسطس 2019
أغسطس 2019
Compliances
  الحجم تاريخ التحميل
file type icon Control 10 Series - Declaration of Conformity
تم التحديث: أكتوبر 2019
129 KB أكتوبر 2019
file type icon JBL Control Series Passive Speakers DoC
تم التحديث: ديسمبر 2019
179 KB ديسمبر 2019
Software
  الإصدار الحجم تاريخ التحميل
Windows download icon Distributed System Design (DSD)
الإصدار 3.9, تم التحديث: نوفمبر 2025
3.9   612 KB نوفمبر 2025
Simulation Data
  الإصدار الحجم تاريخ التحميل
file type icon Ease SPK/DLL Files - Full JBL Pro Line
تم التحديث: مايو 2024
  21 MB مايو 2024
file type icon JBL Pro ALL CLF Files
الإصدار 12-10-21, تم التحديث: مايو 2023
12-10-21  24 MB مايو 2023
Owner's Manuals
  الحجم تاريخ التحميل
file type icon Control 10 Series Owner's Manual
تم التحديث: أكتوبر 2020
390 KB أكتوبر 2020
Accessories
  الحجم تاريخ التحميل
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
تم التحديث: سبتمبر 2021
204 KB سبتمبر 2021
file type icon MTC-14WG/16WG High Humidity Grille
تم التحديث: أكتوبر 2020
762 KB أكتوبر 2020
Ease Data
  الإصدار الحجم تاريخ التحميل
file type icon Authorized EASE ADDRESS files
تم التحديث: أغسطس 2021
  1.17 MB أغسطس 2021
file type icon Full EASE ADDRESS Software with JBL Speaker Data
الإصدار A, تم التحديث: ديسمبر 2021
11.5 MB ديسمبر 2021
file type icon Control 10 Series Ease Data
تم التحديث: أكتوبر 2020
  350 KB أكتوبر 2020
Images
  الحجم تاريخ التحميل

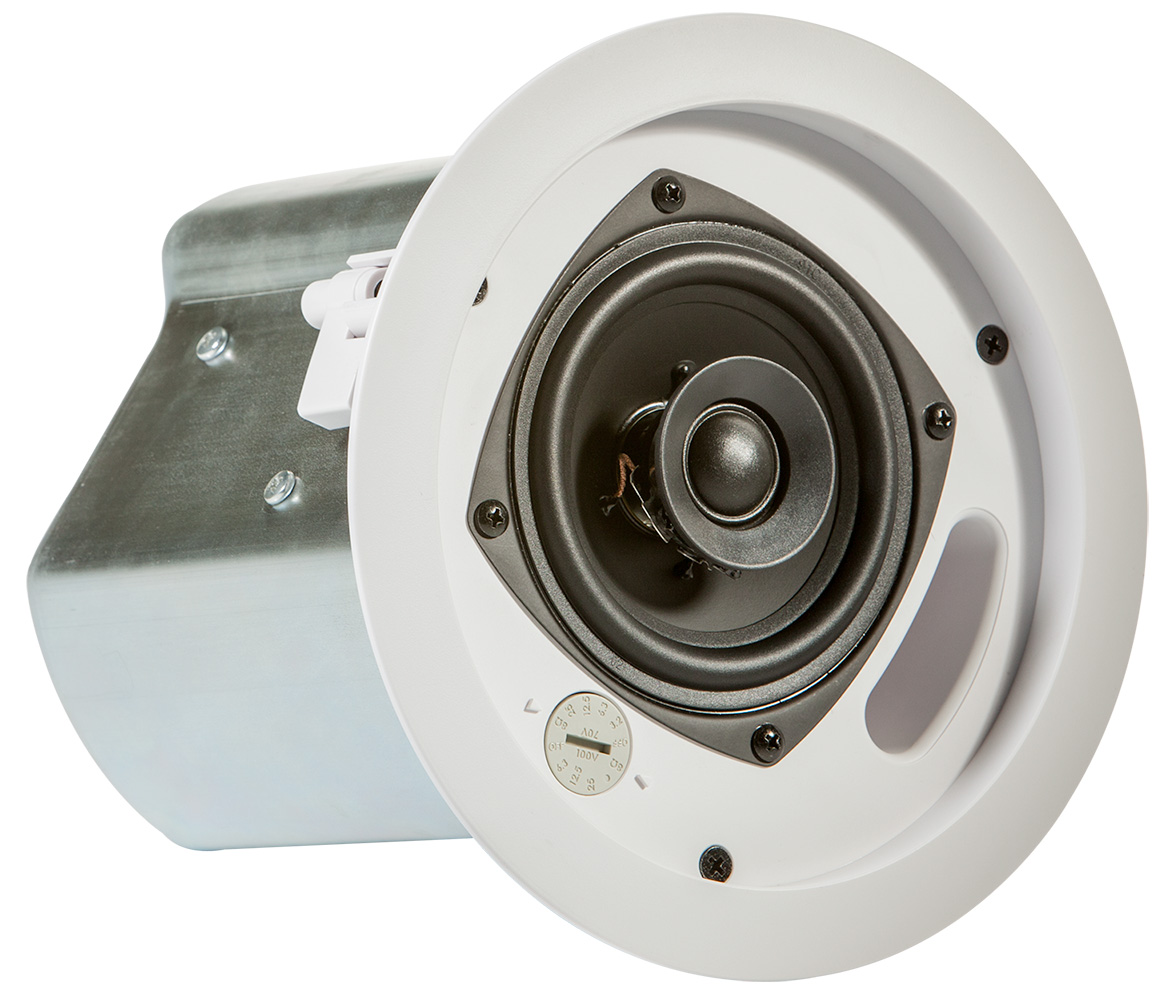

file type icon Control 14C/T White No Grill
تم التحديث: أكتوبر 2020
215 KB أكتوبر 2020

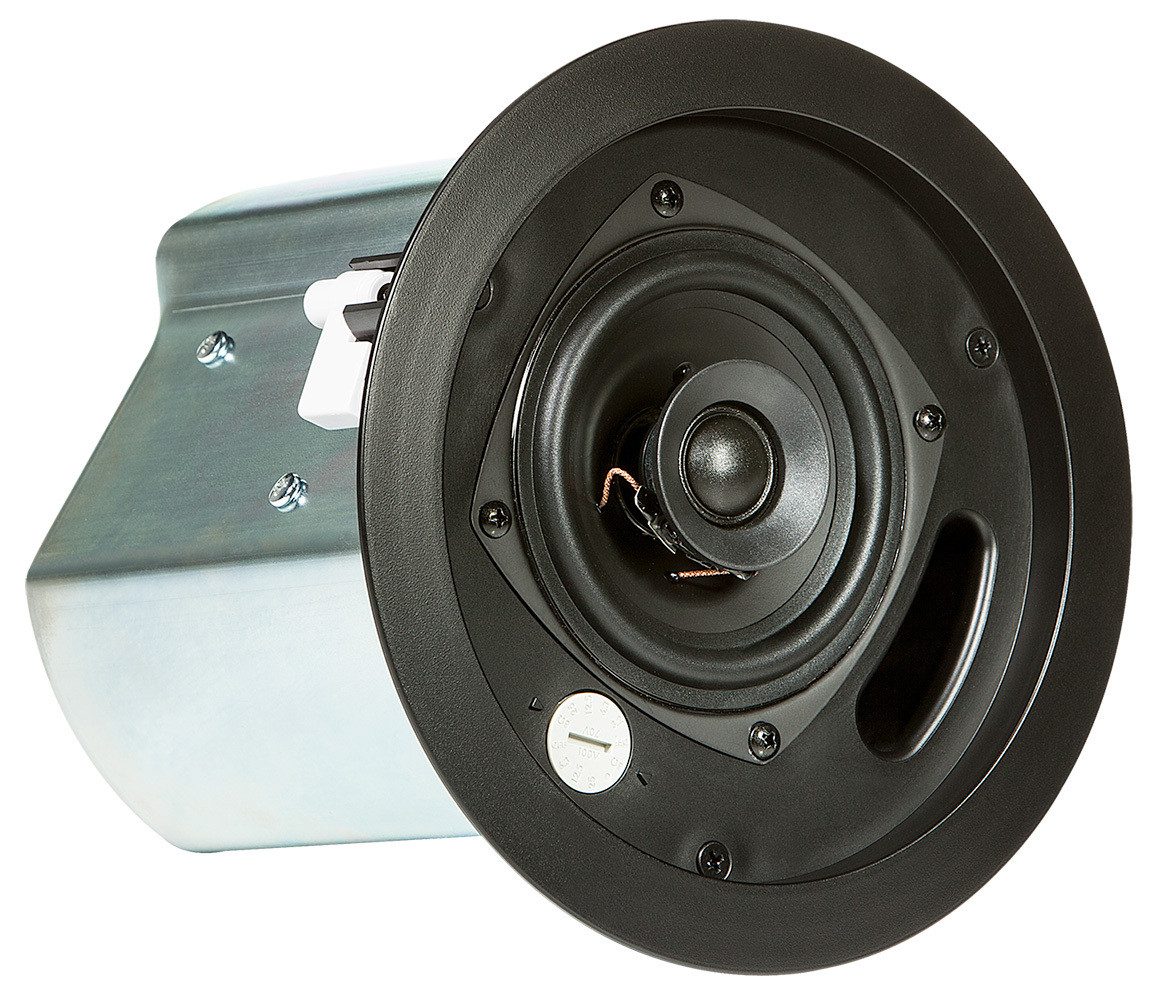

file type icon Control 14C/T Black No Grill
تم التحديث: أكتوبر 2020
344 KB أكتوبر 2020

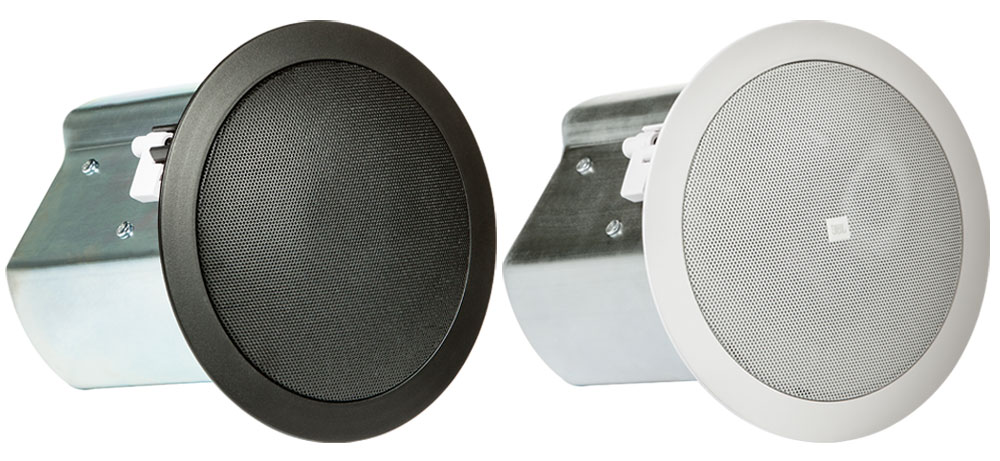

file type icon Control 14C/T Black and White
تم التحديث: أكتوبر 2020
87.4 KB أكتوبر 2020
Speaker Tunings
  الإصدار الحجم تاريخ التحميل
file type icon Commercial, CBT, and AWC Tunings 220616
الإصدار A, تم التحديث: مايو 2023
557 KB مايو 2023

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10dB) 74 Hz – 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise (120W peak), 100 hr
Transformer Taps 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
Frequency Response (±3 dB) 100 Hz – 20 kHz
Sensitivity 87 dB (1kHz - 16 kHz)
Coverage Angle 120° conical
Directivity Factor (Q) 7.6
Directivity Index (DI) 8.1 dB
Maximum SPL (1m) 101 dB (low-impedance, 108 dB peak)
101 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass 8Ω setting)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (3/4 in)
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
Ceiling Cutout Size 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment One point, top surface
Net Weight 2.2 kg (4.8 lbs, one speaker)
Shipping Weight 8.2 kg (17.9 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Color White or Black
Backcan formed steel (integrated backcan)
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Plenum Usage Yes, backcan included
