Control 14C/T

Two-Way 4" Coaxial Ceiling Loudspeaker

Control 14C/T
Larger Images

Two-Way 4" Coaxial Ceiling Loudspeaker

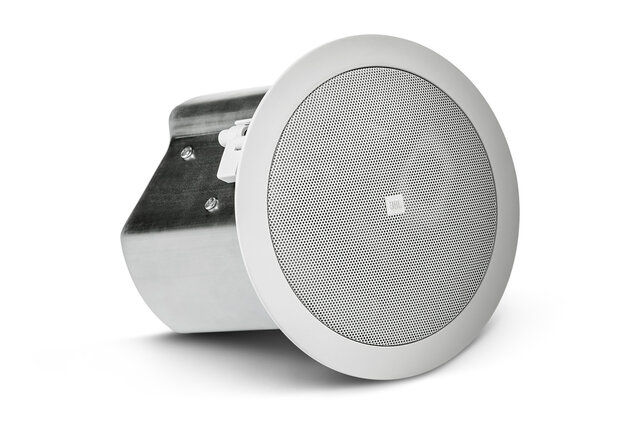

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.

Fitur

  • Components:
    • 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
    • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    • 30 Watts at 8Ω nominal setting
    • 25W multi-tap at 70V/100V
  • 74 Hz – 20 kHz bandwidth with wide 120° coverage
  • White or black (-BK)

Downloads

  Version Language Size Uploaded
Specifications
file type icon Control 14C/T Spec Sheet
version C, updated: Apr 2020
  336 KB Apr 2020
Manuals
file type icon Ceiling Speaker Accessory Guide
version B, updated: Jan 2024
  231 KB Jan 2024
Brochures
file type icon Control Contractor Brochure (2024)
en version D, updated: Feb 2024
en  14 MB Feb 2024
CAD Drawings
file type icon Control 14C/T CAD Drawings
updated: Okt 2020
    822 KB Okt 2020
BIM Objects
file type icon CONTROL 14C/T BIM Object
updated: Agu 2019
    Agu 2019
Compliances
file type icon Control 10 Series - Declaration of Conformity
updated: Okt 2019
    129 KB Okt 2019
file type icon JBL Control Series Passive Speakers DoC
updated: Des 2019
    179 KB Des 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1,07 MB Nov 2023
Owner's Manuals
file type icon Control 10 Series Owner's Manual
updated: Okt 2020
    390 KB Okt 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mar 2022
    21 MB Mar 2022
file type icon Authorized EASE ADDRESS files
updated: Agu 2021
    1,17 MB Agu 2021
file type icon Full EASE ADDRESS Software with JBL Speaker Data
version A, updated: Des 2021
  11,5 MB Des 2021
file type icon Control 10 Series Ease Data
updated: Okt 2020
    350 KB Okt 2020
Accessories
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: Sep 2021
    204 KB Sep 2021
file type icon MTC-14WG/16WG High Humidity Grille
updated: Okt 2020
    762 KB Okt 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: Mei 2023
12-10-21    24 MB Mei 2023
Images

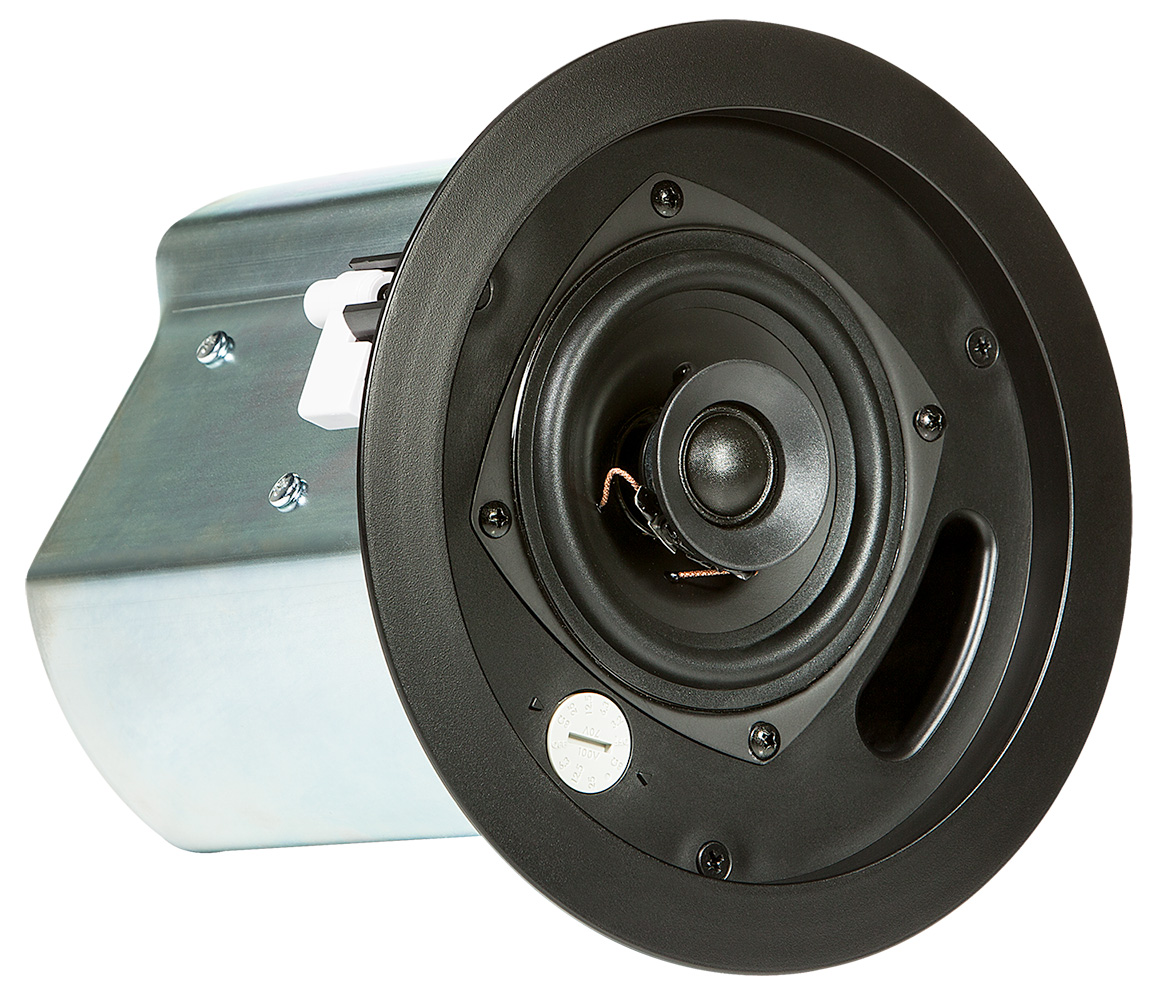

file type icon Control 14C/T White No Grill
updated: Okt 2020
    215 KB Okt 2020
file type icon Control 14C/T Black No Grill
updated: Okt 2020
    344 KB Okt 2020

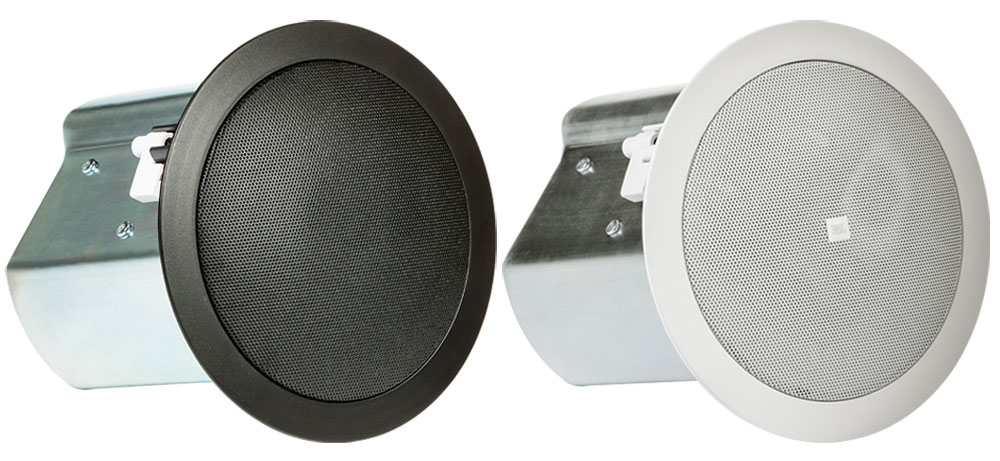

file type icon Control 14C/T Black and White
updated: Okt 2020
    87,4 KB Okt 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mei 2023
  557 KB Mei 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 74 Hz – 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise (120W peak), 100 hr
Transformer Taps 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
Frequency Response (±3 dB) 100 Hz – 20 kHz
Sensitivity 87 dB (1kHz - 16 kHz)
Coverage Angle 120° conical
Directivity Factor (Q) 7.6
Directivity Index (DI) 8.1 dB
Maximum SPL (1m) 101 dB (low-impedance, 108 dB peak)
101 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass 8Ω setting)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Drivers LF Driver: 100 mm (4.0 in)
HF Driver: 19 mm (3/4 in)
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
Ceiling Cutout Size 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
Safety Seismic Attachment One point, top surface
Net Weight 2.2 kg (4.8 lbs, one speaker)
Shipping Weight 8.2 kg (17.9 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Color White or Black
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Plenum Usage Yes, backcan included
