| Drivers |
Four 130 mm (5 in) LF drivers Sixteen 25 mm (1 in) HF drivers |
| Frequency Range (-10dB) |
60 Hz – 20 kHz |
| Coverage Angle |
Vertical: Switchable, Narrow Mode: 25° (±10°), Broad Mode: 45° (±10°), Horizontal: 150° (±20°) |
| Sensitivity |
Narrow: (speech mode) 98 dB (1 kHz - 8 kHz) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 96 dB (1 kHz - 8 kHz) (music mode) 92 dB (300 Hz - 18 kHz) |
| Impedance |
8 ohms;
Min Imp: 4.0 ohms @ 1kHz, 5.4 ohms @ 225Hz |
| Power Capacity |
500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs |
| Maximum SPL (1m) |
Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 120 dB cont ave (126 peak) Broad: (speech mode) 123 dB cont ave (129 peak) (music mode) 119 dB cont ave (125 peak) |
| Low Frequency Drivers |
4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded. |
| High Frequency Drivers |
16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded. |
| Enclosure |
Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color |
Black or white (-WH) |
| Insert Points |
10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel. |
| Mounting |
Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. |
| Dimensions (H x W x D) |
694 x 170 x 237 mm(27.4 x 6.7 x 9.3 in) |
| Net Weight |
9.5 kg (21 lb) |
| Included Accessories |
Swivel (pan) / tilt wall bracket |
| Optional Accessories |
MTC-PC2 terminal panel coverMTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand MTC-CBT-FM2 flush-mount low-profile wall-mount bracket |

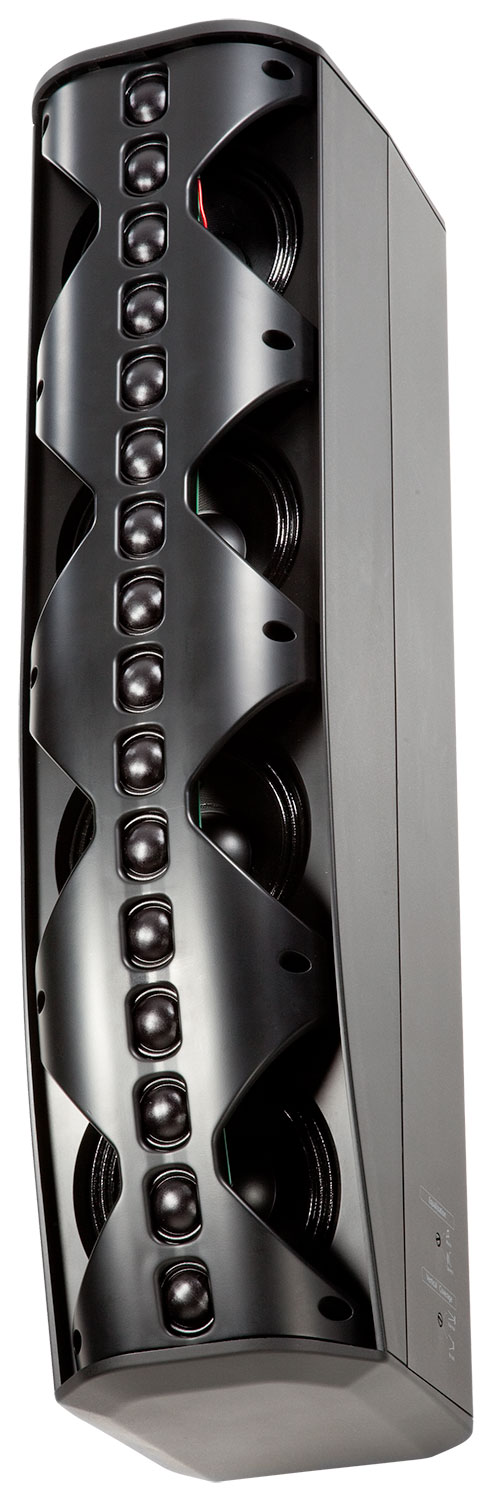

Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
