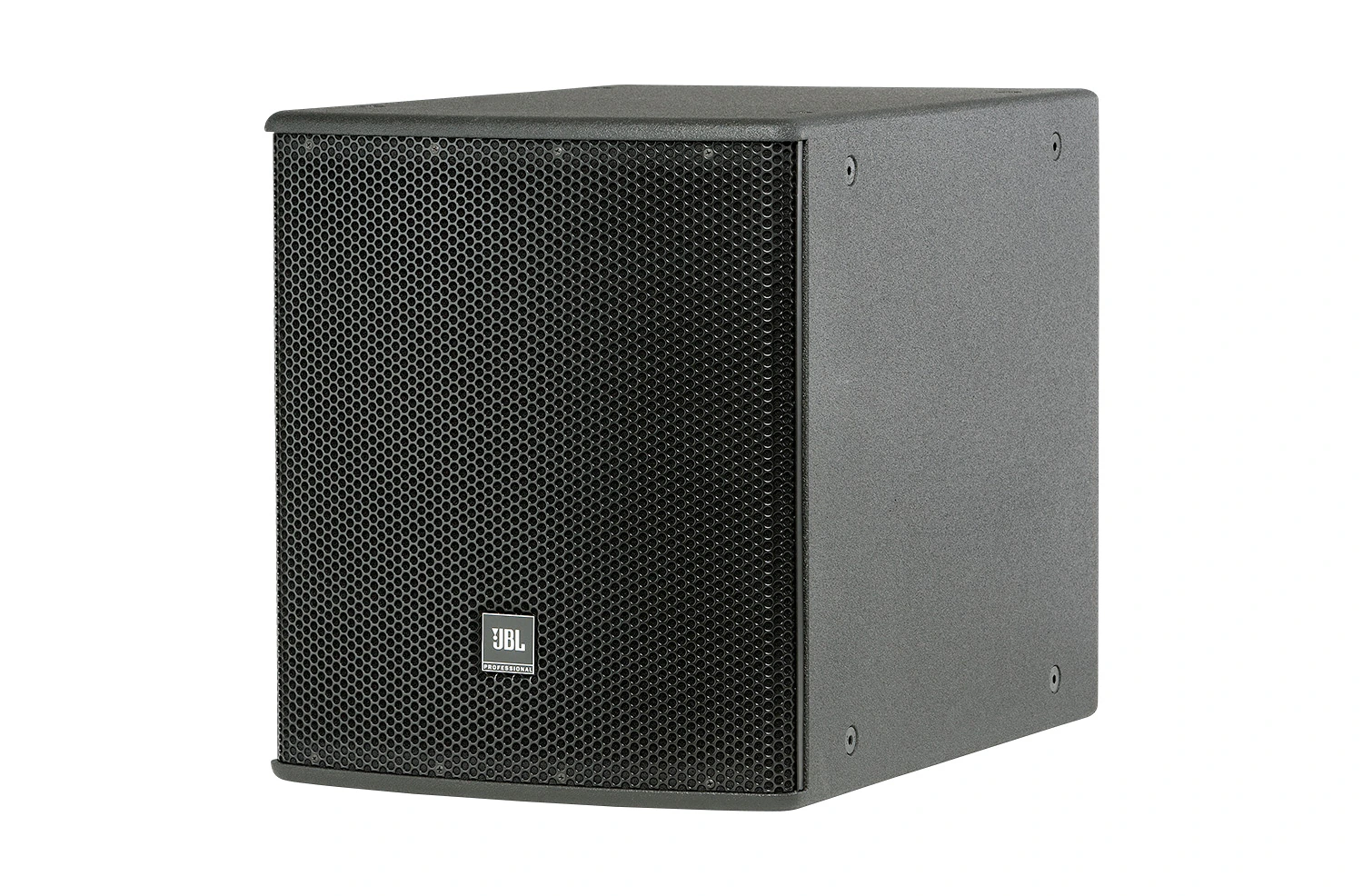

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
لتحسين الموثوقية في ظروف الطقس وتقليل تسرب المياه، قد تختلف أبعاد خزائن نماذج WRC و WRX عن أبعاد النموذج القياسي. يُرجى التواصل مع CustomAudio@harman.com للحصول على الرسومات و/أو معلومات الأبعاد لنماذج WRC و WRX.)
| الحجم | |
|
|
485 KB |
| الحجم | |
|
|
86.1 KB |
|
|
8.25 KB |
| الحجم | |
|
|
4.05 MB |
|
|
1.54 MB |
| الحجم | |
|
|
730 KB |
|
|
2.69 MB |
|
|
3.8 MB |
| الحجم | |
|
|
93.5 KB |
| الحجم | |
|
|
471 KB |
| الحجم | |
|
|
570 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
| Frequency Range (-10dB) | 32 Hz - 1 kHz |
| Frequency Response (±3 dB) | 42 Hz - 1 kHz |
| Transducer Power Rating (AES) | 800 W (3200 W peak), 2 hrs. |
| System Power Rating | 675 W (2700 W peak), 100 hrs. |
| Maximum SPL (1m) | 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak) |
| System Sensitivity | 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware |
| Finish | Black DuraFlex™ finish. White available upon request. |
| Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. |
| Input Connector | NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
| Environmental | Mil-Std 810; IP-x3 per IEC529. |
| Dimensions (H x W x D in vertical orientation) | 483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in) |
| Net Weight (each) | 20.6 kg (45.5 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers. |
| Nominal LF Driver Impedance | 8 ohms |
