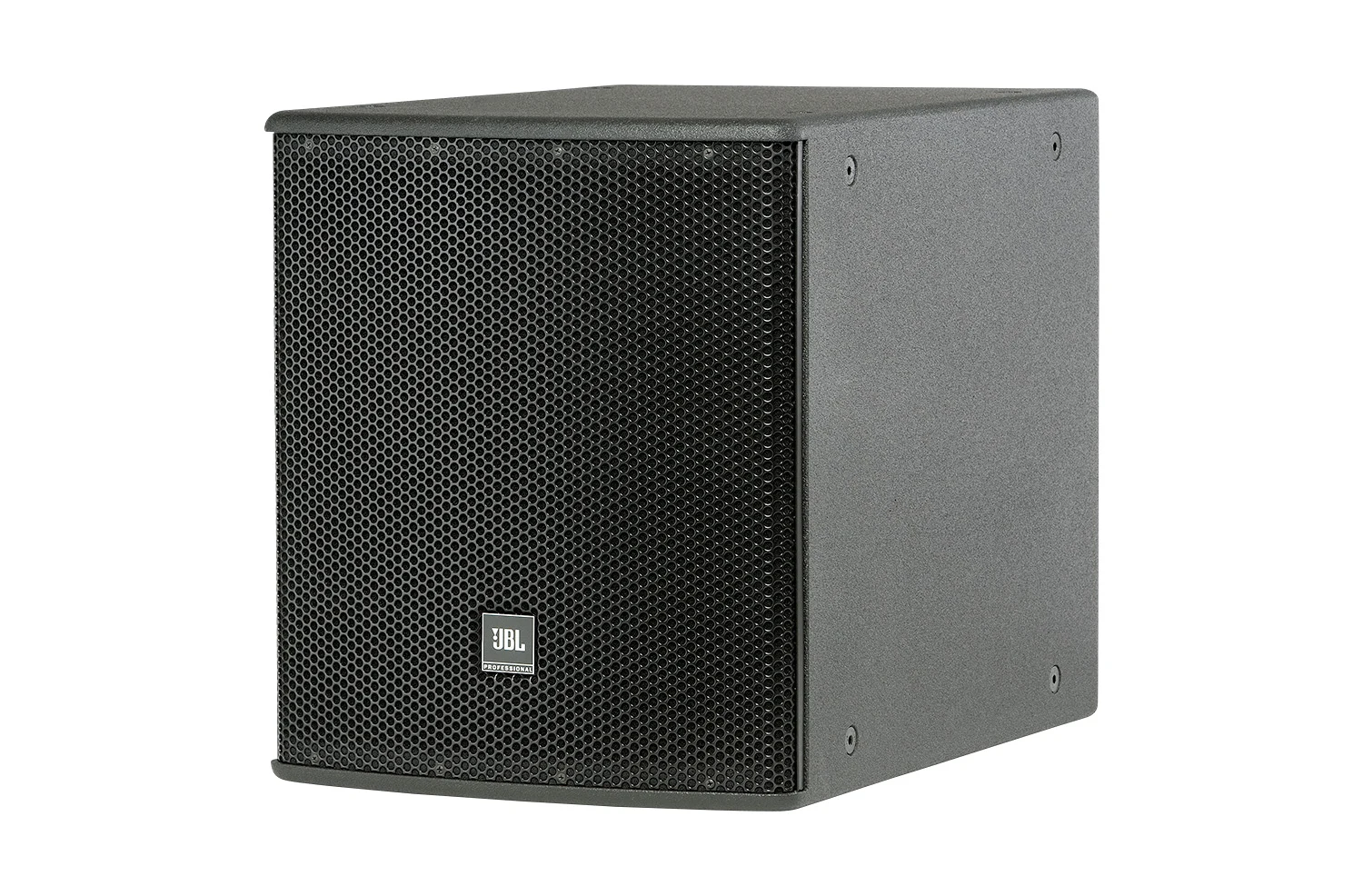

JBL Professional ASB6115

Grandes images

Caisson de basses compact haute puissance 15 pouces

L'ASB6115 est un caisson de basses haute puissance, léger, chargé par l'avant avec évent, équipé du woofer 15" JBL 2265H-1 Differential Drive® à deux bobines mobiles et deux entrefers. Ce woofer est doté d'un aimant néodyme et d'une membrane ultra robuste pour une durée de vie exceptionnellement longue.

Caractéristiques

2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts continuous pink noise, 3200 watts peak power handling capacity
Large vent area for high output with low distortion
FIR Tuning Set Matches Phase Profile to Full-Range Models
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.)

Téléchargements

Specifications

	Taille	Téléchargé
ASB6115 Spec Sheet mis à jour : déc. 2020	485 ko	déc. 2020

Manuals

	Version	Langue	Taille	Téléchargé
Weather Resistant Configurations version A, mis à jour : mai 2023	A		86,1 ko	mai 2023
AE/PD Connector Pinout Guide mis à jour : oct. 2019			8,25 ko	oct. 2019

Brochures

	Taille	Téléchargé
AE Series Brochure mis à jour : oct. 2020	4,05 Mo	oct. 2020
AM Brochure mis à jour : oct. 2020	1,54 Mo	oct. 2020

CAD Drawings

	Version	Taille	Téléchargé
AE Series - Revit/BIM Files version 11.0, mis à jour : juil. 2024	11.0	730 ko	juil. 2024
AE Series - Customer Drawings version 2.0, mis à jour : mai 2024	2.0	2,69 Mo	mai 2024
AE Series - WR Models Customer Drawings version 3.0, mis à jour : avr. 2026	3.0	3,8 Mo	avr. 2026

Compliances

	Taille	Téléchargé
AE Series ASB - Declaration of Conformity mis à jour : juil. 2024	93,5 ko	juil. 2024

Preset Libraries

	Taille	Téléchargé
AE Series DCi Series Preset Library mis à jour : mai 2024	471 ko	mai 2024

Application Guides

	Langue	Taille	Téléchargé
Directional Bass Using 3-Element Arrays mis à jour : août 2021		570 ko	août 2021

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB)	32 Hz - 1 kHz
Frequency Response (±3 dB)	42 Hz - 1 kHz
Transducer Power Rating (AES)	800 W (3200 W peak), 2 hrs.
System Power Rating	675 W (2700 W peak), 100 hrs.
Maximum SPL (1m)	35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Net Weight (each)	20.6 kg (45.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance	8 ohms
