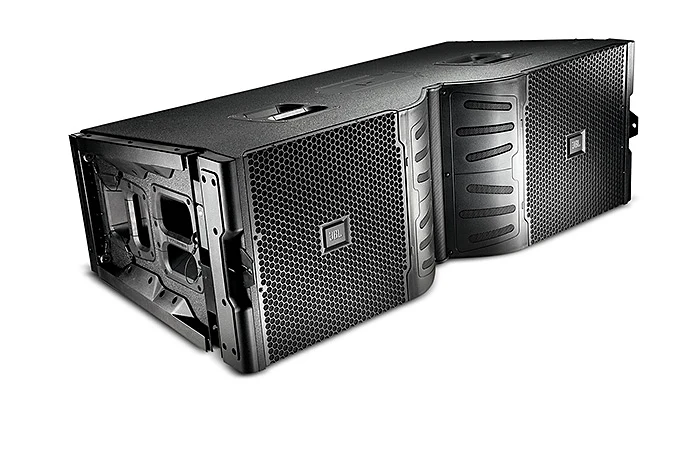

VTX V25 是一款全尺寸三路高指向性线阵列单元。VTX V25 配备两个 2000W 15 英寸 Differential Drive® 低音扬声器，安装在压铸铝音箱中，四个 8 英寸 Differential Drive 中音扬声器和三个革命性的 D2 双膜片双音圈压缩驱动器安装在第三代波导和专利的 RBI - 辐射边界整合器® 组件上。专利的吊装装置、Crown VRack DSP 和功放，以及 JBL HiQnet Performance Manager™ 配置与控制软件组成了完整的系统包。
| 大小 | |
VTX Compression Suspension Kit & Accessory Guide
更新: 4月 2026
|
851.4 KB |
|
VTX Laser Access User Guide
更新: 4月 2026
|
656.0 KB |
|
VTX V25 ACC Technical Manual
更新: 4月 2026
|
76.4 KB |
| 大小 | |
|
|
208.0 KB |
|
|
5.5 MB |
|
|
208.0 KB |
|
|
34.2 KB |
| 大小 | |
|
|
1.3 MB |
|
|
157.9 KB |
| 大小 | |
|
|
133.9 MB |
|
|
24.2 MB |
| 大小 | |
|
|
656.0 KB |
| 大小 | |
|
|
1.9 MB |
|
|
72.9 KB |
|
|
105.5 KB |
|
|
68.5 KB |
|
|
142.0 KB |
| 大小 | |
|
|
1.7 MB |
| 大小 | |
| 1.3 MB |
| 大小 | |
| 1.3 MB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
| 系统类型 | Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers |
| Components | 2 x 2267H 15" Differential Drive® LF 4 x 2169H 8" Differential Drive® MF 3 x 2430K D2 Dual Driver |
| Horizontal Coverage (-6 dB) | 90 degrees nominal (250 - 16k Hz) |
| 频率范围 (-10dB) | 35 - 20k Hz |
| Nominal Section Impedances | 2 x 8 ohms LF, 8 ohms MF, 8 ohms HF |
| Continuous Power Rating | 4000W LF, 1400W MF, 600W HF |
| 尺寸（W × H × D） | 1223 mm x 414 mm x 614 mm (48.2" x 16.3" x 24.2") |
| 重量 | 82.6 kg (182 lb) |
