VTX V25 (discontinued)

Full Size 3-Way High-Directivity Line Array

VTX V25
Larger Images

Full Size 3-Way High-Directivity Line Array

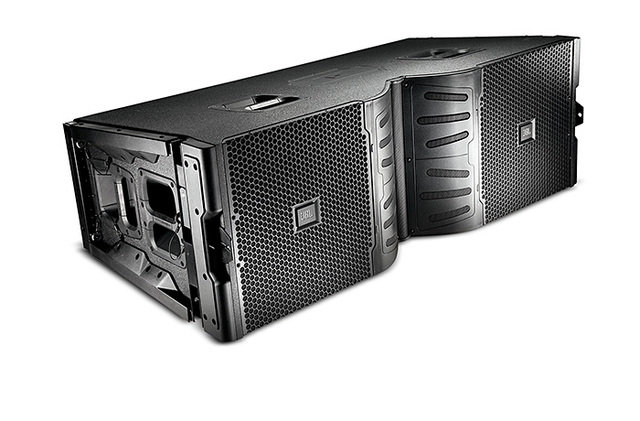

The VTX V25 is a full size 3-way high-directivity line array element. The VTX V25 features two 2000W 15" Differential Drive® woofers mounted in die cast aluminum baffles, with four 8" Differential Drive midrange transducers and three of the revolutionary new D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers mounted on a 3rd generation waveguide and patented RBI – Radiation Boundary Integrator® assembly. Patented rigging, Crown VRack DSP and amplification, and JBL HiQnet Performance Manager™ configuration and control software complete the system package.



Features

  • Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
  • JBL’s patented RBI Radiation Boundary Integrator®, further-refined for VTX
  • 3rd Generation HF Waveguide technology, newly-improved for VTX
  • Mid and Low Frequency Transducers, featuring JBL’s patented Differential Drive® technology
  • New Cardioid-Arrayable Subwoofer Enclosure Models
  • Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
  • Patented JBL S.A.F.E.TM Suspension System
  • Crown VRack DSP and Amplification
  • JBL HiQnet Performance ManagerTM System Configuration and Control


Downloads

  Version Language Size Uploaded
file type icon VTX Compression Suspension Kit & Accessory Guide
en updated: 13 มี.ค.
  en  851 กิโลไบต์ 13 มี.ค.
file type icon VTX Laser Access User Guide
en updated: 13 มี.ค.
  en  656 กิโลไบต์ 13 มี.ค.
file type icon VTX V25 ACC Technical Manual
en updated: 13 มี.ค.
  en  76.4 กิโลไบต์ 13 มี.ค.
CAD Drawings
file type icon VTX V25 3D Drawings DXF
updated: 22 ต.ค.
    208 กิโลไบต์ 22 ต.ค.
file type icon V25 AF/EB 3D Drawings DWG
updated: 02 ก.ค.
    5.5 เมกะไบต์ 02 ก.ค.
file type icon V25 3D Drawings DXF
updated: 02 ก.ค.
    208 กิโลไบต์ 02 ก.ค.
file type icon VTX 2D Drawings PDF
updated: 22 ต.ค.
    34.2 กิโลไบต์ 22 ต.ค.
Compliances
file type icon VTX Series Declaration of Conformity
updated: 22 ต.ค.
    1.28 เมกะไบต์ 22 ต.ค.
file type icon VTX V-Series Declaration of Conformity
updated: 03 ธ.ค.
    158 กิโลไบต์ 03 ธ.ค.
Software
platform icon Line Array Calculator III
version 3.8.0.128, updated: 14 ต.ค.
3.8.0.128     24.2 เมกะไบต์ 14 ต.ค.
platform icon PerformanceManager
version 2.9.1.5, updated: 02 ธ.ค.
2.9.1.5     117 เมกะไบต์ 02 ธ.ค.
Owner's Manuals
file type icon VTX Laser Tech Manual
updated: 02 ก.ค.
    656 กิโลไบต์ 02 ก.ค.
Images
file type icon VTX All Hi Res Photos
updated: 22 ต.ค.
    1.87 เมกะไบต์ 22 ต.ค.
file type icon V25 Side Photo
updated: 23 ต.ค.
    72.9 กิโลไบต์ 23 ต.ค.
file type icon V25 Front Utility Photo
updated: 22 ต.ค.
    106 กิโลไบต์ 22 ต.ค.
file type icon V25 Back Utility Photo
updated: 22 ต.ค.
    68.5 กิโลไบต์ 22 ต.ค.
file type icon V25 Photo
updated: 22 ต.ค.
    142 กิโลไบต์ 22 ต.ค.
Ease Data
file type icon VTX Ease Files
updated: 22 ต.ค.
    1.74 เมกะไบต์ 22 ต.ค.
Install Guides
file type icon VTX Compression Suspension Kit & Accessories Overview
updated: 22 ต.ค.
    1.33 เมกะไบต์ 22 ต.ค.
User Guides
file type icon VTX Compression Suspension Kit and Accessories - User Guide
updated: 22 ต.ค.
    1.33 เมกะไบต์ 22 ต.ค.

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

System Type Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
Components 2 x 2267H 15" Differential Drive® LF 4 x 2169H 8" Differential Drive® MF 3 x 2430K D2 Dual Driver
Horizontal Coverage (-6 dB) 90 degrees nominal (250 - 16k Hz)
Frequency Range (-10dB) 35 - 20k Hz
Nominal Section Impedances 2 x 8 ohms LF, 8 ohms MF, 8 ohms HF
Continuous Power Rating 4000W LF, 1400W MF, 600W HF
Dimensions (w x h x d) 1223 mm x 414 mm x 614 mm (48.2" x 16.3" x 24.2")
Weight 82.6 kg (182 lb)
