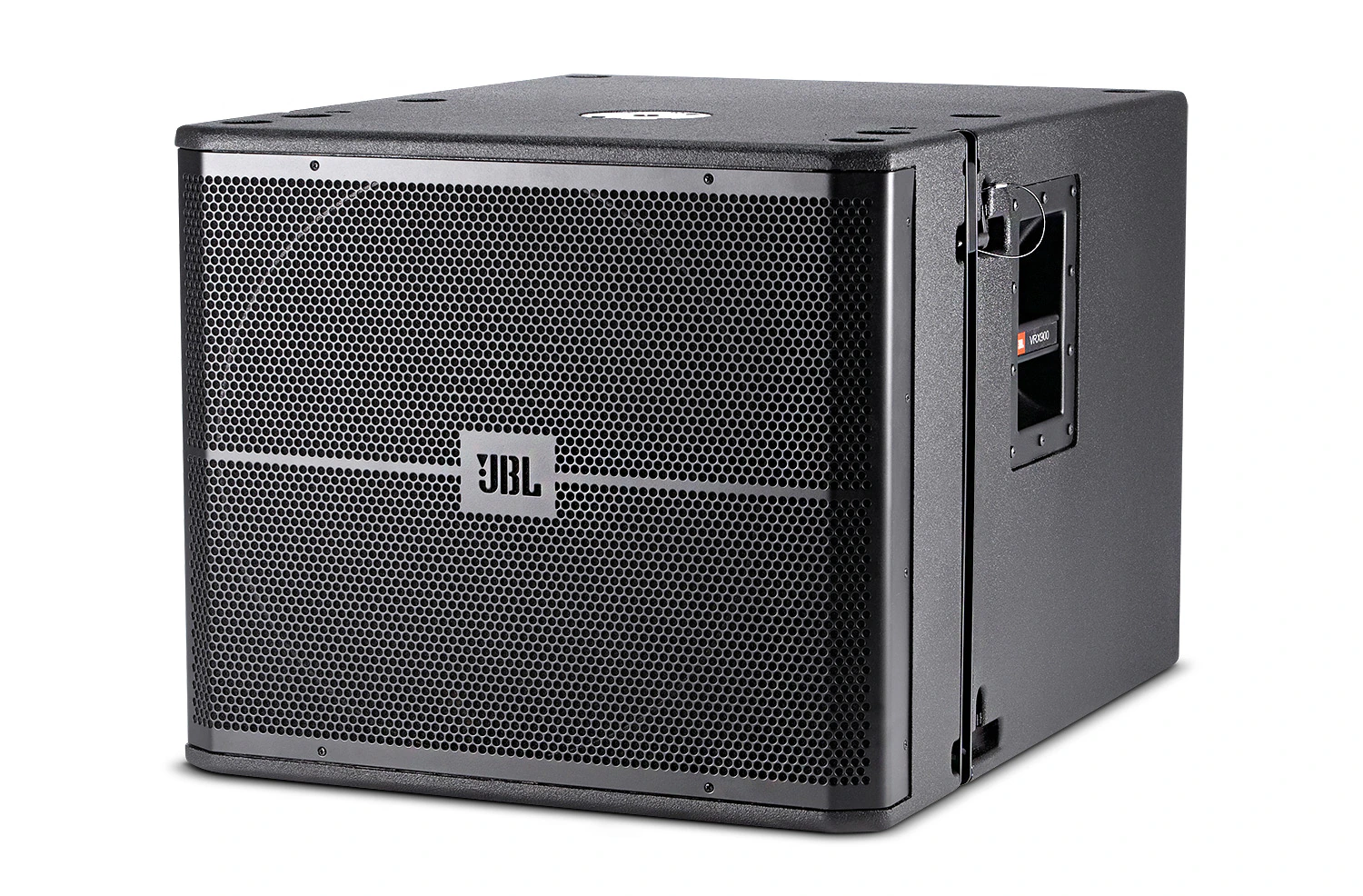

VRX918SP

18 in. High Power Powered Flying Subwoofer

较大的图像

18 in. High Power Powered Flying Subwoofer

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

特点

  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
  • 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
    light weight.
  • Integral rigging hardware for simple connection of enclosures and optional array frame.
  • 20 mm threaded pole socket for solid, secure satellite speaker mounting.
  • Large port area for reduced distortion.

下载

  Version Language Size Uploaded
Specifications
VRX918SP Spec Sheet
updated: 4月29日
    319.5 KB 4月29日
Brochures
VRX Brochure (Powered)
updated: 10月22日
    630.5 KB 10月22日
CAD Drawings
VRX 2D PDF Drawings
updated: 10月22日
    355.6 KB 10月22日
VRX 2D & 3D Drawings
updated: 10月22日
    6.3 MB 10月22日
Bim Objects
VRX918SP BIM Object
updated: 8月27日
    8月27日
Compliances
    93.2 KB 10月18日
Software
VRX Array Calculator
version 1.0, updated: 2月24日
1.0     11.2 MB 2月24日
User Guides
VRX900 User Guide
updated: 10月22日
    3.6 MB 10月22日
VRX Application Guide
updated: 10月22日
    1.6 MB 10月22日
Speaker Tunings
VRX900 Crown XTi2 V4 Tuning
updated: 10月23日
    117.9 KB 10月23日
VRX900 Series Tunings
updated: 10月22日
    4.8 MB 10月22日
Images
VRX918SP Back Angle
updated: 4月29日
    237.5 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

额定功率 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
频率范围 31 Hz – 220 Hz
尺寸(高 x 宽 x 厚) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Response (-10dB) 31 Hz – 220 Hz
Maximum Peak Output 126 dB SPL at 1m
Bandpass Nominal Impedance LF: 2 x 2 ohms
低频驱动单元 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
输入通道 XLR with loop through
User Controls Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
System Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60Hz
AC 线路电压 User selectable: 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 18 mm birch plywood.
Suspension / Mounting Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
外观颜色 Black DuraFlex™ finish
网罩 Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each) 38.5 kg (85 lb)
Optional Accessories VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
输出 1 x XLR
标称阻抗 LF: 2 x 2 ohms

Accessories

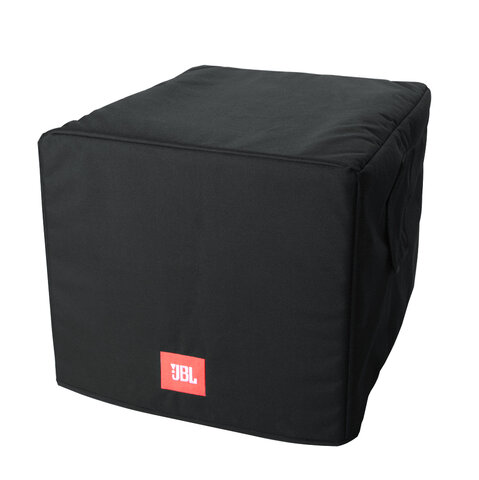

VRX918S-CVR | Deluxe Padded Protective Cover for VRX918S
VRX918S-CVR Main photo
较大的图像

Padded cover for VRX918S. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access Covers with Velcro Closure, Large Accessory Pocket *Designed for cabinets with bottom mounted casters or no casters*

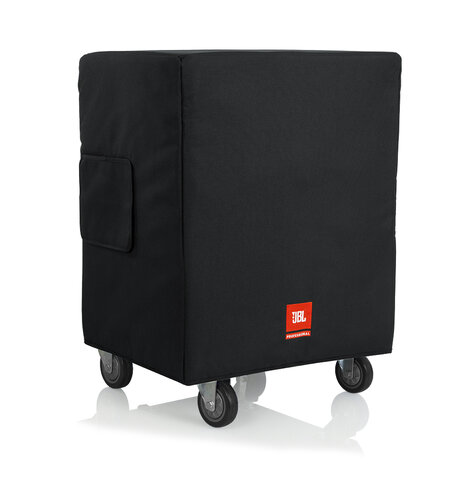

VRX918S-SP-CVR-WK4 | Deluxe Padded Protective Cover for VRX918S
VRX918S-SP-CVR-WK4 Main photo
较大的图像

Padded cover for VRX918S. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access Covers with Velcro Closure, Large Accessory Pocket Designed to accommodate WK-4S rear-mounted casters kit (sold separately)

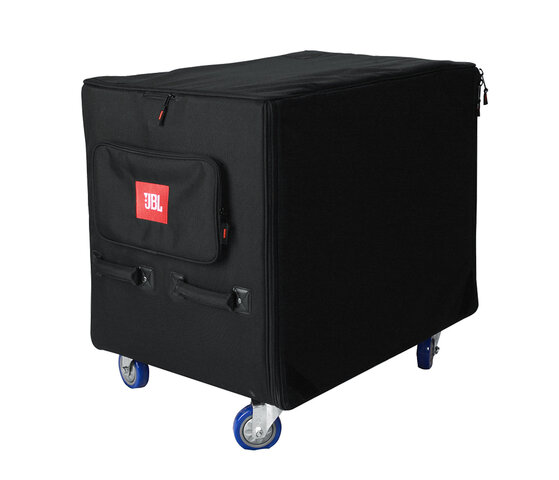

VRX918S-STR | Rolling Sub Transporter Bag for VRX918S
VRX918S-STR Main photo
较大的图像

Padded Sub Transporter. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters.

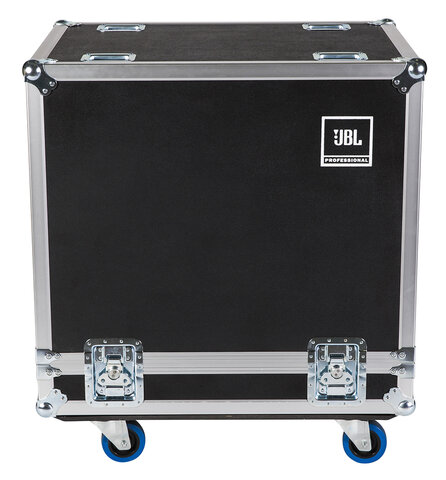

JBL-FLIGHT-SRX718S/VRX918S | Flight Case; Holds 1X SRX718S / VRX918S
JBL-FLIGHT-SRX718S/VRX918S Main photo
较大的图像

Flight Case for (1x) SRX718S / VRX918S. 1/2" Plywood Construction, 3.5" Casters. Truck Pack Exterior.

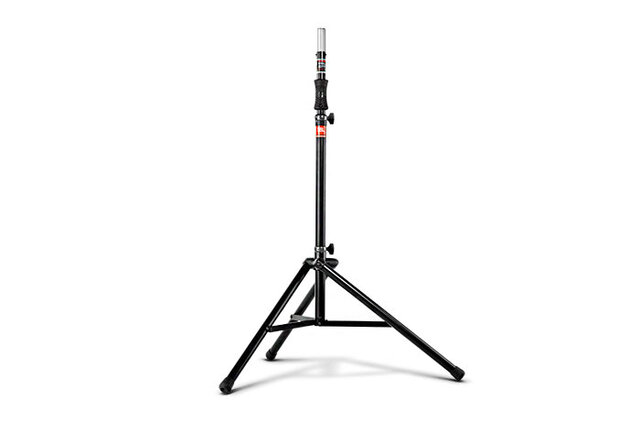

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation

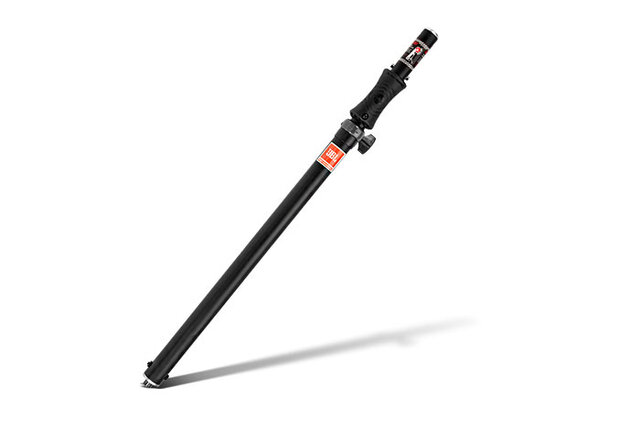

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
