VRX918SP

18 in. High Power Powered Flying Subwoofer

صور أكبر

18 in. High Power Powered Flying Subwoofer

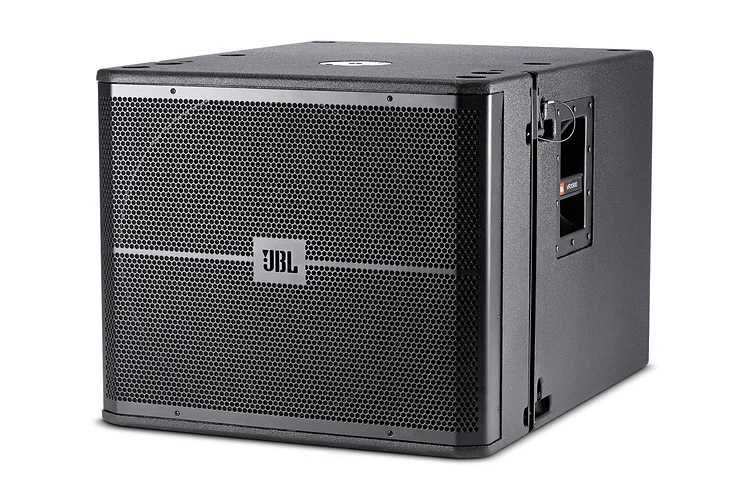

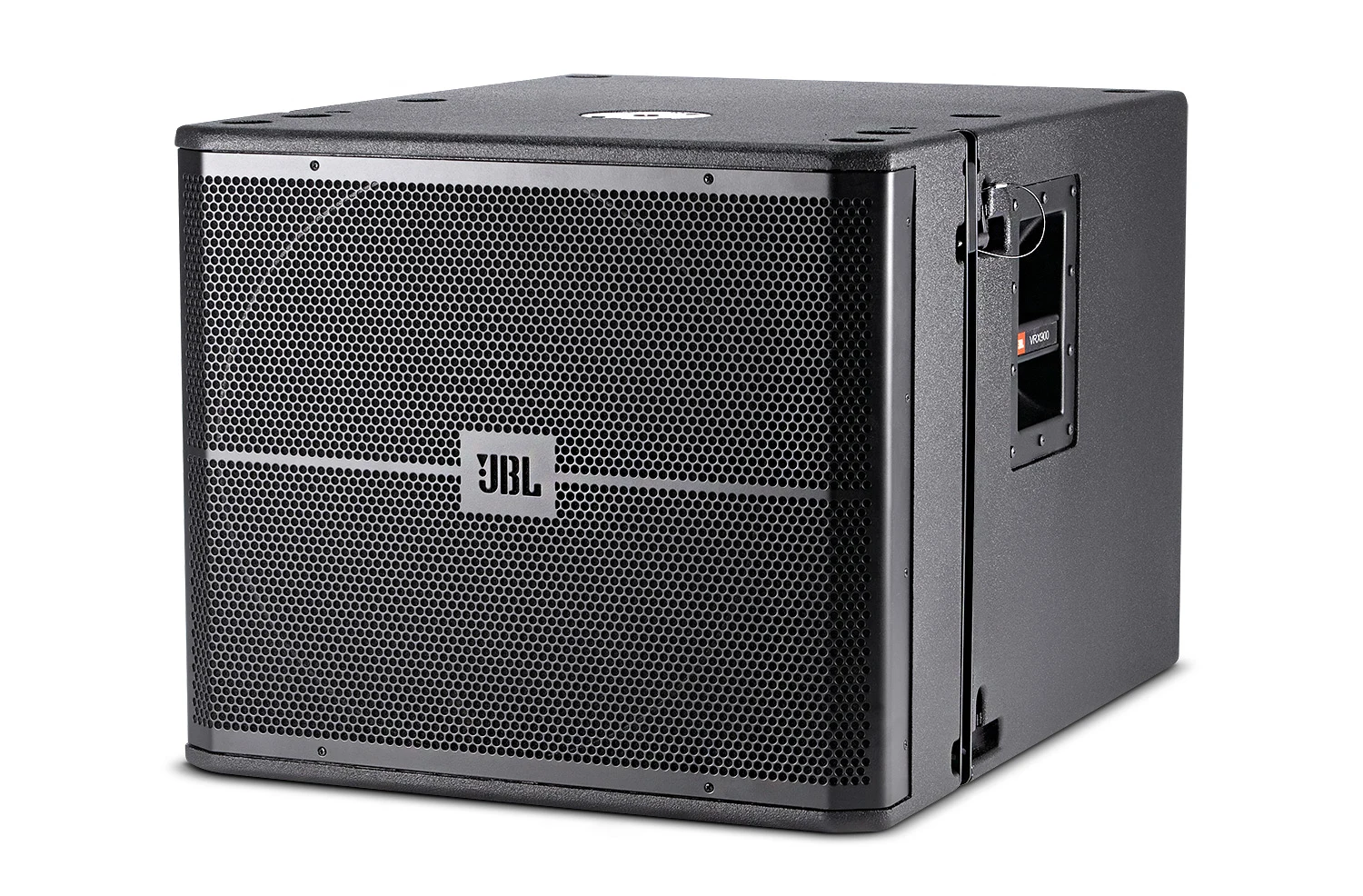

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

الميزات

  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
  • 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
    light weight.
  • Integral rigging hardware for simple connection of enclosures and optional array frame.
  • 20 mm threaded pole socket for solid, secure satellite speaker mounting.
  • Large port area for reduced distortion.

التنزيلات

Specifications
  الحجم تاريخ التحميل
file type icon VRX918SP Spec Sheet
تم التحديث: أكتوبر 2020
320 KB أكتوبر 2020
Manuals
  الإصدار الحجم تاريخ التحميل
file type icon VRX900P User Manual
الإصدار B, تم التحديث: مايو 2026
3.64 MB مايو 2026
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon JBL 2025 PPA Brochure
en الإصدار B, تم التحديث: أغسطس 2025
en  8.45 MB أغسطس 2025
file type icon VRX900P Brochure
تم التحديث: ديسمبر 2020
    630 KB ديسمبر 2020
file type icon VRX900 Series Brochure
تم التحديث: ديسمبر 2020
    2 MB ديسمبر 2020
CAD Drawings
  الحجم تاريخ التحميل
file type icon VRX900 Series Customer Drawings
تم التحديث: ديسمبر 2020
6.73 MB ديسمبر 2020
file type icon VRX918SP BIM Object
تم التحديث: يوليو 2023
يوليو 2023
Compliances
  الحجم تاريخ التحميل
file type icon VRX900 Series (Powered) Declaration of Conformity
تم التحديث: أكتوبر 2019
93.2 KB أكتوبر 2019
Software
  الإصدار الحجم تاريخ التحميل
download icon for Venue Synthesis Venue Synthesis
تاريخ الإصدار: يوليو 2026
  يوليو 2026
download icon for VRX Array Calculator VRX Array Calculator
الإصدار 1.0, تاريخ الإصدار: يوليو 2024
1.0   11.2 MB يوليو 2024
Simulation Data
  الإصدار الحجم تاريخ التحميل
file type icon VRX900 Series EASE DLL
الإصدار 1.5.3, تم التحديث: يوليو 2023
1.5.3  968 KB يوليو 2023

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Power Rating 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
Frequency Range 31 Hz – 220 Hz
Dimensions (H x W x D) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Range (-10dB) 31 Hz – 220 Hz
Maximum Peak Output 126 dB SPL at 1m
Bandpass Nominal Impedance LF: 2 x 2 ohms
LF Driver 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
Inputs XLR with loop through
User Controls Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
System Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage User selectable: 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 18 mm birch plywood.
Suspension / Mounting Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each) 38.5 kg (85 lb)
Optional Accessories VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
Outputs 1 x XLR
Nominal Impedance LF: 2 x 2 ohms

الملحقات

VRX918S-CVR | Deluxe Padded Protective Cover for VRX918S
VRX918S-CVR Main photo
صور أكبر
VRX918S-CVR detail thumbnail #1 VRX918S-CVR detail thumbnail #2 VRX918S-CVR detail thumbnail #3 VRX918S-CVR detail thumbnail #4

Padded cover for VRX918S. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access Covers with Velcro Closure, Large Accessory Pocket *Designed for cabinets with bottom mounted casters or no casters*


VRX918S-SP-CVR-WK4 | Deluxe Padded Protective Cover for VRX918S
VRX918S-SP-CVR-WK4 Main photo
صور أكبر
VRX918S-SP-CVR-WK4 detail thumbnail #1

Padded cover for VRX918S. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access Covers with Velcro Closure, Large Accessory Pocket Designed to accommodate WK-4S rear-mounted casters kit (sold separately)








VRX918S-STR | حقيبة نقل جهاز الجهير المتحرك لـ VRX918S
VRX918S-STR Main photo
صور أكبر
VRX918S-STR detail thumbnail #1 VRX918S-STR detail thumbnail #2 VRX918S-STR detail thumbnail #3 VRX918S-STR detail thumbnail #4

Padded Sub Transporter. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters.








JBL-FLIGHT-SRX718S/VRX918S | Flight Case; Holds 1X SRX718S / VRX918S
JBL-FLIGHT-SRX718S/VRX918S Main photo
صور أكبر
JBL-FLIGHT-SRX718S/VRX918S detail thumbnail #1

Flight Case for (1x) SRX718S / VRX918S. 1/2" Plywood Construction, 3.5" Casters. Truck Pack Exterior.


JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
صور أكبر
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900

الوثائق
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
صور أكبر
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900

الوثائق
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
صور أكبر
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products

الوثائق
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
صور أكبر
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm

الوثائق
