The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
| Ukuran | |
|
|
320 KB |
| Ukuran | |
|
|
3,58 MB |
| Ukuran | |
|
|
8,45 MB |
|
|
630 KB |
|
|
2 MB |
| Ukuran | |
|
|
6,73 MB |
|
|
| Ukuran | |
|
|
93,2 KB |
| Ukuran | |
|
|
|
|
|
11,2 MB |
| Ukuran | |
|
|
968 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
| Power Rating | 1500 Watts PeakLF: Dual-Bridged Technology™, Class D |
| Frequency Range | 31 Hz – 220 Hz |
| Dimensions (H x W x D) | 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) |
| Frequency Range (-10dB) | 31 Hz – 220 Hz |
| Maximum Peak Output | 126 dB SPL at 1m |
| Bandpass Nominal Impedance | LF: 2 x 2 ohms |
| LF Driver | 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet |
| Inputs | XLR with loop through |
| User Controls | Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru. |
| System Processing | DSP based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60Hz |
| AC Line Voltage | User selectable: 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirements | 6A per system at 120V, 3A per system at 240V |
| Enclosure | 18 mm birch plywood. |
| Suspension / Mounting | Optional VRX-AF line-array frame kit or 10 mm forged eyebolts |
| Finish | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |
| Net Weight (each) | 38.5 kg (85 lb) |
| Optional Accessories | VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit |
| Outputs | 1 x XLR |
| Nominal Impedance | LF: 2 x 2 ohms |
Padded cover for VRX918S. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access Covers with Velcro Closure, Large Accessory Pocket *Designed for cabinets with bottom mounted casters or no casters*
Padded cover for VRX918S. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Handle Access Covers with Velcro Closure, Large Accessory Pocket Designed to accommodate WK-4S rear-mounted casters kit (sold separately)
Padded Sub Transporter. Water Resistant Black Nylon, 10mm Padding, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters.
Flight Case for (1x) SRX718S / VRX918S. 1/2" Plywood Construction, 3.5" Casters. Truck Pack Exterior.
JBLTRIPOD-GA Data Sheet
[231 KB]

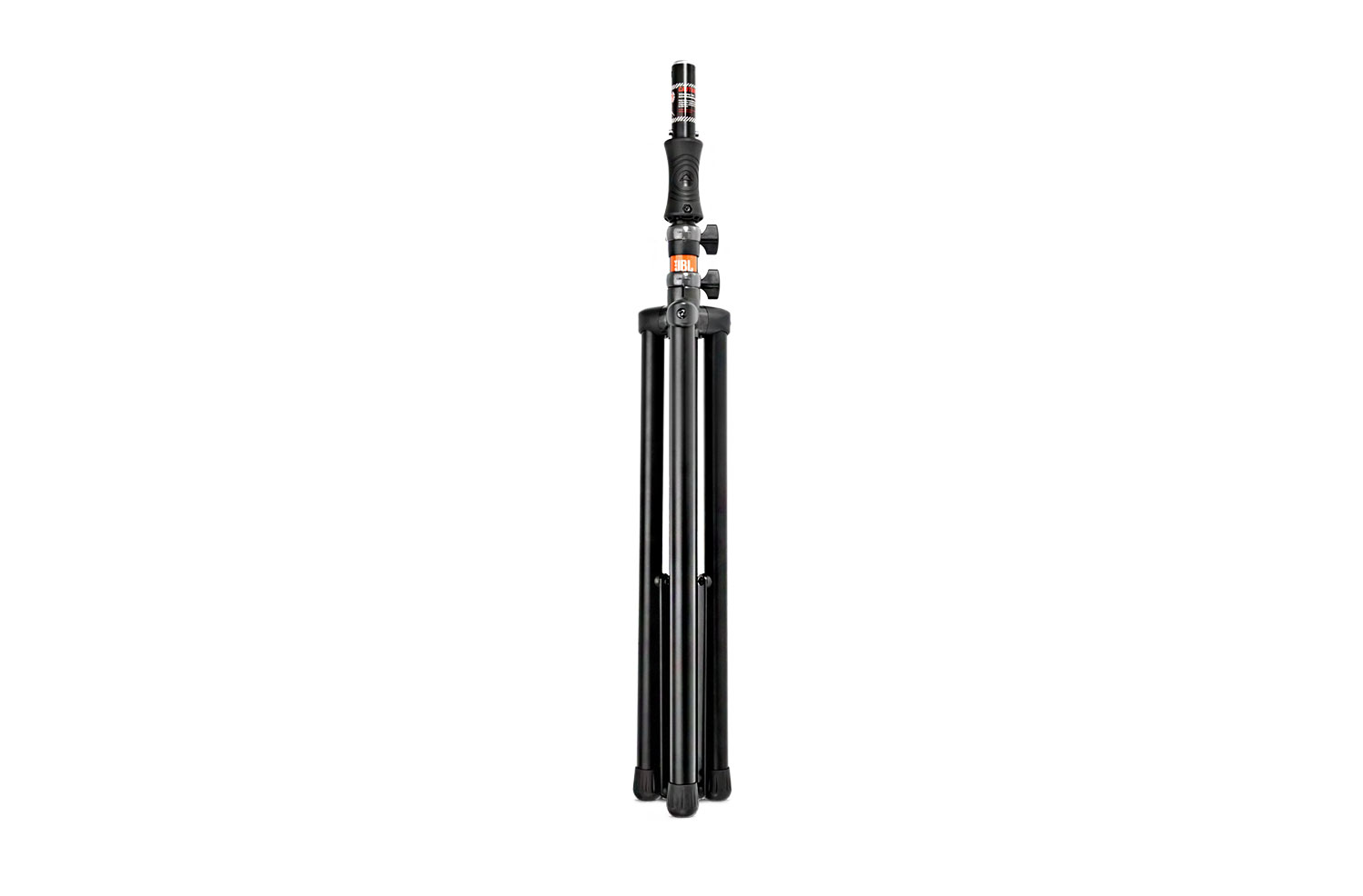

JBL Tripod Gas Assist Closed
[36,2 KB]
JBL Tripod Gas Assist Closed Extended
[30,5 KB]

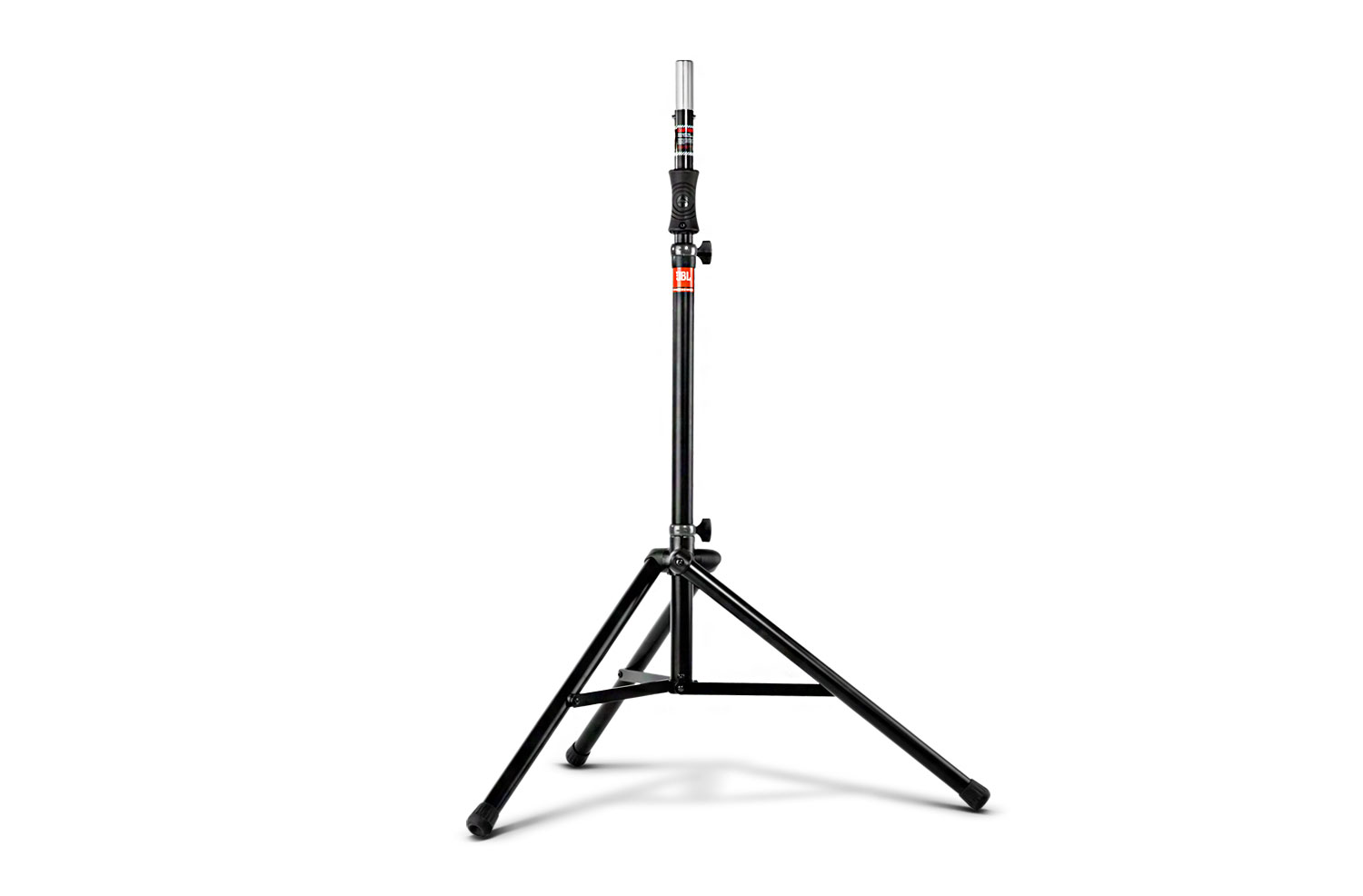

JBL Tripod Gas Assist Open
[41,7 KB]

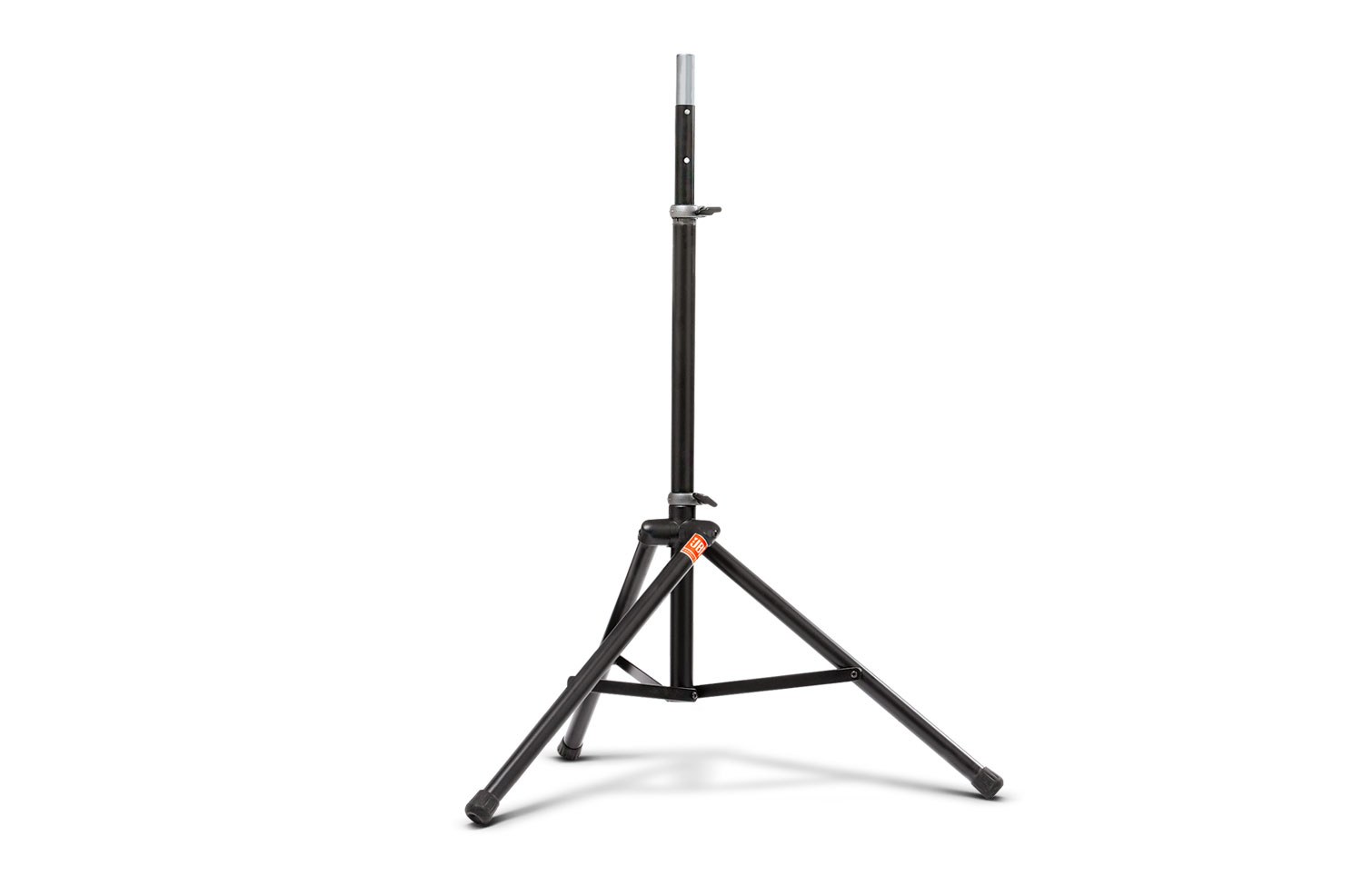

JBL Tripod Manual Adjust Open
[39,5 KB]
Dudukan Speaker Tripod Aluminium dengan Pin Pengunci Aman dan Kapasitas Beban 150 lbs. Untuk membantu Anda mengangkat speaker, kami telah menambahkan Lift Ring yang tahan lama pada tabung teleskop untuk memberikan tangan Anda sesuatu untuk didorong saat menaikkan speaker ke ketinggian yang diinginkan.
JBLTRIPOD-MA Data Sheet
[228 KB]
Tiang Speaker dengan Bantuan Gas dan Ujung Bawah Berulir M20, Tiang 38mm & Adaptor 35mm. JBLPOLE-GA adalah tiang speaker paling mudah digunakan berkat shock pneumatik internal yang secara harfiah mengangkat speaker untuk Anda. Shock internal tiang ini dengan mudah mengangkat speaker yang beratnya 35 lbs atau kurang tanpa memerlukan usaha dari pengguna.
JBL pole Gas Assist
[41,6 KB]
JBL pole Gas Assist detail
[70,2 KB]
JBLPOLE-GA Data Sheet
[314 KB]
Tiang Speaker Manual Adjust dengan Ujung Bawah Berulir M20, Tiang 38mm & 35mm. JBLPOLE-MA dilengkapi dengan kerah penyesuaian ketinggian luar biasa yang menampilkan knob "Z" ergonomis yang memberikan penyesuaian yang nyaman. Hasil pemasangan terkuat, kerah penyesuaian ketinggian mencegah masalah pengetatan berlebihan dan kerusakan yang terkait dengan semua desain plastik.
JBLPOLE-MA Data Sheet
[258 KB]

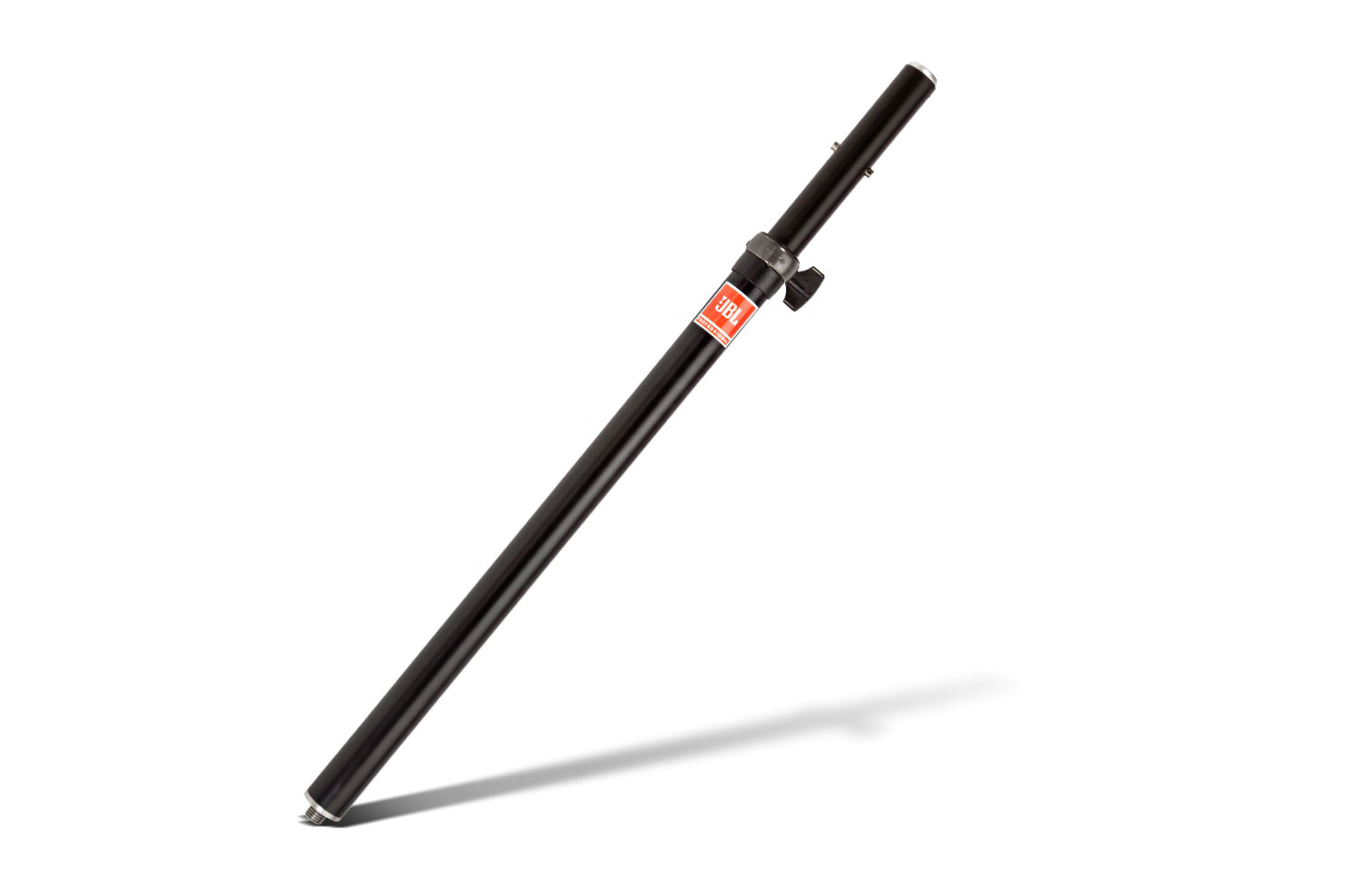

JBL pole Manual Adjust
[40,7 KB]

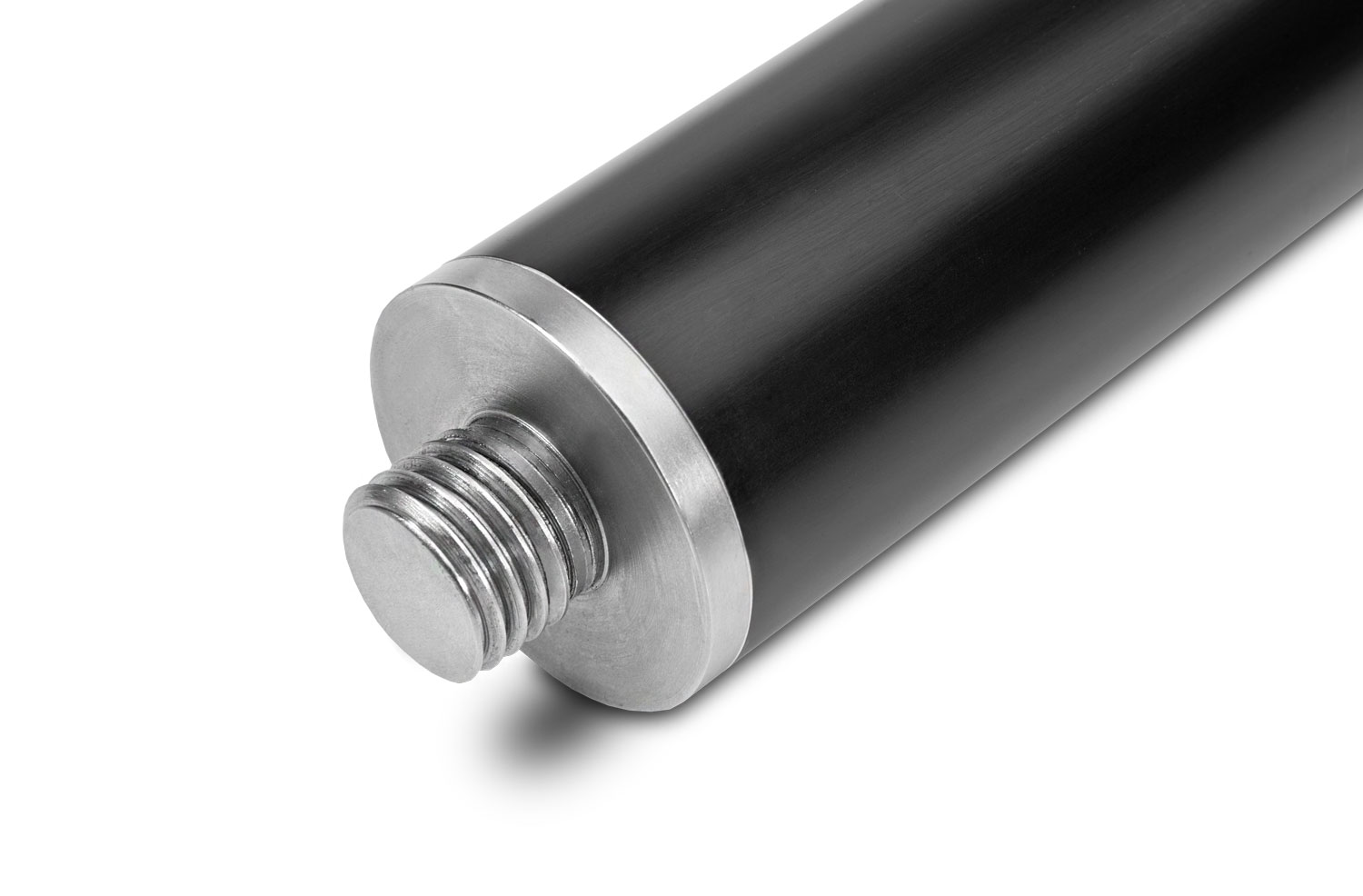

JBL pole Manual Adjust Detail
[87,7 KB]
