JBL Professional JRX215

较大的图像

Two-Way Sound Reinforcement Loudspeaker System

This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement.

特点

JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

下载

Specifications

	大小	上传日期
JRX215 Spec Sheet 更新: 4月 2019	1.1 MB	4月 2019

Brochures

	版本	语言	大小	上传日期
Portable Sound Full Line 2015 Catalog 更新: 10月 2020			2.5 MB	10月 2020
JBL 2025 PPA Brochure 版本 B, 更新: 8月 2025	B		8.5 MB	8月 2025

Compliances

	大小	上传日期
JRX200 Series Declaration of Conformity 更新: 10月 2020	119.0 KB	10月 2020

Images

	大小	上传日期

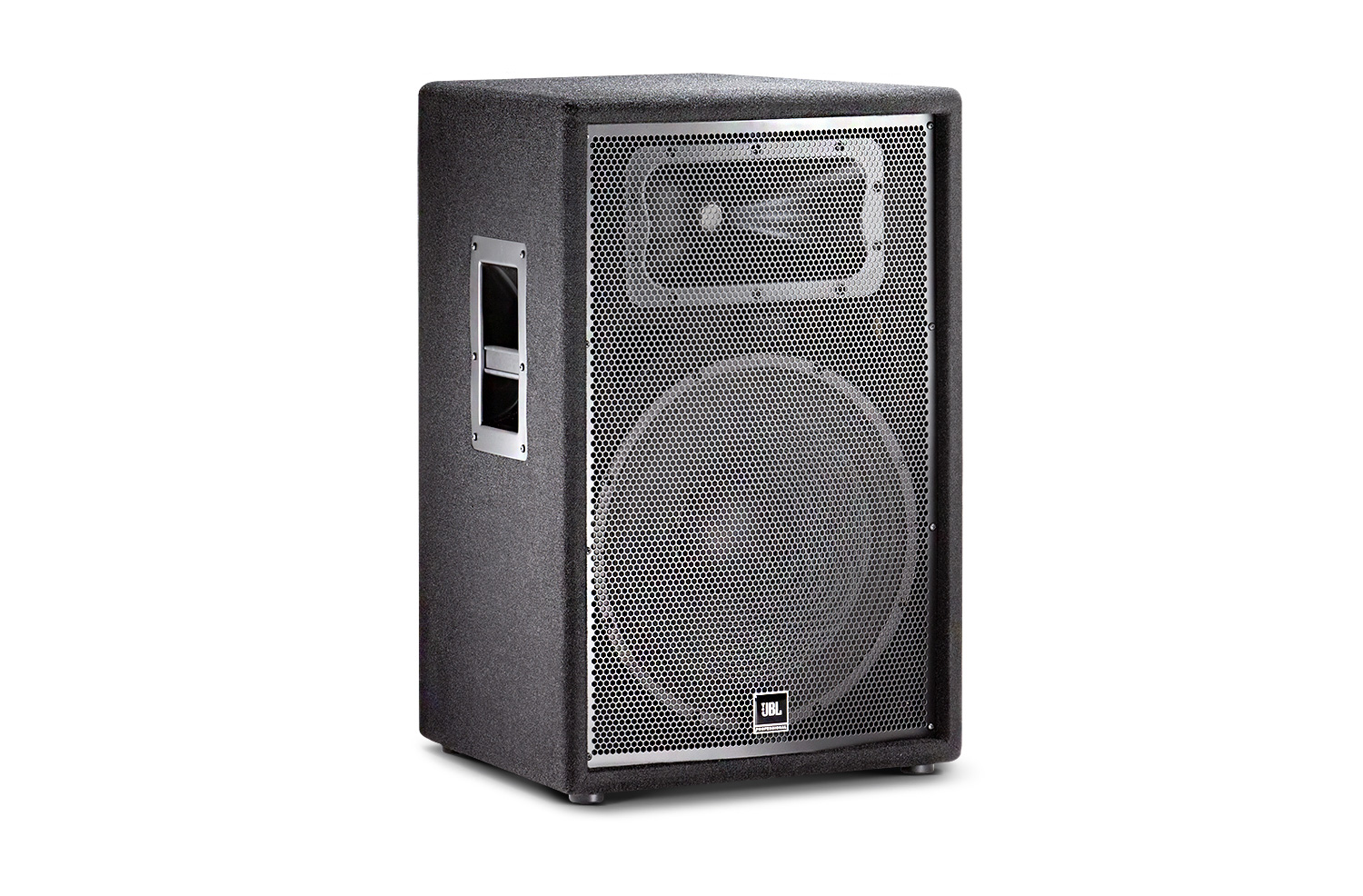

JRX215 Front Angle 更新: 4月 2019	385.1 KB	4月 2019

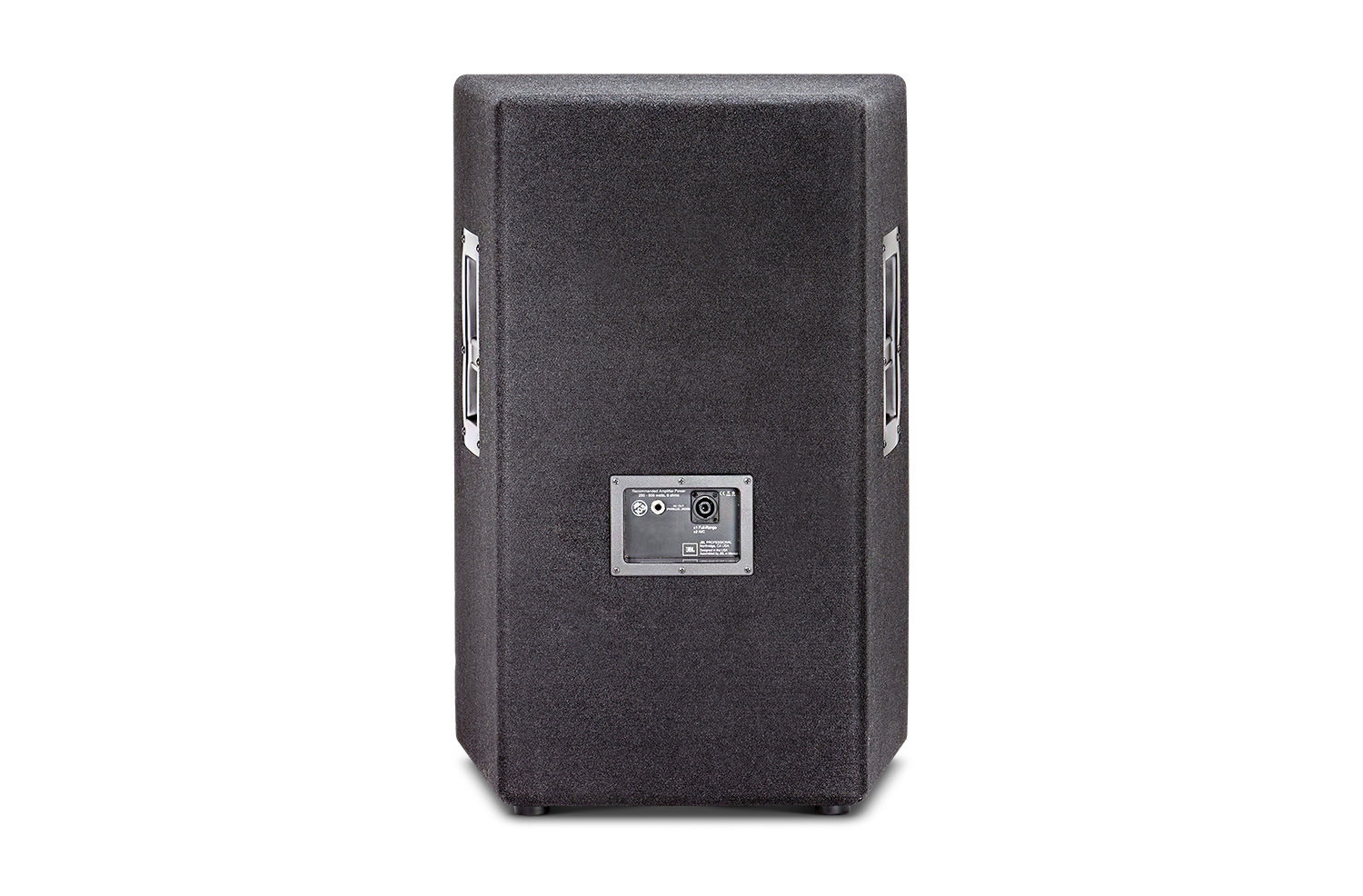

JRX215 Back 更新: 4月 2019	254.2 KB	4月 2019

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

额定功率	250 W / 1000W
频率范围 (-10dB)	41 Hz - 18 kHz
Frequency Response (±3 dB)	59 Hz - 13 kHz
Sensitivity (@1m)	99 dB SPL (1w/1m)
标称阻抗	8 ohms
Recommended Amplifier Power	250 W to 500 W into 8 ohms
Maximum SPL (1m)	129 dB
Nominal Dispersion	90º x 50º
分频点	2.2 kHz
尺寸（高 x 宽 x 厚）	699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
重量	27.4 kg (60.5 lb)
HF 驱动程序	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
低频驱动单元	JBL M115-8A
输入通道	Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.

配件

JRX215-CVR-CX | Convertible Cover for JRX215

较大的图像

Convertible Cover for JRX215. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
