JBL Professional JRX215

រូបភាពធំជាង

This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement.

JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

Specifications

	ទំហំ	បានផ្ទុកឡើង
JRX215 Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	1.07 MB	មេសា 2019

Brochures

	កំណែ	ភាសា	ទំហំ	បានផ្ទុកឡើង
Portable Sound Full Line 2015 Catalog បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020			2.54 MB	តុលា 2020
JBL 2025 PPA Brochure កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: សីហា 2025	B		8.45 MB	សីហា 2025

Compliances

	ទំហំ	បានផ្ទុកឡើង
JRX200 Series Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	119 KB	តុលា 2020

Images

	ទំហំ	បានផ្ទុកឡើង

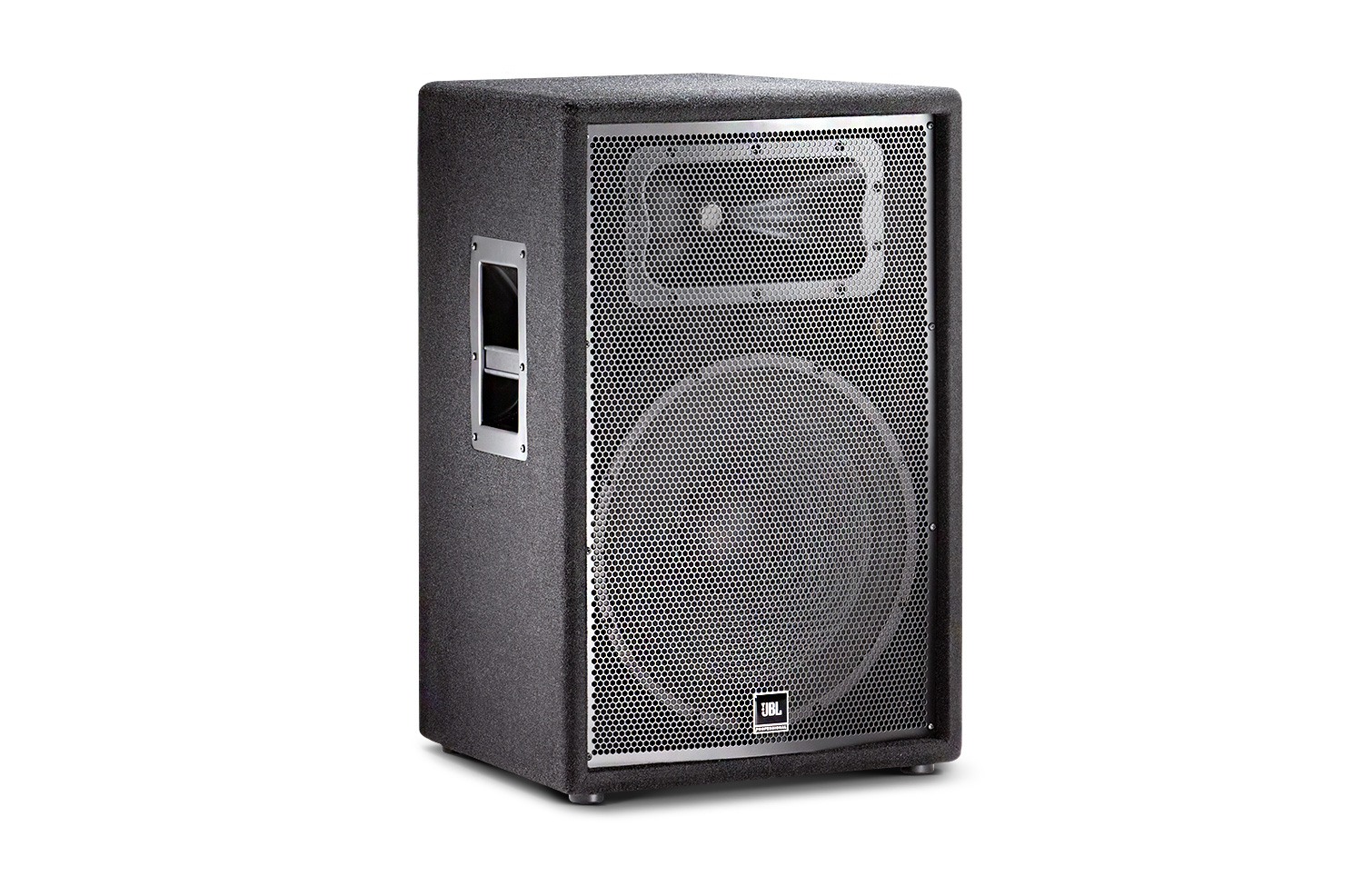

JRX215 Front Angle បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	385 KB	មេសា 2019

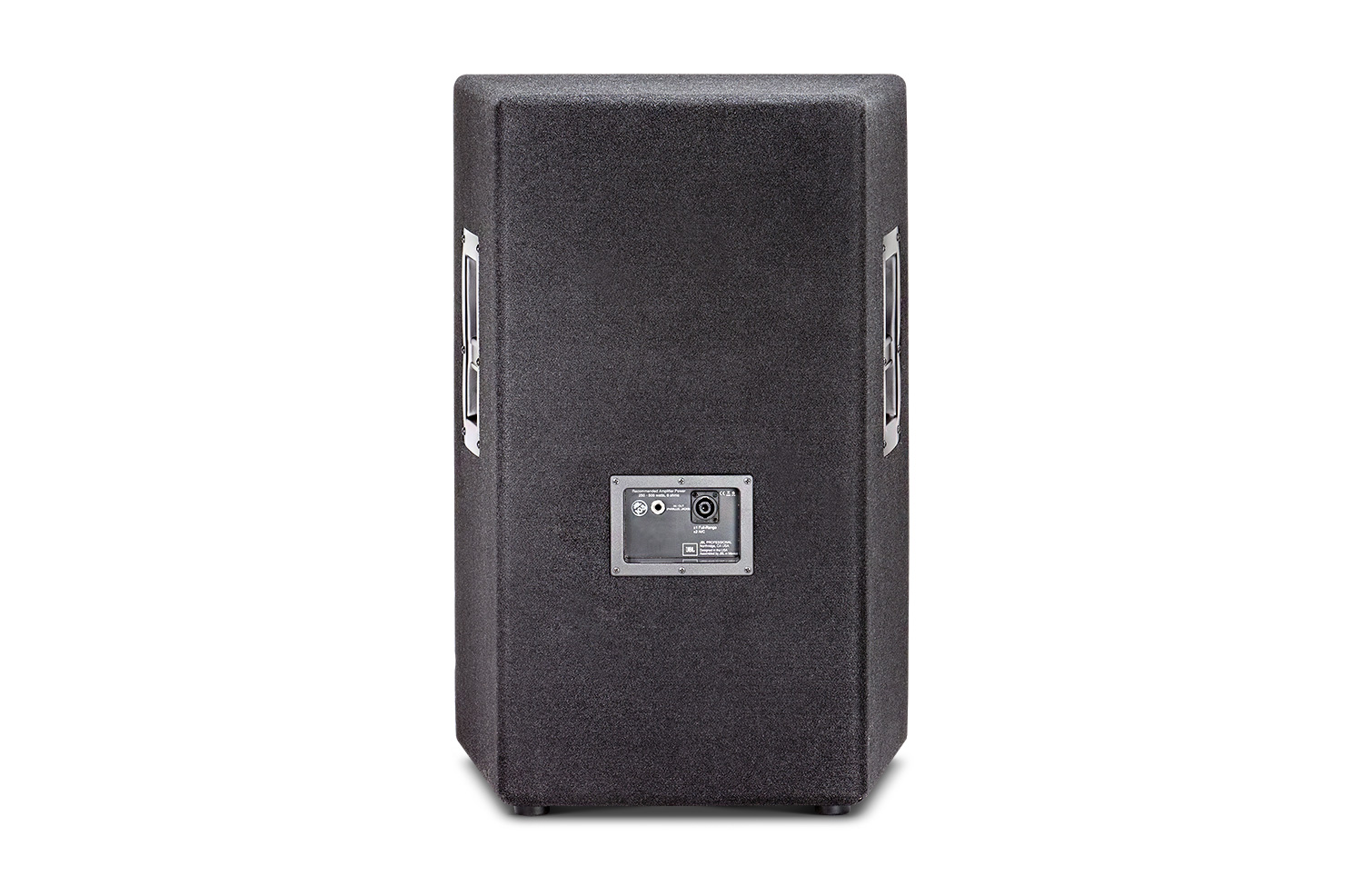

JRX215 Back បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	254 KB	មេសា 2019

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

Power Rating	250 W / 1000W
Frequency Range (-10dB)	41 Hz - 18 kHz
Frequency Response (±3 dB)	59 Hz - 13 kHz
Sensitivity (@1m)	99 dB SPL (1w/1m)
Nominal Impedance	8 ohms
Recommended Amplifier Power	250 W to 500 W into 8 ohms
Maximum SPL (1m)	129 dB
Nominal Dispersion	90º x 50º
Crossover Frequency	2.2 kHz
Dimensions (H x W x D)	699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
Weight	27.4 kg (60.5 lb)
HF Driver	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver	JBL M115-8A
Inputs	Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.
