JBL Professional JRX215

Größere Bilder

Two-Way Sound Reinforcement Loudspeaker System

This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement.

Eigenschaften

JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

Downloads

Specifications

	Größe	Hochgeladen
JRX215 Spec Sheet aktualisiert: Apr 2019	1,07 MB	Apr 2019

Brochures

	Version	Sprache	Größe	Hochgeladen
Portable Sound Full Line 2015 Catalog aktualisiert: Okt 2020			2,54 MB	Okt 2020
JBL 2025 PPA Brochure Version B, aktualisiert: Aug 2025	B		8,45 MB	Aug 2025

Compliances

	Größe	Hochgeladen
JRX200 Series Declaration of Conformity aktualisiert: Okt 2020	119 KB	Okt 2020

Images

	Größe	Hochgeladen

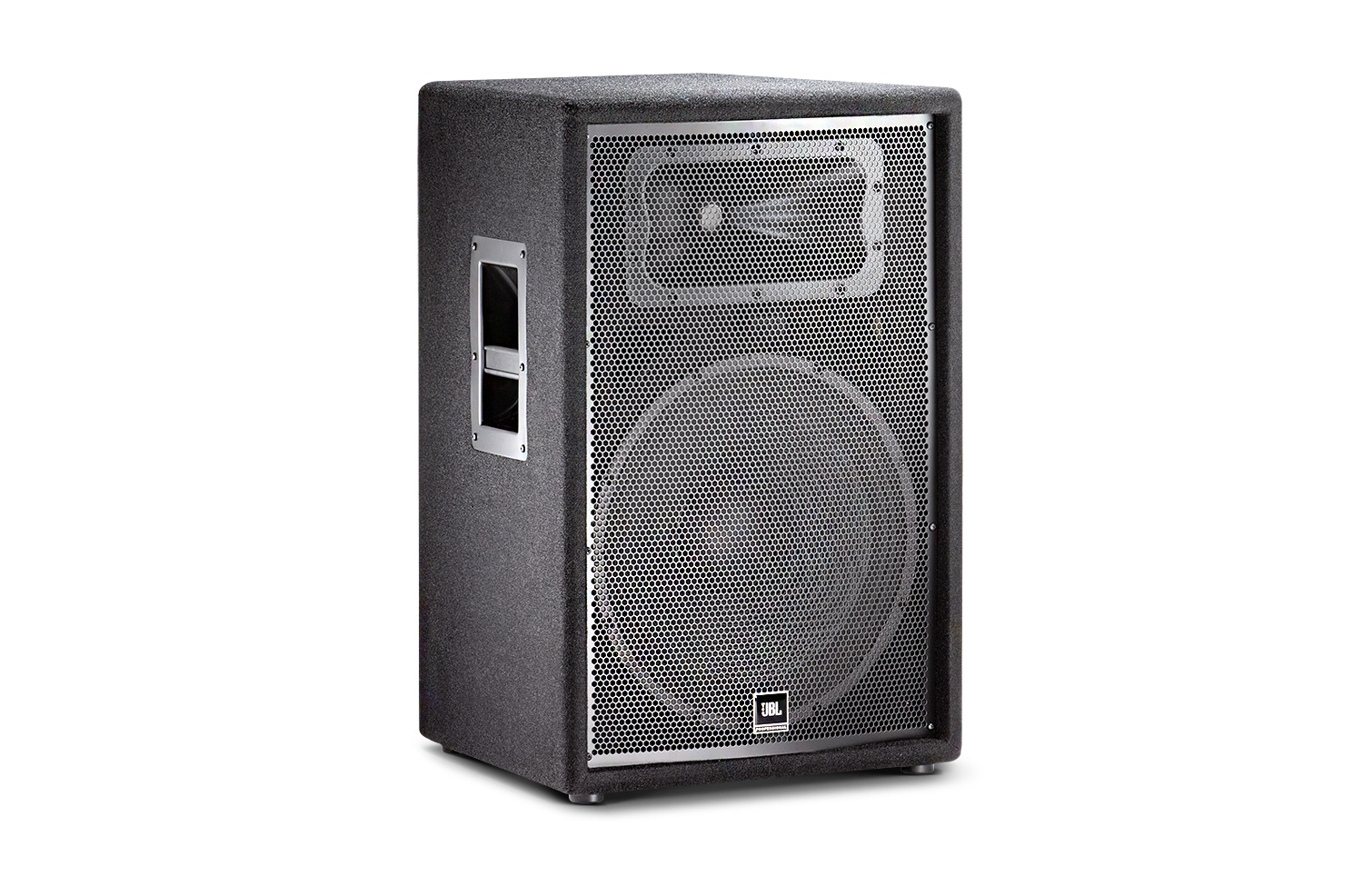

JRX215 Front Angle aktualisiert: Apr 2019	385 KB	Apr 2019

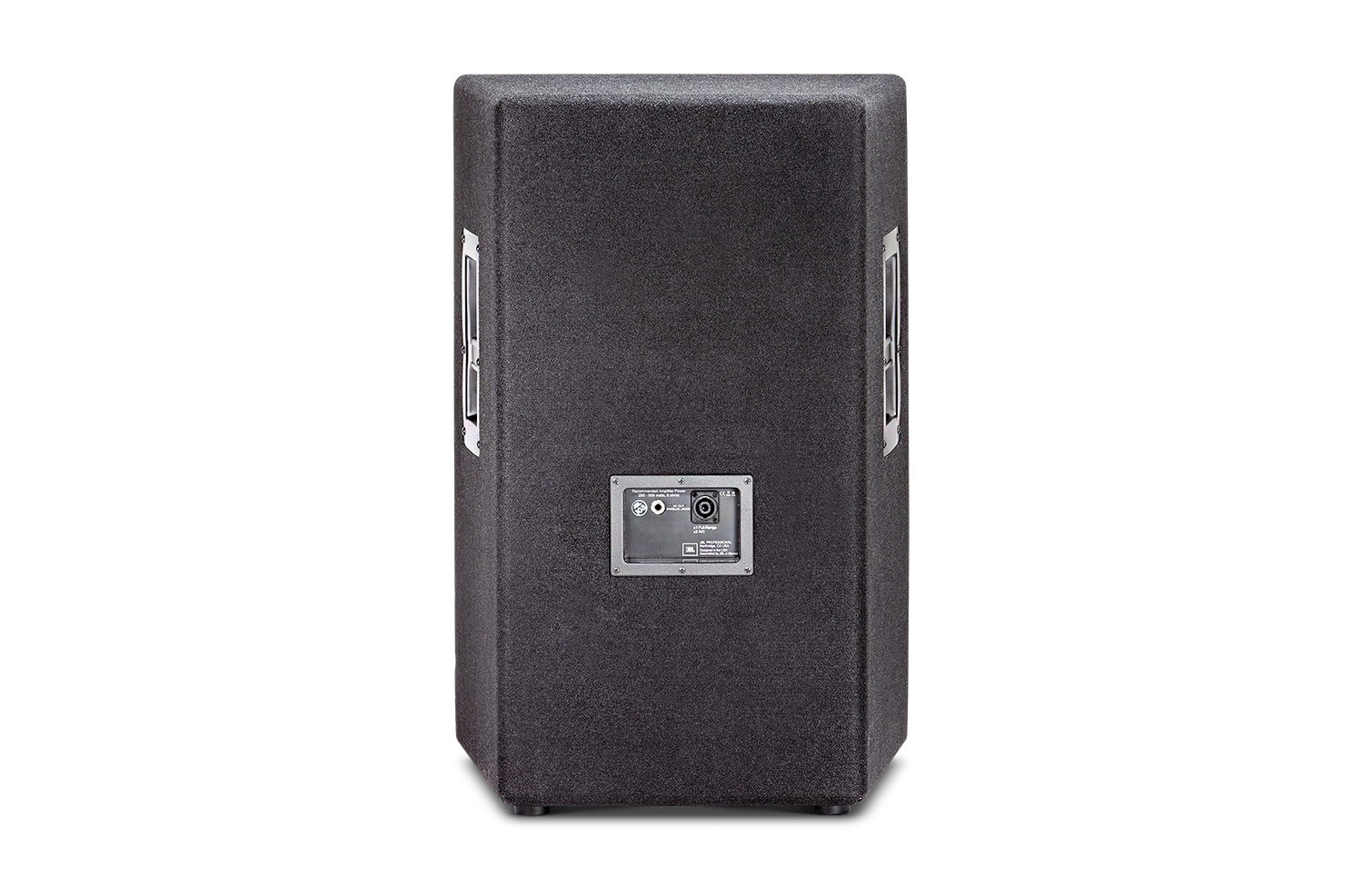

JRX215 Back aktualisiert: Apr 2019	254 KB	Apr 2019

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Teile & Service

Spezifikationen

Power Rating	250 W / 1000W
Frequency Range (-10dB)	41 Hz - 18 kHz
Frequency Response (±3 dB)	59 Hz - 13 kHz
Sensitivity (@1m)	99 dB SPL (1w/1m)
Nominal Impedance	8 ohms
Recommended Amplifier Power	250 W to 500 W into 8 ohms
Maximum SPL (1m)	129 dB
Nominal Dispersion	90º x 50º
Crossover Frequency	2.2 kHz
Dimensions (H x W x D)	699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
Weight	27.4 kg (60.5 lb)
HF Driver	JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver	JBL M115-8A
Inputs	Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel
Enclosure	MDF (Medium Density Fiberboard) covered in black carpet.
