CSPM-4 (discontinued)

4-Zone Paging Microphone

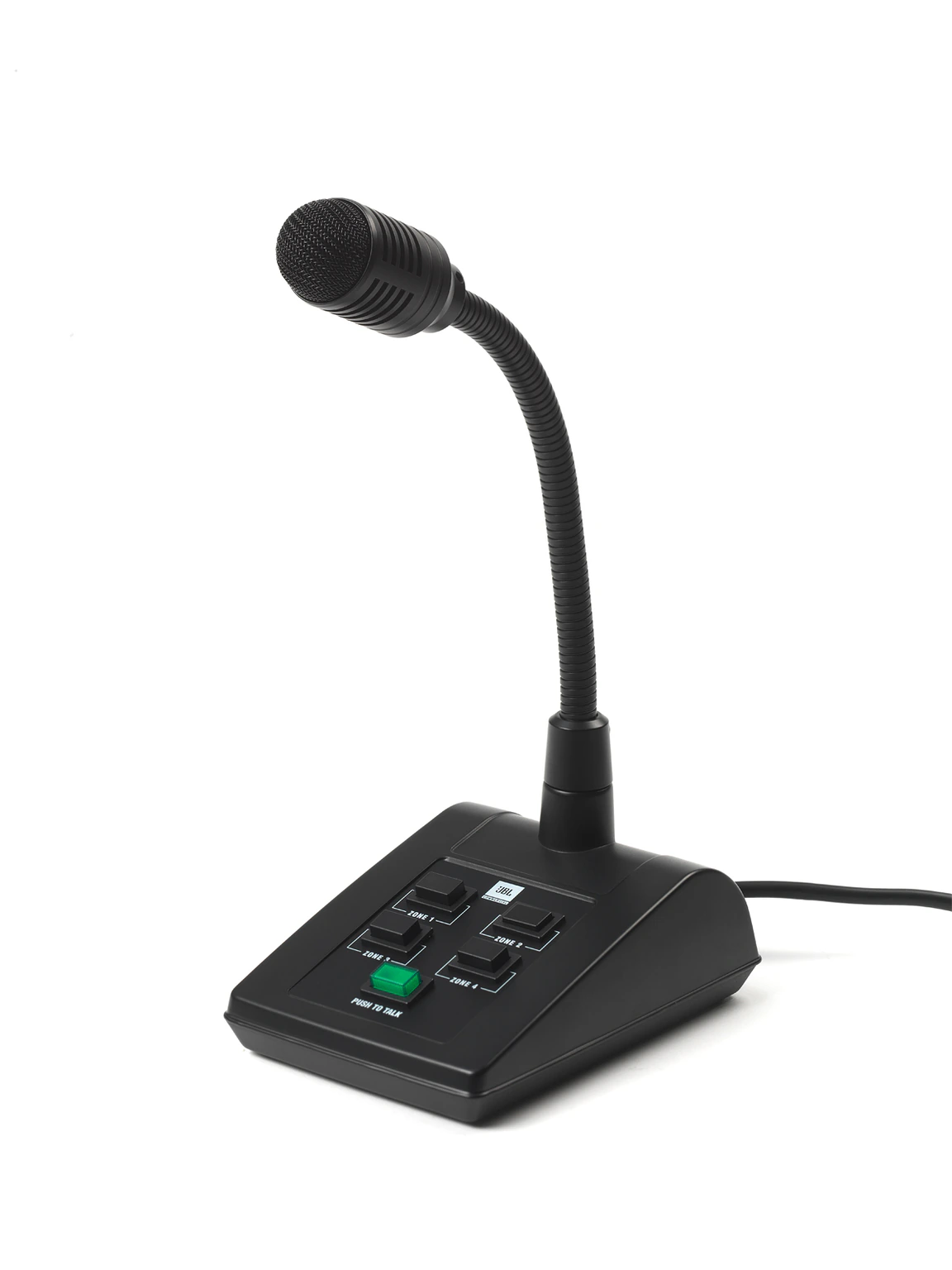

CSPM-4
Larger Images

The JBL Commercial® CSPM series microphones are dynamic close-talking microphones for paging systems in bars/pubs, theatre lobbies, department store and more.

A single cable attached to the CSPM-4 contains three conductors for audio (Positive, Negative, Shield) and five conductors for contact closure (Zone 1, Zone 2, Zone 3, Zone 4, Ground). Selecting a zone and pressing and holding the PTT button will route the microphone audio to that zone.

Features

  • 1 PTT Button
  • 4 Zone Selection Buttons
  • Ideal for Paging to 4 Zones
  • Ideal for Use with Two Linked CSM-32 Devices

Downloads

  Version Language Size Uploaded
Brochures
file type icon JBL Commercial Brochure
updated: เม.ย. 2020
    1.64 เมกะไบต์ เม.ย. 2020
Application Guides
file type icon Series Application Guide (English)
version 1.7, updated: เม.ย. 2020
1.7    6.89 เมกะไบต์ เม.ย. 2020
file type icon Series Application Guide (Chinese)
version 1.7, updated: เม.ย. 2020
1.7    11.5 เมกะไบต์ เม.ย. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Capsule Dynamic
Frequency Response 150 Hz - 15 kHz
Sensitivity Typical 2.2 mV / Pa (-54 dBV)
Equivalent Noise Level 21 dB-A
Polar Pattern Directional - Cardioid
Max. SPL 133 dB (SPL), K=1%
Impedance 530 ohms
Protection Wind and Pop-Protection; Internal foam
