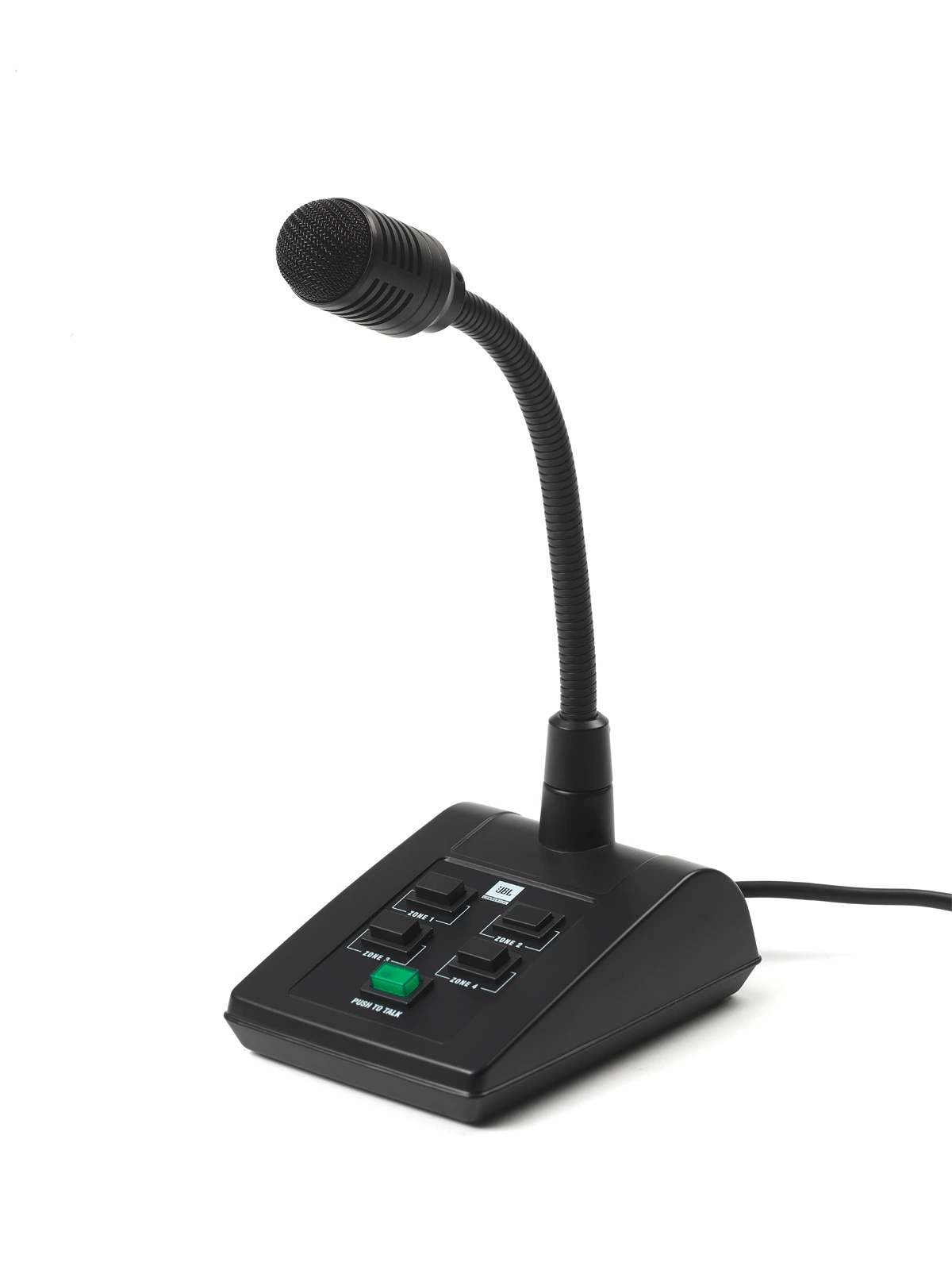

The JBL Commercial® CSPM series microphones are dynamic close-talking microphones for paging systems in bars/pubs, theatre lobbies, department store and more.
A single cable attached to the CSPM-4 contains three conductors for audio (Positive, Negative, Shield) and five conductors for contact closure (Zone 1, Zone 2, Zone 3, Zone 4, Ground). Selecting a zone and pressing and holding the PTT button will route the microphone audio to that zone.
| Dimensione | |
CSPM-4 Scheda tecnica-Cinese
aggiornato: apr 2026
|
573 KB |
CSPM-4 Scheda tecnica-Inglese
aggiornato: apr 2026
|
802 KB |
|
CSPM-4 Guida rapida-Inglese
aggiornato: apr 2026
|
2,41 MB |
| Dimensione | |
|
|
1,64 MB |
| Dimensione | |
|
|
6,89 MB |
|
|
11,5 MB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
| Capsule | Dynamic |
| Frequency Response | 150 Hz - 15 kHz |
| Sensitivity | Typical 2.2 mV / Pa (-54 dBV) |
| Equivalent Noise Level | 21 dB-A |
| Polar Pattern | Directional - Cardioid |
| Max. SPL | 133 dB (SPL), K=1% |
| Impedance | 530 ohms |
| Protection | Wind and Pop-Protection; Internal foam |
