Control 85M

ลำโพงแบบสองทาง 5.25 นิ้ว (135 มม.) แกนร่วม แบบเห็ดแนวนอน

Control 85M
รูปภาพขนาดใหญ่

ลำโพงติดภูมิประเทศแบบ 2 ทาง 5.25 นิ้ว (135 มม.) Coaxial Mushroom

ออกแบบสำหรับการใช้งานกลางแจ้ง ลำโพง Control 80 Series Landscape ที่มีความต้านทานต่อสภาพอากาศสูงให้คุณภาพเสียงเต็มย่านความถี่ที่ยอดเยี่ยมและการครอบคลุม 360 องศา ออกแบบมาเพื่อติดตั้งบนพื้นหรือในพื้นดิน ลำโพง Control 80 Series Landscape สามารถใช้งานได้ในการประยุกต์ใช้งานที่หลากหลาย รวมถึงห้างสรรพสินค้า สวนสนุก สนามกีฬา โรงแรม คาสิโน รีสอร์ท ร้านอาหาร สถานที่บันเทิงและการพักผ่อน ทางเข้า และสถานที่อื่น ๆ ที่จำเป็นต้องใช้ลำโพงสำหรับเพลงและ/หรือประกาศข่าวสารคุณภาพสูง ด้วยการออกแบบที่กะทัดรัด ลำโพงจึงไม่ก่อให้เกิดความรู้สึกอึดอัดและผสมเข้ากับสภาพแวดล้อมได้ง่าย ตัวเรือนโพลีเอธิลีนแข็งแรงต้านทานความเสียหายจากอุปกรณ์บำรุงรักษาพื้นและสภาพอากาศ และเนื่องจากสีขยายไปทั่วทั้งวัสดุ ลำโพงจึงรักษาสีไว้ได้แม้เมื่อถูกขูดหรือขีดขวน

คุณสมบัติ

  • ส่วนประกอบ:
    • ไดรเวอร์ 5¼ นิ้ว ทนต่อสภาพอากาศสูง
    • ทวีตเตอร์โดมนุ่ม ¾ นิ้ว ทนต่อสภาพอากาศสูง
  • ความสามารถในการจัดการกำลังไฟฟ้า Pink Noise 80W (โปรแกรม 160W) ที่ค่าความต้านทาน 8Ώ โดยตรง พร้อมทรานส์ฟอร์เมอร์แบบแท็ปหลายชั้น 70V/100V ขนาด 30W ในตัว
  • กล่องเสียงโพลิเอทิลีนแข็งแกร่ง ทนต่อสภาพอากาศสูง
  • ห้องศูนย์กลางแยกสำหรับการป้องกันสายไฟ
  • ลักษณะเสียง Hi-Fi พร้อมช่วงความถี่ 55Hz - 18kHz

การดาวน์โหลด

Specifications
  ขนาด อัปโหลดแล้ว
file type icon Control 85M Spec Sheet
อัปเดต: เม.ย. 2019
522 กิโลไบต์ เม.ย. 2019
Brochures
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon Control Contractor Brochure (2025)
en เวอร์ชัน A, อัปเดต: มี.ค. 2026
en  23 เมกะไบต์ มี.ค. 2026
file type icon Control Contractor Brochure (2024)
en เวอร์ชัน D, อัปเดต: ก.พ. 2024
en  14 เมกะไบต์ ก.พ. 2024
file type icon Control Contractor Brochure (2026)
en อัปเดต: มี.ค. 2026
  en  21 เมกะไบต์ มี.ค. 2026
CAD Drawings
  ขนาด อัปโหลดแล้ว
file type icon Control 85M Drawing
อัปเดต: ต.ค. 2019
2.24 เมกะไบต์ ต.ค. 2019
Compliances
  ขนาด อัปโหลดแล้ว
file type icon JBL Control Series Passive Speakers DoC
อัปเดต: ธ.ค. 2019
179 กิโลไบต์ ธ.ค. 2019
file type icon Control 80 Series - Declaration of Conformity
อัปเดต: ต.ค. 2019
139 กิโลไบต์ ต.ค. 2019
Install Guides
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon Control 80 Series Landscape Speakers Install Guide
เวอร์ชัน B, อัปเดต: ก.ค. 2022
8.95 เมกะไบต์ ก.ค. 2022
CLF Files
  ขนาด อัปโหลดแล้ว
file type icon Control 85M & 88M CLF Files
อัปเดต: ต.ค. 2020
239 กิโลไบต์ ต.ค. 2020
Speaker Tunings
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon Commercial, CBT, and AWC Tunings 220616
เวอร์ชัน A, อัปเดต: พ.ค. 2023
557 กิโลไบต์ พ.ค. 2023
Images
  ขนาด อัปโหลดแล้ว
file type icon Control 85M Open
อัปเดต: เม.ย. 2019
220 กิโลไบต์ เม.ย. 2019

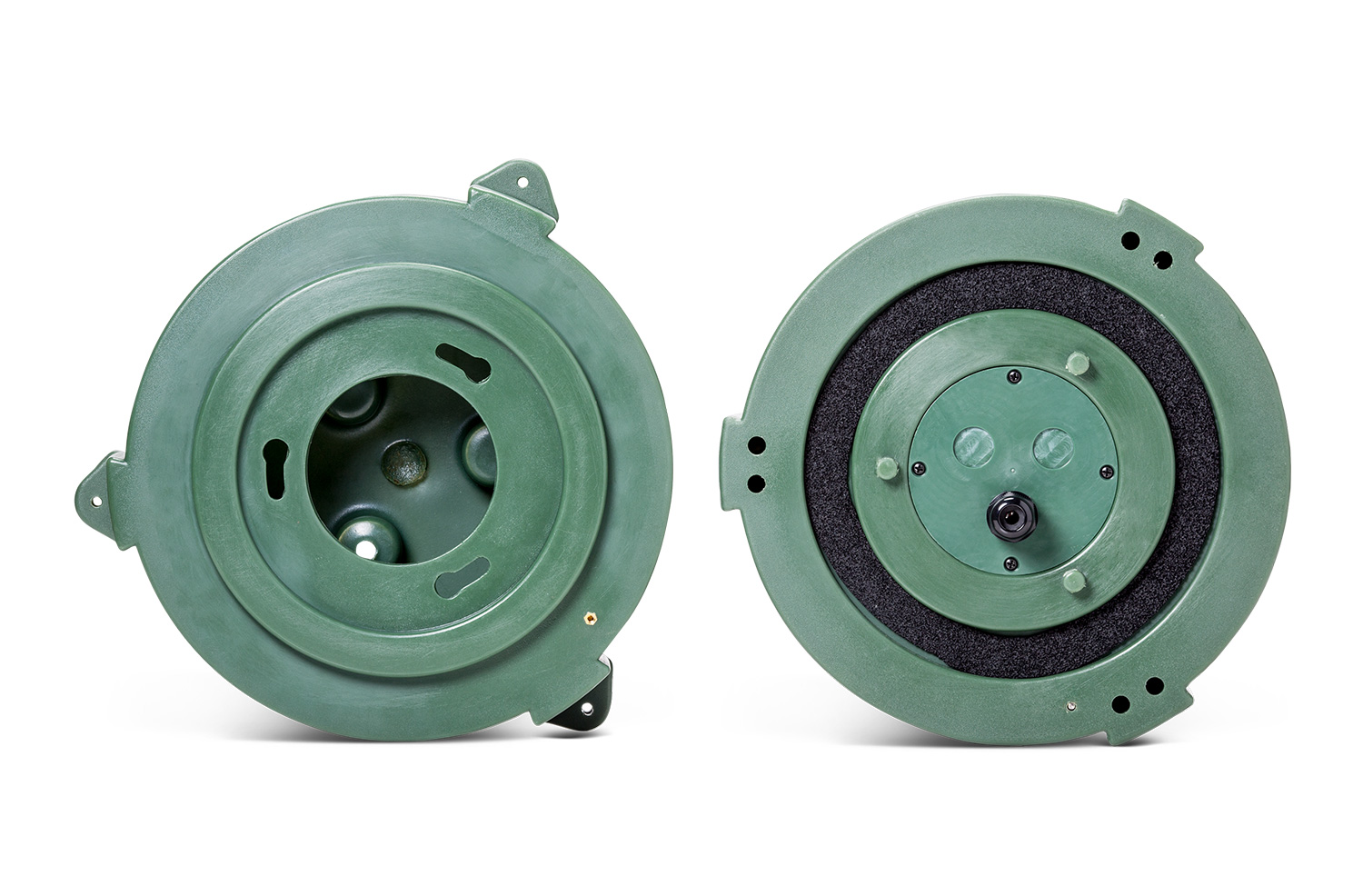

file type icon control 85M Bottom
อัปเดต: เม.ย. 2019
288 กิโลไบต์ เม.ย. 2019
file type icon Control 85M Angle
อัปเดต: เม.ย. 2019
144 กิโลไบต์ เม.ย. 2019
file type icon Control 85M Front
อัปเดต: เม.ย. 2019
163 กิโลไบต์ เม.ย. 2019
Ease Data
  ขนาด อัปโหลดแล้ว
file type icon Control 85M EASE/GLL File
อัปเดต: เม.ย. 2019
430 กิโลไบต์ เม.ย. 2019

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

Frequency Range (-10dB) 55 Hz – 18 kHz
Power Rating 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs)
Transformer Taps 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Frequency Response (±3 dB) 65Hz - 16 kHz
Maximum Input Voltage 23.3 V
Sensitivity 86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern 360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q) 2.2
Directivity Index (DI) 3.4 dB
Maximum SPL (1m) 105 dB
Impedance 8Ω (at 8Ω setting)
Insertion Loss <1.0 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
LF Driver LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.
HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille Powder coated stainless steel.
Outdoor Capability IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).
Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
Colors Hunter Green, RAL6018
Dimensions (H x W x D) 432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight (each) 5.5 kg (12 lb)
Shipping Weight 7.3 kg (16 lb)
Included Accessories (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
