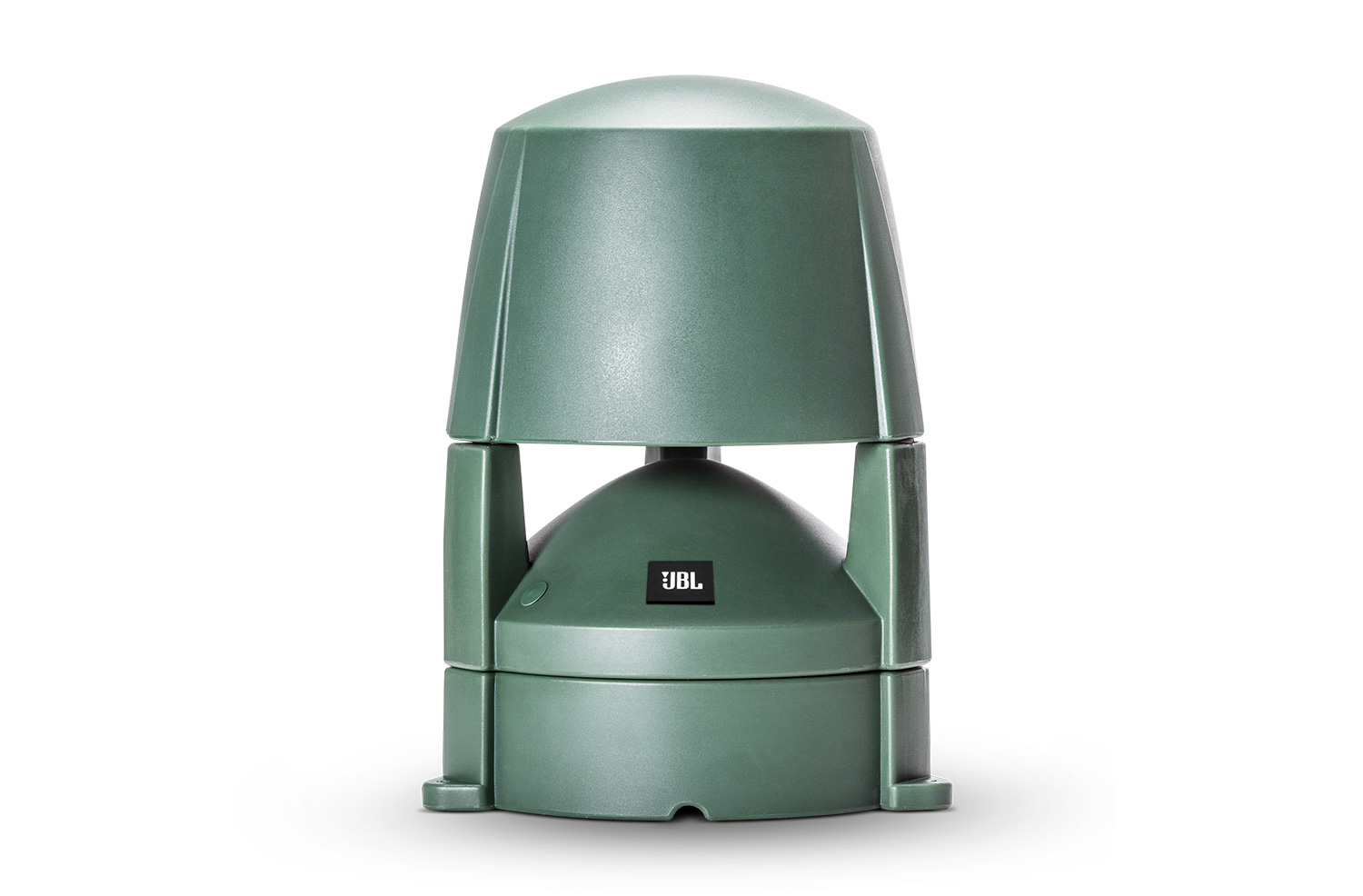

屋外用途向けに設計された高い耐候性を備えたControl 80 Seriesランドスケープスピーカーは、優れたフルレンジサウンドと360度のカバレッジを提供します。地面への据え付けまたは埋め込みに対応したControl 80 Seriesランドスケープスピーカーは、ショッピングモール、テーマパーク、スポーツ施設、ホテル、カジノ、リゾート、レストラン、ホスピタリティ・レジャー施設、エントランス、および高品質な音楽・ページング用ランドスケープスピーカーが求められるあらゆる場所で使用できます。コンパクトなデザインで目立たず、周囲の環境に自然に調和します。頑丈なポリエチレン製エンクロージャーは芝刈り機などの作業機器や気象条件による損傷に強く、エンクロージャーの色が素材全体に行き渡っているため、擦り傷が付いても色あせしません。
| サイズ | |
|
|
522KB |
| サイズ | |
|
|
23MB |
|
|
14MB |
|
|
21MB |
| サイズ | |
|
|
2.24MB |
| サイズ | |
|
|
179KB |
|
|
139KB |
| サイズ | |
|
|
8.95MB |
| サイズ | |
|
|
239KB |
| サイズ | |
|
|
557KB |
| サイズ | |
|
|
220KB |
|
|
288KB |
|
|
144KB |
|
|
163KB |
| サイズ | |
|
|
430KB |
上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。
| Frequency Range (-10dB) | 55 Hz – 18 kHz |
| Power Rating | 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs) |
| Transformer Taps | 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W |
| Frequency Response (±3 dB) | 65Hz - 16 kHz |
| Maximum Input Voltage | 23.3 V |
| Sensitivity | 86 dB, 1W @ 1m (ave. 80Hz - 16kHz) |
| Coverage Pattern | 360° H, 160° V (primary listening 10° to 50° up from ground) |
| Directivity Factor (Q) | 2.2 |
| Directivity Index (DI) | 3.4 dB |
| Maximum SPL (1m) | 105 dB |
| Impedance | 8Ω (at 8Ω setting) |
| Insertion Loss | <1.0 dB at any tap setting |
| Thru Setting | 8Ω nominal |
| Crossover Type | 2nd Order LPF on LF and 2nd Order HPF on HF |
| Recommended Protective High-Pass | 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct |
| LF Driver | LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround. HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome. |
| Enclosure | LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated. |
| Grille | Powder coated stainless steel. |
| Outdoor Capability | IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated. |
| Safety Agency | UL1480, Transformer UL Recognized per UL1876, ROHS compliant. |
| Input Connectors | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section). |

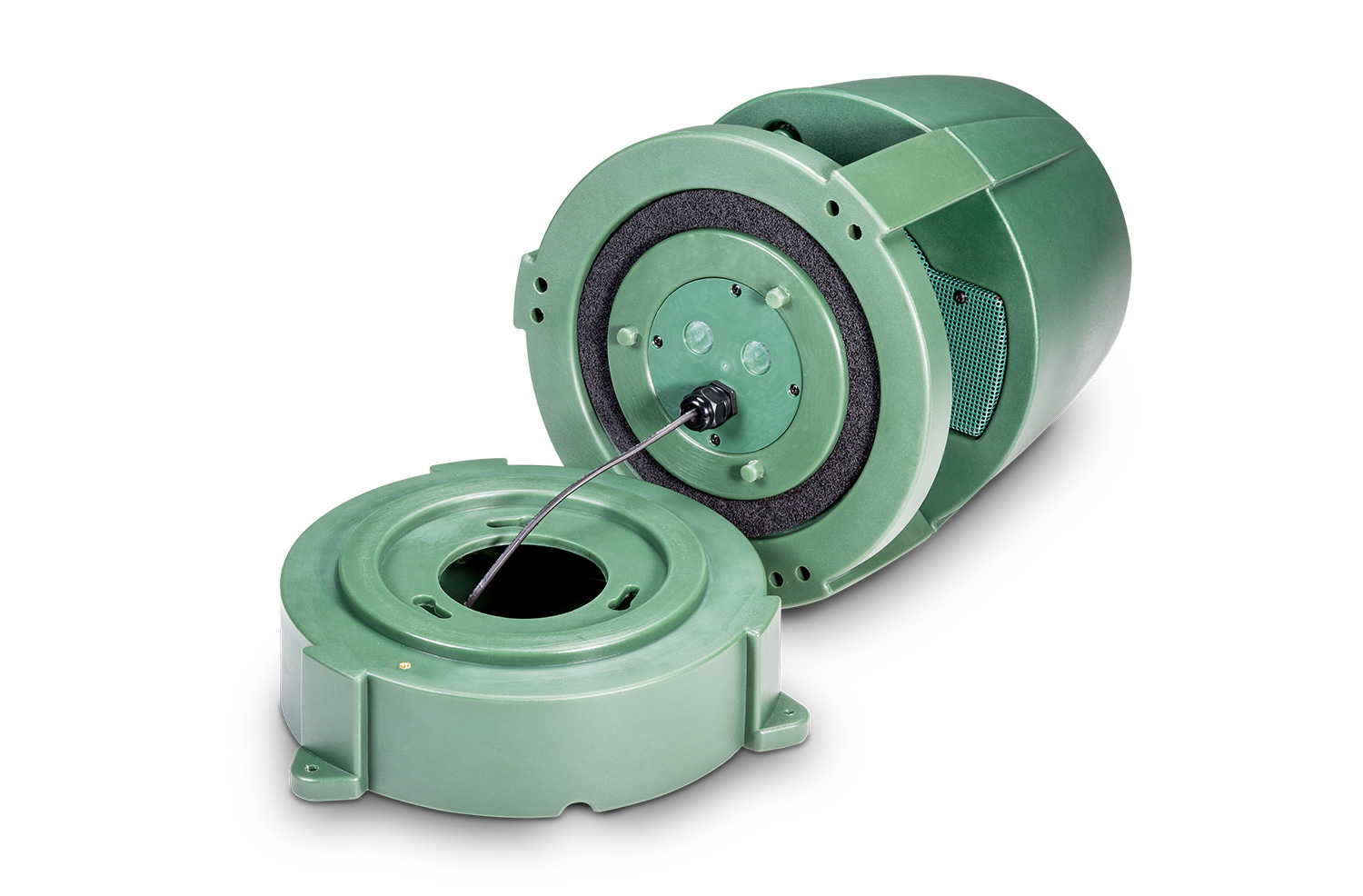

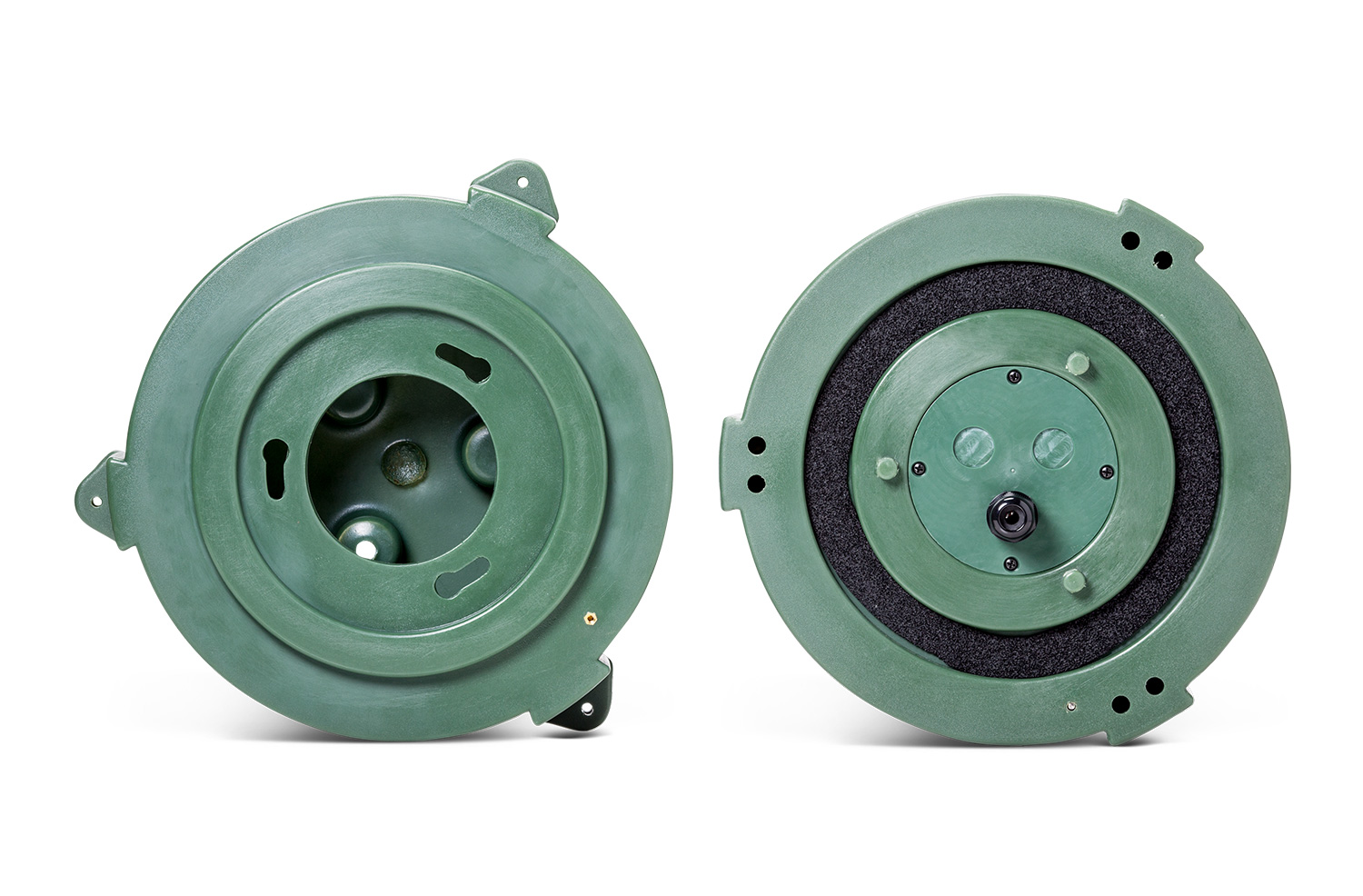

| Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS). |
| Colors | Hunter Green, RAL6018 |
| Dimensions (H x W x D) | 432 x 291 x 291mm (17 x 11.5 x 11.5 in.) |
| Net Weight (each) | 5.5 kg (12 lb) |
| Shipping Weight | 7.3 kg (16 lb) |
| Included Accessories | (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver |
| Installer-Supplied Required Tools | 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure. |
| Optional Accessories | 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure. |
