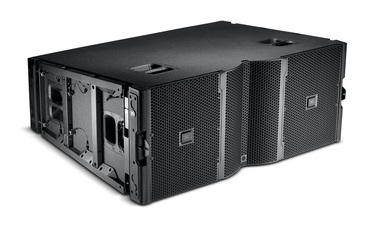

JBL Professional VTX S28

Större bilder

Dubbel 18" subwoofer – upphängningsbar

VTX-seriens subwoofers med dubbla 18"-element använder två 2269H 18"-transduktorer med Differential Drive-teknik, två talspolar, två neodymmagneter och extremt hög topp-till-topp-slaglängd för att leverera utökad återgivning av mycket låga frekvenser.

VTX S28 kan hängas upp eller markstackas och kan i båda konfigurationerna byggas i kardioidarray för förbättrad bakåtdämpning. S28 är kompatibel med VTX V25-upphängning och kan hängas upp i toppen av V25-arrayer för att förlänga den effektiva lågfrekvenslinjens längd, vilket ger förbättrad vertikal spridningskontroll i kombination med förbättrad bakåtdämpning vid användning i kardioidläge.

Alternativt kan S28-arrayer (kardioid eller framåtriktade) hängas upp vid sidan av eller bakom V25-arrayer. För ljuddesign i teatermiljöer kan S28 hängas upp i mitten av upphängda V25-arrayer för att underlätta täckning av balkong och golv genom förbättrad penetration under balkongen. Större kardioidkonfigurationer är också effektiva när S28 hängs upp eller markstackas i flera kardioidblock, där varje block består av 3 kabinett (2 framåtriktade, 1 bakåtriktat).

Funktioner

2269H Differential Drive®, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ dual 18” transducers
Reverse-Cardioid Arrayable with convenient front-facing NL4 connector and OEM factory presets for cardioid operation
Compatible with VTX V25 suspension - S28 can be suspended at the top or in the middle of V25 arrays to extend the effective low frequency line length
BSS® Audio OmniDriveHD V5 Processing for use with Crown Audio ITechHD or VRack and control via JBL HiQnet Performance Manager™
Companion subwoofer for VTX V20 or VTX V25-II

Fler detaljer

DIFFERENTIAL DRIVE® TECHNOLOGY

Förbättrad prestanda och dramatiskt lägre vikt på drivenheterna

JBL:s exklusiva Differential Drive-teknik med dubbla talspolar och dubbla magnetspalter utgör kärnan i samtliga VTX-modeller. Den minskar drivenheternas vikt dramatiskt och förbättrar samtidigt alla kritiska prestandaparametrar avsevärt: frekvensåtergivning, uteffekt och distorsion.

LÄS MER

VTX S.A.F.E™ SUSPENSION & LASER SETUP

Nästa generations line array-systemlösningar

JBL:s patenterade S.A.F.E-upphängningssystem är optimerat för snabbhet och effektivitet med förbättrade komponenter som ger snabbare rigg med färre sprintmonteringar och högre säkerhet.

LÄS MER

Systemintegration

Systemintegration & systemhantering

LÄS MER

Utbildning & support

Utbildning & support

Utöver att konstruera marknadens mest avancerade ljudförstärkningssystem tillhandahåller JBL Professional även den expertis som krävs för att uppnå högsta möjliga prestanda. Vår mer än 65-åriga erfarenhet av systeminstallationer i lokaler och arenor runt om i världen är en ovärderlig resurs som utgör kärnan i vårt utbildningsprogram och hjälper dig att få mest möjliga ut av både användningen av och investeringen i VTX-systemet.

LÄS MER

Nedladdningar

Specifications

	Storlek	Uppladdat
VTX S28 Spec Sheet uppdaterad: dec 2020	538 KB	dec 2020

Manuals

	Version	Språk	Storlek	Uppladdat
VTX Subwoofer Wiring Guide version 1.1, uppdaterad: okt 2023	1.1		7,54 MB	okt 2023

Brochures

	Storlek	Uppladdat
VTX V25 System Brochure uppdaterad: dec 2020	6,48 MB	dec 2020

CAD Drawings

	Storlek	Uppladdat
VTX S28 3D Drawings uppdaterad: dec 2020	3,36 MB	dec 2020
VTX G28/S28 2D Drawings uppdaterad: dec 2020	185 KB	dec 2020

Compliances

	Storlek	Uppladdat
VTX V-Series Declaration of Conformity uppdaterad: dec 2020	158 KB	dec 2020

Software

	Storlek	Uppladdat
Venue Synthesis släppt: jul 2026		jul 2026
Performance Manager 3 släppt: jul 2024		jul 2024

Ease Data

	Version	Storlek	Uppladdat
VTX V25-II/S28 EASE GLL version 1.2, uppdaterad: dec 2020	1.2	29,8 MB	dec 2020

Service Notes

	Version	Språk	Storlek	Uppladdat
VTX S28 Spare Parts version A, uppdaterad: apr 2026	A		67,7 KB	apr 2026

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

System Type	Full Size Suspendable, Cardioid-Arrayable, Dual 18" Subwoofer with Ultra Long Excursion Transducers
Frequency Range (-10dB)	29 Hz - 90 Hz (Preset: VTX S28 80)
Coverage	Omnidirectional or Cardioid
Maximum Peak Output	139dB (Preset: VTX S28 80)
System Amplification	Crown Audio I-Tech HD
System Impedance	2x 8 ohms
LF Driver	(2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
Enclosure	Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles
Inter-Enclosure Angles	0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Dimensions (H x W x D)	493 mm x 1222 mm x 926 mm 19.4 in x 48.1 in x 36.5 in
Net Weight (each)	83.0 kg (183 lb)

Tillbehör

VTX V25 AF | Array Frame

Större bilder

Array Frame used for suspending or ground stacking VTX V25 series enclosures. The VTX-V25-AF is also compatible with the VTX S28 dual 18” subwoofer enclosures. Includes height-adjustable leveling feet for ground stack applications. Optional VTX-V25-AF-EB extension bar available.

Features:

Compatible with VTX V25, VTX V25-CS, VTX V25-II, VTX V25-II-CS and VTX S28
9 pick points available for single point suspension
Optional Extension Bar available
Flexible front-to-back or side-by-side pick point options
Supports up to 24 cabinets (array geometry dependent)
Can be used for ground stack applications
Pick point shackle size: 5/8” or 3/4”

Included:

1 x VTX-V25-AF
4 x height-adjustable leveling feet for ground stack applications
4 x Quick Release Pins (QRP) for securing top enclosure to the frame

Dokumentation

VTX V25 AF EB | Array Frame

Större bilder

Extension Bar accessory used in conjunction with the VTX-V25-AF array frame for deploying VTX V25 series systems in either compression or tension mode. Five extension bar attachment options provide variable pick point separation (2-point suspension) and added flexibility for single point suspension. The extension bar can be front- or rear-mounted for increased array up-tilt or down-tilt, respectively. When rear-mounted, provides an attachment point for compression suspension. A single extension bar can be installed in the array frame central tube, or alternatively, a pair of extension bars can be front or rear-mounted in left/right array frame tubes. Single or dual extension bars can also be front- or rear-mounted in ground stack applications for extra stability and a wider range of array tilt angle options. Dual extension bars can also be front-and rear-mounted for compression suspension when increased array up-tilt is required.

Features:

Compatible with VTX-V25-AF
2 x pick points available for single point suspension
1 x pick point available for VTX-V25-LH level hoist attachment
Supports up to 24 cabinets (array geometry dependent)
Pick point shackle size: 5/8” or 3/4”

Included:

1 x VTX-V25-AF-EB extension bar
1 x height-adjustable leveling foot for ground stack applications
2 x Quick Release Pins (QRP) for securing the extension bar to the array frame

Dokumentation

VTX S28 VT CVR | Cover

Större bilder

Reinforced, padded protective cover for 3x VTX V28 enclosures in either front-firing or cardioid mode when transported vertically.

Features:

Handle cutouts, heavy-duty zippers
Modular design, can be used with 3x VTX V28 in normal front-firing configuration or 3x VTX V28 in cardioid mode
Rear panel access flaps for input connectors
Speaker cabinets can be tested without fully removing the cover
Lightweight, durable construction

Included:

1 x VTX-V28-VT-CVR

Dokumentation

VTX S28 VT CVR Specsheet [469 KB]

VTX S28 VTC | Vertical Transporter

Större bilder

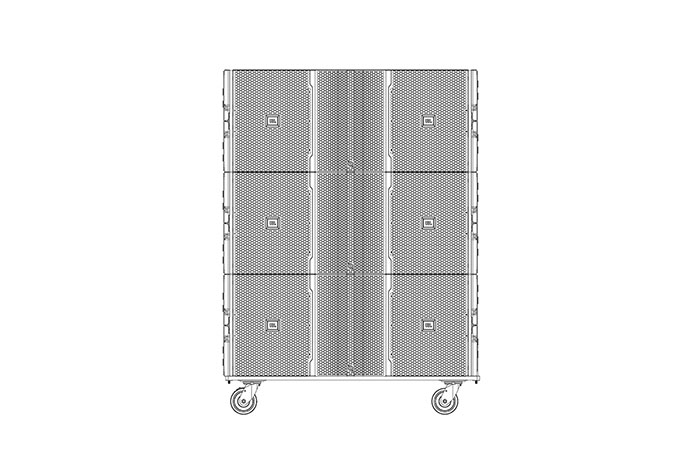

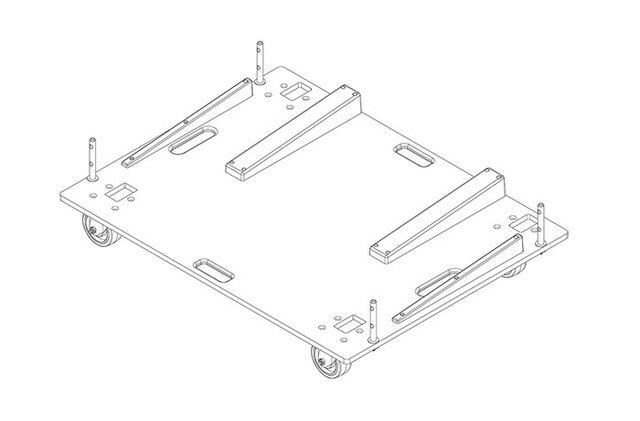

The VTX-V28-VTC vertical transporter is a simple and cost-effective solution for vertically transporting VTX V28 enclosures in blocks of 3x cabinets high. When transported in blocks of 3x S28, cabinets can be configured in either front-firing or cardioid mode. Measuring 48” wide by 37” deep, the VTX-S28-VTC will travel 2 across (width-wise) in standard 100” trucks. Reinforced protective covers (VTX-S28-VT-CVR) supplied separately.

Features:

Vertical transporter for S28 enclosures (front-firing or cardioid mode)
Heavy duty locking casters
Stackable for easy storage
Dimensioned for efficient truck pack
Lightweight, rugged construction

Included:

1 x VTX-V28-VTC

Dokumentation

VTX S28 VTC Specsheet [1,51 MB]

VTX S28 ACC | Tillbehörsskydd och hjulplatta

Större bilder

VTX Series S28 Accessory Kit for transportation and protection of one VTX S28 enclosure. Includes: padded, reinforced protective cover with handle cutouts and rear panel access flap; dolly caster-board with rugged tour grade casters and rotating cam mechanisms for secure attachment to the S28 enclosure. Beveled recesses auto-locate with S28 caster board mount tabs. The rotating cam mechanism can be released while S28 cabinets are face down during the suspension process (no need to manually remove caster board).

Features:

Includes padded protective cover and caster-board
Handle cutouts and rear panel access flap
Speaker cabinets can be tested without fully removing the cover
Tour grade casters
Stackable for convenient storage
Rotating release/lock cam mechanisms for secure attachment to S28 enclosures

Included:

1 x VTX S28 caster-board

Dokumentation

VTX S28 ACC Specsheet [769 KB]
