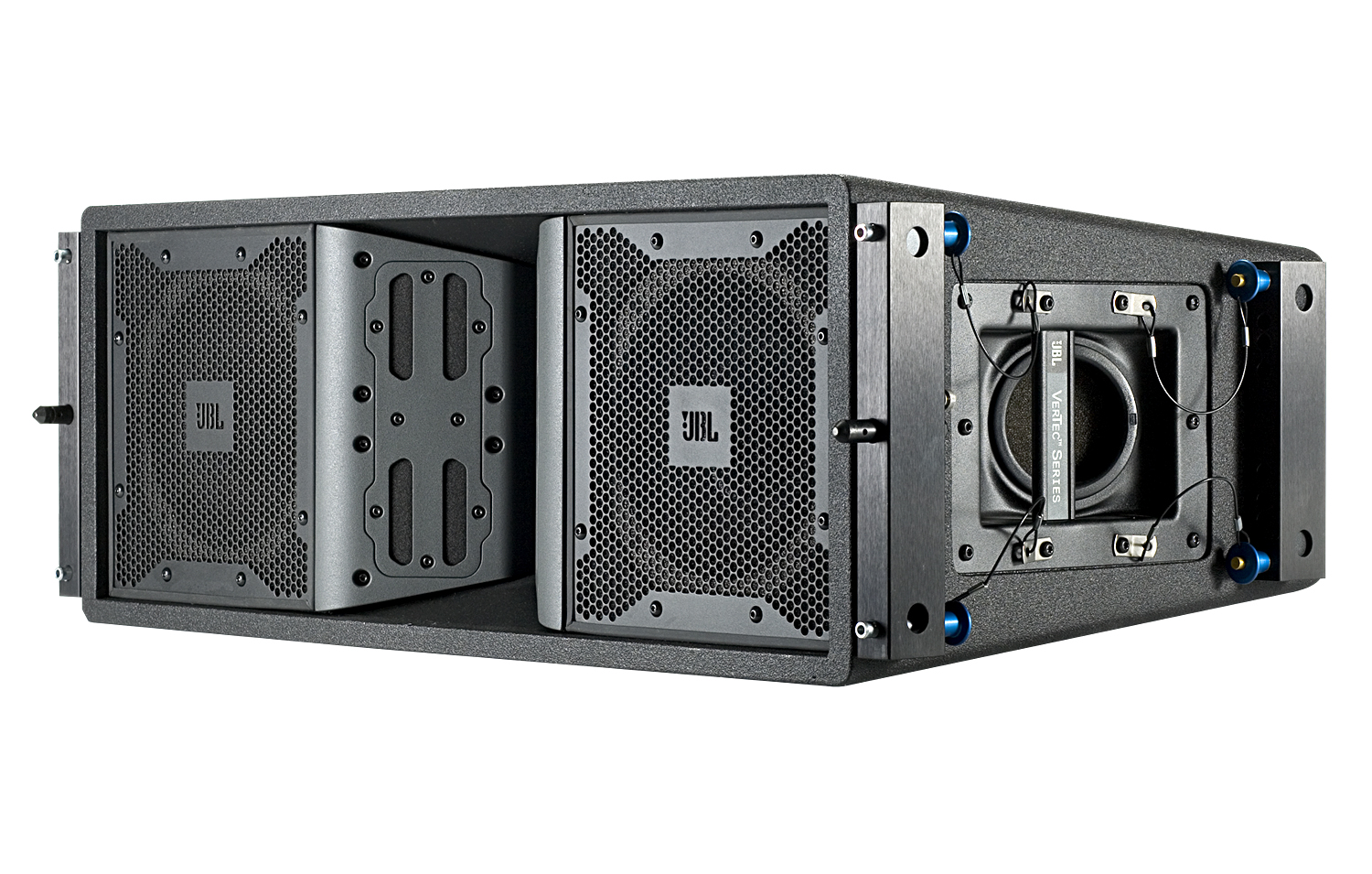

JBL Professional VT4887ADP-DA, VT4887ADP

Större bilder

Powered Compact Bi-amplified 3-Way High Directivity
Line Array Element

The VT4887ADP Compact Powered Three- Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venues.

Funktioner

New 2168J-1 8" low frequency drivers offer improved performance and extended low frequency response.
Advanced technology components: Differential Drive^®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
JBL DrivePack^® technology delivers superb audio quality and robust high efficiency “Class-I” power, perfectly matched to the enclosure, with comprehensive onboard digital signal processing
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages are automatically selected for 50 or 60 Hz.
Advanced construction techniques using PlyMax^® provide exceptionally rigid, lightweight enclosure construction.
Rugged DuraFlex™ exterior finish; weatherized components
Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable
hanging arrays
For use in stand-alone arrays or in combination with other VERTEC system models

Nedladdningar

Dokument

	Språk	Storlek	Uppladdat
DPDA Input Module Spec Sheet uppdaterad: apr 2026		475 KB	apr 2026
VT4887ADP-DA & VT4887ADP Spec Sheet uppdaterad: apr 2026		1,31 MB	apr 2026
VT4887ADP Spec Sheet uppdaterad: apr 2026		1,12 MB	apr 2026

Specifications

	Storlek	Uppladdat
VT4887ADPDA Spec Sheet uppdaterad: jul 2019	1,31 MB	jul 2019
DPDA Input Module Spec Sheet uppdaterad: jul 2019	475 KB	jul 2019
VT4887ADP Spec Sheet uppdaterad: jul 2019	1,12 MB	jul 2019

Brochures

	Storlek	Uppladdat
VerTec Line Brochure uppdaterad: okt 2020	2,09 MB	okt 2020

CAD Drawings

	Storlek	Uppladdat
VT4887ADP 3D DXF uppdaterad: jul 2019	198 KB	jul 2019
VT4887ADP 2D DXF uppdaterad: jul 2019	2,08 MB	jul 2019
VT4887ADP 2D PDF uppdaterad: jul 2019	157 KB	jul 2019

Compliances

	Storlek	Uppladdat
VerTec Series (Powered) Declaration of Conformity uppdaterad: okt 2019	89,4 KB	okt 2019

Software

	Version	Storlek	Uppladdat
Vertec Line Array Calculator version 1.3.1, släppt: aug 2023	1.3.1	18 MB	aug 2023
PerformanceManager version 3.2.0, uppdaterad: sep 2025	3.2.0	134 MB	sep 2025

Speaker Tunings

	Storlek	Uppladdat
VT4887ADPDA V4Preset uppdaterad: okt 2019	34,6 KB	okt 2019
V4 DSP_DPCN_VT4887ADP uppdaterad: okt 2019	111 KB	okt 2019
V4 DSP DPAN_VT4887ADP uppdaterad: okt 2019	54 KB	okt 2019
VTDP ALL LIBRARIES V4 Preset uppdaterad: okt 2020	680 KB	okt 2020

Accessories

	Storlek	Uppladdat
VT Compact Array Frame and Adapter CAD uppdaterad: okt 2020	7,3 MB	okt 2020

User Guides

	Storlek	Uppladdat
Compact Powered Line Array Systems User’s Guide uppdaterad: okt 2020	906 KB	okt 2020
VerTec DP Compact User’s Guide uppdaterad: okt 2020	1,91 MB	okt 2020

Images

	Storlek	Uppladdat
VT4887ADP Photo uppdaterad: jul 2019	764 KB	jul 2019

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range	55 Hz - 22 kHz (-10 dB)
Frequency Response	67 Hz - 20 kHz (±3 dB)
Power Rating	2200W Peak 1100W Continuous
Maximum Peak Output	136 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm LF, 8 ohm MF/HF
Horizontal Coverage	100 degrees nominal 500 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d)	787 mm X 279 mm X 563 mm (31 in X 11 in X 22.1 in)
Net Weight	39.7 kg (87.5 lb)
