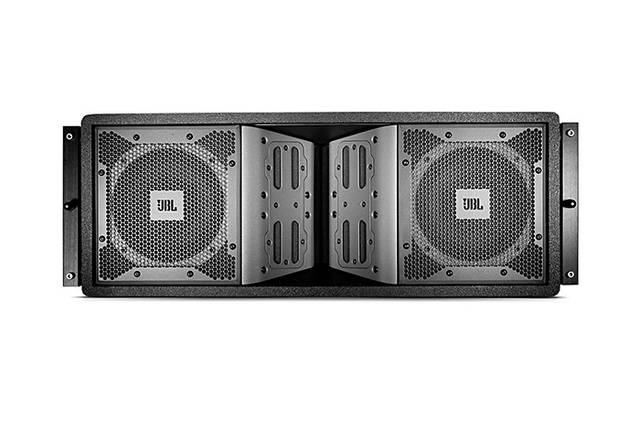

JBL Professional VT4887ADP-DA, VT4887ADP

Larger Images

Powered Compact Bi-amplified 3-Way High Directivity
Line Array Element

The VT4887ADP Compact Powered Three- Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venues.

Features

New 2168J-1 8" low frequency drivers offer improved performance and extended low frequency response.
Advanced technology components: Differential Drive^®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
JBL DrivePack^® technology delivers superb audio quality and robust high efficiency “Class-I” power, perfectly matched to the enclosure, with comprehensive onboard digital signal processing
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages are automatically selected for 50 or 60 Hz.
Advanced construction techniques using PlyMax^® provide exceptionally rigid, lightweight enclosure construction.
Rugged DuraFlex™ exterior finish; weatherized components
Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable
hanging arrays
For use in stand-alone arrays or in combination with other VERTEC system models

Downloads

	Version	Language	Size	Uploaded
DPDA Input Module Spec Sheet updated: 03월 13일			475KB	03월 13일
VT4887ADP-DA & VT4887ADP Spec Sheet updated: 03월 13일			1.31MB	03월 13일
VT4887ADP Spec Sheet updated: 03월 13일			1.12MB	03월 13일
Specifications
VT4887ADPDA Spec Sheet updated: 07월 08일			1.31MB	07월 08일
DPDA Input Module Spec Sheet updated: 07월 08일			475KB	07월 08일
VT4887ADP Spec Sheet updated: 07월 08일			1.12MB	07월 08일
Brochures
VerTec Line Brochure updated: 10월 22일			2.09MB	10월 22일
CAD Drawings
VT4887ADP 3D DXF updated: 07월 08일			198KB	07월 08일
VT4887ADP 2D DXF updated: 07월 08일			2.08MB	07월 08일
VT4887ADP 2D PDF updated: 07월 08일			157KB	07월 08일
Compliances
VerTec Series (Powered) Declaration of Conformity updated: 10월 18일			89.4KB	10월 18일
Software
Vertec Line Array Calculator version 1.3.1, updated: 01월 23일	1.3.1		18MB	01월 23일
PerformanceManager version 2.9.1.5, updated: 12월 02일	2.9.1.5		117MB	12월 02일
Speaker Tunings
VT4887ADPDA V4Preset updated: 10월 18일			34.6KB	10월 18일
V4 DSP_DPCN_VT4887ADP updated: 10월 18일			111KB	10월 18일
V4 DSP DPAN_VT4887ADP updated: 10월 18일			54KB	10월 18일
VTDP ALL LIBRARIES V4 Preset updated: 10월 22일			680KB	10월 22일
Accessories
VT Compact Array Frame and Adapter CAD updated: 10월 22일			7.3MB	10월 22일
User Guides
Compact Powered Line Array Systems User’s Guide updated: 10월 22일			906KB	10월 22일
VerTec DP Compact User’s Guide updated: 10월 22일			1.91MB	10월 22일
Images
VT4887ADP Photo updated: 07월 08일			764KB	07월 08일

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range	55 Hz - 22 kHz (-10 dB)
Frequency Response	67 Hz - 20 kHz (±3 dB)
Power Rating	2200W Peak 1100W Continuous
Maximum Peak Output	136 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm LF, 8 ohm MF/HF
Horizontal Coverage	100 degrees nominal 500 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d)	787 mm X 279 mm X 563 mm (31 in X 11 in X 22.1 in)
Net Weight	39.7 kg (87.5 lb)
