VT4887ADP-DA, VT4887ADP (停产)

Powered Compact Bi-amplified 3-Way High Directivity Line Array Element

VT4887ADP-DA, VT4887ADP

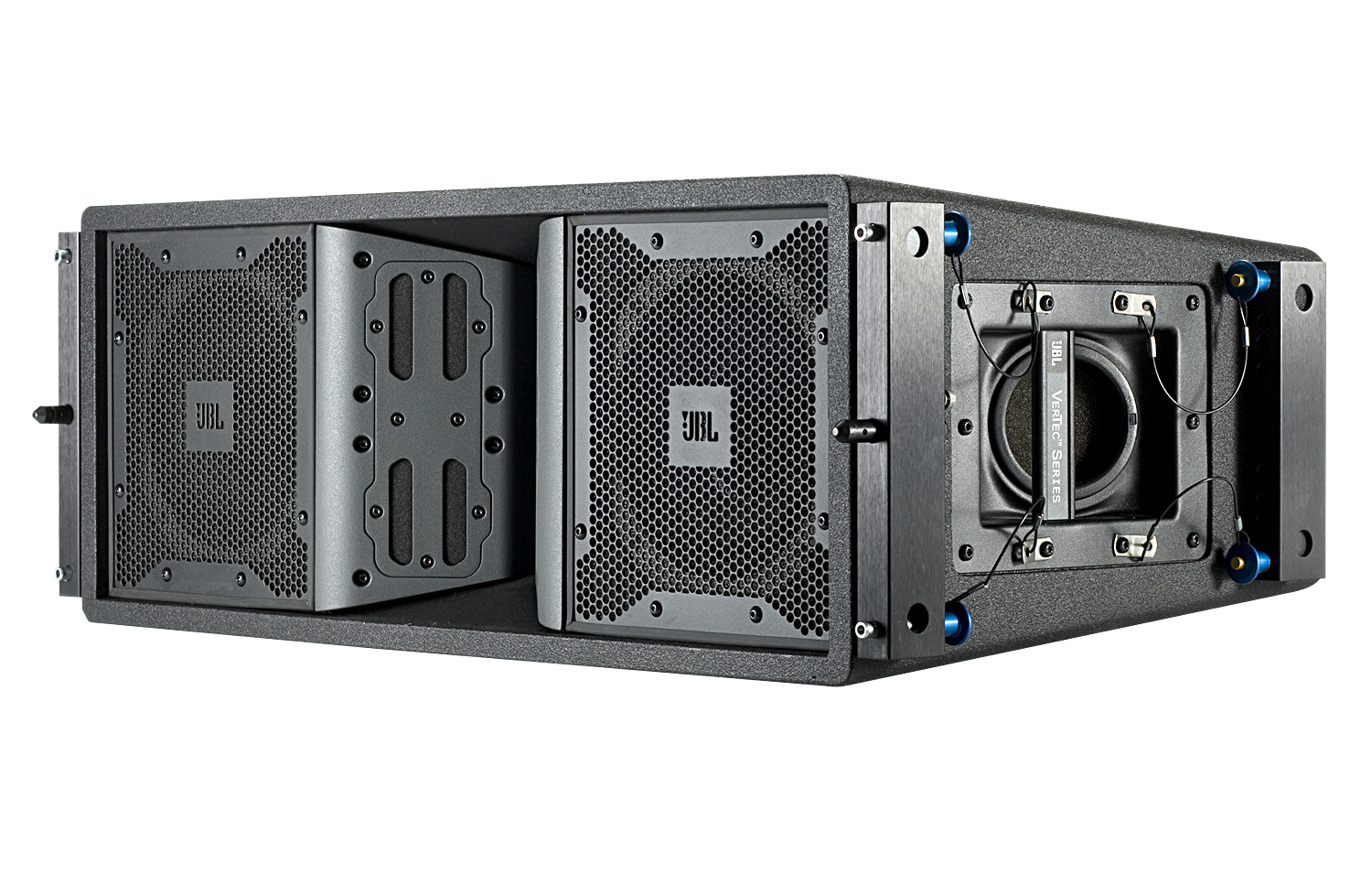

较大的图像

Powered Compact Bi-amplified 3-Way High Directivity
Line Array Element

The VT4887ADP Compact Powered Three- Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venues.

特点

  • New 2168J-1 8" low frequency drivers offer improved performance and extended low frequency response.
  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
  • JBL DrivePack® technology delivers superb audio quality and robust high efficiency “Class-I” power, perfectly matched to the enclosure, with comprehensive onboard digital signal processing
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz.
  • Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
  • Rugged DuraFlex™ exterior finish; weatherized components
  • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable
    hanging arrays
  • For use in stand-alone arrays or in combination with other VERTEC system models

下载

  Version Language Size Uploaded
file type icon DPDA Input Module Spec Sheet
en updated: 3月 2024
  en  475.0 KB 3月 2024
file type icon VT4887ADP-DA & VT4887ADP Spec Sheet
en updated: 3月 2024
  en  1.3 MB 3月 2024
file type icon VT4887ADP Spec Sheet
en updated: 3月 2024
  en  1.1 MB 3月 2024
Specifications
file type icon VT4887ADPDA Spec Sheet
updated: 7月 2019
    1.3 MB 7月 2019
file type icon DPDA Input Module Spec Sheet
updated: 7月 2019
    475.0 KB 7月 2019
file type icon VT4887ADP Spec Sheet
updated: 7月 2019
    1.1 MB 7月 2019
Brochures
file type icon VerTec Line Brochure
updated: 10月 2020
    2.1 MB 10月 2020
CAD Drawings
file type icon VT4887ADP 3D DXF
updated: 7月 2019
    198.2 KB 7月 2019
file type icon VT4887ADP 2D DXF
updated: 7月 2019
    2.1 MB 7月 2019
file type icon VT4887ADP 2D PDF
updated: 7月 2019
    156.9 KB 7月 2019
Compliances
file type icon VerTec Series (Powered) Declaration of Conformity
updated: 10月 2019
    89.4 KB 10月 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8月 2023
1.3.1     18.0 MB 8月 2023
platform icon PerformanceManager
version 3.0.0, updated: 2月 2024
3.0.0     123.7 MB 2月 2024
Speaker Tunings
file type icon VT4887ADPDA V4Preset
updated: 10月 2019
    34.6 KB 10月 2019
file type icon V4 DSP_DPCN_VT4887ADP
updated: 10月 2019
    111.3 KB 10月 2019
file type icon V4 DSP DPAN_VT4887ADP
updated: 10月 2019
    54.0 KB 10月 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: 10月 2020
    679.7 KB 10月 2020
Accessories
file type icon VT Compact Array Frame and Adapter CAD
updated: 10月 2020
    7.3 MB 10月 2020
User Guides
file type icon Compact Powered Line Array Systems User’s Guide
updated: 10月 2020
    906.2 KB 10月 2020
file type icon VerTec DP Compact User’s Guide
updated: 10月 2020
    1.9 MB 10月 2020
Images
file type icon VT4887ADP Photo
updated: 7月 2019
    763.6 KB 7月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 55 Hz - 22 kHz (-10 dB)

频率响应

67 Hz - 20 kHz (±3 dB)
额定功率 2200W Peak 1100W Continuous
Maximum Peak Output 136 dB SPL, 1m
Bandpass Nominal Impedance 4 ohm LF, 8 ohm MF/HF
Horizontal Coverage 100 degrees nominal 500 Hz - 16 kHz (-6 dB)
尺寸(W × H × D) 787 mm X 279 mm X 563 mm (31 in X 11 in X 22.1 in)
净重量 39.7 kg (87.5 lb)
