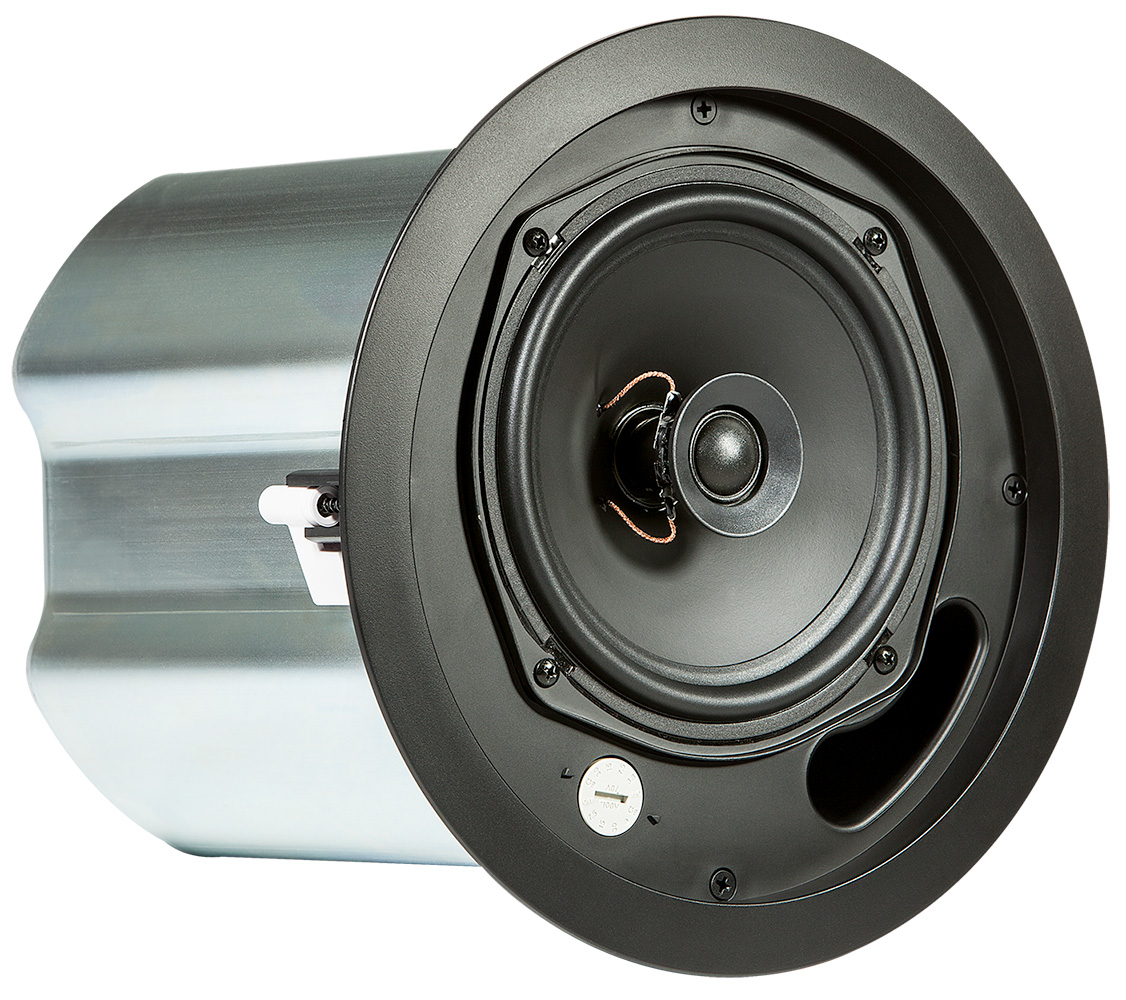

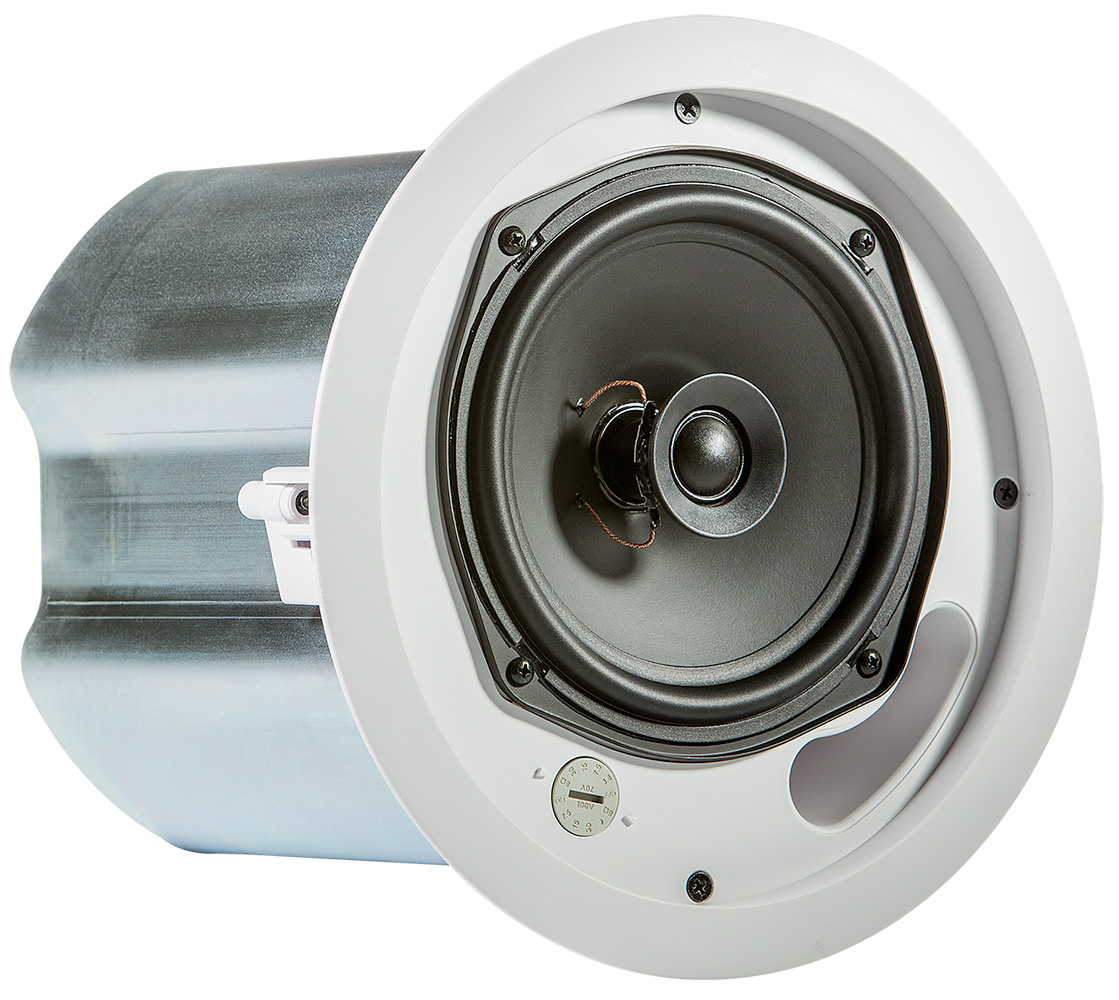

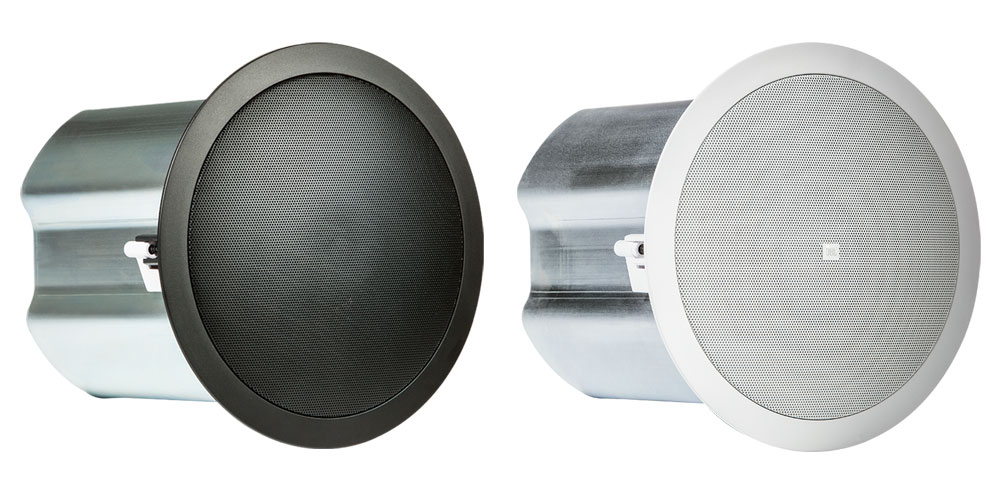

Control 16C/T är en fullregisterhögtalare för takmontage bestående av ett 165 mm (6,5 tum) högteknologiskt konelement och en 19 mm vätskekyld tweeter med mjuk kalott, monterade i en ventilerad, målningsbar baffel av UV-beständigt UL94-V0- och UL94-5HB-material, med integrerat bakstycke för snabb och enkel installation.
| Storlek | |
|
|
347 KB |
| Storlek | |
|
|
127 KB |
| Storlek | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
| Storlek | |
|
|
1,34 MB |
| Storlek | |
|
|
| Storlek | |
|
|
129 KB |
|
|
179 KB |
| Storlek | |
|
|
612 KB |
| Storlek | |
|
|
21 MB |
|
|
24 MB |
| Storlek | |
|
|
390 KB |
| Storlek | |
|
|
204 KB |
|
|
762 KB |
| Storlek | |
|
|
1,17 MB |
|
|
11,5 MB |
|
|
350 KB |
| Storlek | |
|
|
291 KB |
|
|
352 KB |
|
|
90,3 KB |
| Storlek | |
|
|
557 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.
| Frequency Range (-10dB) | 62 Hz – 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise (200W peak), 100 hr |
| Transformer Taps | 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only) |
| Frequency Response (±3 dB) | 96 Hz – 15 kHz |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| Coverage Angle | 110° conical |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.2 dB |
| Maximum SPL (1m) | 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100V tap) |
| Impedance | 8 ohms (in direct/bypass setting) |
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in) |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth) |
| Ceiling Cutout Size | Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 3.4 kg (7.4 lbs, one speaker) |
| Shipping Weight | 11.2 kg (24.7 lbs, pair in master carton) |
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille |
| Optional Accessories | MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
| Color | White or Black |
| Backcan | formed steel (included backcan) |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
| Plenum Usage | Yes, backcan included |
