Control 16C/T

Two-Way 6.5" Coaxial Ceiling Loudspeaker

Control 16C/T
较大的图像

Two-Way 6.5" Coaxial Ceiling Loudspeaker

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

特点

  • Components:
    • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
    • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    •50 Watts at 8Ω nominal setting
    • 30W multi-tap at 70V/100V
  • 62 Hz – 20 kHz bandwidth with wide 110° coverage
  • High 91 dB sensitivity for high maximum SPL
  • White or black (-BK)

下载

  Version Language Size Uploaded
Specifications
file type icon Control 16C/T Spec Sheet
version C, updated: 4月 2020
  347.0 KB 4月 2020
Manuals
file type icon Ceiling Speaker Accessory Guide
updated: 10月 2019
    126.9 KB 10月 2019
Brochures
file type icon Control Contractor Brochure (2023)
en updated: 4月 2023
  en  29.5 MB 4月 2023
CAD Drawings
file type icon Control 16C/T CAD Drawings
updated: 10月 2020
    1.3 MB 10月 2020
BIM Objects
file type icon CONTROL 16C/T BIM Object
updated: 8月 2019
    8月 2019
Compliances
file type icon Control 10 Series - Declaration of Conformity
updated: 10月 2019
    128.8 KB 10月 2019
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
Software
platform icon Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 9月 2021
3.6.2     804.8 KB 9月 2021
Owner's Manuals
file type icon Control 10 Series Owner's Manual
updated: 10月 2020
    390.2 KB 10月 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
file type icon Authorized EASE ADDRESS files
updated: 8月 2021
    1.2 MB 8月 2021
file type icon Full EASE ADDRESS Software with JBL Speaker Data
version A, updated: 12月 2021
  11.5 MB 12月 2021
file type icon Control 10 Series Ease Data
updated: 10月 2020
    349.8 KB 10月 2020
Accessories
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: 9月 2021
    203.7 KB 9月 2021
file type icon MTC-14WG/16WG High Humidity Grille
updated: 10月 2020
    761.6 KB 10月 2020
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 5月 2023
12-10-21    24.0 MB 5月 2023
Images

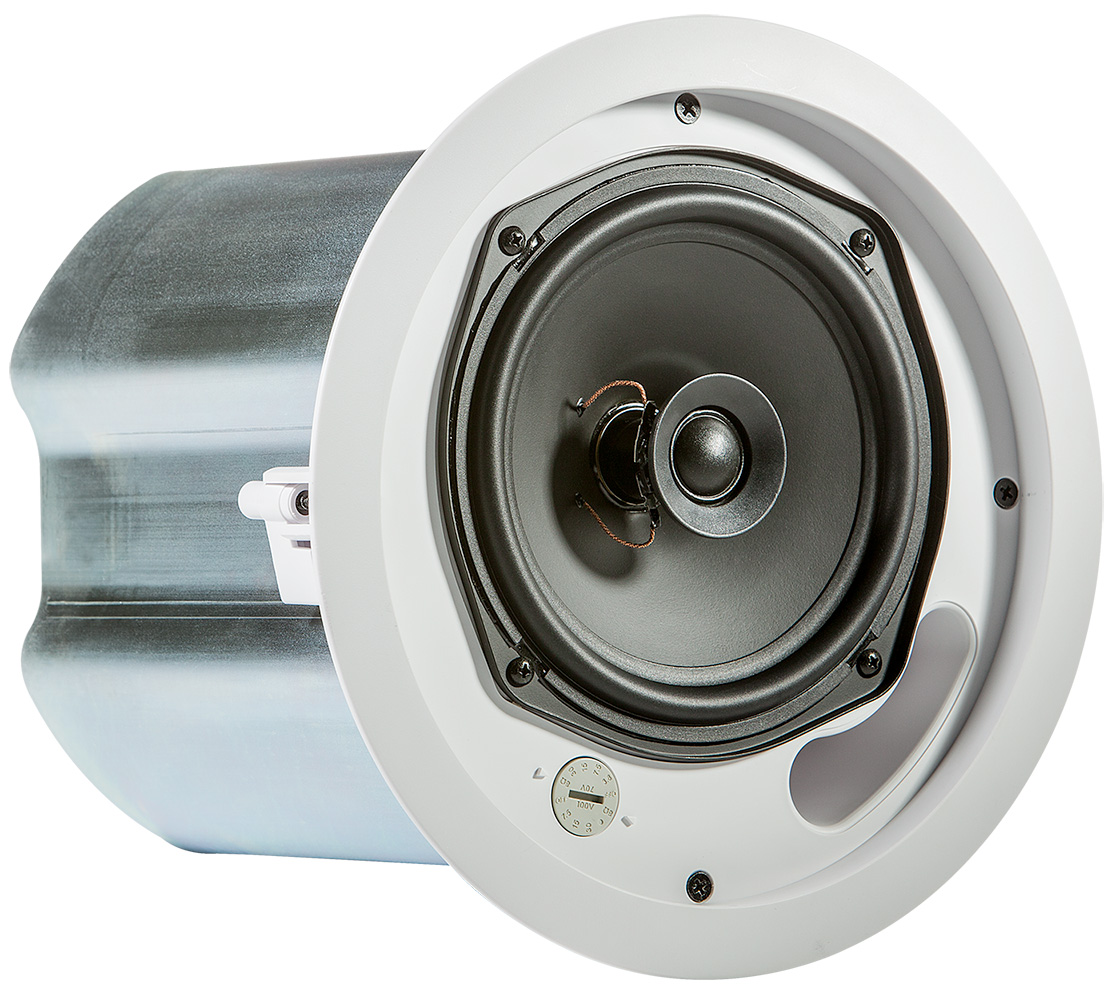

file type icon Control 16C/T White No Grill
updated: 10月 2020
    290.9 KB 10月 2020

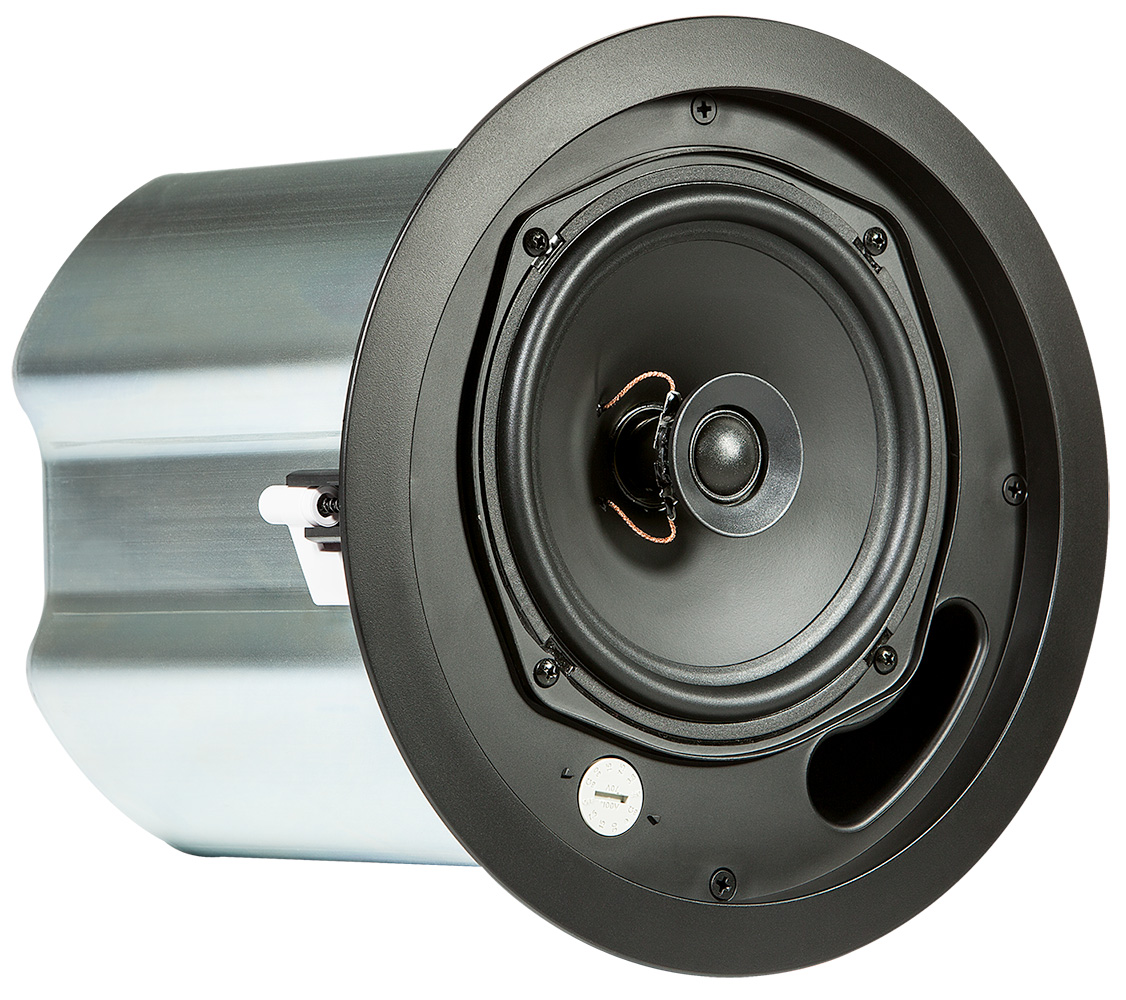

file type icon Control 16C/T Black No Grill
updated: 10月 2020
    351.9 KB 10月 2020

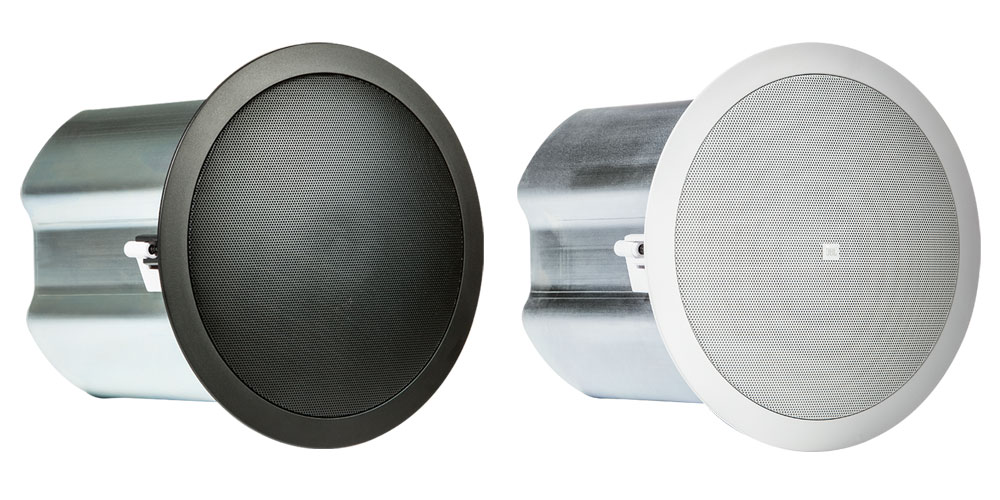

file type icon Control 16C/T Black and White
updated: 10月 2020
    90.3 KB 10月 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 62 Hz – 20 kHz
额定功率 IEC System Long-Term Ratings (low-Z direct):
100 Watts Continuous Program Power
50 Watts Continuous Pink Noise (200W peak), 100 hr
变压器抽头 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response (±3 dB) 96 Hz – 15 kHz

灵敏度

91 dB (1kHz - 16 kHz)
覆盖角度 110° conical
Directivity Factor (Q) 7.8
Directivity Index (DI) 8.2 dB
Maximum SPL (1m) 108 dB (low-impedance, 116 dB peak)
106 dB (top 70V/100V tap)
阻抗 8 ohms (in direct/bypass setting)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (3/4 in)
输入接口 Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems

尺寸

253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
Ceiling Cutout Size Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
Safety Seismic Attachment One point, top surface
净重量 3.4 kg (7.4 lbs, one speaker)

运输重量

11.2 kg (24.7 lbs, pair in master carton)

随附配件

C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
Optional Accessories MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
颜色 White or Black
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Plenum Usage Yes, backcan included
