JBL Professional VT4881ADP-DA, VT4881ADP

Imagens maiores

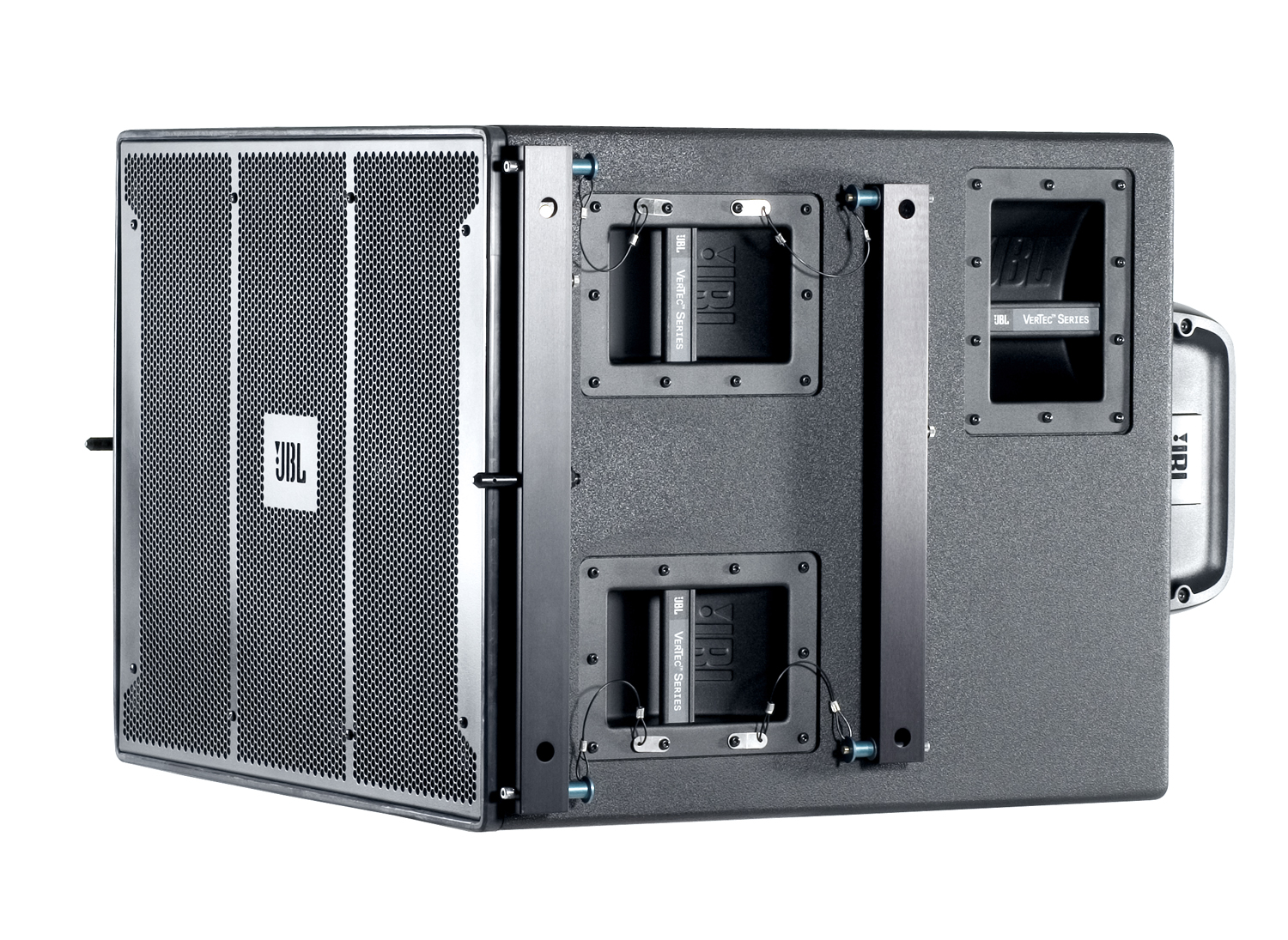

Powered Compact Arrayable 1-18" Subwoofer

The VT4881ADP Compact Powered 18" Arrayable Subwoofer is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio, corporate A/V and theatrical presentations of all types. Ideal companion to VT4887ADP compact three-way systems.

Características

New 2269G Advanced Technology Component: Differential Drive^® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducer with Ultra-Long Excursion capabilities
JBL DrivePack^® technology delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosure, with comprehensive digital signal processing.
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages are automatically selected for 50 or 60 Hz.
Advanced construction techniques using JBL PlyMax^® provide exceptionally rigid, lightweight enclosure
Rugged DuraFlex™ exterior finish; Weatherized loudspeaker cone.
Patented, integrated S.A.F.E™ suspension system: premium heat-treated alloys provide rigid, reliable hanging arrays designed for vertical orientation at various angles.

Descarregamentos

Documentos

	Idioma	Tamanho	Carregado
DPDA Input Module Spec Sheet atualizado: abr 2026		500 KB	abr 2026
VT4881 ADPDA Spec Sheet atualizado: abr 2026		1 MB	abr 2026
VT4881ADP Spec Sheet atualizado: abr 2026		400 KB	abr 2026

Specifications

	Tamanho	Carregado
VT4881ADPDA Spec Sheet atualizado: jul 2019	1 MB	jul 2019
DPDA Input Module Spec Sheet atualizado: jul 2019	500 KB	jul 2019
VT4881ADP Spec Sheet atualizado: jul 2019	400 KB	jul 2019

Brochures

	Tamanho	Carregado
VerTec Line Brochure atualizado: out 2020	2 MB	out 2020

CAD Drawings

	Tamanho	Carregado
VT4881ADP 3D DXF atualizado: jul 2019	300 KB	jul 2019
VT4881ADP 2D DXF atualizado: jul 2019	4 MB	jul 2019
VT4881ADP 2D PDF atualizado: jul 2019	100 KB	jul 2019

Compliances

	Tamanho	Carregado
VerTec Series (Powered) Declaration of Conformity atualizado: out 2019	90 KB	out 2019

Software

	Versão	Tamanho	Carregado
Vertec Line Array Calculator versão 1.3.1, publicado: ago 2023	1.3.1	20 MB	ago 2023
PerformanceManager versão 3.2.0, atualizado: set 2025	3.2.0	100 MB	set 2025

Speaker Tunings

	Tamanho	Carregado
VT4881ADPDA V4Preset atualizado: out 2019	30 KB	out 2019
V4 DSP_DPCN_VT4881ADP atualizado: out 2019	60 KB	out 2019
V4 DSP DPAN_VT4881ADP atualizado: out 2019	50 KB	out 2019
VTDP ALL LIBRARIES V4 Preset atualizado: out 2020	700 KB	out 2020

Accessories

	Tamanho	Carregado
VT Compact Array Frame and Adapter CAD atualizado: out 2020	7 MB	out 2020

User Guides

	Tamanho	Carregado
Compact Powered Line Array Systems User’s Guide atualizado: out 2020	900 KB	out 2020
VerTec DP Compact User’s Guide atualizado: out 2020	2 MB	out 2020

Images

	Tamanho	Carregado
VT4881ADP Photo atualizado: jul 2019	1000 KB	jul 2019

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range	25 Hz - 160 Hz (-10 dB)
Frequency Response	34 Hz - 125 Hz (-3 dB)
Power Rating	3600W Peak1800W Continuous
Maximum Peak Output	131 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm
Dimensions (w x h x d)	787 mm x 569 mm x 800 mm (31 in x 22.4 in x 31.5 in)
Net Weight	62.2 kg (137 lb.)
