VT4881ADP-DA, VT4881ADP (arrêté)

Powered Compact Arrayable 1-18" Subwoofer

VT4881ADP-DA, VT4881ADP
Grandes images

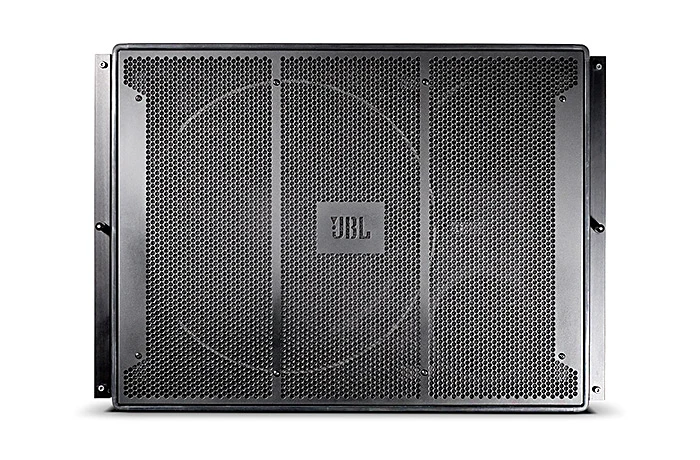

Powered Compact Arrayable 1-18" Subwoofer

The VT4881ADP Compact Powered 18" Arrayable Subwoofer is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio, corporate A/V and theatrical presentations of all types. Ideal companion to VT4887ADP compact three-way systems.

Caractéristiques

  • New 2269G Advanced Technology Component: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducer with Ultra-Long Excursion capabilities
  • JBL DrivePack® technology delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosure, with comprehensive digital signal processing.
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz.
  • Advanced construction techniques using JBL PlyMax® provide exceptionally rigid, lightweight enclosure
  • Rugged DuraFlex™ exterior finish; Weatherized loudspeaker cone.
  • Patented, integrated S.A.F.E™ suspension system: premium heat-treated alloys provide rigid, reliable hanging arrays designed for vertical orientation at various angles.

Téléchargements

  Version Language Size Uploaded
file type icon DPDA Input Module Spec Sheet
en updated: mars 2024
  en  475 ko mars 2024
file type icon VT4881 ADPDA Spec Sheet
en updated: mars 2024
  en  1,11 Mo mars 2024
file type icon VT4881ADP Spec Sheet
en updated: mars 2024
  en  431 ko mars 2024
Specifications
file type icon VT4881ADPDA Spec Sheet
updated: juil. 2019
    1,11 Mo juil. 2019
file type icon DPDA Input Module Spec Sheet
updated: juil. 2019
    475 ko juil. 2019
file type icon VT4881ADP Spec Sheet
updated: juil. 2019
    431 ko juil. 2019
Brochures
file type icon VerTec Line Brochure
updated: oct. 2020
    2,09 Mo oct. 2020
CAD Drawings
file type icon VT4881ADP 3D DXF
updated: juil. 2019
    256 ko juil. 2019
file type icon VT4881ADP 2D DXF
updated: juil. 2019
    4,06 Mo juil. 2019
file type icon VT4881ADP 2D PDF
updated: juil. 2019
    118 ko juil. 2019
Compliances
file type icon VerTec Series (Powered) Declaration of Conformity
updated: oct. 2019
    89,4 ko oct. 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: août 2023
1.3.1     18 Mo août 2023
platform icon PerformanceManager
version 3.0.0, updated: fév. 2024
3.0.0     124 Mo fév. 2024
Speaker Tunings
file type icon VT4881ADPDA V4Preset
updated: oct. 2019
    30,1 ko oct. 2019
file type icon V4 DSP_DPCN_VT4881ADP
updated: oct. 2019
    55 ko oct. 2019
file type icon V4 DSP DPAN_VT4881ADP
updated: oct. 2019
    52,5 ko oct. 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: oct. 2020
    680 ko oct. 2020
Accessories
file type icon VT Compact Array Frame and Adapter CAD
updated: oct. 2020
    7,3 Mo oct. 2020
User Guides
file type icon Compact Powered Line Array Systems User’s Guide
updated: oct. 2020
    906 ko oct. 2020
file type icon VerTec DP Compact User’s Guide
updated: oct. 2020
    1,91 Mo oct. 2020
Images

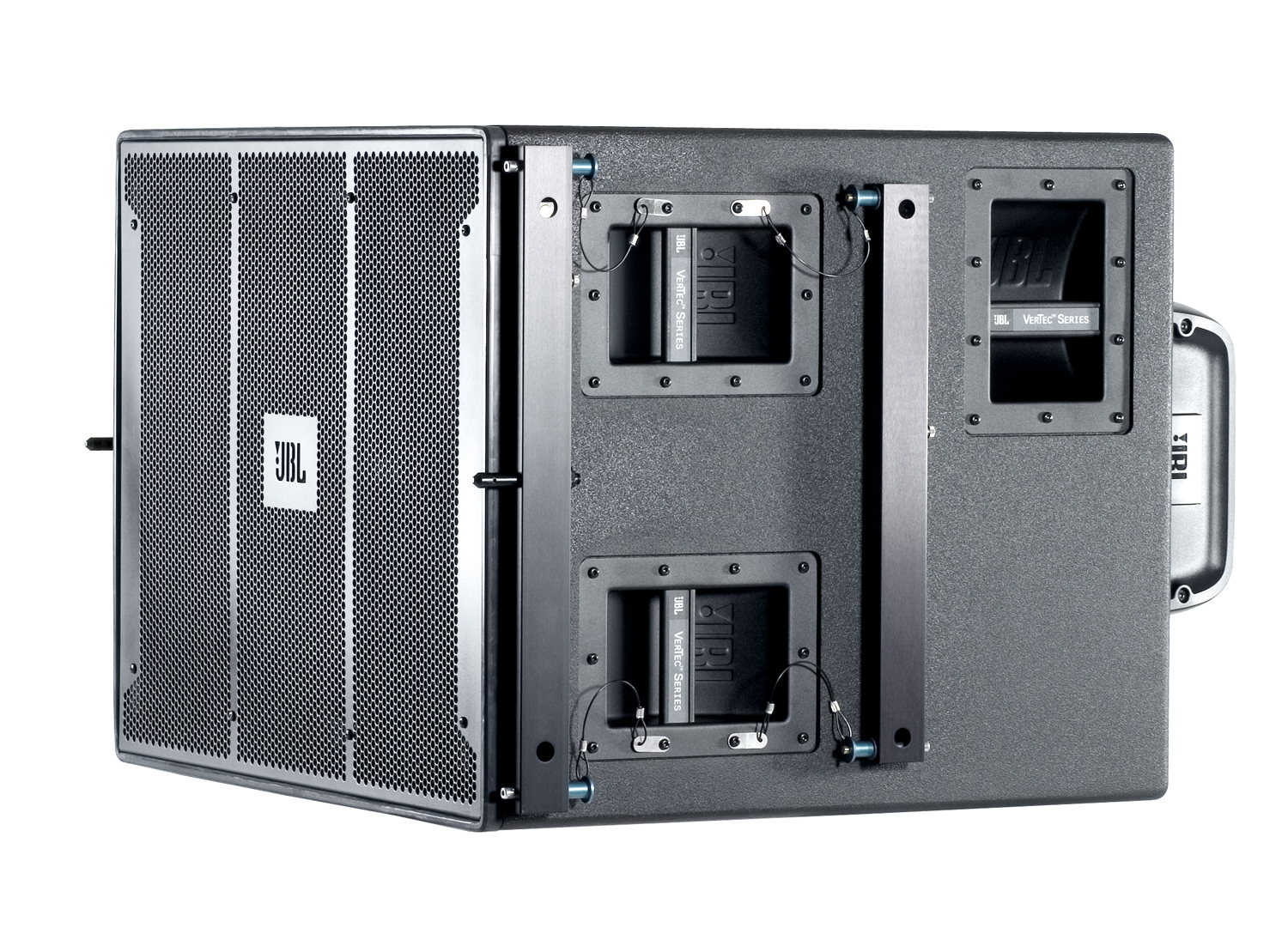

file type icon VT4881ADP Photo
updated: juil. 2019
    954 ko juil. 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range 25 Hz - 160 Hz (-10 dB)
Frequency Response 34 Hz - 125 Hz (-3 dB)
Power Rating 3600W Peak1800W Continuous
Maximum Peak Output 131 dB SPL, 1m
Bandpass Nominal Impedance 4 ohm
Dimensions (w x h x d) 787 mm x 569 mm x 800 mm (31 in x 22.4 in x 31.5 in)
Net Weight 62.2 kg (137 lb.)
