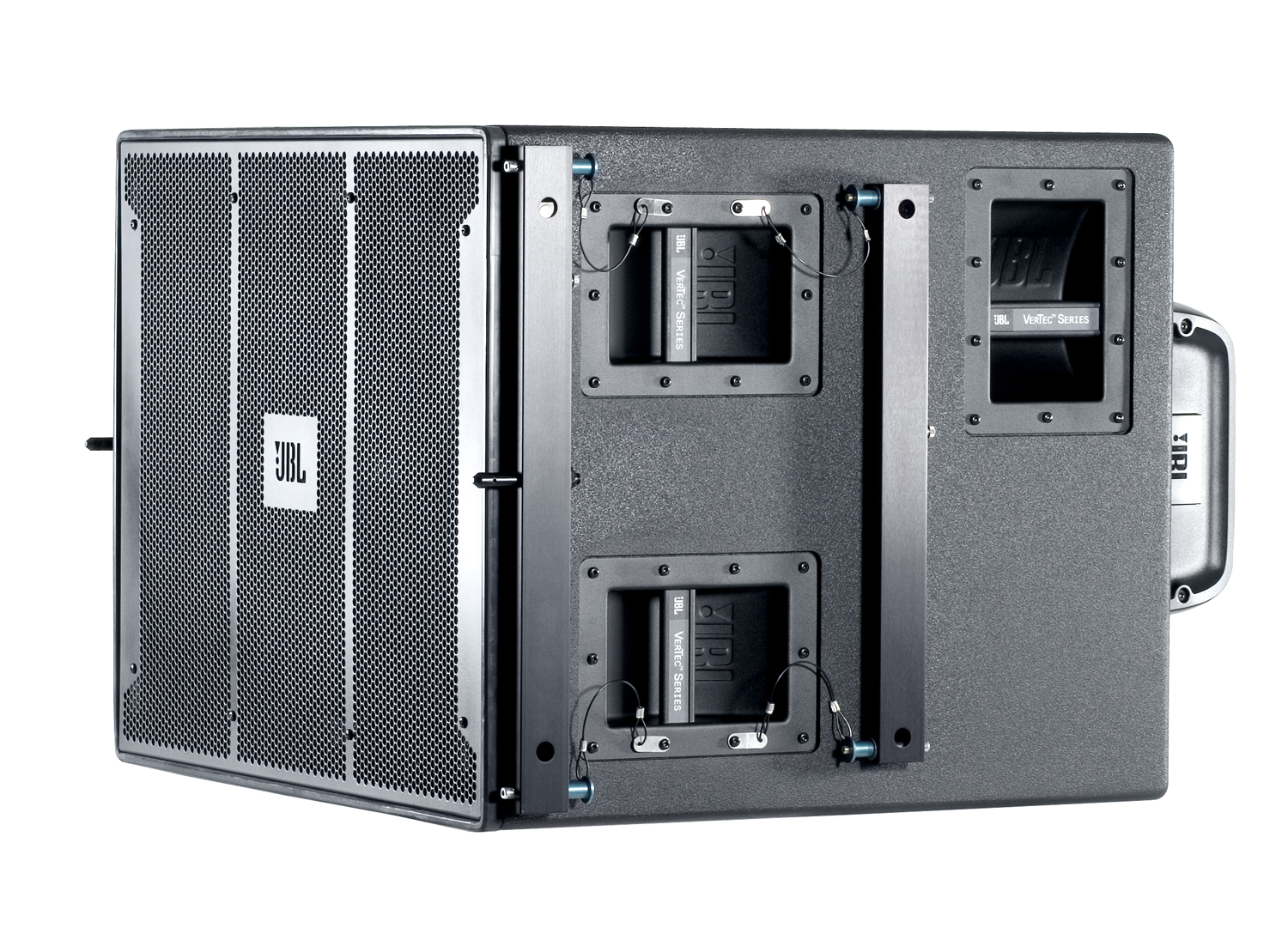

JBL Professional VT4881ADP-DA, VT4881ADP

Gambar Lebih Besar

Powered Compact Arrayable 1-18" Subwoofer

The VT4881ADP Compact Powered 18" Arrayable Subwoofer is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio, corporate A/V and theatrical presentations of all types. Ideal companion to VT4887ADP compact three-way systems.

Fitur

New 2269G Advanced Technology Component: Differential Drive^® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducer with Ultra-Long Excursion capabilities
JBL DrivePack^® technology delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosure, with comprehensive digital signal processing.
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages are automatically selected for 50 or 60 Hz.
Advanced construction techniques using JBL PlyMax^® provide exceptionally rigid, lightweight enclosure
Rugged DuraFlex™ exterior finish; Weatherized loudspeaker cone.
Patented, integrated S.A.F.E™ suspension system: premium heat-treated alloys provide rigid, reliable hanging arrays designed for vertical orientation at various angles.

Unduhan

Dokumen

	Bahasa	Ukuran	Diunggah
DPDA Input Module Spec Sheet diperbarui: Apr 2026		475 KB	Apr 2026
VT4881 ADPDA Spec Sheet diperbarui: Apr 2026		1,11 MB	Apr 2026
VT4881ADP Spec Sheet diperbarui: Apr 2026		431 KB	Apr 2026

Specifications

	Ukuran	Diunggah
VT4881ADPDA Spec Sheet diperbarui: Jul 2019	1,11 MB	Jul 2019
DPDA Input Module Spec Sheet diperbarui: Jul 2019	475 KB	Jul 2019
VT4881ADP Spec Sheet diperbarui: Jul 2019	431 KB	Jul 2019

Brochures

	Ukuran	Diunggah
VerTec Line Brochure diperbarui: Okt 2020	2,09 MB	Okt 2020

CAD Drawings

	Ukuran	Diunggah
VT4881ADP 3D DXF diperbarui: Jul 2019	256 KB	Jul 2019
VT4881ADP 2D DXF diperbarui: Jul 2019	4,06 MB	Jul 2019
VT4881ADP 2D PDF diperbarui: Jul 2019	118 KB	Jul 2019

Compliances

	Ukuran	Diunggah
VerTec Series (Powered) Declaration of Conformity diperbarui: Okt 2019	89,4 KB	Okt 2019

Software

	Versi	Ukuran	Diunggah
Vertec Line Array Calculator versi 1.3.1, dirilis: Agu 2023	1.3.1	18 MB	Agu 2023
PerformanceManager versi 3.3.0, diperbarui: Jul 2026	3.3.0	136 MB	Jul 2026

Speaker Tunings

	Ukuran	Diunggah
VT4881ADPDA V4Preset diperbarui: Okt 2019	30,1 KB	Okt 2019
V4 DSP_DPCN_VT4881ADP diperbarui: Okt 2019	55 KB	Okt 2019
V4 DSP DPAN_VT4881ADP diperbarui: Okt 2019	52,5 KB	Okt 2019
VTDP ALL LIBRARIES V4 Preset diperbarui: Okt 2020	680 KB	Okt 2020

Accessories

	Ukuran	Diunggah
VT Compact Array Frame and Adapter CAD diperbarui: Okt 2020	7,3 MB	Okt 2020

User Guides

	Ukuran	Diunggah
Compact Powered Line Array Systems User’s Guide diperbarui: Okt 2020	906 KB	Okt 2020
VerTec DP Compact User’s Guide diperbarui: Okt 2020	1,91 MB	Okt 2020

Images

	Ukuran	Diunggah
VT4881ADP Photo diperbarui: Jul 2019	954 KB	Jul 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	25 Hz - 160 Hz (-10 dB)
Frequency Response	34 Hz - 125 Hz (-3 dB)
Power Rating	3600W Peak1800W Continuous
Maximum Peak Output	131 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm
Dimensions (w x h x d)	787 mm x 569 mm x 800 mm (31 in x 22.4 in x 31.5 in)
Net Weight	62.2 kg (137 lb.)
