JBL Professional VP7215/95DPC

Imagens maiores

Powered 15" 2-way Integrated Loudspeaker System

The VP7215/95DPC is a powered 15" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.

Características

Compact Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable
or installed use
1750 watts peak output power, 875 watts continuous
Optimized for both portable/rental or permanent-venue use
15-inch Differential Drive® lowfrequency driver for extended lowfrequency output
Robust powder-coated die cast aluminum handles, designed for strength and comfort
Integrated 35 mm stand mount

Descarregamentos

Documentos

	Idioma	Tamanho	Carregado
VP Series Brochure atualizado: abr 2026		3 MB	abr 2026
VP7215/95DPC Spec Sheet atualizado: abr 2026		300 KB	abr 2026

Specifications

	Tamanho	Carregado
VP7215/95DPC Spec Sheet atualizado: jul 2019	300 KB	jul 2019

Brochures

	Tamanho	Carregado
VP Series Brochure atualizado: jul 2019	3 MB	jul 2019

CAD Drawings

	Tamanho	Carregado
VP7215/95DPC 2D pdf atualizado: jul 2019	80 KB	jul 2019
VP7215/95DPC 2d dxf atualizado: jul 2019	400 KB	jul 2019
VP7215/95DPC 3D dxf atualizado: jul 2019	10 KB	jul 2019

Simulation Data

	Versão	Tamanho	Carregado
Ease SPK/DLL Files - Full JBL Pro Line atualizado: mai 2024		20 MB	mai 2024
JBL Pro ALL CLF Files versão 12-10-21, atualizado: mai 2023	12-10-21	20 MB	mai 2023

Images

	Tamanho	Carregado

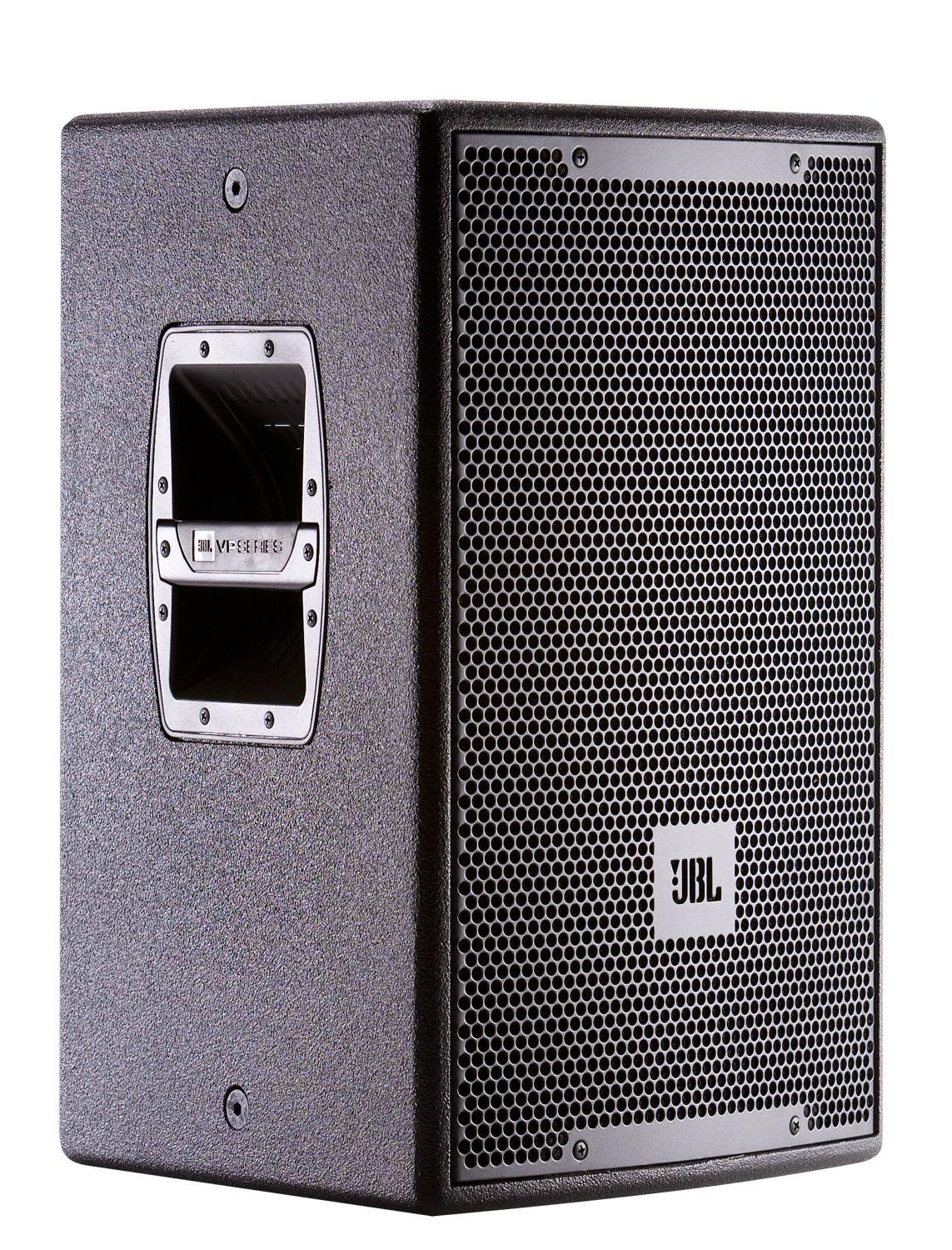

VP7212/95DPC Hi-res image atualizado: jul 2019	600 KB	jul 2019

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range	45 Hz to 20 kHz (-10 dB)
Frequency Response	60 Hz to 18 kHz ( ± 3 dB)
Coverage Pattern	90° x 50°
Directivity Factor (Q)	12.6
Directivity Index (DI)	11 dB
Maximum Peak Output1	135 dB SPL 1m
Low Frequency Section	JBL 2265FF, 381 mm (15 in) dia., 76 mm (3 in) Dual Coil Neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	2 x 2 ohms
High Frequency	JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit
DPC1 Internal Amplification Output	1750 Watts Peak
DPC1 Output (Continuous IEC shaped pink noise into rated load impedance):	750LF/125HF Watts
Audio Input Connector	XLR with loop-through
User Controls	80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing	DSP Based, resident in Input Module
System Management	DSP based limiters for mechanical
AC Power Oprating Range	90-132 VAC/216-264 VAC, 50/60 Hz
AC Input Connector	Neutrik PowerCon
AC Loop-thru	Neutrik PowerCon
AC Current Requirement:	6A per system at 120V, 3A
Box Construction	5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System	13 M10 Fittings, 35 mm pole mount socket
Grille	14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D)	613 x 434 x 359 mm (24.1 x 17.1 x 14.1 in)
Net Weight	24.7 kg (55 lb)
